Antenna frequency: 5x (1710-2170) MHz
3dB azimuth beamwidth: 13 °
Gain: 21.8 dBi
Electrical downtilt: Fixed 6 °
Connector: 10 x 7/16 DIN Female
Dimension: 806 x 836 x 116 mm
Status of product: general available

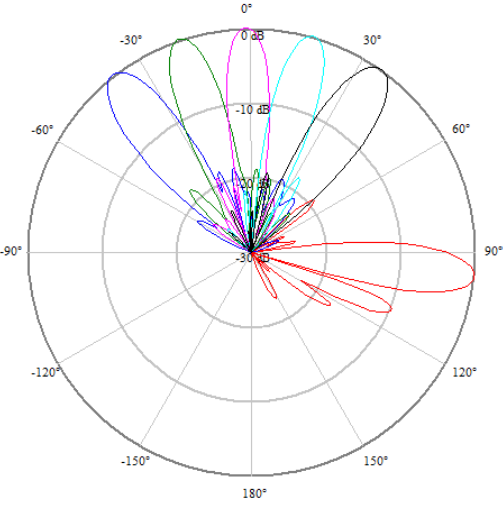

Pente Beam Antenna
Fixed Electrical Tilt
| Frequency | 5x (1710-2170) MHz |
| Gain | 21.8 dBi |
| 3dB Azimuth Beamwidth | 13 ° |
| Electrical Downtilt | Fixed 6 ° |
| 1st Upper Sidelobe Suppression | > 17 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 28 |
| Beam Isolation | > 13 |
| 3rd PIM(2 x 43 dBm) | < -150 dBc |
| Impedance | 50 Ω |

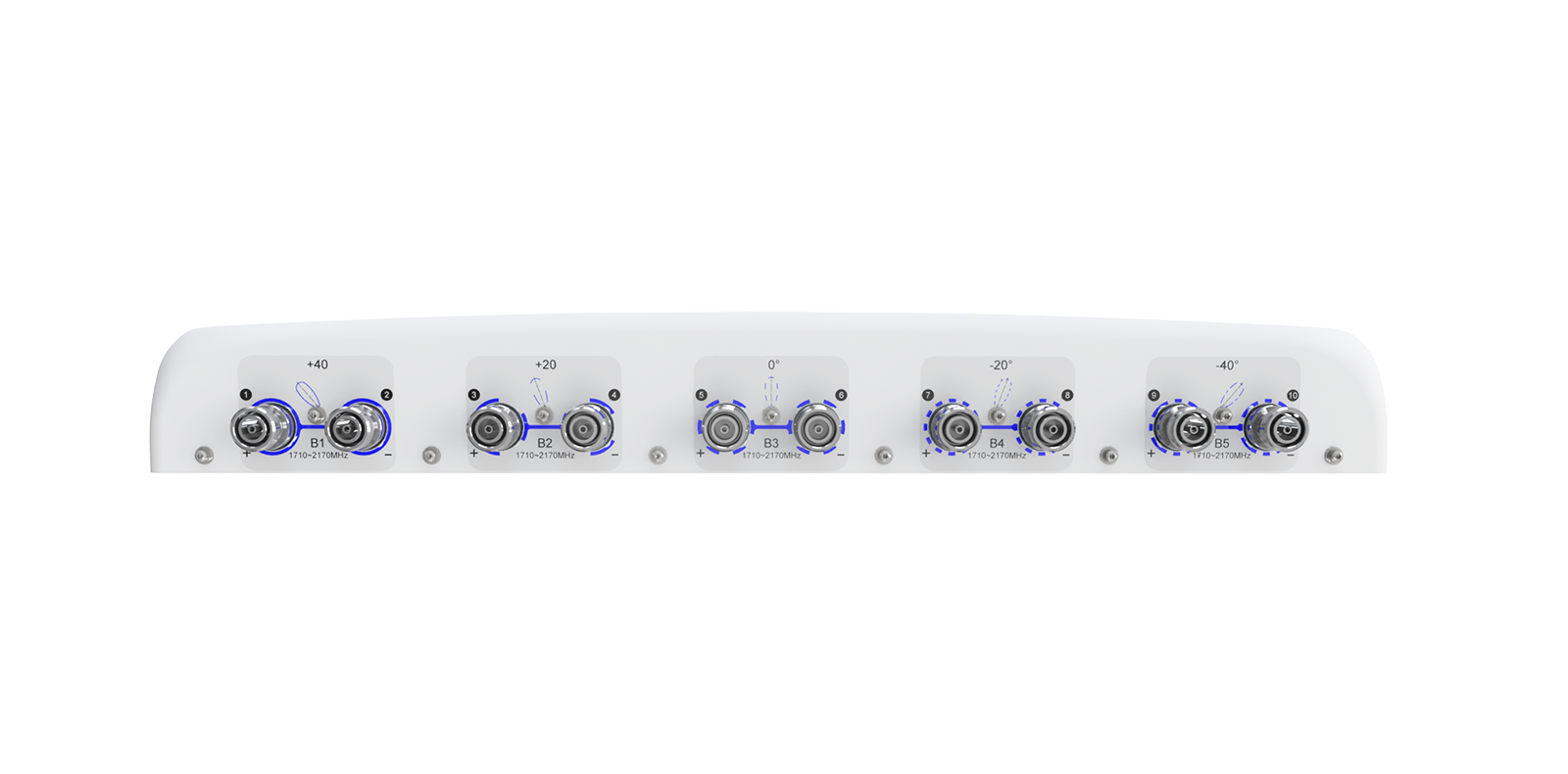

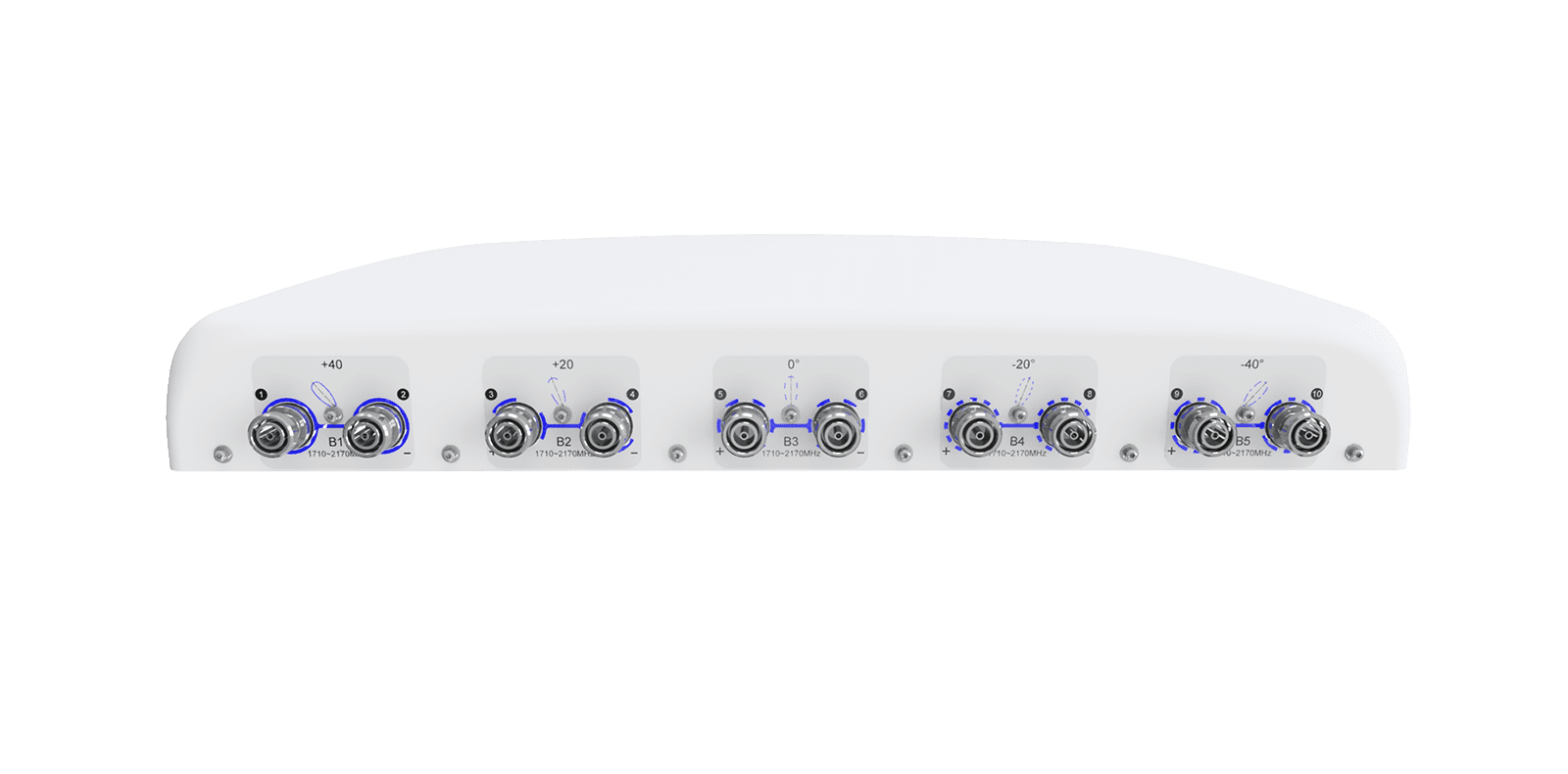

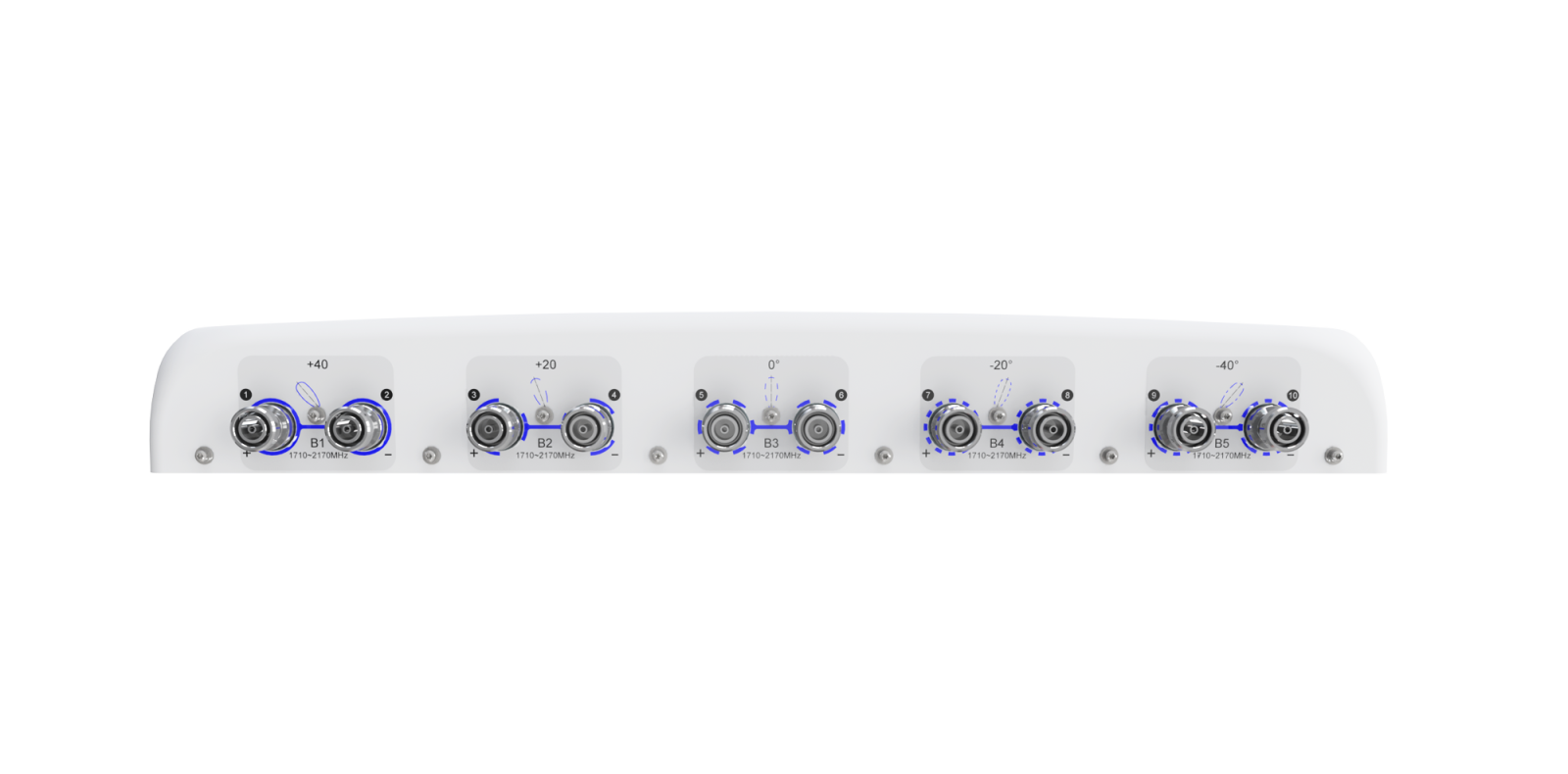

| Connector Type | 10 x 7/16 DIN Female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 806 x 836 x 116 mm | 31.7 x 32.9 x 4.6 in |
| Packing Size (H x W x D) | 1265 x 1105 x 285 mm | 49.8 x 43.5 x 11.2 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 804 N | 181 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| 1710-2170 |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | 85-1_B | 4.7 kg / 10.4 lb | 0-12 |

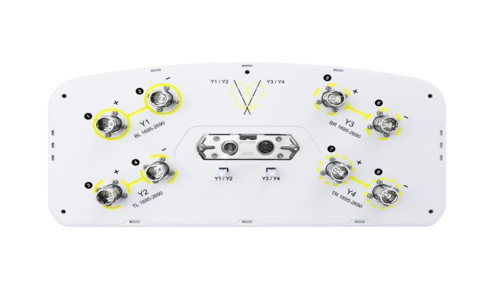

Antenna frequency: 4 x (1695-2690) MHz
.png)

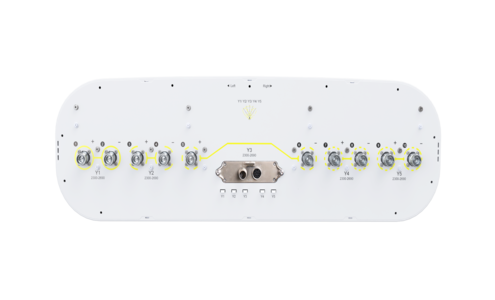

Antenna frequency: 5 x (2300-2690) MHz

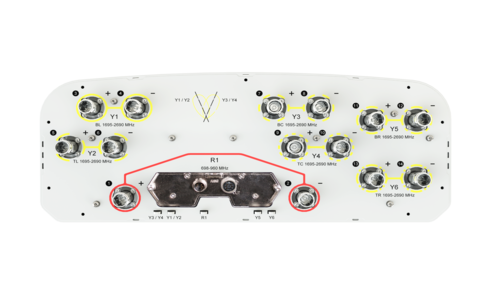

Antenna frequency: 698-960 + 2 x (1695-2690) + 4x (1695-2690)(twinbeam) MHz

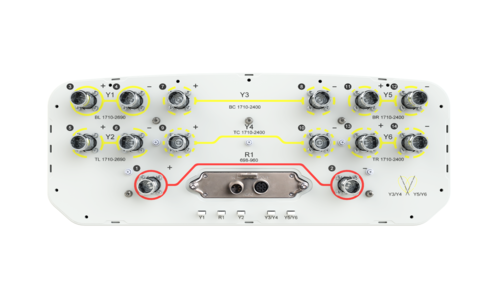

Antenna frequency: 698-960 + 2 x (1710-2690) + 4x (1710-2400)(twinbeam) MHz
