Antenna frequency: 698-960 + 2 x (1695-2690) + 4x (1695-2690)(twinbeam) MHz
3dB azimuth beamwidth: 65 / 65 / 33 (°)
Gain: 15.1/17.7/19.1 (dBi)
Electrical downtilt: 2-12 (°)
Connector: 14 x 7/16 DIN female
Dimension: 2090 x 498 x 197 (mm)
Status of product: general available
Twin Beam Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 698-960 + 2 x (1695-2690) + 4x (1695-2690)(twinbeam) MHz |
| Gain | 15.1/17.7/19.1 dBi |

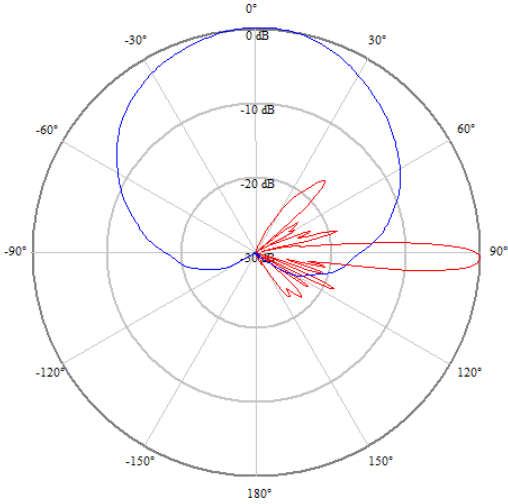

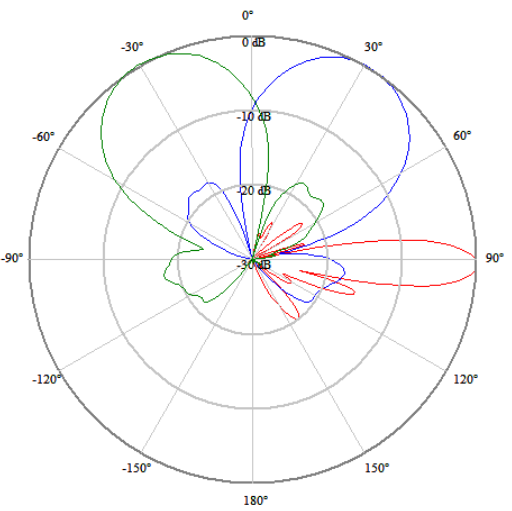

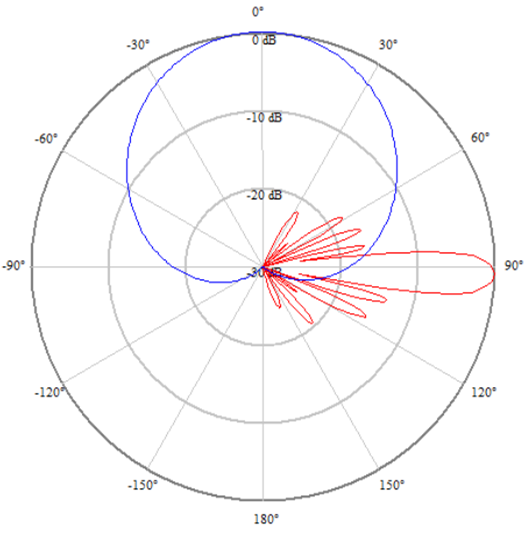

| 3dB Azimuth Beamwidth | 65 /65 / 33 ° |
| Electrical Downtilt | 2-12 ° |
| 1st Upper Sidelobe Suppression | > 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 26 |
| Inter - Cluster Isolation | R1//Y1,Y2,Y3,Y4,Y5,Y6 >28 |
| 3rd PIM(2 x 43 dBm) | < -150 dBc |
| Impedance | 50 Ω |

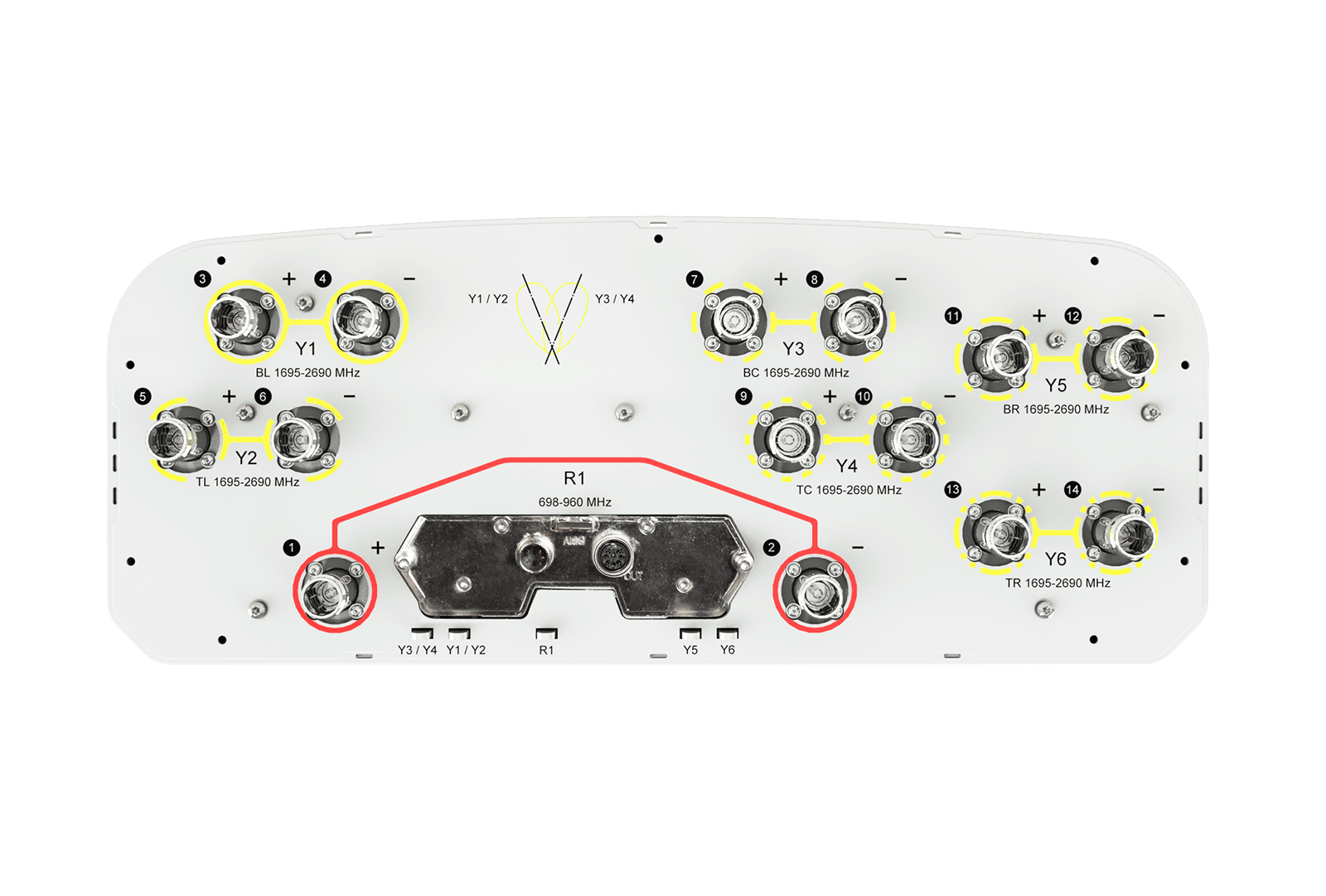

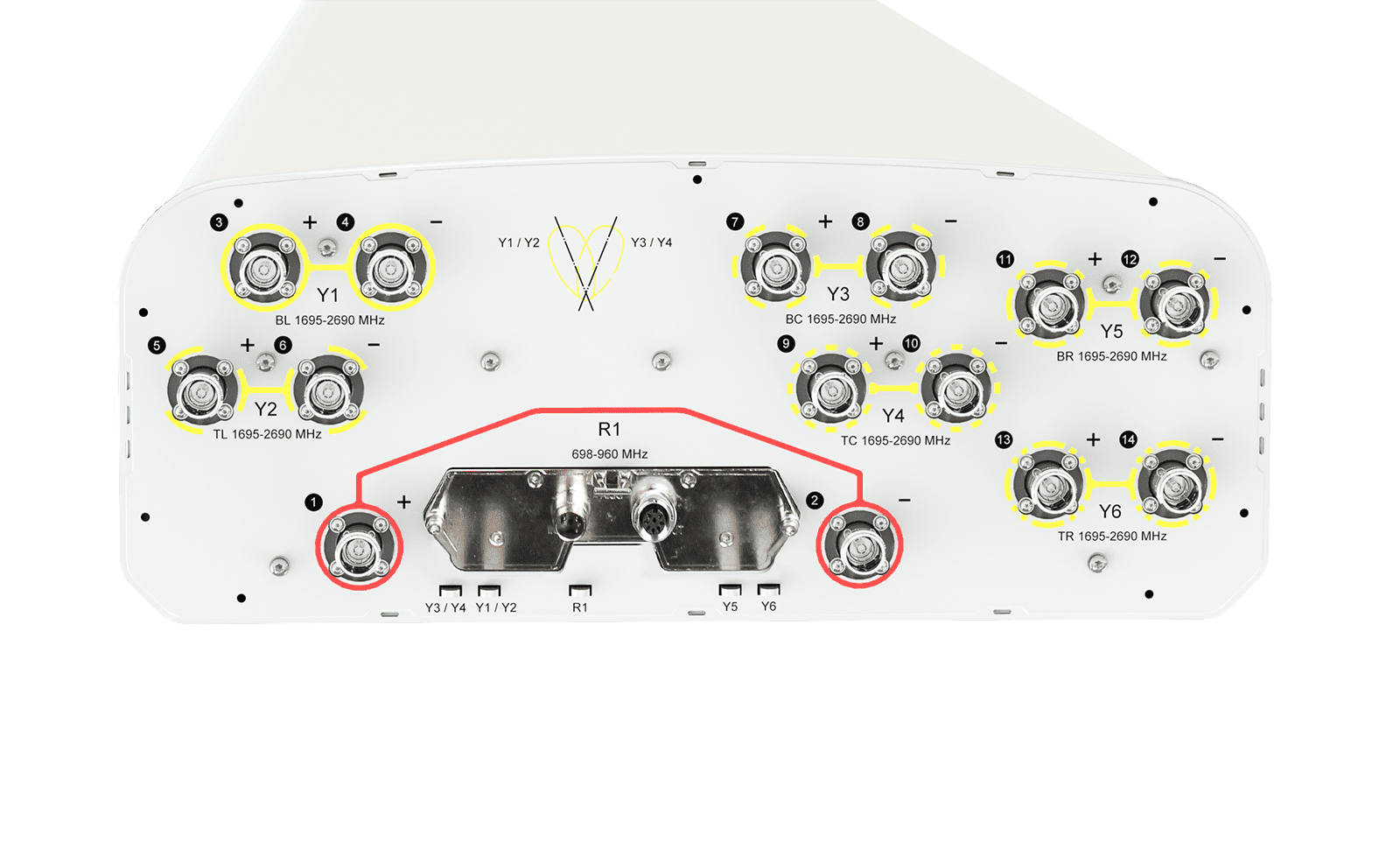

| Connector Type | 14 x 7/16 DIN Female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2090 x 498 x 197 mm | 82.3 x 19.6 x 7.8 in |
| Packing Size (H x W x D) | 2240 x 575 x 370 mm | 88.2 x 22.6 x 14.6 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1008 N | 227 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 to +70 °C | -40 to +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 698-960 | 1695-2690 | 1695-2690(twinbeam) | |
![]() |
![]() |
![]() |
|

| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | RAPMK-T1700 | 4.1 kg / 9.0 lb | 0-10 |
