FTTA / PTTA Site Cabling

Our Solution

FTTA Protection Solutions

FTTA solutions contain RF cables, power cables and CPRI cables from the bottom of the tower (BBU) to the top (RRU). In some regions of the world, birds and rodent animals may destroy the installed cables, which will impact the network performance as well as the operator OPEX.

To protect those cables on the tower, PROSE developed two solutions for the birdproof and rodent proof in different application.

One is by using additional structure, the second is by change the ingredient of standard structure.

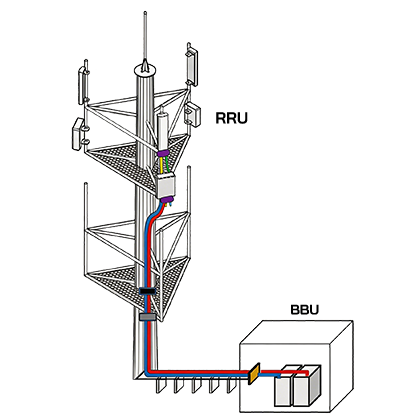

Figure 1 FTTA site solution

Scenario 1: Protection by Additional Structure

Figure 2 Cables in the FTTA solution

Additional Material

1) Corrugated PA6 conduit for cable protection

2) Weatherproof boot and PA6 shell for connector protection

3) PA6 shell for branching point protection

Benefit

No need to change the original material of the cable

Different dimensions are available for special design

Special materials & instructions are available on request

Typical Material

PA6 conduct

Feature

High Mechanical Strength:
PA6 has excellent tensile strength and stiffness and is a high-strength material with excellent mechanical properties and good impact resistance.

Good Wear Resistance:
PA6 has good wear resistance, can withstand friction and wear for a long time, and is widely used in bearings, tires and other fields.

Excellent High Temperature Performance:
PA6 has excellent high temperature resistance and can withstand high temperatures up to 180°C.

High Corrosion Resistance:
PA6 has high corrosion resistance to a wide range of chemicals, such as acids, alkalis, oils, and pharmaceuticals.

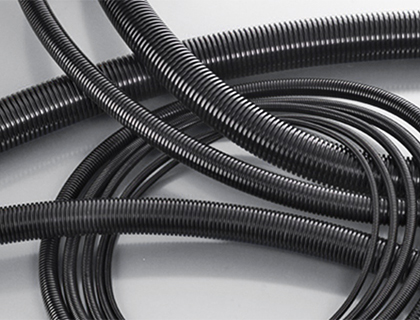

Figure 3 PA6 conduit

Demo Samples Used in Australia

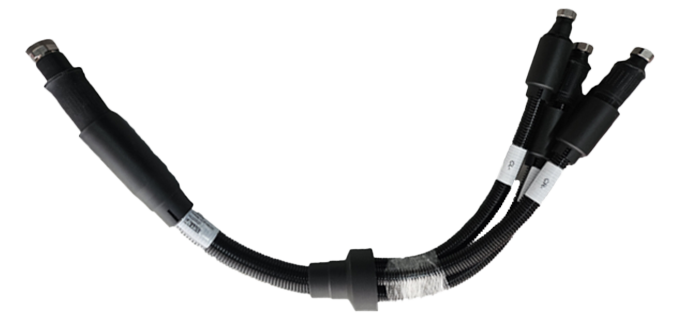

Figure 4 Birdproof conduit jumper cable

Scenario 2: Use Common Structure

Figure 5 Cables in the FTTA solution

Benefit

No need to add new instruction or materials

Easy to make branching points

Easy to use original connectors and accessories

Typical Material

PA6 pellets

Black color to be UV resistant

Feature

All-in-one solid and smooth jacket

Lightweight design

Easy to install

Original Material

Jacket material using PA6, no need additional instruction

Figure 6 black PA6 pellets

Hybrid cable fiber and power multi-cores

Power cable 2 cores and multi-cores

Fiber cable 2 cores and multi-cores

Typical FTTA/PTTA Solutions

1) Discrete Fiber and Power Cables

General Description

Separate fiber cable and power cable

1 fiber cable for RRU signal

1 power cable for RRU running

Feature and Benefit

Each RRU is directly connected to the BBU by one fiber cable and one power cable

Easy to install, and no impact to other cables

DLC fiber cable for SFP model, special protect plug for different manufacture

2x2.5mm² to 2x25mm² power cable available

Shield structure used for grounding kit assemble

UV resistance, flame resistance, heat resistance and RoHS compliant

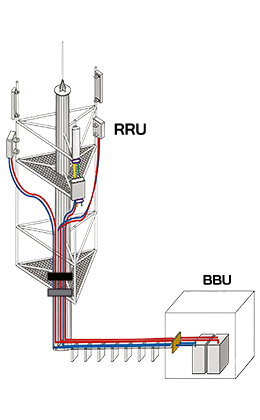

Figure 7 Discrete Solution

Application

Fiber Cable
G657A2 fiber, 2 cores / 4 cores
LC / UPC connector, with waterproof kit
Power Cable
Copper or tinned copper, 2 cores
In field cut or pre-made plug

Product Feature

Temperature range -40 °C to +85 °C
High UV resistance
Good fire retardant
IP67 protection

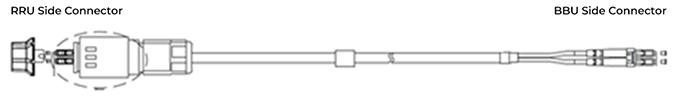

Figure 8 CPRI cable 2 cores

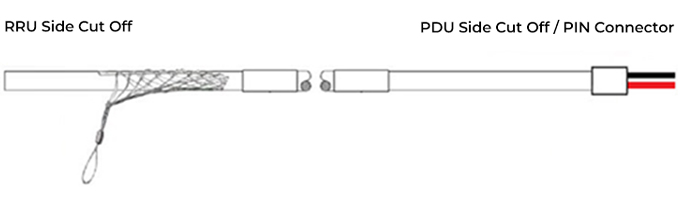

Figure 9 Power cable 2 cores

Figure 10 Centralized Solution I

2) Centralized Fiber and Power Cables (I)

General Description

Separate fiber trunk and power trunk

1 fiber trunk for all RRUs signal

1 power trunk for all RRUs running

Feature and Benefit

Multi RRUs are connected to BBUs by one fiber trunk

Multi RRUs are connected to PDU by one power trunk

Easy to maintain the cables

DLC fiber cable for SFP model, special protect plug for different manufacture

2x2.5mm² to 6x25mm² power cable available

Shield structure used for grounding kit assemble

UV resistance, flame resistance, heat resistance and RoHS compliant

Application

Fiber Cable
G657A2 fiber, multi-cores
LC / UPC connector, with waterproof kit
Power Cable
Copper or tinned copper, multi-cores
In field cut or pre-made plug

Product Feature

Temperature range -40 °C to +85 °C
High UV resistance
Good fire retardant
IP67 protection

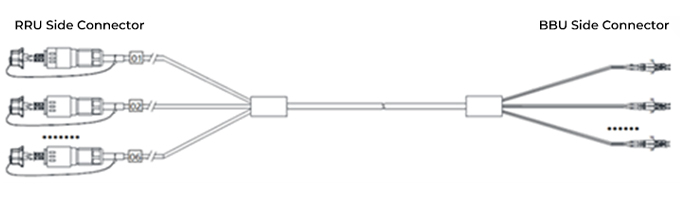

Figure 11 CPRI cable multi-cores

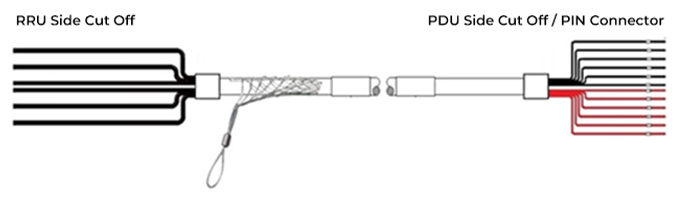

Figure 12 Power cable multi-cores

3) Centralized Fiber and Power Cables (II), Weatherproof Connector

General Description

Multi-cores fiber trunk and power trunk with ODC / OQC connector

Fiber / power trunk connected to fiber / power jumper through waterproof connector without distribution box

Fiber jumper on top side

Power jumper on top side

Feature and Benefit

Fiber / power trunk connected to fiber / power jumper directly, convenient and efficient

Easy to install on site, saves time and manpower

DLC fiber cable on RRU side for SFP model, special protect plug for different manufacture

6mm² / 10mm² / 16mm² or other power cables are available

Hoisting grip pre-assembled on the trunk for tower raise

Alarm / control wire available on request

UV resistance, flame resistance, heat resistance and RoHS compliant insulation & jacket

3) Centralized Fiber and Power Cables (II), Weatherproof Connector

Figure 13 Direct Solution

Application

From BBU to RRU
Single fiber trunk with up to 24 pairs
OQC / ODC at tower top
LC connectors at tower bottom

Product Feature

Temperature range -40 °C to +85 °C
High UV resistance
Fire retardant
IP67 protection

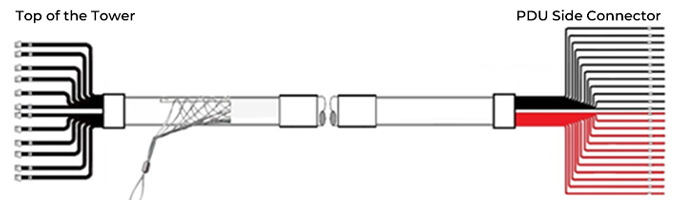

Figure 14 Power cable multi-cores with weatherproof connector

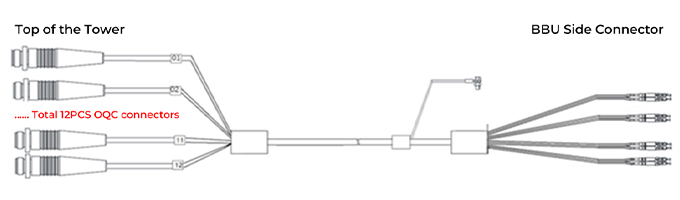

Figure 15 Fiber cable multi-cores with weatherproof connector

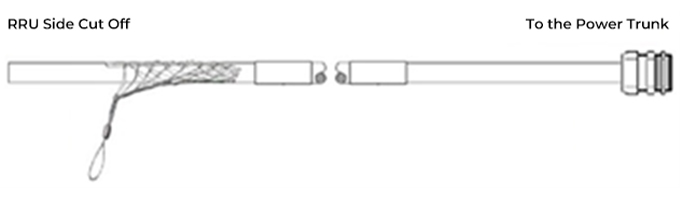

Figure 16 Power cable 2 cores with weatherproof connector

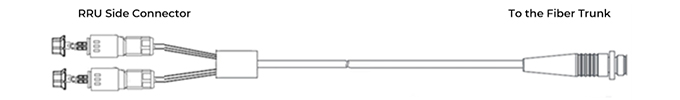

Figure 17 Fiber cable 4 cores with weatherproof connector

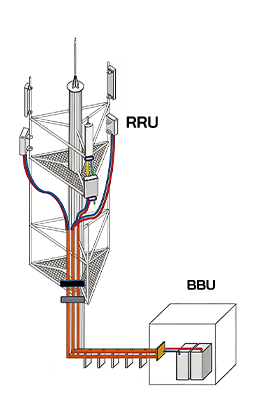

Figure 18 Hybrid Solution I

4) Hybrid Fiber and Power Cables (I)

General Description

1pair (2 cores) fiber and 1 pair (2 cores) power combined in one hybrid cable

Feature and Benefit

Each RRU is directly connected to the BBU by one hybrid cable

DLC fiber cable for SFP model, special protect plug for different manufacture

6mm² / 10mm² / 16mm² or other power cables are available

Hoisting grip pre-assembled on the trunk for tower raise

Alarm/control wire available on request

UV resistance, flame resistance, heat resistance and RoHS compliant insulation & jacket

Application

Hybrid Cable
G657A2 fiber, multi-cores
LC/UPC connector, with waterproof kit
Copper or tinned copper, multi-cores
In field cut or pre-made plug

Product Feature

Temperature range -40 °C to +85 °C
High UV resistance
Improved fire retardant
IP67 protection

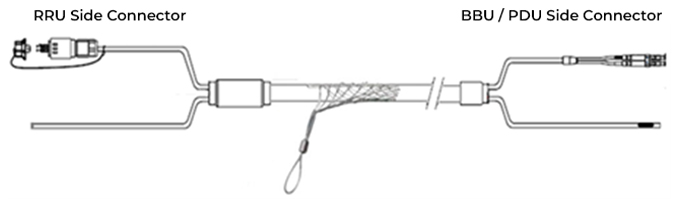

Figure 19 Hybrid cable 2 powers and 2 fibers

5) Hybrid Fiber and Power Cables (II), with Box

General Description

Multi-cores hybrid trunk on bottom side

Hybrid distribution box connected hybrid trunk to distribute fiber and power jumper

Fiber jumper on top side

Power jumper on top side

Feature and Benefit

Each RRU is directly connected to the BBU by one hybrid cable

Easy to scale and can flexibly adjust the distance from the distribution box to the RRU through jumpers

DLC fiber cable for SFP model, special protect plug for different manufacture

6mm² / 10mm² / 16mm² or other power cables are available

Hoisting grip pre-assembled on the trunk for tower raise

Alarm / control wire available on request

UV resistance, flame resistance, heat resistance and RoHS compliant insulation & jacket

5) Hybrid Fiber and Power Cables (II), with Box

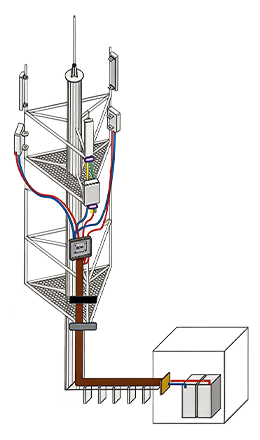

Figure 20 Hybrid Solution II

Application

Hybrid Cable
G657A2, multi-cores for all RRUs
Copper or tinned copper, multi-cores for all RRUs
Fiber Jumper
G657A2, 2 cores / multi-cores for 1 RRU, LC / UPC connector, with waterproof kit
Power Jumper
Copper or tinned copper, multi-cores
In field cut or pre-made plug

Box

ABS / PC material
With fiber adapter and power terminal

Product Feature

Temperature range -40 °C to +85 °C
High UV resistance
Good fire retardant
IP67 protection

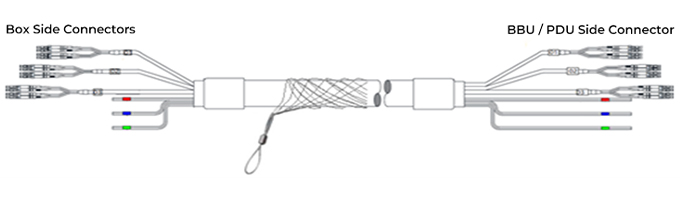

Figure 21 Hybrid cable multi-powers and multi-fibers

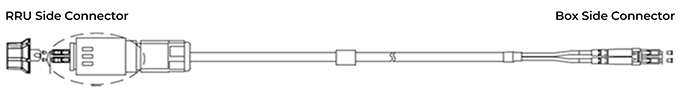

Figure 22 Fiber jumper 2 cores

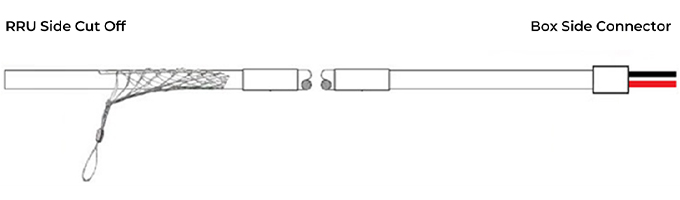

Figure 23 Power cable 2 cores

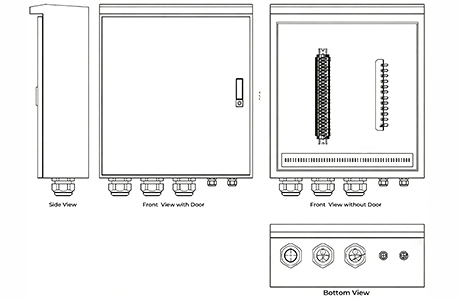

Figure 24 Hybrid cable 2 powers and 2 fibers

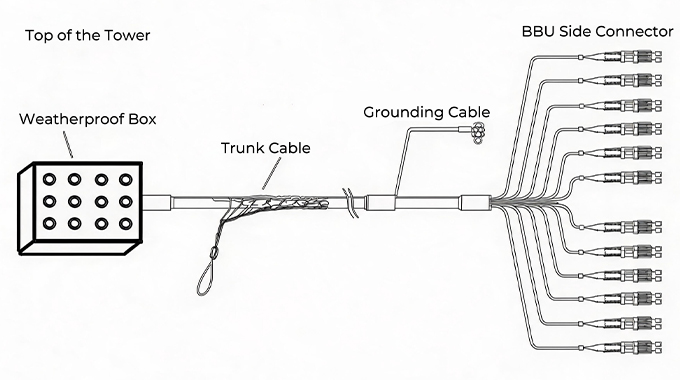

Figure 26 Hybrid cable with distribution box

6) Enhanced FTTA / PTTA Solutions: Open-free Fiber Box, Alligator Type

General Description

Multi-cores fiber trunk and power trunk on bottom side

Open-free fiber distribution box connecting fiber trunk to fiber jumper

Open-free power distribution box connecting power trunk to power jumper

Fiber jumper on top side

Power jumper on top side

Feature and Benefit

Pre-connectorized and open-free box can save installation time and manpower

Fiber trunk and power trunk installed separately, convenient for maintenance

DLC fiber cable for SFP model, special plug protection for different manufacture

6mm² / 10mm² / 16mm² or other power cables are available

Hoisting grip pre-assembled on the trunk for tower raise

Alarm / control wire available on request UV resistance, flame resistance, heat resistance and RoHS compliant insulation & jacket

Application

From BBU to RRU
Single fiber trunk with up 12 pairs
LC connectors at tower bottom
Can be integrated with distribution box

Product Feature

Temperature range -40 °C to +85 °C
High UV resistance
Fire retardant
IP67 protection

Figure 25 open-free box

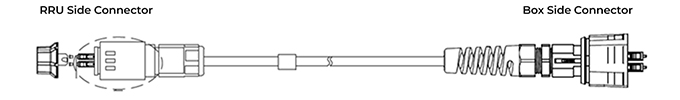

Figure 27 Fiber cable with weatherproof connector

Common Installation Material

Cable Clamp

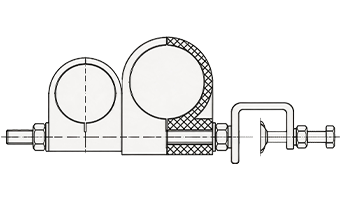

Figure 28 Cable clamp

Material

Stainless steel bracket
PP clamp
Rubber inserts (optional)

Application

Fitting the cables on the tower

Suitable Cable Range

RF jumper 1/4” super flexible to 1/2” regular cable
CPRI fiber cable from 4.6mm to 12mm
Power cable from 8mm to 35mm
Hybrid cable from 16mm to 55mm

Grounding Kit

Figure 29 Grounding cable

Material

Pure Copper, copper alloy or aluminum alloy
Solid or flexible conductor
Cable lug
Bolt set

Application

Pre-assembled or post assembled on the cable

Suitable Cable

PTTA power cable with outer shield
PTTA hybrid cable with outer shield
CPRI fiber cable with stainless steel armored

Hoisting Grip

Figure 30 Hosting grip

Material

Stainless steel net
Aluminum handle

Application

Lift the cable to the top of the tower

Suitable Cable

PTTA power cable
PTTA hybrid cable
CPRI fiber cable

Entry Set

Figure 31 Direct Solution

Material

Aluminum plate
Plastic gland

Application

Waterproof for cables from outdoor to the room

Suitable Cable

PTTA power cable
PTTA hybrid cable
CPRI fiber cable

List and Description of Abbreviations

BBU

A Baseband Unit (BBU) is a crucial element in a wireless communication system that processes baseband signals and manages communication with the Remote Radio Unit (RRU). It handles tasks such as signal modulation, encoding, and overall control of the radio network.

RRU

A Remote Radio Unit (RRU) is a key component in wireless communication systems that converts radio signals from the base station to digital signals for transmission through fiber optic cables. It is typically installed near the antenna to enhance signal quality and reduce transmission loss.

FTTA

Fiber to the Antenna (FTTA) refers to the technology of connecting an antenna system with fiber optic cables directly from the base station to the antenna. This method improves signal quality and reduces power loss compared to traditional copper cables.

CPRI

The Common Public Radio Interface (CPRI) is a standard protocol used to transmit data between the Baseband Unit (BBU) and the Remote Radio Unit (RRU) in wireless communication systems. It enables efficient and high-speed digital signal processing, ensuring seamless communication between network components.

DLC

Dual-Layer Coated (DLC) fiber refers to an optical fiber that has two protective layers, enhancing its durability and performance. This type of fiber is designed to provide superior resistance to environmental factors and mechanical stress, ensuring reliable signal transmission.

PTTA

Power to the Antenna (PTTA) involves directly supplying power to the antenna system from the base station using dedicated power cables. This approach ensures efficient power delivery and reduces potential signal interference compared to combined signal and power transmission methods.

PDU

A Power Distribution Unit (PDU) is a device used in network and telecom environments to distribute electrical power to various components, such as servers, switches, and other equipment. It ensures reliable and organized power management, often including features for monitoring and controlling the power flow.

PR-318-Coup
PR-318-158-AD-W
PR-318-DF-AD-W
PR-318-DM-AD
PR-318-NF-AD
PR-412EIA-5C
PR-318EIA-5C
PR-318EIA-C
RG 8-T4
RG 6 CCS3
5D-FB FRT4
5D-FB PET4
PFFC 300 PE4
PFFC 400 PE4
PAIRCC50E-318
PAIRCC50E-5
PPAIRA50V-E12W
PPAIRC50V-E12W
PFC50FR-14CB
PFC50E-14CB
PFC50FR-14A
PFC50E-14A
PSC50FR-14CBBA
PSC50FR-14CB
PSC50E-14CB
PSC50FR-14A
PSC50E-14A
PR-RC2-NM-L-C03
PR-RC2-NF-L-C03
PR-RC2-DM-L-C03
PR-RC2-DF-L-C03
PR-RC2-43M-L-C03
PR-RC2-43F-L-C03
PR-RC2-NM-L-C05
PR-RC2-NF-L-C05
PR-RC2-DM-L-C05
PR-RC2-DF-L-C05
PR-RC2-43M-L-C05
PR-RC2-43F-L-C05
PR-RC2-NM-L-C06
PR-RC2-NF-L-C06
PR-RC2-DM-L-C06
PR-RC2-DF-L-C06
PR-RC2-43M-L-C06
PR-RC2-43F-L-C06
PR-RC2-NM-L-C07
PR-RC2-NF-L-C07
PR-RC2-DM-L-C07
PR-RC2-DF-L-C07
PR-RC2-43M-L-C07
PR-RC2-43F-L-C07
PR-RC2-NM-NM-A
PR-RC2-NM-NM
PR-RC2-NM-NF-A
PR-RC2-NM-NF
PR-RC2-NM-43M
PR-RC2-NM-43F
PR-RC2-NF-NF
PR-RC2-NF-43M
PR-RC2-NF-43F
PR-RC2-DM-NM
PR-RC2-DM-NF
PR-RC2-DM-DM
PR-RC2-DM-DF-A
PR-RC2-DM-DF
PR-RC2-DM-43M
PR-RC2-DM-43F
PR-RC2-DF-NM
PR-RC2-DF-NF
PR-RC2-DF-DF
PR-RC2-DF-43M
PR-RC2-DF-43F
PR-RC2-43M-43M-A
PR-RC2-43M-43M
PR-RC2-43M-43F-A
PR-RC2-43M-43F
PR-RC2-43F-43F-A
PR-RC2-43F-43F
PRC50FR-12B
PRC50FR-12
PRC50FR-12(D)
PRC50FR-78BG A
PRC50FR-78BG N
PRC50FR-78BG D
PRC50FR-78B
PRC50FR-78
PRC50FR-78(D)
PRC50FR-114BG A
PRC50FR-114BG N
PRC50FR-114BG D
PRC50FR-114A
PRC50FR-114
PR-DM-12S01-HD-DM-XXXX
PRC50FR-114(D)
PRC50FR-158BG D
PRC50FR-158BG N
PRC50FR-158(D)
PR-RCP1-NM-C07
PR-RCP1-NF-C07
PR-RCP1-DM-C07
PR-RCP1-DF-C07
PR-RCP1-43MH-C07
PR-MQ5M-1301-NM-XXXX
PR-RCP1-43M-C07
PR-MQ4M-1301-NM-XXXX
PR-RCP1-43F-C07
PR-MQ5M-1301-XM-XXXX
PR-RCP1-NM-C06L
PR-MQ4M-1301-XM-XXXX
A-XX-100-0642-43M43F-163-01
PR-RCP1-NF-C06L
PR-MQ5M-1301-43M-XXXX
A-XX-50-0642-43M43F-163-01
PR-RCP1-DM-C06L
PR-MQ4M-1301-43M-XXXX
A-XX-25-DC42-43M43F-01
PR-RCP1-DF-C06L
PR-MQ5M-1401-NM-XXXX
A-XX-10-DC42-43M43F-01
PR-RCP1-43MH-C06L
PR-MQ4M-1401-NM-XXXX
A-XX-5-DC42-43M43F-01
PR-RCP1-43M-C06L
PR-MQ5M-1401-XM-XXXX
A-XX-2-DC42-43M43F-01
PR-RCP1-43F-C06L
PR-MQ4M-1401-XM-XXXX
T-XX-0642-NF-155-01
PR-RCP-NM-C05
PR-MQ5M-1401-43M-XXXX
T-XX-0642-DF-163-01
PR-RCP-NF-C05
PR-MQ4M-1401-43M-XXXX
T-XX-0642-43F-163-01
PR-RCP-DM-C05
T-XX-0642-43F-163-01
PR-RCP-DF-C05
T-XX-0327-NF-155-01
PR-RCP-43MH-C05
G4W4THC-01
T-XX-0327-DF-163-01
PR-RCP-43M-C05
T-XX-0327-43F-163-01
PR-RCP-43F-C05
2G4WFD-21D-N43
T-XX-0304-NF-01
PR-RCP-NMA-C03
2G4WFC-21D-N43
T-XX-0304-DF-01
PR-RCP-NM-C03
T-XX-0304-43F-01
PR-RCP-NF-C03
DC-XX-0642-NF-155-01
PR-RCP-DMA-C03
2G4W4XBD-01
DC-XX-0642-43F-163-01
PR-RCP-DM-C03
2G2J4XBC-27
DC-XX-0342-NF-155-01
PR-RCP-DF-C03
DC-XX-0342-43F-163-01
PR-RCP-43MA-C03
4G4W33MB-51S
DC-XX-0304-NF-01
PR-RCP-43MH-C03
4G4W33ME-21
DC-XX-0304-43F-01
PR-RCP-43M-C03
2G6W22HF-21SF
DFT-19-15-DF-01
PR-RC3TB-NM-C05
MB-3F7X22V-00
DFT-09-53-64F-01
PR-43F-12R02-C1-43F-XXXX
PR-43MA-12R02-C1-43F-XXXX
PR-43MA-12R02-C1-43MA-XXXX
PR-43M-12R02-C1-43F-XXXX
PR-RC3TB-NF-C05
PR-43M-12R02-C1-43MA-XXXX
2G4W4WHF-01SR
DFT-08-56-DF-A05
PR-43M-12R02-C1-43M-XXXX
PR-NF-12R02-C1-43F-XXXX
PR-NF-12R02-C1-43MA-XXXX
PR-NF-12R02-C1-43M-XXXX
PR-NF-12R02-C1-NF-XXXX
PR-NMA-12R02-C1-43F-XXXX
PR-NMA-12R02-C1-43MA-XXXX
PR-NMA-12R02-C1-43M-XXXX
PR-NMA-12R02-C1-NF-XXXX
PR-RC3TB-DM-C05
PR-NMA-12R02-C1-NMA-XXXX
9WMB-51
DFT-08-56-DF-A02
PR-NM-12R02-C1-43F-XXXX
PR-NM-12R02-C1-43MA-XXXX
PR-NM-12R02-C1-43M-XXXX
PR-NM-12R02-C1-NF-XXXX
PR-NM-12R02-C1-NMA-XXXX
PR-NM-12R02-C1-NM-XXXX
PR-DF-12R02-C1-43F-XXXX
PR-DF-12R02-C1-43MA-XXXX
PR-DF-12R02-C1-43M-XXXX
PR-RC3TB-DF-C05
PR-DF-12R02-C1-NF-XXXX
2G4W2WHF-21
DFT-08-56-DF-A01
PR-DF-12R02-C1-NMA-XXXX
PR-DF-12R02-C1-NM-XXXX
PR-DF-12R02-C1-DF-XXXX
PR-DMA-12R02-C1-43F-XXXX
PR-DMA-12R02-C1-43MA-XXXX
PR-DMA-12R02-C1-43M-XXXX
PR-DMA-12R02-C1-NF-XXXX
PR-DMA-12R02-C1-NMA-XXXX
PR-DMA-12R02-C1-NM-XXXX
PR-RC3TB-43MH-C05
PR-DMA-12R02-C1-DF-XXXX
CB-4-LDUM-64F-A09
PR-DMA-12R02-C1-DMA-XXXX
PR-DM-12R02-C1-43F-XXXX
PR-DM-12R02-C1-43MA-XXXX
PR-DM-12R02-C1-43M-XXXX
PR-DM-12R02-C1-NF-XXXX
PR-DM-12R02-C1-NMA-XXXX
PR-DM-12R02-C1-NM-XXXX
PR-DM-12R02-C1-DF-XXXX
PR-DM-12R02-C1-DMA-XXXX
PR-RC3TB-43M-C05
PR-DM-12R02-C1-DM-XXXX
G2W4WHF-01V
CB-4-LBM03-64F-A01
PR-RC3TB-43F-C05
G2W2WHD-21
CB-3-LHS-64F-B01
PR-RC3TB-NMA-C03
5UMB-40
CB-3-LBM-64F-A16
PR-RC3TB-NM-C03
5WMB-51
CB-2-YZ-64F-A10
PR-RC3TB-NF-C03
4WMF-01VN
CB-2-NE-64F-A12
PR-43MB-12R01-BP-43MB-XXXX
PR-NMB-12R01-BP-43MB-XXXX
PR-NMB-12R01-BP-NMB-XXXX
PR-DMB-12R01-BP-43MB-XXXX
PR-DMB-12R01-BP-NMB-XXXX
PR-RC3TB-DMA-C03
PR-DMB-12R01-BP-DMB-XXXX
3WMC-21
CB-2-KH03-64F-A04
PR-RC3TB-DM-C03
2WMC-21L
CB-2-DU-64F-A04
PR-RC3TB-DF-C03
2GMD-21-V1
S-4-0642-NF-155-01
PR-RC3TB-43MA-C03
PR-43MAB-12R01-43MAB-XXXX
5UMC-21
S-4-0642-43F-163-01
PR-43MB-12R01-43MAB-XXXX
PR-NMB-12R01-43MAB-XXXX
PR-DMAB-12R01-43MAB-XXXX
PR-DMAB-12R01-43MB-XXXX
PR-RC3TB-43MH-C03
PR-DMAB-12R01-NMB-XXXX
5RMC-21
S-3-0642-NF-155-01
PR-DMAB-12R01-DMAB-XXXX
PR-DMB-12R01-43MAB-XXXX
PR-DMB-12R01-DMAB-XXXX
PR-43MB-12R01-43MB-XXXX
PR-NMB-12R01-43MB-XXXX
PR-NMB-12R01-NMB-XXXX
PR-DMB-12R01-43MB-XXXX
PR-DMB-12R01-NMB-XXXX
PR-RC3TB-43M-C03
PR-DMB-12R01-DMB-XXXX
S-3-0642-43F-163-01
PR-RCP-43F-C03
2G4W4R4TBF-07
S-2-0642-NF-155-01
PR-RC3TB-43F-C03
2G4W4R4TBD-07
S-2-0642-43F-163-01
PR-RC2-NMA-C08
2G2W4W4R4TAE-07
S-2-0304-NF-01
PR-43F-12R0X-43F-XXXX
PR-43MA-12R0X-43MA-XXXX
PR-NF-12R0X-43F-XXXX
PR-NF-12R0X-43MA-XXXX
PR-NF-12R0X-43M-XXXX
PR-NF-12R0X-NF-XXXX
PR-NMA-12R0X-43MA-XXXX
PR-NMA-12R0X-NMA-XXXX
PR-DF-12R0X-43F-XXXX
PR-RC2-NM-C08
PR-DF-12R0X-43MA-XXXX
4RTC-01
S-2-0304-DF-01
PR-DF-12R0X-43M-XXXX
PR-DF-12R0X-NF-XXXX
PR-DF-12R0X-NMA-XXXX
PR-DF-12R0X-NM-XXXX
PR-DF-12R0X-DF-XXXX
PR-DMA-12R0X-43MA-XXXX
PR-DMA-12R0X-NMA-XXXX
PR-DMA-12R0X-DF-XXXX
PR-DMA-12R0X-DMA-XXXX
PR-RC2-NF-C08
PR-43MA-12R0X-43F-XXXX
4T90TB-01
S-2-0304-43F-01
PR-RC2-DMA-C08
PR-43M-12R0X-43F-XXXX
4TTB-01
L-200-0642-NM-155-01
PR-RC2-43MA-C08
PR-43M-12R0X-43MA-XXXX
L-100-DC42-NM-01
PR-RC2-DM-C08
PR-43M-12R0X-43M-XXXX
PBIC2JWF-21SR-CL
L-100-DC42-43M-01
PR-RC2-DF-C08
PR-NMA-12R0X-43F-XXXX
12WMC-51
L-100-0638-43M-160-01
PR-RC2-43MH-C08
PR-NMA-12R0X-43M-XXX
2WC-71-H
L-50-DC38-43M-01
PR-RC2-43M-C08
PR-NMA-12R0X-NF-XXXX
2G4WD-21-H
L-50-0638-43M-160-01
PR-RC2-43F-C08
PR-NM-12R0X-43F-XXXX
2G2WD-21-H
L-10-DC38-43M-01
PR-RC2-NM-C07
PR-NM-12R0X-43MA-XXXX
2D4WE-71-H
L-5-DC38-43M-01
PR-RC2-NF-C07
PR-NM-12R0X-43M-XXXX
2G4WD-21E-HE
L-2-DC38-43M-01
PR-RC2-DM-C07
PR-NM-12R0X-NF-XXXX
2G2WD-21E-HE
HC-44-0642-NF-155-01
PR-RC2-DF-C07
PR-NM-12R0X-NMA-XXXX
2G2J2WD-21E-HE
HC-44-0642-43F-163-01
PR-RC2-43M-C07
PR-NM-12R0X-NM-XXXX
2G2WF-21-H
HC-33-0642-NF-155-01
PR-RC2-43F-C07
PR-DMA-12R0X-43F-XXXX
2G2WC-21-H
HC-33-0642-DF-163-01
PR-RC2-NM-C06L
PR-DMA-12R0X-43M-XXXX
2G2J2W4XBD-27-H
HC-33-0642-43F-163-01
PR-RC2-NF-C06L
PR-DMA-12R0X-NF-XXXX
E45D-21
HC-22-0642-NF-155-01
PR-RC2-DM-C06L
PR-DMA-12R0X-NM-XXXX
ACG2Z4K4R2WF-01
HC-22-0642-DF-163-01
PR-RC2-DF-C06L
PR-DM-12R0X-43F-XXXX
ACG8WF-21
HC-22-0642-43F-163-01
PR-RC2-43MH-C06L
PR-DM-12R0X-43MA-XXXX
2G8WF-01
CB-14-POI-64F-C05
PR-RC2-43MH-C05
PR-DM-12R0X-43M-XXXX
2G6WD-21
CB-12-POI-DF-48
PR-RC2-43M-C06L
PR-DM-12R0X-NF-XXXX
ACG4WF-01
S-Wave PD-0642-4M-43F-153-01
PR-RC2-43F-C06L
PR-DM-12R0X-NMA-XXXX
ACG4WD-01
S-Wave PD-0642-2M-43F-153-05
PR-RC2-NM-C05
PR-DM-12R0X-NM-XXXX
ACJ5WF-01
S-Wave PD-0642-1S-43F-153-02
PR-RC2-NF-C05
PR-DM-12R0X-DF-XXXX
2G4WF-21D-N50
S-Wave PD-0342-1S-43F-153-01
PR-RC2-DM-C05
PR-DM-12R0X-DMA-XXXX
2G4WD-21D-N50
S-Wave PD-0327-2M-43F-153-01
PR-RC2-DF-C05
PR-DM-12R0X-DM-XXXX
2G4WC-21D-N50
S-Wave PD-0327-1S-43F-153-01
PR-RC2-43M-C05
2G4WF-21-ST
S-Wave PD-0304-1S-43F-01
PR-RC2-43F-C05
2G4WD-21-ST
S-Wave OD-0642-4M-43F-153-01
PR-RC2-NM-C03
2G2WF-21-N43
S-Wave OD-0642-2M-43F-153-02
PR-RC2-NMA-C03
2G2WD-21-N43
S-Wave OD-0642-2M-43F-150-05
PR-RC2-NF-C03
2G2WC-21-N43
S-Wave OD-0642-1S-43F-153-08
PR-RC2-DMA-C03
2G2WF-21-N45
S-Wave OD-0360-1S-43F-153-02
MW-U06D23
PR-RC2-DF-C03
2G2WD-21-N45
S-Wave OD-0342-1S-43F-153-01
MW-U06D13
PR-RC2-43MH-C03
2G2WC-21-N45
S-Wave OD-0327-1S-43F-153-02
MW-U06D18
PR-RC2-43M-C03
2GF-21-N45
S-Wave OD-0304-1S-43F-01
PROSE Reaffirms Commitment to India's Manufacturing Growth During Meeting with Consul General of India in Shanghai
MW-V24D13
MW-V24D10W
MW-V24D7W
MW-V24D6W
MW-V24S13
MW-V24S10W
MW-V24S7W
MW-V24S6W
PR-RC2-43MA-C03
2GD-21-N45
Global No.2, Again: PROSE Drives the Future of Passive Antennas
S-Wave LP-0642-1S-43F-153-01
PR-RC2-43F-C03
2PBCG2J4WE-21SR-CL
His Royal Highness Luitpold Prinz von Bayern Visits PROSE at MWC Barcelona 2026
S-Wave LP-0638-2M-NF-150-02
PLC50FR-158CB
GE-21
PROSE Technologies and du Deliver Enhanced 5G Experience at Dragon Mart with Active DAS Integration
S-Wave LP-0638-2M-NF-150-01
PLC50E-158CB
PROSE Technologies Powers 5.5G Lift Connectivity at Burj Khalifa with e& UAE
GD-21
S-Wave BD-0642-1S-43F-153-01
PLC50FR-158
S-Wave BD-0627-1S-43F-153-01
PRFM-LCAM5-2x12B-SM3-1
PLC50E-158
PROSE Earns Top ZTE Supplier Honor, Setting New Milestones in Collaboration
2PF4WE-21ESR-CL
A-XX-100-N-05-T2
PRFDP-P-HD-4S-00-1U-1
PFC50FR-158
Strengthening a 15-Year Partnership: VNPT and PROSE Technologies Explore New Avenues of Collaboration
WC-21
PRODF-B20-SCASM-720-1
A-XX-100-64-05-T2
PFC50E-158
Construction Start of Rosenberger Kunshan Factory
GF-21
PRODF-B20-SCASM-720-0
A-XX-50-N-05-T2
2G2WC-21-H
PFAC50FR-158
Bangladesh Technology Day
PRODF-B20-SCASM-576-1
A-XX-50-64-05-T2
2G2WC-21
MW-V18D23
MW-V18D18
MW-V18D15
MW-V18D13
PFAC50E-158
Creating a Better Future for Everyone —— Rosenberger @ MWC2018
MW-V18D10W
PRODF-B20-SCASM-576-0
A-XX-25-N-11-T2L
MW-V18D7W
PWYY5AT-ST-2C10mm2-4 Lv2.0
MW-V18D6W
MW-V18S23
MW-V18S18
MW-V18S15
MW-V18S13
MW-V18S10W
MW-V18S7W
MW-V18S6W
PLC50FR-114ABA
Rosenberger Eyes Global Domination Through Customer Support and Partnerships
PRFDP-P-096DLC-2U-11-1
G3WF-21
A-XX-25-0642-43M43F-163-01
PLC50FR-114CB
Rosenberger Signs Global Framework Agreement for 5G Embedded Antennas with A Leading OEM
PRFDP-P-072DLC-2U-11-1
G2WD-21
A-XX-25-64-11-T2L
PWYYA6T-ST-2C10mm2-4 Lv3.S
PLC50E-114CB
PROSE Multi-Beam Antenna Help Achieve Network Expansion
PRFDP-P-048DLC-1U-11-1
G2WC-21
A-XX-10-N-11-T2L
PWYY5AT-ST-2C10mm2-4 Lv1.2
PLC50FR-114A
IoT Networks
PRFDP-P-024DLC-1U-11-1
G2WB-21
A-XX-10-64-11-T2L
RL-G6W8W8X65VI-1M-JS01
PLC50E-114A
PROSE Launches a New Branch in Africa
PRFDP-P-012DLC-1U-11-1
3WC-21
A-XX-5-N-11-T2L
RHC-2xXXmm2+6G652D
PLAC50FR-114A
“Driving Innovation in The Mobile Cellular Antenna Market” by ABI Research
PRFDP-P-096SC-4U-11-1
2WC-21
A-XX-5-N-01S
PW2XHK-2.5S-2CXXmm2-XV4
PR-43F-12S02-C1-43F-XXXX
PR-43MA-12S02-C1-43F-XXXX
PR-43MA-12S02-C1-43MA-XXXX
PR-43M-12S02-C1-43F-XXXX
PLAC50E-114A
Rosenberger Ranked 4th in the "2020 Mobile Antenna Market Competitive Ranking"
PR-43M-12S02-C1-43MA-XXXX
PRFDP-P-072SC-3U-11-1
2PBG2J4WF-21SR-CL
A-XX-5-0642-43M43F-163-01
PR-43M-12S02-C1-43M-XXXX
PSC50FR-12A
PR-NF-12S02-C1-43F-XXXX
PR-NF-12S02-C1-43MA-XXXX
PR-NF-12S02-C1-43M-XXXX
PR-NF-12S02-C1-NF-XXXX
PR-NMA-12S02-C1-43F-XXXX
PR-NMA-12S02-C1-43MA-XXXX
PR-NMA-12S02-C1-43M-XXXX
PR-NMA-12S02-C1-NF-XXXX
PLC50FR-78CBBA
Rosenberger "4488" Smart Antenna with Independent RET Installed in Li Gongdi Scenic Area
PR-NMA-12S02-C1-NMA-XXXX
PRFDP-P-012SC-1U-11-1
2E4WE-21
A-XX-5-64-11-T2L
PR-NM-12S02-C1-43F-XXXX
PR-XX-12R01-8V8-XX-XXXX
PR-NM-12S02-C1-43MA-XXXX
PR-NM-12S02-C1-43M-XXXX
PR-NM-12S02-C1-NF-XXXX
PR-NM-12S02-C1-NMA-XXXX
PR-NM-12S02-C1-NM-XXXX
PR-DF-12S02-C1-43F-XXXX
PR-DF-12S02-C1-43MA-XXXX
PR-DF-12S02-C1-43M-XXXX
PLC50FR-78CBF
Rosenberger's Webinar at CCA's 2020 Annual Convention
PR-DF-12S02-C1-NF-XXXX
PRFDP-P-048SC-2U-11-1
L-200-NF-01S
PR-DF-12S02-C1-NMA-XXXX
PR-RCP-43M-C05 8V8
PR-DF-12S02-C1-NM-XXXX
PR-DF-12S02-C1-DF-XXXX
PR-DMA-12S02-C1-43F-XXXX
MW-V12D26
PR-DMA-12S02-C1-43MA-XXXX
MW-V12D23
PR-DMA-12S02-C1-43M-XXXX
MW-V12D18
PR-DMA-12S02-C1-NF-XXXX
MW-V12D15
PR-DMA-12S02-C1-NMA-XXXX
MW-V12D13
PR-DMA-12S02-C1-NM-XXXX
MW-V12D10W
PLC50FR-78CB
PROSE Site Installation Materials and Integrated Supply Services
PR-DMA-12S02-C1-DF-XXXX
MW-V12D7W
PROC-H03L-144SM1-12
L-200-64F-01S
PR-DMA-12S02-C1-DMA-XXXX
MW-V12D6W
PR-RCP-43M-C03 8V8
PR-DM-12S02-C1-43F-XXXX
MW-V12S26
PR-DM-12S02-C1-43MA-XXXX
MW-V12S23
PR-DM-12S02-C1-NF-XXXX
MW-V12S18
PR-DM-12S02-C1-43M-XXXX
MW-V12S15
PR-DM-12S02-C1-NMA-XXXX
MW-V12S13
PR-DM-12S02-C1-NM-XXXX
MW-V12S10W
PR-DM-12S02-C1-DF-XXXX
MW-V12S7W
PR-DM-12S02-C1-DMA-XXXX
MW-V12S6W
PLC50E-78CB
PR-DM-12S02-C1-DM-XXXX
PROC-H03L-096SM1-12
L-100-NF-01S
PR-RC2-NM-NF-A
Rosenberger: BSA Industry Leader Award
PLC50FR-78A
PROC-H03L-072SM1-12
L-100-0642-43M-163-01
PR-RC2-NM-C05
4G+5G/5G+5G Share Station Camouflage Enclosure
PLC50E-78A
G6W22HE-21
PROC-H03L-012SM1-06
L-100-64F-01S
PR-RC2-NM-C03
PROSE 5G Antenna Solutions
PLAC50FR-78CB
4TMD-21
PROC-H03-144SM1-12
L-50-NF-01S
PR-DMB-12R01-PMB-V4-XXXX
Rosenberger and China Mobile Expand Their Strategic Partnership to 5G Technologies
PLAC50E-78CB
G2W4WHE-00V
PROC-H03-072SM1-12
L-50-0642-43M-163-01
PR-DMAB-12R01-43MB-VM2-XXXX
PR-43MB-12S01-BP-43MB-XXXX
PR-NMB-12S01-BP-43MB-XXXX
PR-NMB-12S01-BP-NMB-XXXX
PR-DMB-12S01-BP-43MB-XXXX
PR-DMB-12S01-BP-NMB-XXXX
Rosenberger Awarded a Certificate of Appreciation From Globe Telecom
PLAC50FR-78A
PR-DMB-12S01-BP-DMB-XXXX
G2W4O33HF-01
PROC-H03-012SM1-06
L-50-64F-01S
PR-43MB-12R01-43MB-VM2-XXXX
PROSE Scenic Coverage Solution Alongside the Pyramids
PLAC50E-78A
2G4WHF-01N
PROC-H03-096SM1-12
L-25-NM-01S
PR-DMB-12R01-HD-PRMB-V3-xM
Rosenberger & Ceragon Networks India Carry Out In-depth Cooperation on Microwave Antennas Projects
PFC50FR-78A2BA
2G4WHE-01N
PROC-H03-024SM1-06
L-25-64M-01S
PR-DMB-12R01-HD-PMB-V3-xM
A Significant Win for Rosenberger Against CommScope's Petition for An Injunction
PFC50FR-78CBF
6WMB-51
PR-43MAB-12S01-43MAB-XXXX
PRIP-OM32DSCDSC020-XXXX
L-10-NM-01S
PR-43MB-12S01-43MAB-XXXX
PR-DMB-12R01-HD-DRMB-V3-xM
MW-V03D42
MW-V03D38
MW-V03D32
PR-NMB-12S01-43MAB-XXXX
MW-V03D28
MW-V03D26
PR-DMAB-12S01-43MAB-XXXX
MW-V03D23
PR-DMAB-12S01-43MB-XXXX
MW-V03D18
MW-V03D15
Rosenberger Helps China Mobile Tongliao Branch to Enhance Deep Coverage on High-rise Buildings
PFC50FR-78CB
6W22ME-01
PR-DMAB-12S01-NMB-XXXX
MW-V03D13
PRIP-OM32DLCDSC020-XXXX
L-10-64M-02L
PR-DMAB-12S01-DMAB-XXXX
MW-V03S42
PR-DMB-12R01-HD-DMB-V3-xM
PR-DMB-12S01-43MAB-XXXX
MW-V03S38
MW-V03S32
PR-DMB-12S01-DMAB-XXXX
MW-V03S28
PR-43MB-12S01-43MB-XXXX
MW-V03S26
PR-NMB-12S01-43MB-XXXX
MW-V03S23
PR-NMB-12S01-NMB-XXXX
MW-V03S18
PR-DMB-12S01-43MB-XXXX
MW-V03S15
PR-DMB-12S01-NMB-XXXX
MW-V03S13
Rosenberger Defeats CommScope Attempt to Bar Sales of Rosenberger Base Station Antennas in the United States
PFC50E-78CB
PR-DMB-12S01-DMB-XXXX
G4WHF-01N
PRIP-OM32DLCDLC020-XXXX
L-5-NM-01S
MA_Installation guide
Rosenberger Files Patent Lawsuit Against CommScope
PFC50FR-78A
G4WHE-01V
PRIP-OM32DSCDSC021-XXXX
L-5-64M-01S
PR-DMB-12R01-43MB-V2-XXXX
Mobile Antenna Vendors Competitive Ranking by ABI research
PFC50E-78A
4WME-01L
PRIP-OM32DLCDSC021-XXXX
L-2-NM
India Mobile Congress 2026
PR-DMB-12R01-HD-PMB-V5-xM
GITEX GLOBAL 2026
Rosenberger Announced The Restructure of Antenna and Coverage Solution Product Portfolio with A New Brand Entity, PROSE
PSC50FR-12CBBA
2WMC-21
PRIP-OM32DLCDLC021-XXXX
HM-6-9F-NF-06
MWC Barcelona 2027
PR-BAT-B48150-3U
PROSE Technologies Showcases Presence in North America After Restructure from Rosenberger Group
PSC50FR-12CBF
2D2W45E-21
PRIP-OM31SCSC020-XXXX
HM-6-9F-DF-06
Connect (X) 2026
SCU-ACT-XXX
PR-iBAT-T48100-3US1
PROSE: Wireless Communications in a Fast-Evolving World
PSC50FR-12CB
DCE4WC-N-21
PRIP-OM31LCSC020-XXXX
HM-6-9F-64F-A07
Mobility & Connectivity Show
L99-C130-XXX-GH
PR-BAT-T48100-3US
PROSE Technologies Was Awarded 'Airtel Value Leader'
PSC50E-12CB
2E4WF-21
PRIP-OM31LCLC020-XXXX
HM-5-8F-64F-A01
ECU-ACT-XXX
PR-BAT-T48100-3U
PR-43MA-12S0X-43MA-XXXX
Mobile World Congress Americas 2017
PROSE Showcases New Solutions for North America at MWC Las Vegas
PSC50FR-12A
DCE2J4WF-01
PR-NF-12S0X-43MA-XXXX
PRIP-OM31SCSC021-XXXX
HM-3-10F-64F-01-T
PR-NMA-12S0X-43MA-XXXX
ANTENNA installation guide 85L-1_SE
PR-NMA-12S0X-NMA-XXXX
PR-DF-12S0X-43MA-XXXX
PR-DF-12S0X-NMA-XXXX
PR-DF-12S0X-DF-XXXX
Shielded Flexible Power Cable
PR-DMA-12S0X-43MA-XXXX
PR-DMA-12S0X-NMA-XXXX
PR-DMA-12S0X-DF-XXXX
PR-DMA-12S0X-DMA-XXXX
Communicast Myanmar 2014
PSC50E-12A
PR-43F-12S0X-43F-XXXX
2G2J4WD-21
PRIP-OM31LCSC021-XXXX
HM-3-9F-NF-07L
122-10-018 spec and installation guide
Shielded Flexible Power Cable, PVC
Gitex Technology Week 2018
PROSE: Top 3 and Passive BSA Industry Leader
PFC50FR-12A2BA
PR-43MA-12S0X-43F-XXXX
2G6WF-21
PRIP-OM31LCLC021-XXXX
HM-3-9F-DF-04
85L-1 bracket
Steel Tape Armored Power Cable, Single Core, PVC
MWC 2018- SPAIN
PROSE: A New Brand with A Long History of Innovation at MWC23
PFC50FR-12CBF
PR-43M-12S0X-43F-XXXX
2D4WE-21-AN
PRIP-SM31SCSC101-XXXX
HM-3-9F-64F-08-T
2GF-00V2
Steel Tape Armored Power Cable, PVC
Mobile World Congress Americas 2019
PROSE Announces Official Sponsorship of Vasalund Frösunda P15 Football Team
PFC50FR-12CB
PR-43M-12S0X-43MA-XXXX
2D4WD-21-AN
PRIP-SM31LCSC101-XXXX
HC-44-0642-DF-163-01
2G4WD-00D-V1
Steel Tape Armored Power Cable, Single Core
India Mobile Congress 2019
EPIC: Bridging Tradition, Fueling Innovation
PFC50E-12CB
PR-43M-12S0X-43M-XXXX
2D4WC-21-AN
digis2
PRIP-SM31LCLC101-XXXX
T-XX-0642-43F-163-01
2G3WD-00D-V2
Steel Tape Armored Power Cable
Gitex Technology Week 2019
Reflecting on GITEX 2023, CCA Annual Convention, and A Prelude to IMC 2023
PFC50FR-12A
PR-NF-12S0X-43F-XXXX
2D4WB-21-AN
Vividoptics
PRIP-SM32DSCDSC000-XXXX
T-XX-0638-43F-160-01
G2W360C-01-R2-DEMO
Steel Wire Armored Power Cable, PVC
MWC 2019
Global Reach: PROSE Partners with ZTE for RF Solution Framework Agreement
Maser
PFC50E-12A
PR-NF-12S0X-43M-XXXX
G4WD-21
PRIP-SM32DLCDSC000-XXXX
T-XX-0627-NF-155-01
2G4WD-00D-V1_FBL5
Steel Wire Armored Power Cable
Gitex Technology Week 2020
PROSE Showcases Innovative Solutions at MWC, Reinforcing Industry Leadership
Teamco Consulting SAS
PFAC50FR-12A
PR-NF-12S0X-NF-XXXX
G4WC-21
PRIP-SM32DLCDLC000-XXXX
T-XX-0360-NF-155-01
2G3WD-00D-V2_1.2 for viettel group
Unshielded Aluminum Alloy Conductor Power Cable
PROTREEM Passive Family - High Efficiency BSA
MWC Los Angeles 2021
Metrotel Brazil
PRC50FR-158
2D2WE-21-AN
PR-NMA-12S0X-43F-XXXX
PRIP-SM32DSCDSC001-XXXX
T-XX-0360-DF-160-01
PR-RC2-NMA-C03
PR-RC2-DM-C05
PR-RC2-43M-C08 8V8
PR-RC2-43MA-C08 8V8
Unshielded Flexible Power Cable
PROSE Archer PV-Power Solution
PRIP-XXXXXXXXXXXXX-XXXX-V2
PRIP-XXXXXXXXXXXXX-XXXX V8.0
PRFDP-X-XXXXX-XX-XX-X
PRFDB-DW1-XXXX-XXXXXX-X
PROSE's Efficient Drag Reduction Solutions
GITEX Technology Week 2021
REGOORT B.V.
2D2WD-21-AN
PR-NMA-12S0X-43M-XXXX
PRIP-SM32DLCDSC001-XXXX
PRFDB-DW1-04SCA-001SM2-W-V2
T-XX-0360-43F-160-01
PFC50E-78A
PFC50E-12A
Unshielded Power Cable
(PROSE-PDU-3) 1S32L30KN1D1-18E6G
(PROSE-PDU-2) 1S63L30D1-20E4G
(PROSE-PDU-1) 1S32L30D1-20E4G
(PROSE-H-Cold aisle) S-DC-CAC2
(PROSE-H.3-fixed skylight) KTDCA6NNH2
PROSE Structured Cabling Solution Leaflet
CCA's 2021 Annual Convention
BMK
PR-RC2-DM-C03
2D2WC-21-AN
PR-NMA-12S0X-NF-XXXX
PRIP-SM32DLCDLC001-XXXX
(PROSE-H.2-Cold aisle door) KTDDC5DNA2
T-XX-0342-NF-155-01
(PROSE-H.1-flipping skylight) KTDCC6GNH2
(PROSE-G-Cold aisle) S-DC-CAC
(PROSE-G.3-fixed skylight) KTDCA6NNH
(PROSE-G.2-Cold aisle door) KTDDC5DNA
Unshielded Aluminum Alloy Conductor Power Cable, PVC
(PROSE-G.1-flipping skylight) KTDCC6GNH
(PROSE-E-Vertical cable management) KP421242
(PROSE-D-Open rack) KOEA6642
(PROSE-blank panel) KP510401
(PROSE-B.1-Vertical cable management) KP421145
PROSE Site Materials Solutions
MWC Barcelona 2022
Genton Tech
PFAC50E-12A
2D2WB-21-AN
PR-NM-12S0X-43F-XXXX
PRAD-DSC1-SM
(PROSE-A-Server rack6242) KI6242EFA
T-XX-0342-43F-163-01
Unshielded Power Cable, PVC
MW-V06D80
MW-V03D80
MW-V06S80
PR-ODPS-24KW-7720A
MW-V03S80
PR-CBNT-SAL01
PROSE Filter Catalogue
CCA’s 2022 Mobile Carriers (MCS 2022)
SGSA146-EU HPRU-P-46-D78-64F-10_CERTIFICATE Rev A CE-061
HKT
G3WD-21
PR-NM-12S0X-43MA-XXXX
PRAD-DSC-SM
T-XX-0327-DF-160-01
NEU-4F32F-16
PR-TSM-SP1MDM600-630
PROSE Data Center Solution Leaflet
CommunicAsia
SGSA145-EU HPRU-P-46-D78-64F-03HW_CERTIFICATE Rev A CE-062
G3WC-21
PR-NM-12S0X-43M-XXXX
PRAD-SC2-SM
DC-XX-10F-64F-01-T
IRU-O-26-D1D3Q78-QF-11
PROSE Cabling System
MWC Las Vegas 2022
SGSA144-EU LPA2-46-N41N41-64F-10-KS Rev A CE-069
G2WF-21
PR-NM-12S0X-NF-XXXX
PRAD-SC-SM
WPCP-01
DC-XX-9F-NF-07L
LPA2-43-B1B3-64F-10
Unshielded Flexible Power Cable, PVC
PROSE Antenna Catalogue 2025
Gitex 2022
SGSA141-EU LPA2-43-N28N28-64F-01HW-KS Rev A CE-068
2TB-21U
PR-NM-12S0X-NMA-XXXX
PRAD-DLC1-SM
GWA-41RV1
DC-XX-9F-DF-01
PBMU-N30-D1D3Q40Q41-36R32F-50
PR-DY-INS3XK-2M3P
Passive Components & In-building Antennas
TIME dotCom
PROSE Unveils Revolutionary EPIC DAS Solutions at Connect (X) 2024
India Mobile Congress 2022
SGSA140-EU LPA2-43-B8B8-64F-01HW-KS Rev A CE-066
2WD-21
PR-NM-12S0X-NM-XXXX
PRAD-DLC-SM
G33E-21RV1
DC-XX-9F-64F-07-T
PBMU2-N30-D1D3D7D8Q78-48R32F-52
1 Core Flexible Unshielded No Sheath Power Cable
1 Core Flexible Unshielded No Sheath Power Cable, PVC
PR-PDU-1D5-A1
PR-DCPDU-2D9-01
PR-DCDU-8XX-A2
O-RAN Literature
YTL Communications
PROSE Honored by e& with Prestigious Award for Outstanding Partnership
MWC Barcelona 2023
SGSA139-EU LPA2-43-B1B1-64F-01HW-KS Rev A CE-063
PR-DMA-12S0X-43F-XXXX
PRAD-LC2-SM
2G4WHE-21RV1
LPA2-43-B7B7-64F-10
S-4-0642-DF-163-01
PRNC1X-XXXXXXX
1 Core Unshielded No Sheath Power Cable
1 Core Unshielded No Sheath Power Cable, PVC
Network Optimization Equipment
Leading the Way in Fire Safety: PROSE Technologies Earns B2ca Certification for Leaky Cables
EDOTCO
STAC 2023
NB2906.2024.000502 LPA2-46-N78N78-64F-02HW-KS CE-070
GWF-21
PR-DMA-12S0X-43M-XXXX
PRAD-LC1-SM
2G4WFD-21RV1
LPA2-43-B8B8-64F-11
S-4-10F-64F-01-T
PR-JL-INO/FGH15K-30K-2/3M3P
Multi Beam & Hybrid Family - High Capacity BSA
PROSE Technologies Unveils PROTREEM: A Rebrand for its High-Efficiency Antenna
CelcomDigi
2023 Mobile Carriers Show
NB2906.2024.000356 LPA-46-N41N41-NF-10-KS CE-057
C2W2TB-21
PR-DMA-12S0X-NF-XXXX
PR-CLX-P5
PRPLC-S01-108-SCA
2G4WF-21RV1
LPA-43-B40-NF-10
S-4-9F-NF-07L
PR-CLX-P4
PR-CLX-P3
PR-CLX-P2(X)-XX
PR-CLX-P1(X)
PR-CLX-OTY(MX)-XX
Microwave Antennas
PROSE Held the Shareholder Meeting in Germany
Sidera
Connect X 2023
NB2906.2023.000112 LPA-46-N78-64F-02-KS Rev 1.1CE-060
2D2WE-71-H
PR-DMA-12S0X-NM-XXXX
PRPLC-S01-108-SC
2G4WD-21RV1
LPA-43-B3-NF-10
S-4-9F-DF-04
PR-CLX-OT1(MX)-XX
EPU - Engineering Parameter Unit
PROSE Technologies Soars to #2 in Global Passive BSA Market
Sakuraz
CommunicAsia
NB2906.2023.000110 HPRU-43-D78-64F-02HW HPRU-D78-DSS Revision 1.1-KS CE-058
4R90TC-01
PR-DF-12S0X-43F-XXXX
PRPLC-S01-104-SCA
2G4WC-21RV1
LPA-43-B1-NF-10
S-4-8F-NF-01
PR-SA01-4FM-Y2
MW-V30D13
MW-V30D10W
MW-V30D7W
PR-CLX-OT1(MX)
MW-V30D6W
MW-V30S13
PRNC1B-8842ABA
MW-V30S10W
PRNC1A-6818ABA
MW-V30S7W
PRNC1A-6618ABA
MW-V30S6W
Digital World Product Catalogue
Government Agency in Oman
PROSE Technologies and du Partner to Deliver Enhanced Network Solutions in the UAE
GITEX 2023
KSCR231100206901ATC LPA2-43-B40B40-64F-01HW-KS CE-067
PR-DF-12S0X-43M-XXXX
PRPLC-S01-104-SC
MCU3-2F24R-10
2G4W4XBD-27RV1
S-4-9F-64F-07-T
PR-SA01-4FF-Y2
PR-CLX-DL1(MX)
PR-CL50-OS2(M8-22)
Data Center Infrastructure
PROSE Technologies Signs Strategic Cooperation Agreement with Leading Telecom Operator in Japan
Maxis
India Mobile Congress 2023
KSCR231100206701ATC LPA2-43-B7B7-64F-01HW-KS CE-065
PR-DF-12S0X-NF-XXXX
PR-CL35-OS2(M6-16)
PRJC-D-5601-48-AR
LPA2-43-B3B3-64F-10
2G4W4RBD-27RV1
S-3-0642-DF-163-01
PR-CL25-OS2(M8-16)
PR-CL25-OS2(M6-16)90
PR-CL25-OS2(M6-16)
PR-CL16-OS2(M8-20)
PR-DY-INS9/10/10.5K-2M1P
PR-CL16-OS2(M8-16)
PR-CL16-OS2(M6-16)
PR-CL16-OS2(M5-16)
PR-CL10-OS2(M6-16)90
PR-CL10-OS2(M6-16)
Camouflage Antennas
PROSE Strengthens Its Presence in the Canadian Market Through a Partnership with Videotron
Infracomms
MWC Barcelona 2024
KSCR231100206601ATC LPA2-43-B3B3-64F-01HW-KS CE-064
ACG2Z4K4R2WD-01
PR-DF-12S0X-NM-XXXX
PR-CL6-OS2(M6-16)
PRJC-D-5601-48-W
GWA-41UE
PBMU-N30-D1D3D5D7D28D40Q78-40R32F-30
S-3-10F-64F-01-T
PROSE Reconfigurable Antenna
Felipe Ángeles International Airport
Analog Versus Digital DAS: A Complementary Path to High Performance 5G Indoor Networks
PR-CL16-OS1(M12)
PR-CLX-OS1(MX)
PR-DM-12S0X-43F-XXXX
Archer Site Solution Power System
PROSE Technologies: Leading the Way in Telecom Innovation
Telecom World Team
Connect (X) 2024
CE-049 NB PBMU RJ45 SGSA121_EU_Cert PROSE
PRJC-D-5601-48-P
G33E-21UE
LPA-46-D78-NF-10
Optimizing Network Performance in Challenging Environments a case study on NOKIA's High-capacity Solution
S-3-9F-NF-07L
PROSE BPS (Beam Positioning System)
PR-DY-INO/FGH3K-12K-1/2M1P
PR-HG3-C08
PR-DM-12S0X-43MA-XXXX
Archer Site Solution Installation Material
PROSE Brand
Wind Load test and Calculation of the Base Station Antenna
PROSE Technologies and Leading UAE Telecom Operator Achieve Breakthrough in Network Performance with Hexabeam Antenna
G90F-20
RFcell Poland
GITEX GLOBAL 2024
CE-046 NB NEU SGSA95_EU_Cert PROSE
PRJC-D-5601-24-W
PR-HG3-C07
G2WPCP-01UE
MCU4-2F16R-20
S-3-9F-DF-04
Tan Son Nhat International Airport
PR-HG3-C06
PR-HG3-C05
PR-HG3-C03
PR-HG3-C01
PR-GW-MIN1.6K/1.8K/2K-4M1P
PR-HG1-C07
PR-HG1-C06
PR-HG1-C05
PR-HG1-C03
PR-HG1-C01
PR-DM-12S0X-43M-XXXX
Archer Site Solution Fiber System II
Antennas
Sustainable Mobile Networks- Antenna Strategies for Energy Efficiency and Improved Coverage
India Mobile Congress 2024
Mayor Nicastro Visits PROSE Technologies Facility in Mount Olive, NJ to Highlight Local Innovation and Growth
GWC-21
Piletic
CE-042 CB IRU-8 OUTDOOR DSS_BE-44960 PROSE
PRJC-D-5601-24-AR
EPU-003GE
MCU3-2F24R-11
S-3-9F-64F-07-T
OMC V4.0.0.7
GWD-21
PR-DM-12S0X-NF-XXXX
Archer Site Solution Fiber System I
Optimizing Network Performance With Sustainable Passive Antennas
MWC Barcelona 2025
PROSE Technologies Announces the Launch of 5G Ready Network at Twincraft Skincare
KABEL TRADE PRAHA
CE-041 NB IRU-8 INDOOR SGSA119_EU_Cert PROSE
PRJC-IL-6806-24-W
4R90TC-06UE
CAB-6-64F-12
S-3-8F-NF-01
Ho Chi Minh City Metro Line 1
OMC V4.0.0.6.78
2 Cores Type D Power Cable, CPR
2 Cores Type D Power Cable
PR-DM-12S0X-NMA-XXXX
Archer Site Solution Coaxial System
PROSE Wireless Innovation
Mobile Base Station Antenna Vendor Ranking
Connect (X) 2025
PROSE and SNSKIES Celebrate Launch of Micro Data Center and Intelligent Cabling System in Pakistan
E.Hartner & Co
PT-03 IATF 16949：2016 (DQS) PROSE Technologies (Suzhou) .Co., Ltd_2026
PRJC-IL-6806-24-P
2G4WHE-21UE
IRU-O-24-D1D3Q78-ANT-54
S-2-0642-DF-163-01
OMC V4.0.0.6
PR-EPS-14C03+14C05+11C06+11C07
PR-EPS-23C03+24C05
PR-JK-YMC4XSQ10
PR-EPS-41C07
PR-EPS-41C06
PR-EPS-44C05
PR-EPS-44C03
MW-V09D38
PR-EPS-13C03+12C05+11C06
MW-V09D32
PR-DM-12S0X-NM-XXXX
Company Portrait
PROSE Micro Data Center Products
Media License Rosenberger - BSA Competitive Ranking
India Mobile Congress 2025
PT-08 ISO 9001：2015 QM15 (DQS) PROSE Technologies (Suzhou) .Co., Ltd_2026
PR-EPS-12C03+21C06
PRFDP-P-024SC-1U-11-1
2G4WFD-21UE
MW-V09D28
IRU-O-26-D41Q78-64F-10
S-2-10F-64F-01-T
OMC V4.0.0.4
PR-EPS-12C03+11C06
MW-V09D26
PR-EPS-11C03+14C05
MW-V09D23
PR-EPS-11C03+13C05
MW-V09D18
PR-EPS-24C05
MW-V09D15
PR-JK-TMC4XSQ6A
PR-EPS-23C05
MW-V09D13
PR-EPS-24C03
MW-V09D10W
PR-EPS-23C03
MW-V09D7W
PR-EPS-21C07
MW-V09D6W
PR-EPS-21C06
MW-V09S38
PR-DM-12S0X-DF-XXXX
PROSE IBS Solutions
Joins The TOP 4 As IT Readies For 5G, ABI Research
GITEX GLOBAL 2025
PT-07 ISO 45001：2018 OHS18 (DQS) PROSE Technologies (Suzhou) .Co., Ltd _2025
PR-EPS-11C07
PRJC-IL-6806-24-AR
2G4WF-21UE
MW-V09S32
IM2U-N10-D1D3D7D8D28D40Q78-16R32F-10
S-2-9F-NF-07L
City of Dreams Mediterranean
PR-EPS-11C06
MW-V09S28
PR-EPS-14C05
MW-V09S26
PR-EPS-13C05
MW-V09S23
PR-EPS-12C05
MW-V09S18
PR-EPS-11C05
MW-V09S15
PR-EPS-14C03
MW-V09S13
PR-EPS-13C03
MW-V09S10W
PR-EPS-12C03
MW-V09S7W
PR-EPS-11C03
MW-V09S6W
PR-DM-12S0X-DMA-XXXX
PROSE Active
Innovation In The Mobile Cellular Antenna Sector
MWC Barcelona 2026
PT-06 ISO 27001：2022 BSI PROSE Technologies (Suzhou) .Co., Ltd_2028
PRJC-D-5601-24-P
2G4WD-21UE
IM2U-N10-D1D3D5D8D28D40D78-14R16F-10
S-2-9F-DF-04
Dhaka Mercantile Co-operative Bank
PR-JK-MC4XSQ6A1
PR-SA01-NFM
BTS Antenna Solutions
Driving Innovation In The Mobile Cellular Antenna Market
PT-17-01 ISO 50001：2018 RBT101-2013 PROSE KS_2024 EN
PROC-H03-048SM1-12
2G4WC-21UE
MPRU-33-Q78-64F-10
S-2-8F-NF-01
Transforming Connectivity with a Multi-Operator Core Network (MOCN) Solution in Australia
PR-EMT-XXX
PR-JK-MC4XSQ6A
PR-IMC-XXX
PR-FMPP02-XXX-XX
PR-FMPP01-XXX-XX
PR-HSP-XX-XX/XX
PR-FPP01-XXX-XX
PR-DCB01-43FM
Disruptive Presence In The Base Station Antenna Market, ABI Research
PT-05 ISO 14001：2015 UM15 (DQS) PROSE Technologies (Suzhou) .Co., Ltd _2027
PR-HPP00-XX-XX-XXX
PROC-H03L-024SM1-06
Q8: Can I pursue a career at PROSE?
S-Wave 0327-90-7-64K-O5
2G4W4XBD-27UE
HPRU-P-46-D78-64F-10
Boosting Network Capacity in Urban Areas of South Africa
5G Macro Site & Tower Sharing
Dense Urban Capacity Enhancement
Rural Coverage
High-Rise Coverage
Hotspot & Street Furniture
PROTREEM High-Efficiency Antenna
Multi-Band RF Combining
In-Building Distributed Antenna System (DAS)
PROSE Image
PR-SA01-DFM
ABI Research Innovation in the Cellular Technology Sector and Leading Role of PROSE Technologies
PRIP-SM31SCSC000-XXXX
NJ-08 ISO 9001：2015 QM15 (DQS) PROSE Technologies, LLC_2027
Q6: Can I compare multiple products online?
L-2-64M-04
LPA2-46-N78N78-64F-11
2G4W4RBD-27UE
Malaysia Offshore Oilfields
Stadium & Large Venue DAS
Retail Venue Connectivity
Airport Coverage
Railway, Metro & Tunnel Coverage
Education Campus Connectivity
Heat Shrink Tube 4:1 Adhesive Type
Medical & Healthcare Connectivity
Heat Shrink Tube 3:1 Adhesive Type
Interference Mitigation Filtering (IMF)
Heat Shrink Tube 2:1 Adhesive Type
ORU-46-Q40-LN-64F-D-01
Heat Shrink Tube 4:1 Normal Type
Heat Shrink Tube 3:1 Normal Type
PR-DCB01-NFM
ABI Research Competitive Ranking Passive Base Station Antenna Market
PRIP-SM31LCSC000-XXXX
Heat Shrink Tube 2:1 Normal Type
IND-08 ISO 9001：2015 ITCC CERTIFICATE_Indonesia 2025
Q5: Where can I download datasheets and documentation?
HC-22-0342-43F-163-01
MCU4-2F16R-11
Colombia FSS Stations
Sticker Label Kit 02
PR-GK04-C01-XXX
PR-GK01C-C08-XXX
PR-GK01C-C07-XXX
PR-GK01C-C06-XXX
PR-CSTX2-40A-XXX-XX
PR-GK01C-C05-XXX
PR-CSTX2-30A-XXX-XX
PR-GK01C-C03-XXX
PR-CSTX2-25A-XXX-XX
ORU-46-Q28-LN-64F-D-01
PR-GK01C-C02-XXX
PR-CSTX-40A-XXX-BK
PR-GK01C-C01-XXX
PR-CSTX-30A-XXX-XX
PR-DCB01-DFM
ABI Research Competitive Ranking Passive Base Station Antenna Market
PRIP-SM31LCLC000-XXXX
PR-CST2-40A-XXX-XX
PR-MTS48-XXX
IN-08 ISO 9001：2015 QM15 (DQS) CERTIFICATE PROSE Technologies India Pvt Ltd._2027
Q4: Can I request pricing or a quote online?
FT-26-40-DF-05
IRU-O-27-D1D3D8D78-ANT-10
One Cabinet, Multiple Operators: Redefining Telecom Efficiency in Philippines
Metal Label Kit 01
PR-CST2-30A-XXX-XX
PR-CSTA-70A-XXX-XX
PR-CSTA-50A-XXX-XX
PR-CSTA-40A-XXX-XX
PR-CST-50A-XXX-XX
PR-CST-40A-XXX-XX
PR-CST-40ARJ-130-BK
ORU-46-Q7-LN-64F-D-02
PR-CST-30A-XXX-XX
CB-6-GDULE03-64F-A01
PR-CST-25A-XXX-XX
CB-6-LDUNES-DF-A01
ORAN Indoor Coverage
E-Band Standard Backhaul
PR-SA01-DFF
PR-SYD-FSP2MSMXXX
PR-CST-12A-XXX-XX
ABI Research Competitive Ranking Mobile Antenna Vendors
PRIP-SM31SCSC001-XXXX
IND-07 ISO 45001：2018 ITCC CERTIFICATE PT. PROSE Technologies INDONESIA_2024
PROSE PBMU IM2U NEU IRU-O User Manual
Q3: In what countries does PROSE have offices and partners?
CB-5-UGDWL-NF-A03
DC-XX-8F-NF-01
NEU-2F32F-16
ORAN Outdoor Coverage
E-Band Flat Panel Backhaul
Plastic Label Kit 01
CB-5-LDUES-64F-B02
ORAN Private Network
E-Band Dual-Band Capacity Enhancement
RT1K11LA/RT1K11IA
CB-5-KDUMS-DF-A01
Standard Microwave Backhaul
RT2K11LA/RT2K11IA
CB-4-LDUM-64F-A04
Mission-Critical Microwave Backhaul
CB-4-LDUNES-NF-A01
RT3K11IA/RT3K11LA
Low-Band Dual-Band Capacity Enhancement
CB-4-YZDU-64F-A12
RT6K11LA
PR-WPT08-P66
CB-4-L14DJS-DF-A01
RT10K11LA
PR-WPT08-P65
CB-4-LDUM-64F-A08
PR-WPT08-P64
RT15K33LA
ORU-46-Q3-LN-64F-D-02
CB-3-BMS-DF-A01
PR-CTR-XXxXX-XX
PR-CC1-28C07
PR-WPT08-P63
RT20K33LA
PR-CT-XXxXX-XX
CB-3-DWE-64F-A15
PR-CC1-26C07
PR-WPT08-P62
T1K11HLA/T1K11HIA
ORAN Indoor DAS
PR-HS-SP3MDB600-630
PR-PMCT3X-XXxXX-XX
The Versatility of a DAS
PRIP-SM31LCSC001-XXXX
IND-05 ISO14001：2015 ITCC CERTIFICATE_2024
4W4TBC-07A Pattern files
Bandung City Connectivity Upgrade with FTTA
Q7: Are your solutions suitable for tunnels, hospitals, or other special scenarios?
CB-3-DWE-64F-A18
PBMU-N30-D1D3D7D8D28D40Q78-32R32F-10
CB-2-DJ-64F-A12
PR-CC1-24C07
PR-WPT08-P61
MW-U06D15
T2K11HLA/T2K11HIA
PR-MCTX-XXxXX
CB-3-DWE-NF-A17
PR-CC1-22C07
PR-WPT08-P22
T3K11HLA/T3K11HIA
CB-3-GNES-NF-A01
PR-CC1-28C06
PR-WPT08-P21
T6K11HLA/T6K11HIA
CB-3-GNE-NF-A01
PR-CC1-26C06
PR-WPT08-P6
T10K11HLA/T10K11HIA
CB-3-QRES-DF-A01
PR-CC1-24C06
PR-WPT08-P5
T20K33HLA/T20K33HIA
CB-3-L14DJS-DF-A01
PR-CC1-22C06
PR-WPT08-P0
T30K33HLA/T30K33HIA
CB-3-GDWE-64F-08-T3
PR-CC1-28C05
PR-WPT09-P1
CB-3-GDU-DF-A04
PR-CC1-26C05
PR-WPT09-P0
ORU-46-Q1-LN-64F-D-01
CB-3-GDU-64F-A11
FT-42-400-229-A01
PR-CC1-24C05
PR-TR2-51x3
MW-V06D42
CB-3-LBM-64F-A15
FT-38-60-229-A01
PR-CC1-22C05
PR-TR2-50x3
R30K33LA
MW-V06D38
HXPD Interference-Resistant Antenna
PR-SA01-NFF
PR-YL-SP2MDB530-555
Innovations in the 5G Distributed Antenna Systems Market
PRIP-SM31LCLC001-XXXX
IN-15 ISO ISO 14064-3：2019 Certificate PROSE Technologies India Pvt. Ltd. 2022
Pattern files MSI
Q2: How many countries does PROSE operate in?
CB-2-BM-64F-08
FT-42-400-64F-01
A-XX-2-N-01
DC Power Supply, Pole Mounting
PR-CC1-28C03
PR-TR2-50x1
R40K33LA
FC01 Series, Tight Buffered
MW-V06D32
ZHS483KG
Chinese Central State-Owned Enterprises
2025 Quality Credit Report
CB-2-BE-64F-A01
QFT-36-300-64F-B02
PR-CC1-26C03
PR-TR2-50.8x9
FC02 Series, Tight Buffered
MW-V06D28
CB-2-DJ-64F-A12
OFT-35-40-64F-01
PR-CC1-24C03
PR-TR2-25x5
MW-V06D26
FC03 Series, GYXTW
AFFS-NONPRESS-1U
DFT-09-78-64F-04A
DCB-2-DJ-64F-A12
PR-CC1-22C03
PR-TR2-19x9
MW-V06D23
FC04 Series, GYTS
DFT-09-60-64F-A23
PR-CC1-14C07
DCB-2-DJ-DF-A05
MDC-1111-1111-A141-1151
PR-TR1-63.5x0.6
MW-V06D18
FC05 Series, GYTA
DFT-09-78-64F-05A
PR-CC1-13C07
DCB-2-DJ-64F-A03
PG5E/PG60/PG6A-XX
PR-TP3-50x33
MDC-5121-1111-E141-1151
MW-V06D15
FC06 Series, GYTA53
DFT-09-64-64F-A01
PR-CC1-12C07
DCB-2-DJ-DF-A02
KS80-221-1XX
PR-TP3-19x20
MDC-5111-1111-A141-1151
MW-V06D13
FC07 Series, GYFXTY
DBU-20-Q78-N-SF-D-01
DFT-09-75-64F-03
PR-CC1-11C07
CB-2-DJ-NF-A03
KS60-221-1XX
PR-TP2-50x10
MDC-5231-1121-E141-1251
MW-V06D10W
FC08 Series, GYFTY
DJW12-12
PR-CC1-14C06
DFT-09-75-DF-06
CB-2-DU-NF-03L
KS60-121-1XX
PR-TP2-50x6
MDC-5221-1121-C141-1251
MW-V06D7W
DJW12-18
PR-CC1-13C06
DFT-09-75-DF-18
DCB-2-BM-64F-13
KS60-111-1XX
PR-TP2-38x10
MDC-5331-1122-C141-1351
MW-V06S42
FTTA / PTTA Site Cabling
PR-TP2-19x20
PROC-H03L-048SM1-12
PR-DM-12S0X-DM-XXXX
S-2-9F-64F-07-T
PR-JK-SP1MDB625-650
Evolving 4G to 5G Innovation in Distributed Antenna Systems
PR-CC1-12C06
IN-05 ISO 14001：2015 UM15 (DQS) Certificate PROSE Technologies India Pvt Ltd._2027
2G2W4WHF-21 pattern in msi
Q1: Where is PROSE headquartered?
CU-8-WB-64F-15
DCB-2-QG-64F-OA2C
CP00-111-1E
KS30-111-2XX
DC Power Supply, Cabinet Type
MDC-5461-1132-E141-1451
MW-V06S38
DJM1238
ZHR483KG
PROSE Security Trade Control Policy
Chinese Semiconductor Manufacturer
Modular Data Center
Leaky Cable Tunnel Coverage
PR-TP2-19x6
FT-08-55-D-05
PR-CC1-11C06
DCB-2-QZ-64F-A12
CP00-113-1E
KS6A-231-1MT
MDC-5441-1122-C141-1451
MW-V06S32
DJM1250
Edge Computing Data Center
Integrated Telecom Site Power
PR-TP1-50x6-XX-XX
DFT-08-61.5-64F-01A
PR-CC1-14C05
QCB-2-YZ-64F-05
CP00-112-1E
KS6A-221-1XX
MDC-5661-1123-C141-1651
MW-V06S28
DJM1255
Advanced Liquid Cooling
PV Power & Energy Storage
PR-TP1-19x30-XX-XX
DFT-08-65-64F-01
PR-CC1-13C05
CB-2-FM-64F-A16
CP00-111-2E
KS6A-121-1XX
MDC-5771-1124-C141-1751
MW-V06S26
OCXX-XXXX-X
DJM1265
Data Center Infrastructure Management (DCIM)
PR-TP1-19x20-XX-XX
DFT-07-90-64F-A01
PR-CC1-12C05
CC6A-521-16OR
DCB-2-LH-DF-A10
CP00-121-1E
KS6A-111-1XX
NMU-G4-01
NCA100-XXXXXX-XXXXX-XXXX
MW-V06S23
ODU-XXX Series
DJM1275
AC-G Series
High-Density Data Center Cabling
DFT-08-257-64F-01
PR-TP1-19x10-XX-XX
PR-CC1-11C05
CC6A-221-16OR
CB-2-LH-NF-A11
CM10-111-1U
KS5E-22X-1XX
NFP11-241-LCGD11
NCA80-XXXXXX-XXXXX-XXXX
PU32-2611-A2V
MDC-5871-1124-C141-1851
MW-V06S18
ODUF-XXXX-XXXXX
DJM12100
DFT-QG-257-64F-OAW
MW-V06S15
PR-TP1-18x3-XX-XX
PR-CC1-14C03
CC6A-111-16BL
CB-2-YZ-64F-A01
KS5E-121-1XX
NFJ-GD02LCLC623-0030
NCA50-XXXXXX-XXXXX-XXXX
ORB-4260-005
PU28-2831-02V
MOC-32021
ODF-WR-XXXXX
DJM12120
CM10-211-1U
QFT-0708-176-64F-A01
PR-TP1-18x1.5-XX-XX
PR-CC1-13C03
ORU-46-Q41-LN-64F-D-01
CC60-221-16OR
CAT6A Series
CM10-212-42U
KS5E-111-1XX
WF13-XX1-XX
NEU-G4-01
SCC220-XXXXXX-XXXXX-XXXXX
ORA-XXXXX-XXX
PU21-4931-00V
MW-V06S13
FPHX-481-XXXXX
FTXX-XXXXXXXX-XXXX
DJM12150
CDC-32021
BY-RM23-D2
BP-R96V2UA
RFR-SCP-XXXX
Intelligent Cabling System (ICS)
PR-TP1-15x10-XX-XX
PR-CC1-12C03
ORU-46-Q41-LN-64F-D-03
CC60-181-11GY
CAT6 Series
CB-2-KL-DF-A01
WF12-XX1-XX
NCP60-111-113
WR60-XXXXX-XXX-XX-XXXX
SCC150-XXXXXX-XXXXX-XXXXX
PU12-BDD1-00V
MW-V06S10W
FPEX-721-XXXXX
FJXX-XXXXXXXX-XXXX
FAXX Series
BY-RM23-C2
BP-R72V2UA
RFR-CAF-XXXX
CR36-XX-XXX-11
Building Cabling System
PR-CC1-11C03
ORU-46-Q78M4-N-64F-D-01
CB-2-KH-DF-A02
CC5E-181-11GY
CAT5e Series
CK6A-111-1XX
WF11-XX1-XX
NCJ60-114-11GY3
DWR-XXXXX-XXXXX-XX
SCC120-XXXXXX-XXXXX-XXXXX
PU12-A3D1-A3V
MW-V06S7W
FPXX-XXX-XXXXX
FJXX-XXXXXXXX-XXXX
APXX Series
AC-F Series
ICS2-002-0X
PROSE-DMB-001-01
BY-RM23-A2
BP-R36V2UA
RFR-ARF-1-XXX
CR12-XX-XXX-11

FTTA Protection Solutions

Scenario 1: Protection by Additional Structure

Additional Material

Benefit

Typical Material

Feature

Scenario 2: Use Common Structure

Benefit

Typical Material

Feature

Typical FTTA/PTTA Solutions

1) Discrete Fiber and Power Cables

Related Products

Application

Product Feature

2) Centralized Fiber and Power Cables (I)

Related Products

Application

Product Feature

3) Centralized Fiber and Power Cables (II), Weatherproof Connector

Related Products

Application

Product Feature

4) Hybrid Fiber and Power Cables (I)

Related Products

Application

Product Feature

5) Hybrid Fiber and Power Cables (II), with Box

Related Products

Application

Product Feature

6) Enhanced FTTA / PTTA Solutions: Open-free Fiber Box, Alligator Type

Related Products

Application

Product Feature

Common Installation Material

Cable Clamp

Material

Application

Suitable Cable Range

Grounding Kit

Material

Application

Suitable Cable

Hoisting Grip

Material

Application

Suitable Cable

Entry Set

Material

Application

Suitable Cable

List and Description of Abbreviations
