Antenna frequency: 5 x (2300-2690) MHz
3dB azimuth beamwidth: 13 °
Gain: 23.1 dBi
Electrical downtilt: 2-10 °
Connector: 10 x 4.3-10 Female
Dimension: 840 x 745 x 216 mm
Status of product: general available
Penta Beam Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 5 x (2300-2690) MHz |
| Gain | 23.1 dBi |
| 3dB Azimuth Beamwidth | 13 ° |
| Electrical Downtilt | 2-10 ° |
| 1st Upper Sidelobe Suppression | > 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 |
| Beam Isolation | > 17 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |

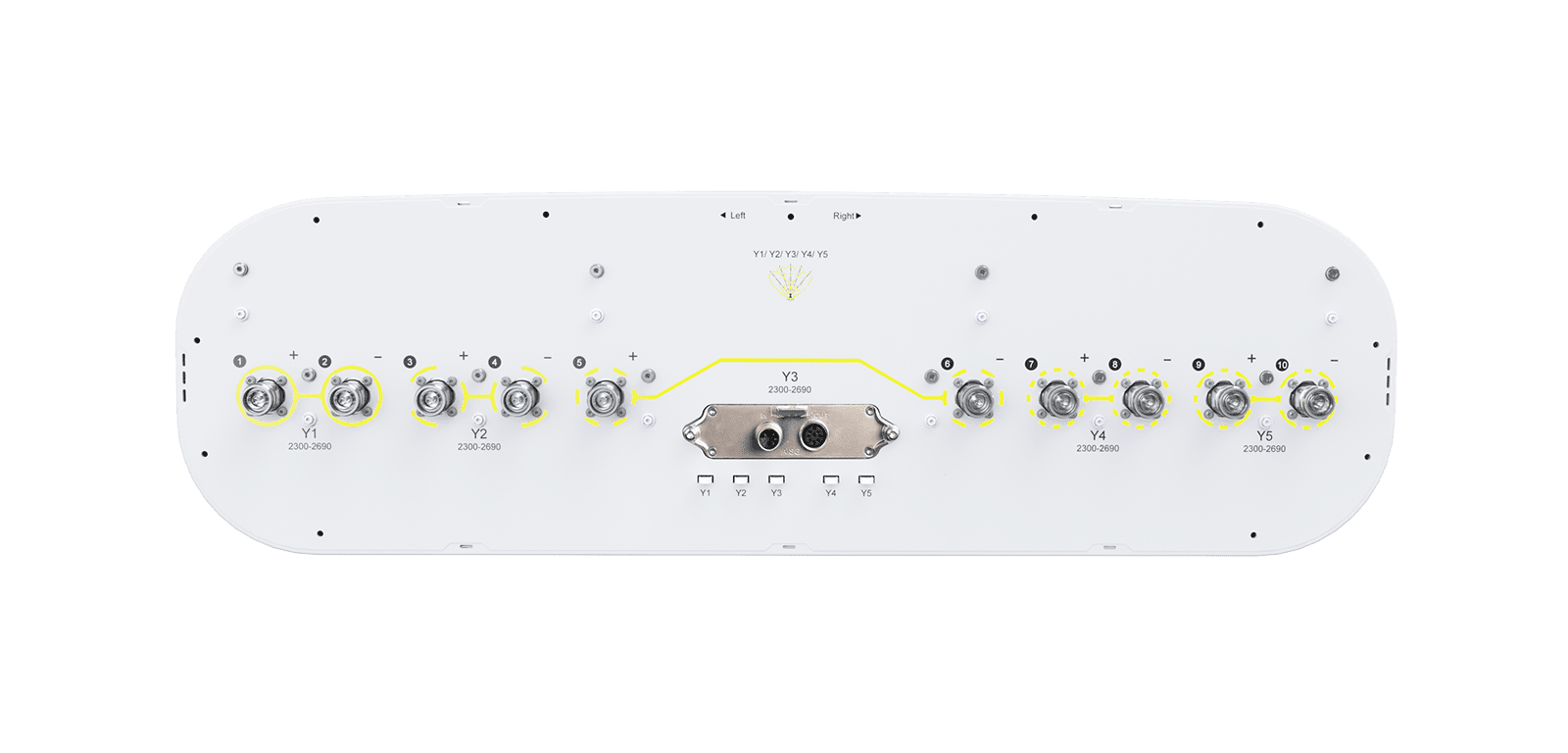

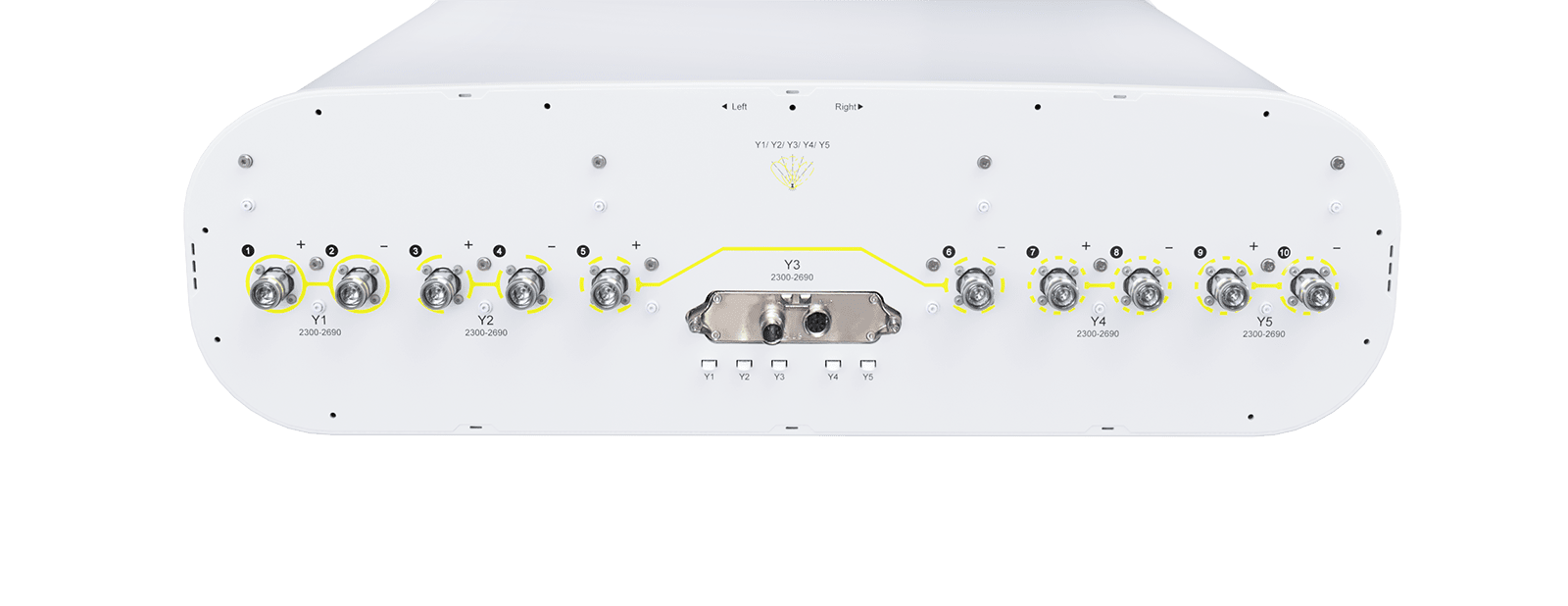

| Connector Type | 10 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 840 x 745 x 216 mm | 33.1 x 29.3 x 8.5 in |
| Packing Size (H x W x D) | 990 x 875 x 360 mm | 39.0 x 34.5 x 14.2 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 580 N | 130 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 2300-2690 |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | 85L-1 | 4.1 kg / 9.0 lb | 0-10 |
