Antenna frequency: 4 x (1695-2690) MHz
3dB azimuth beamwidth: 33 (°)
Gain: 20.3 (dBi)
Electrical downtilt: 2-12 (°)
Connector: 8 x 4.3-10 female
Dimension(mm): 2076 x 396 x 190
Status of product: general available
Dual Twin Beam Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 4 x (1695-2690) MHz |
| Gain | 20.3 dBi |

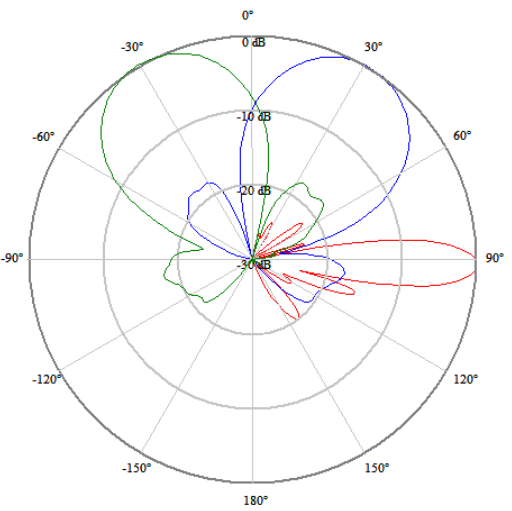

| 3dB Azimuth Beamwidth | 33 ° |
| Electrical Downtilt | 2-12 ° |
| 1st Upper Sidelobe Suppression | > 19 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 28 |
| Inter - Cluster Isolation | > 30 |
| 3rd PIM(2 x 43 dBm) | < -150 dBc |
| Impedance | 50 Ω |

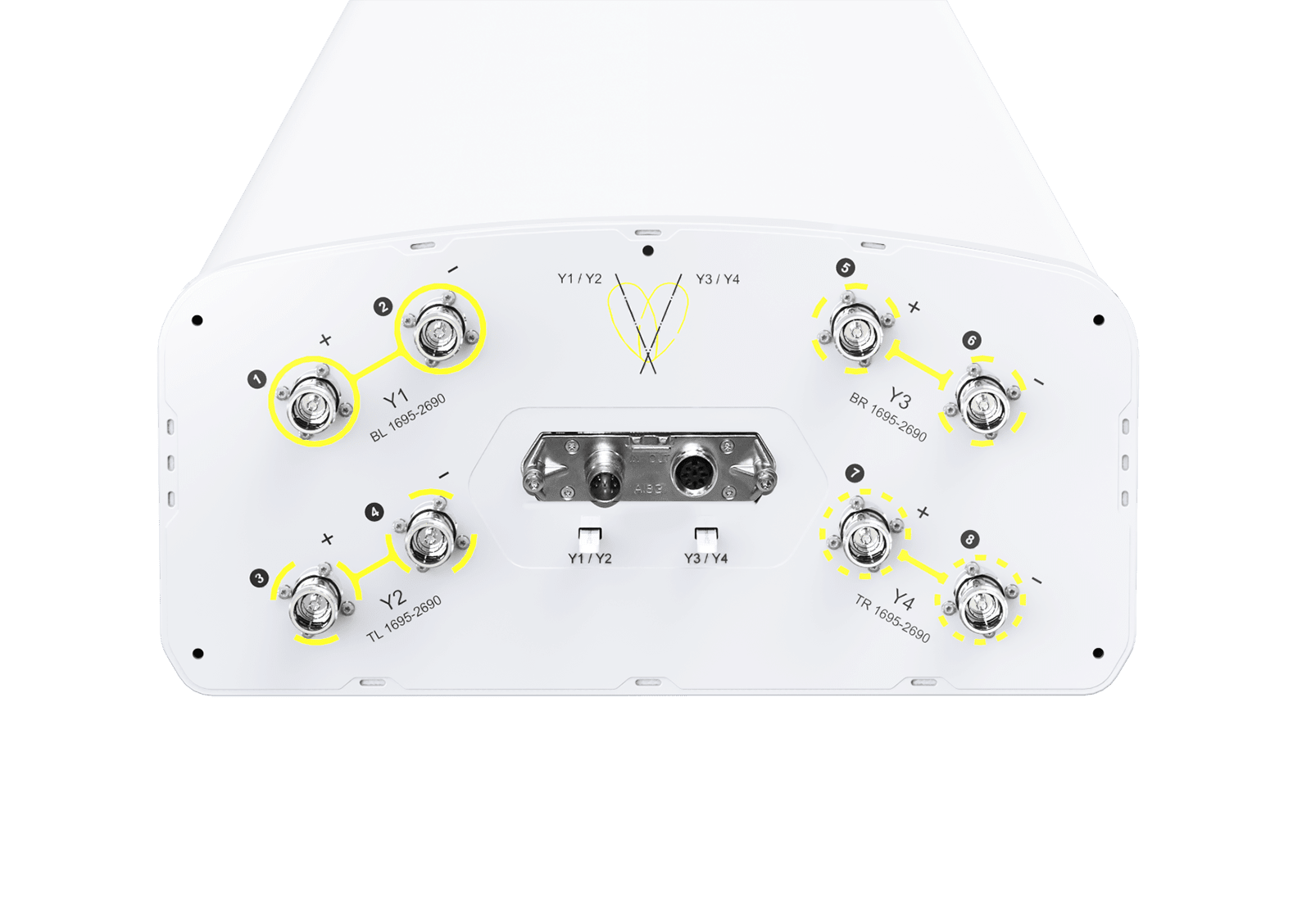

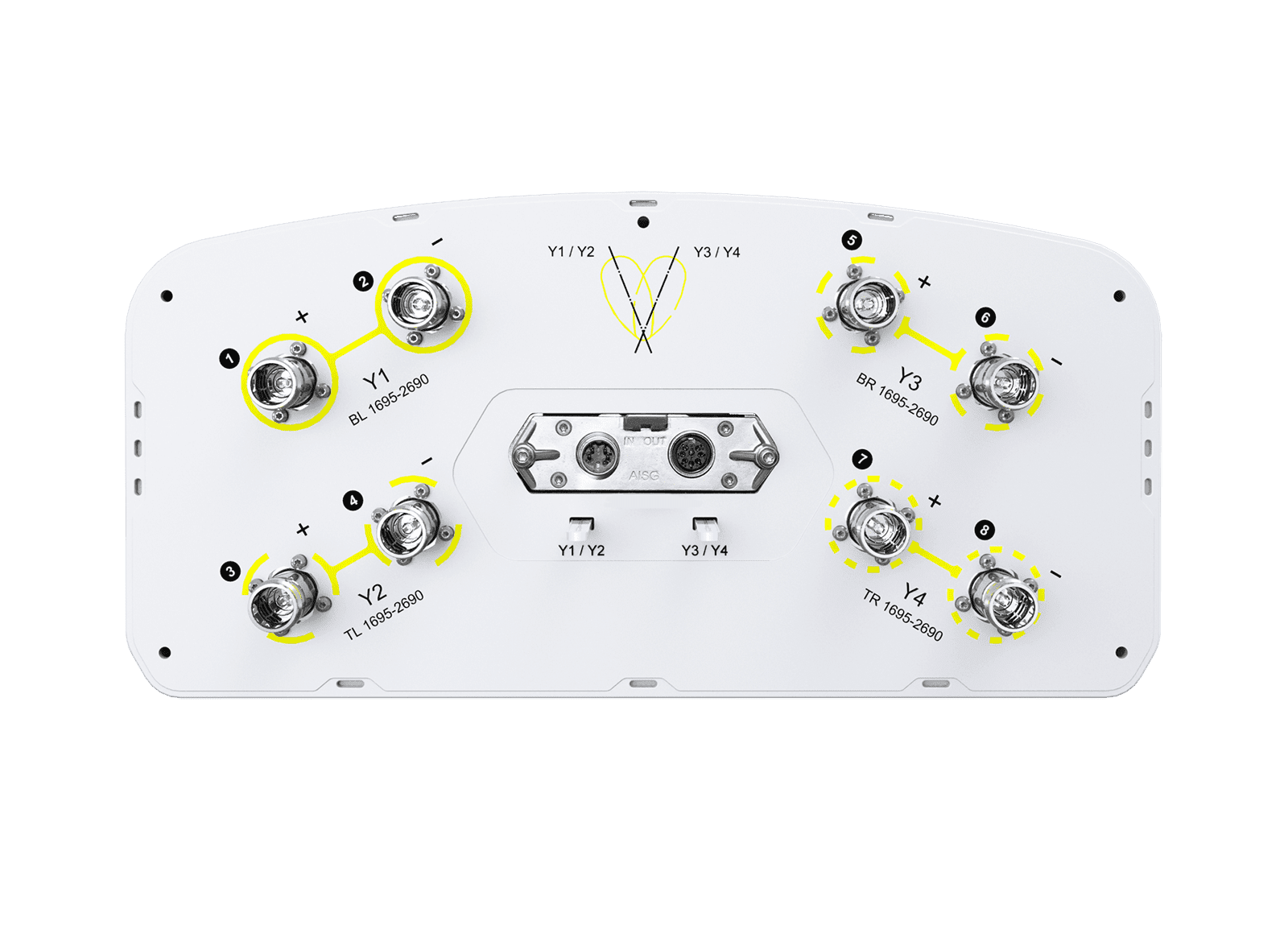

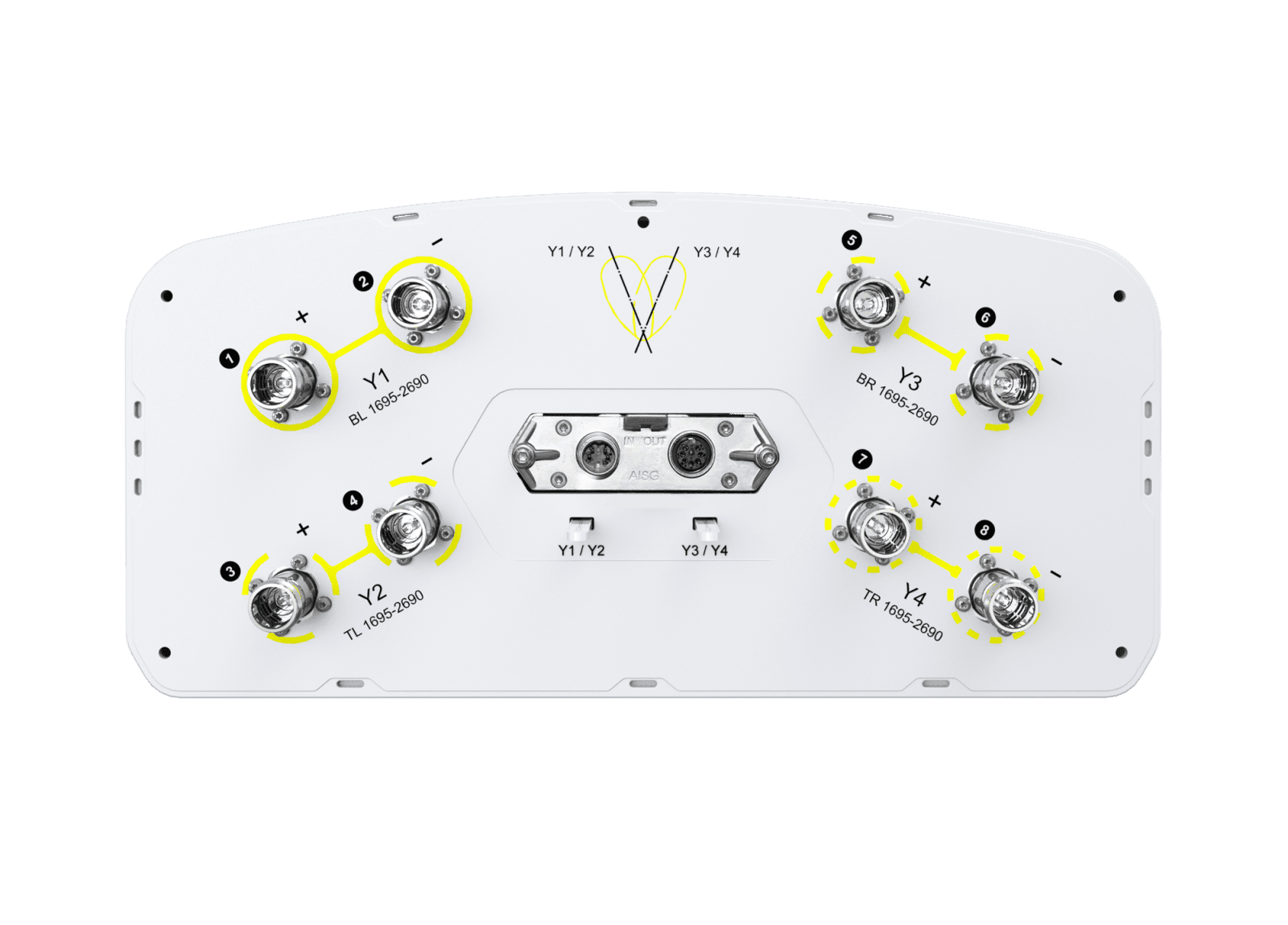

| Connector Type | 8 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2076 x 396 x 190 mm | 81.7 x 15.6 x 7.5 in |
| Packing Size (H x W x D) | 2226 x 508 x 343 mm | 87.6 x 20.0 x 13.5 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 763 N | 172 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 to +70 °C | -40 to +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 1695-2690 |
![]() |

| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | 85L-1 | 4.1 kg / 9.0 lb | 0-10 |
