Low PIM
Low weight
Compact design for easy installation
Contain WCDMA, DCS, LTE2600 band

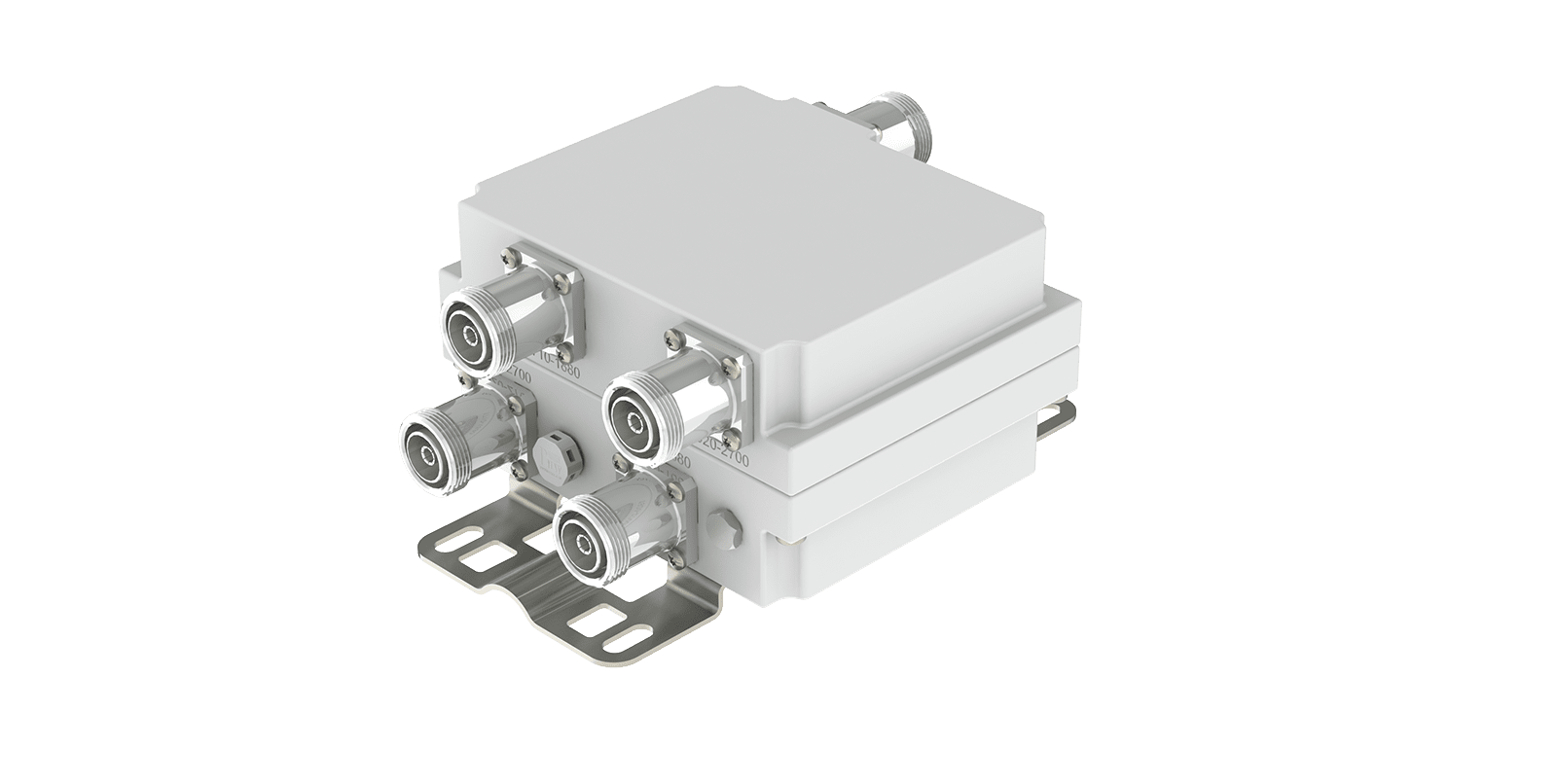

DCB-2-DJ-DF-A05, a double-unit dual-band combiner covering 1710–1880 MHz and 1920–2690 MHz, designed for RF signal integration across WCDMA, DCS, and LTE2600 bands, featuring low PIM and lightweight construction to support stable dual-band performance in macro base stations and wireless network infrastructure. A compact, deployment-ready design enables efficient installation while optimizing site space utilization.
|
Frequency |
CH1: 1710-1880MHz |
| CH2: 1920-2690MHz | |
| VSWR | 1.3 |
| Insertion Loss | CH1: ≤0.4dB@1710-1880MHz |
| CH2: ≤0.5dB@1920-2690MHz | |
| Isolation | ≥50dB |
| Pass band Ripple | ≤0.2dB |
| Power Handling | 250W average per port |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -153dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -30°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 10kA,8/20us |
| Applications | IP67 Method IEC 60529:2001 |

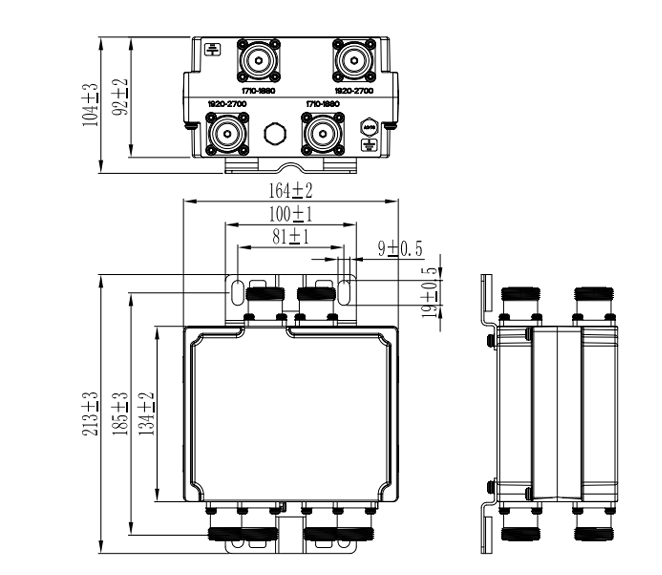

| Dimension | 213x164x1047(mm, excluding brackets and connectors) |
| Weight | ≤3.4kg |
|
Connectors Type Number of input ports Number of output ports |
7/16 female(Long neck) 4 2 |
| Mounting | Wall or pole |
| Mounting Pipe Diameter | 40-135mm |
| Mounting Pipe Hardware | Band clamps |
| Packing | 1Pcs in box |
