Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
AISG/DC bypass

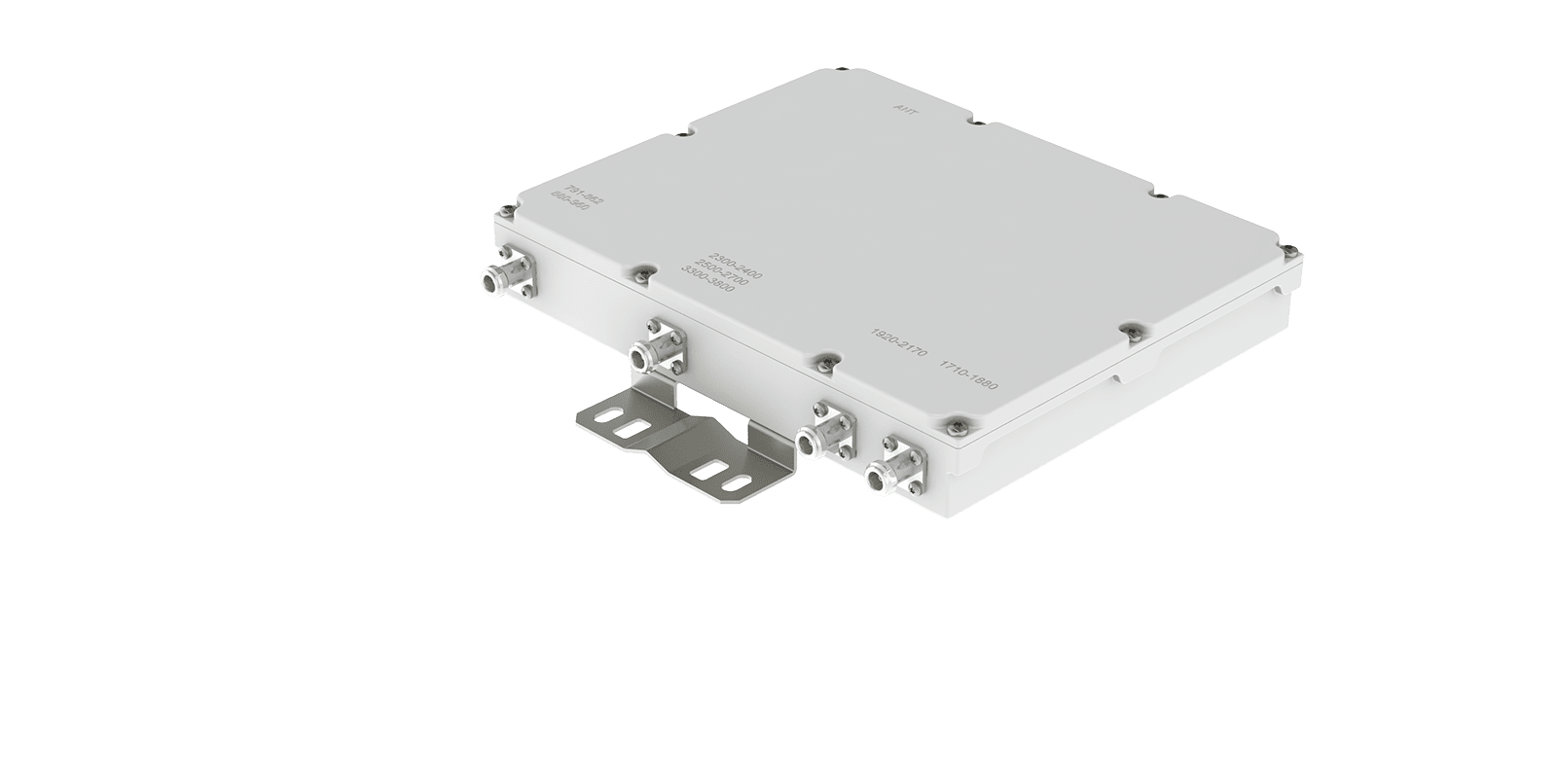

CB-4-LDUNES-NF-A01, a multi-band combiner configured for efficient RF signal merging, integrating low VSWR, high isolation, low insertion loss, and low PIM to preserve signal stability across combined paths in macro base stations and wireless network infrastructure. A compact, space-conscious design supports straightforward installation, while custom band adaptability and AISG / DC bypass capability enhance flexibility for varied deployment needs.
|
Frequency |
CH1: 791-862&880-960MHz |
| CH2: 1710-1880MHz | |
| CH3:1920-2170MHz | |
| CH4: 2300-2400&2500-2700&3300-3800MHz | |
| Return Loss | ≤-18dB |
| Insertion Loss | ≤0.5dB |
| Isolation | ≥50dB |
| Power Handling | 200W average per port |
| DC Characteristic | DC bypass all ports |
| Intermodulation | ≤ -153dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 5kA,8/20us |
| Applications | IP65 |

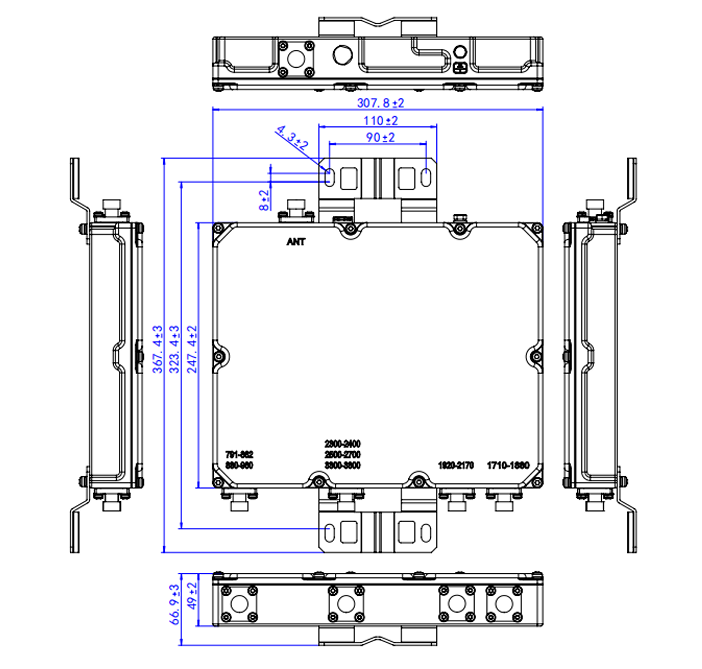

| Dimension | 307.8x247.4x49(mm, excluding brackets and connectors) |
| Weight | ≤5.5kg |
| Connectors Type | N female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
