Penta-band combiner
High Rejection, Low VSWR and Loss
High Power performance
Low PIM
Compact design for easy installation

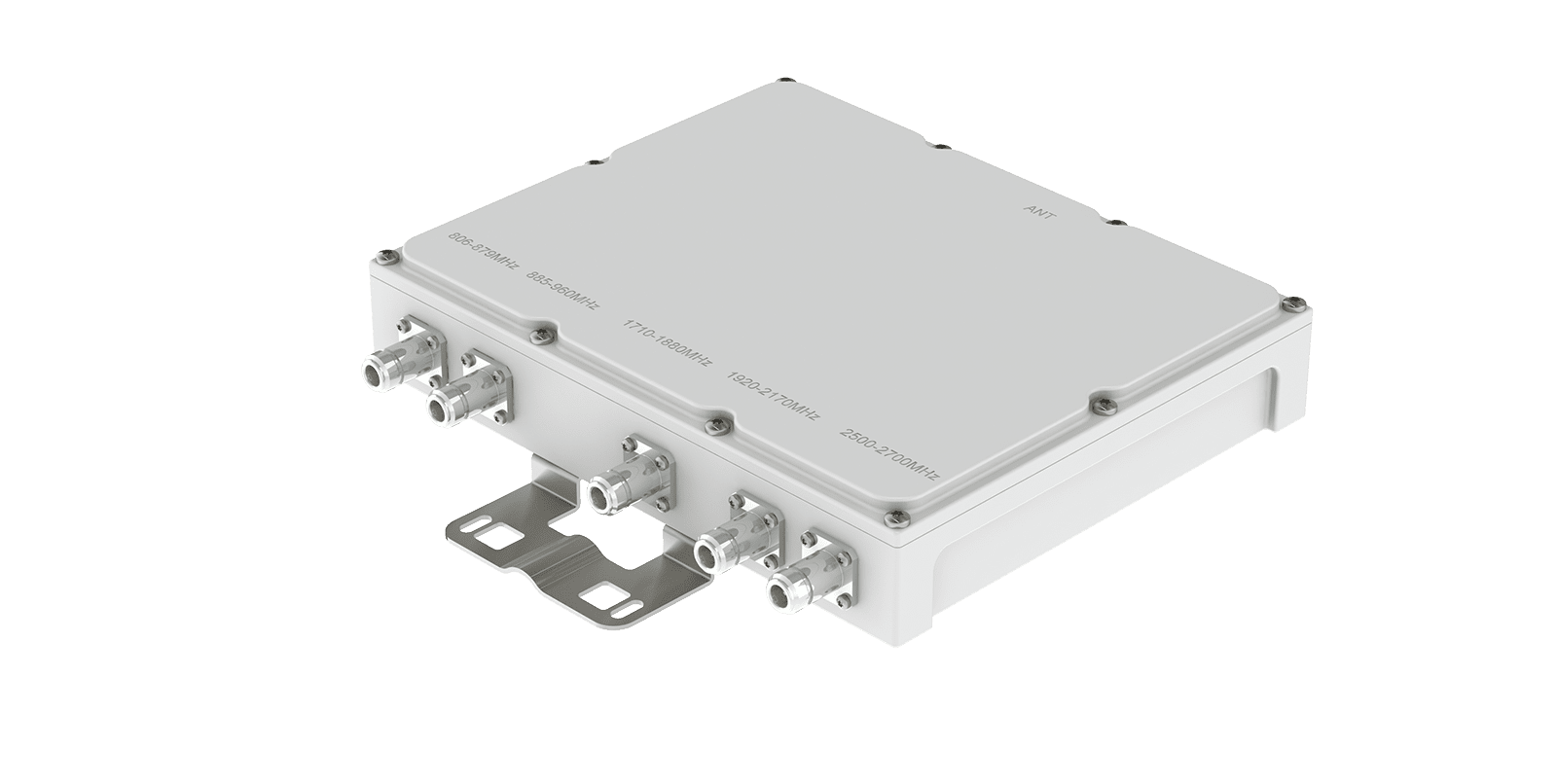

CB-5-UGDWL-NF-A03, a multi-band (penta-band) combiner engineered for high-capacity RF integration, delivering high rejection, low VSWR, low insertion loss, high power handling, and low PIM to ensure stable multi-band signal merging in macro base stations and wireless network infrastructure. A compact structural design supports efficient installation and optimized space utilization.
|
Frequency |
CH1:806-879MHz |
| CH2:885-960MHz | |
| CH3:1710-1880MHz | |
| CH4:1920-2170MHz | |
| CH5:2500-2700MHz | |
| Return Loss | ≤-20dB |
| Insertion Loss | CH1:≤1.5dB, 0.4dB typ |
| CH2:≤1.5dB, 0.4dB typ | |
| CH3:≤0.5dB, 0.4dB typ | |
| CH4:≤0.5dB, 0.4dB typ | |
| CH5:≤0.4dB, 0.3dB typ | |
| In-band Isolation CH1 |
≥80dB@885-960MHz |
| ≥50dB@1710-1880MHz | |
| ≥50dB@1920-2170MHz | |
| ≥50dB@2500-2700MHz | |
| In-band Isolation CH2 |
≥80dB@806-879MHz |
| ≥50dB@1710-1880MHz | |
| ≥50dB@1920-2170MHz | |
| ≥50dB@2500-2700MHz | |
| In-band isolation CH3 |
≥50dB@806-879MHz |
| ≥50dB@885-960MHz | |
| ≥50dB@1920-2170MHz | |
| ≥50dB@2500-2700MHz | |
| In-band Isolation CH4 |
≥50dB@806-879MHz |
| ≥50dB@885-960MHz | |
| ≥50dB@1710-1880MHz | |
| ≥50dB@2500-2700MHz | |
| In-band Isolation CH5 | ≥50dB@806-879MHz |
|
≥50dB@885-960MHz |
|
| ≥50dB@1710-1880MHz | |
| ≥50dB@1920-2170MHz | |
| Power Handling | 200W average per port |
| DC Characteristic | DC stop for all ports |
| Intermodulation | ≤ -150dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -40°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP65 |

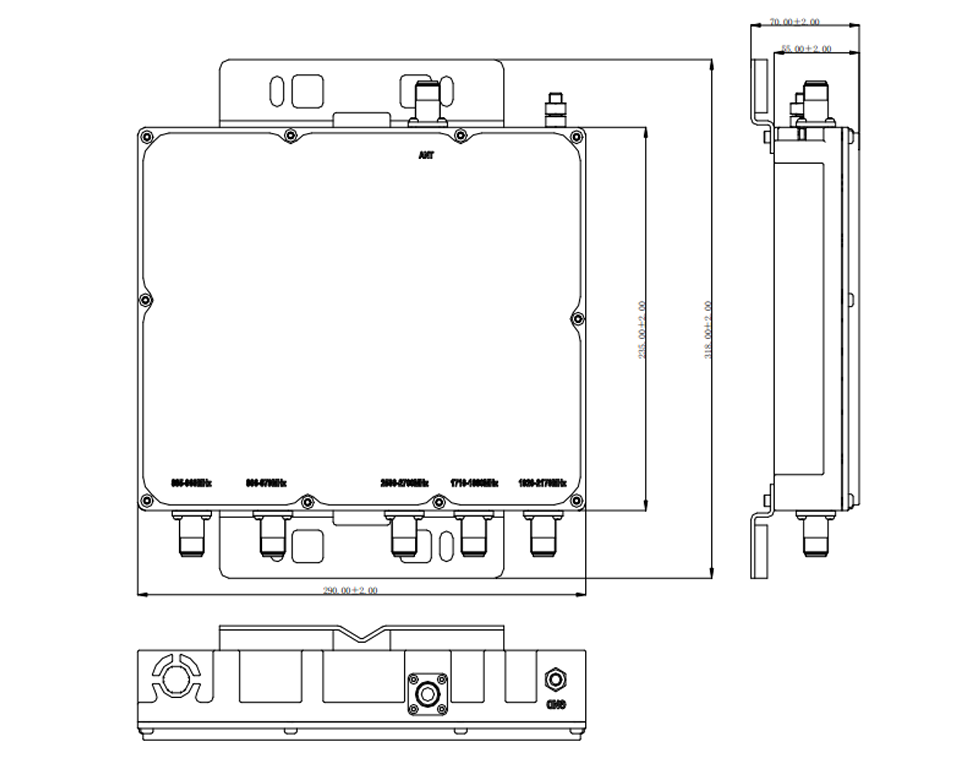

| Dimension | 290×235×55(mm, excluding brackets and connectors) |
| Weight | ≤5.8kg |
| Connectors Type | N female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
