Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
AISG/DC bypass

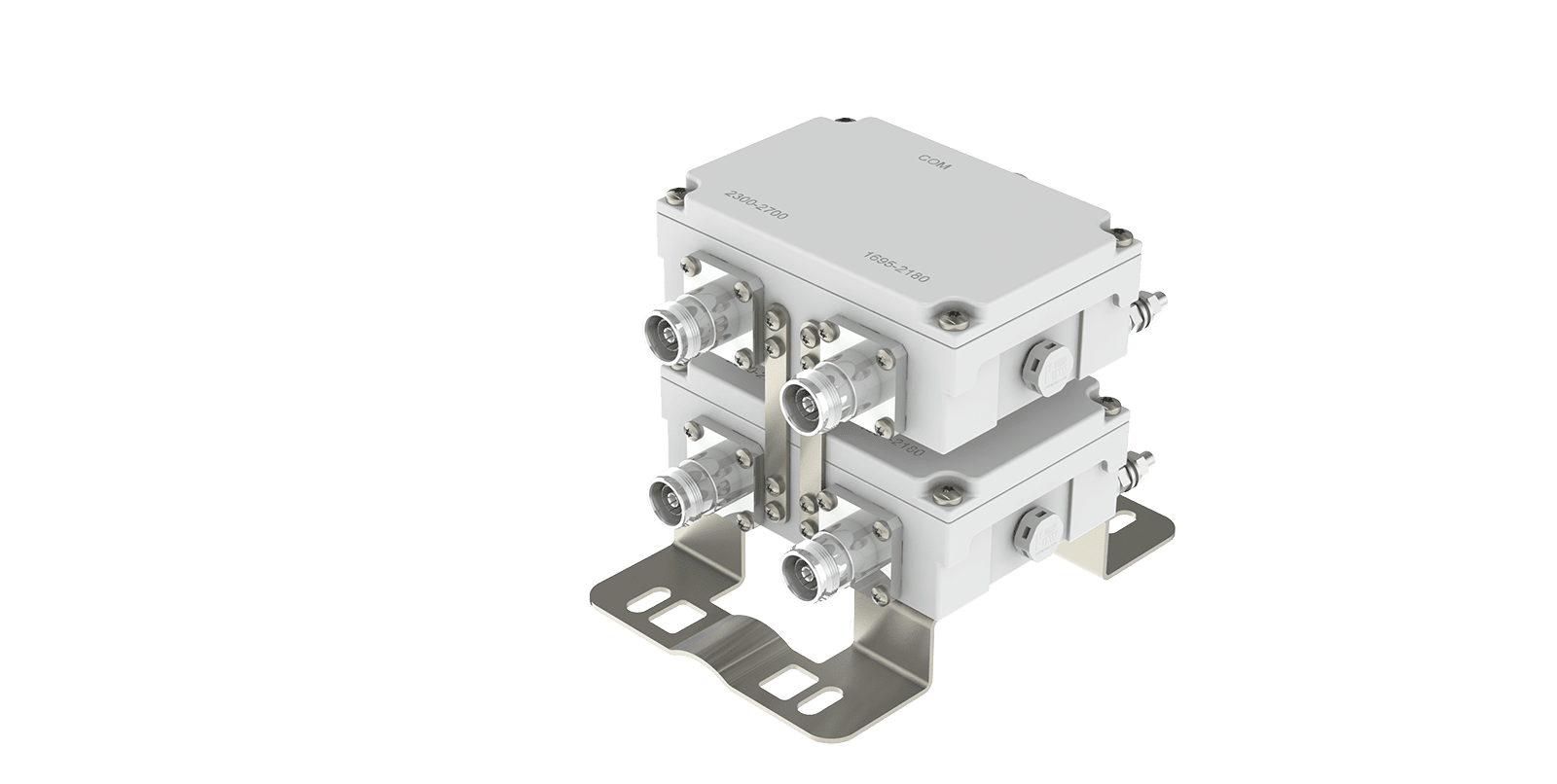

DCB-2-BM-64F-13, a double-unit dual-band combiner covering 1695–2180 MHz and 2300–2700 MHz, engineered for efficient RF signal integration, incorporating low VSWR, high isolation, low insertion loss, and low PIM to ensure stable performance across extended frequency ranges in macro base stations and wireless network infrastructure. A compact, installation-optimized structure enables simplified deployment, while custom band capability and AISG / DC bypass functionality support flexible system integration.
|
Frequency |
CH1: 1695-2180 MHz |
| CH2: 2300-2700 MHz | |
| Return loss/VSWR | ≤-19 dB /1.25 |
| Insertion Loss | ≤0.4dB |
| Isolation | ≥50dB |
| Power Handling | Average:200W |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -150dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

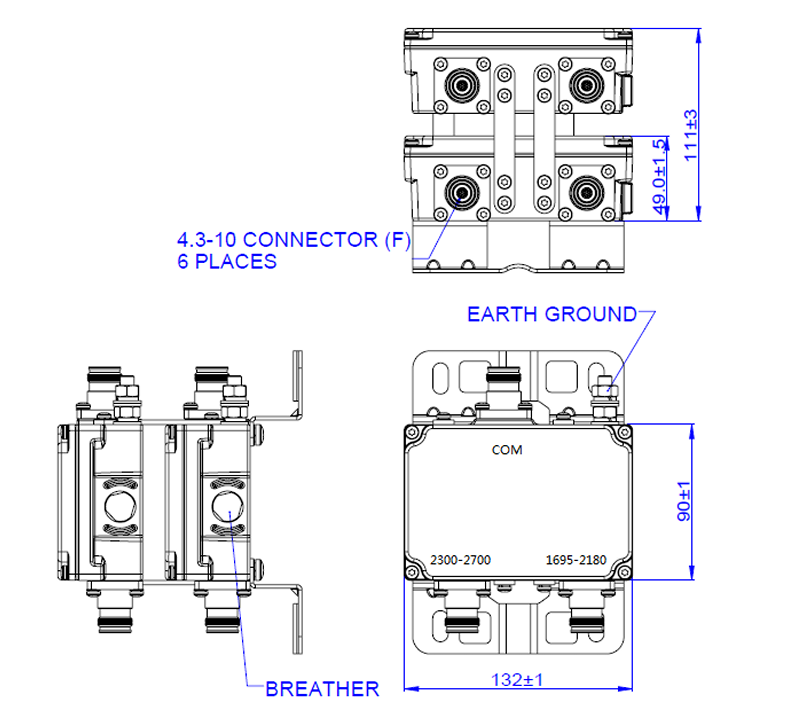

| Dimension | 132 x 90 x 111(mm, excluding brackets and connectors) |
| Weight | ≤3.5kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
