Compact, low weight
Low PIM
High reliability
Simple installation

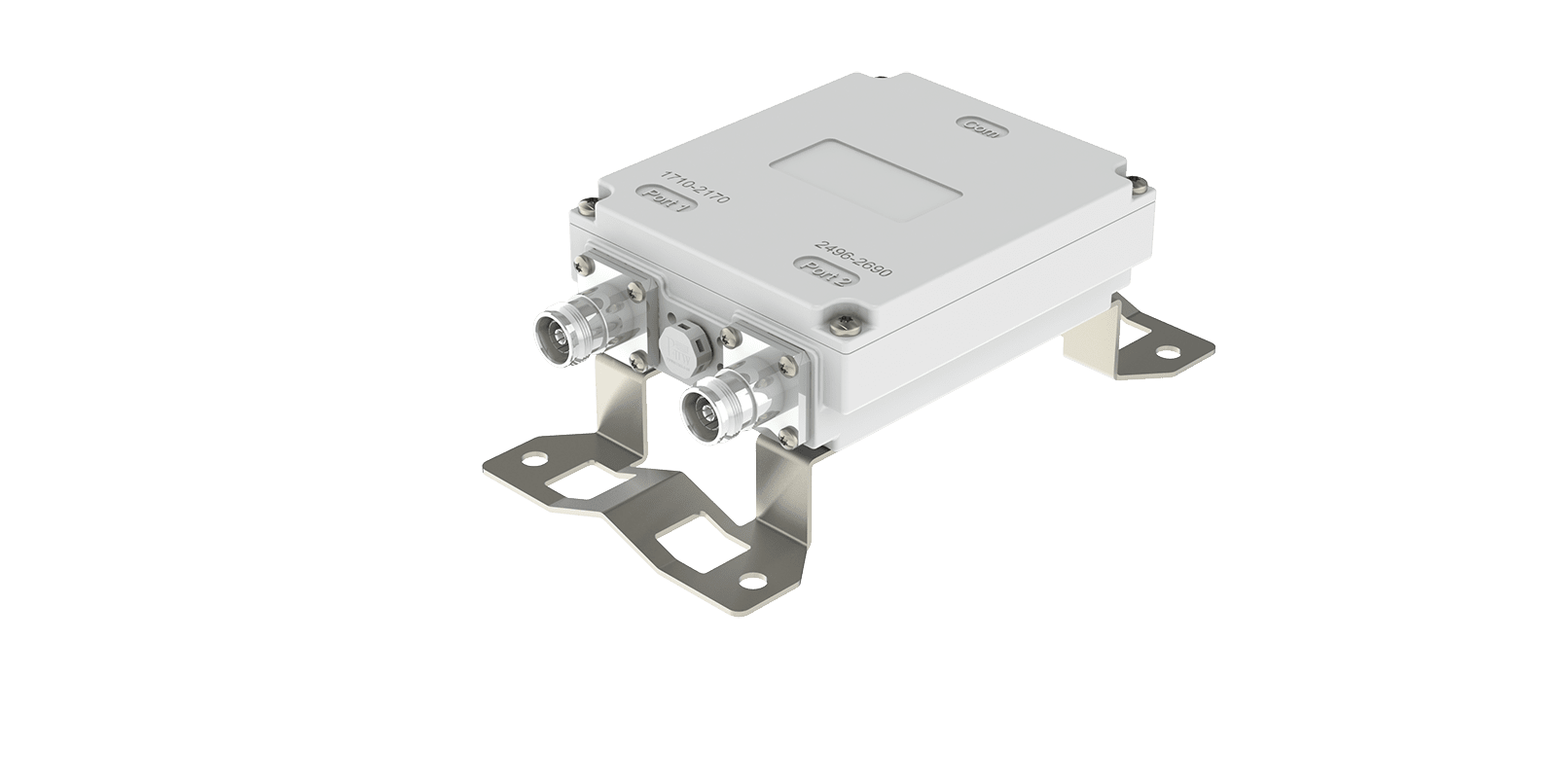

CB-2-BE-64F-A01, a dual-band combiner covering 1710–2170 MHz and 2496–2690 MHz, designed for efficient RF signal integration, featuring low PIM, compact and lightweight construction, and high reliability to support stable dual-band performance in macro base stations and wireless network infrastructure. A compact, installation-ready design enables straightforward deployment while optimizing space utilization.
|
Frequency |
CH1: 1710-2170MHz |
| CH2: 2496-2690MHz | |
| Return Loss/ VSWR | ≥19dB / 1.25 |
| Insertion Loss | 0.2dB Typical / 0.35dB Maximum |
| Isolation | ≥50dB |
| Power Handling | 300W average per port |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 10kA,8/20us |
| Applications | IP67 |

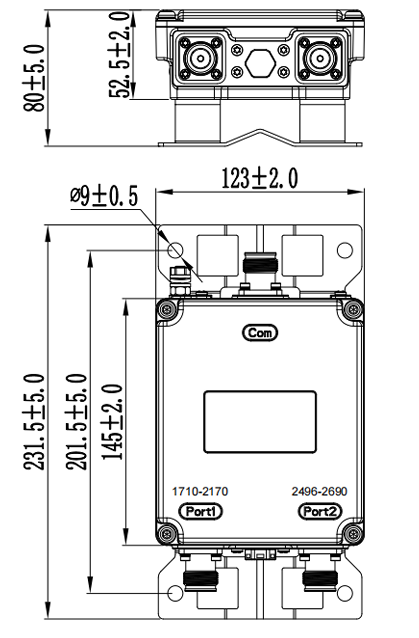

| Dimension | 145x123x52.5(mm, excluding brackets and connectors) |
| Weight | ≤1.5kg |
| Connectors Type | 4.3-10 female |
| Mounting Pipe Diameter | 40-135mm |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
