Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
5G application is compatible

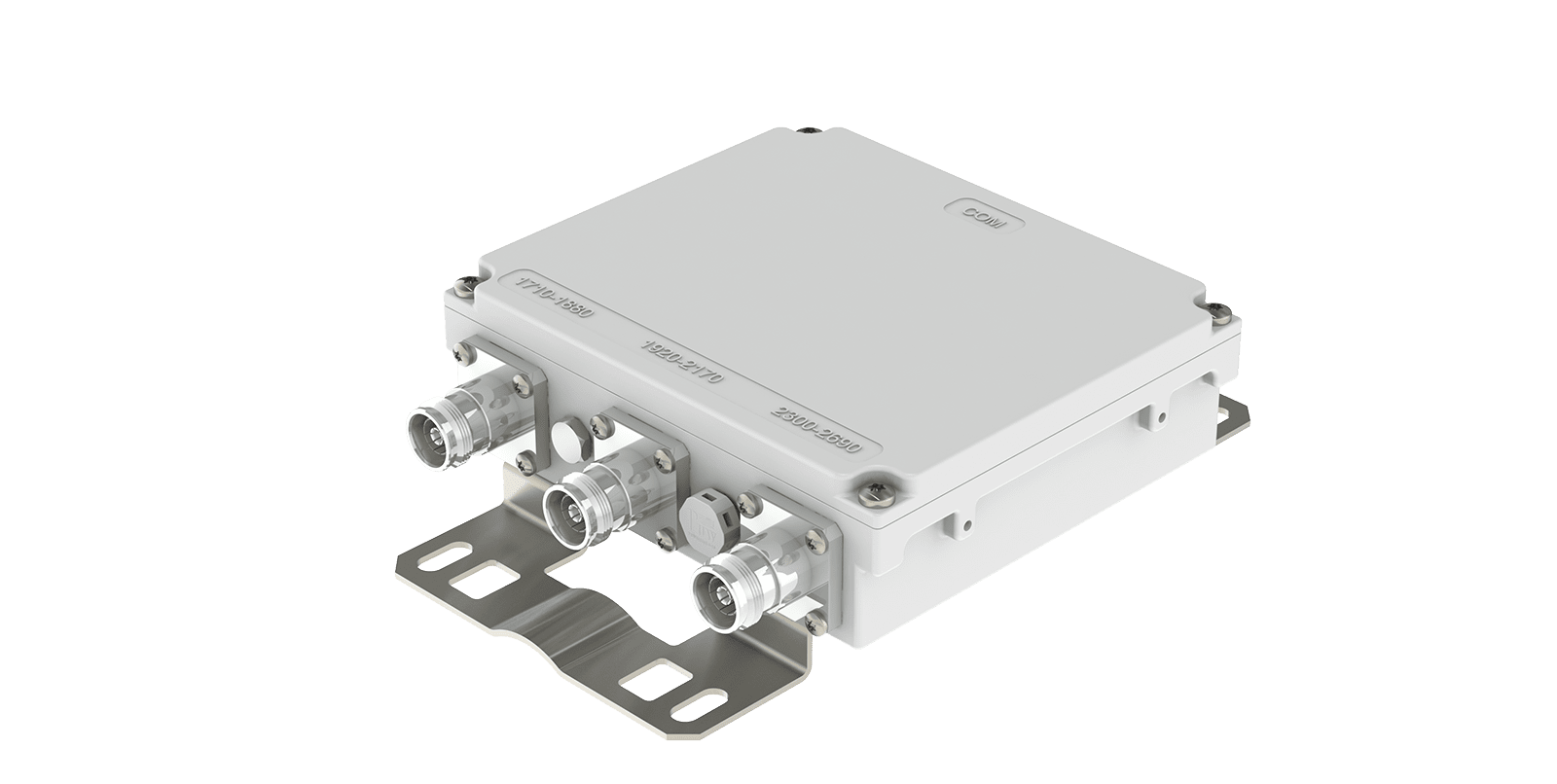

CB-3-DWE-64F-A18, a single-unit triplexer configured for multi-band RF routing, integrating low VSWR, high isolation, low insertion loss, and low PIM to enable efficient signal separation and combination across three bands in macro base stations and wireless network infrastructure. A compact, installation-friendly structure supports convenient deployment, while custom band adaptability ensures alignment with flexible network configurations, including 5G-oriented scenarios.
|
Frequency |
CH1: 1710-1880MHz |
| CH2: 1920-2170MHz | |
| CH3: 2300-2690MHz | |
| Return Loss | ≤-18dB |
| Insertion Loss | ≤0.4dB |
| Isolation | ≥50dB |
| Power Handling | 250W Average |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 10kA,8/20us |
| Applications | IP67 |

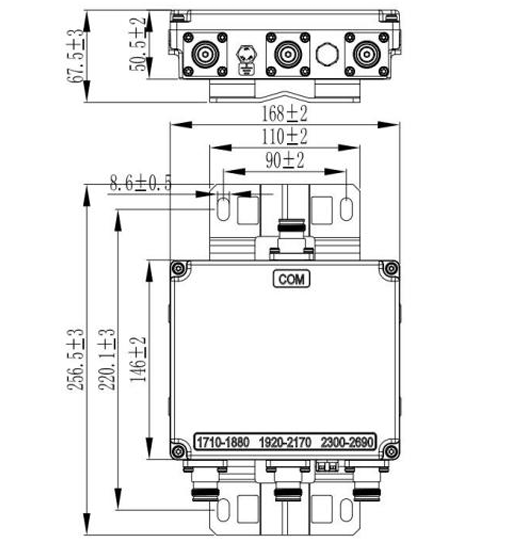

| Dimension | 168 x 146 x 50.5(mm, excluding brackets and connectors) |
| Weight | ≤2.4kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Installation hoop | 35-135mm |
| Packing | 1Pcs in box |
