Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available

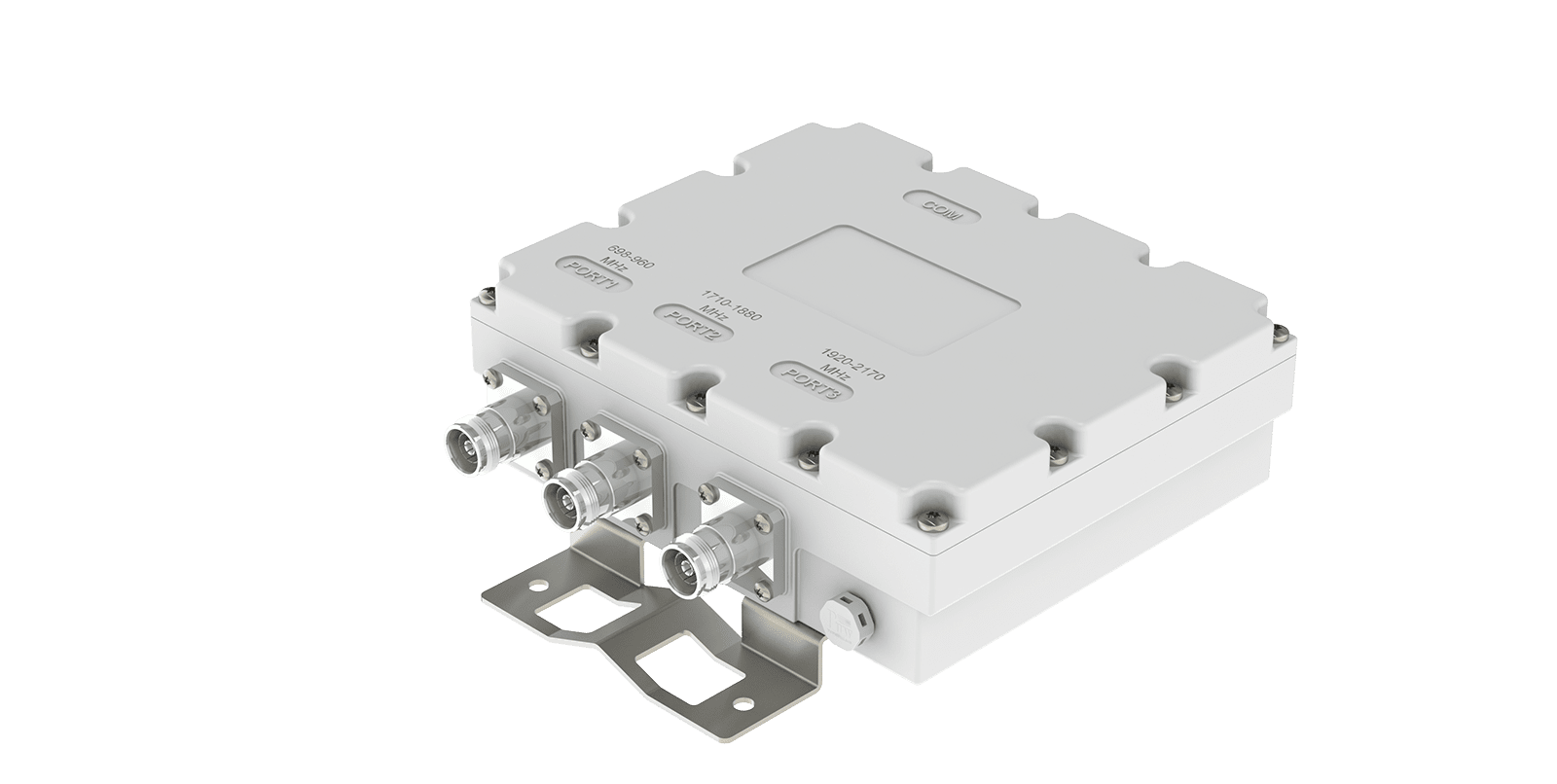

CB-3-GDU-64F-A11, a single-unit triplexer covering 690–960 MHz, 1710–1880 MHz, and 1920–2170 MHz, developed for coordinated tri-band RF routing, incorporating low VSWR, high isolation, low insertion loss, and low PIM to enable efficient signal separation and combination across multiple paths in macro base stations and wireless network infrastructure. A compact, assembly-efficient configuration facilitates easy installation, while custom band capability supports adaptation to diverse network requirements.
|
Frequency |
CH1: 690-960MHz |
| CH2: 1710-1880MHz | |
| CH3: 1920-2170MHz | |
| Return Loss | ≤-20dB |
| Insertion Loss | ≤0.3dB |
| Isolation | ≥50dB |
| Power Handling | 200W Average |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

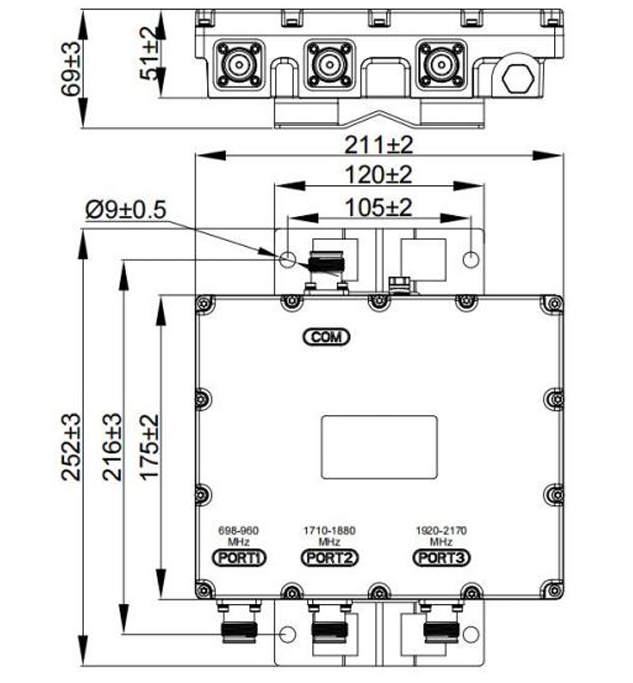

| Dimension | 211 x 175 x 51(mm, excluding brackets and connectors) |
| Weight | ≤3.0kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
