Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available

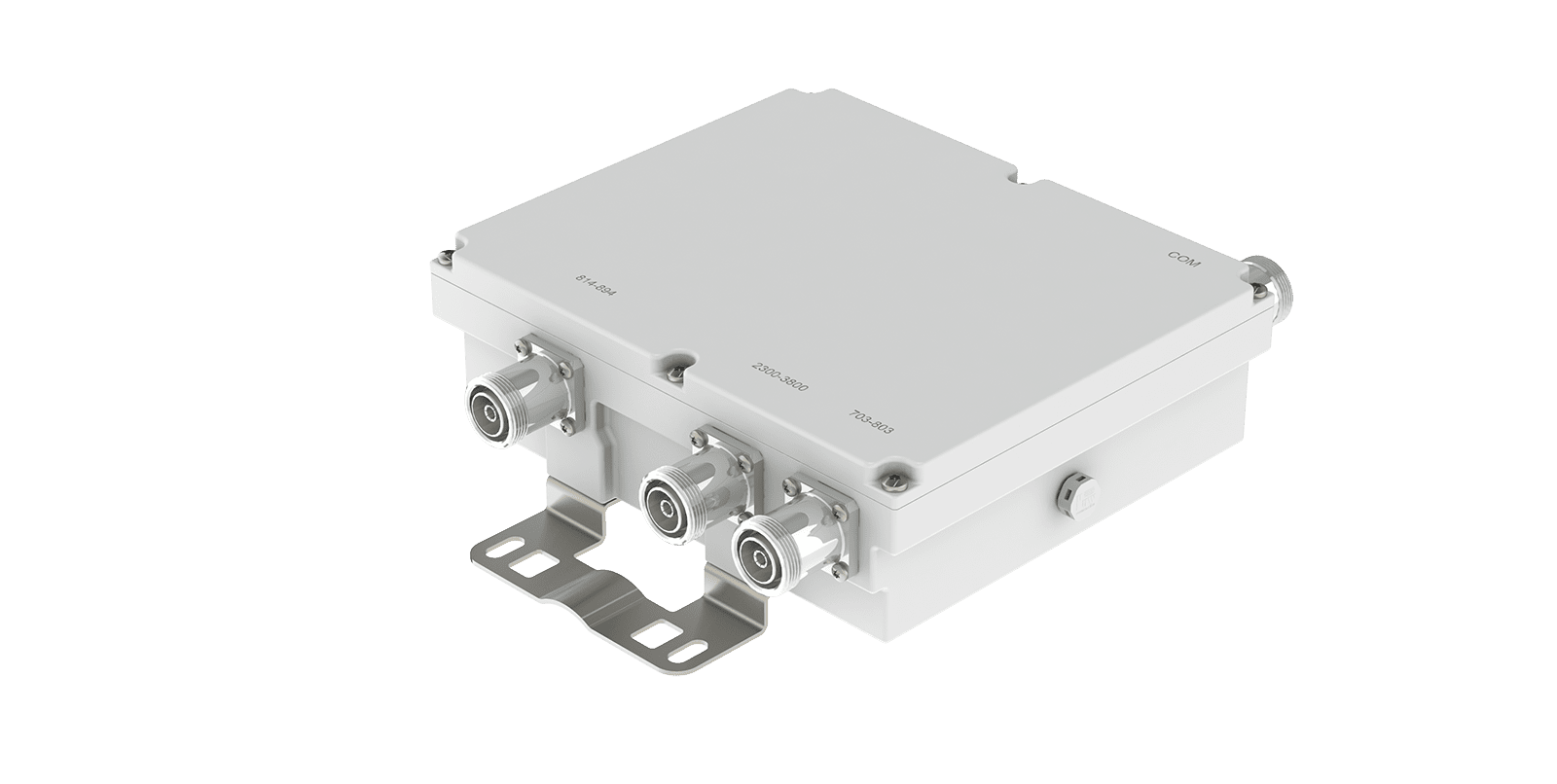

CB-3-QRES-DF-A01, a single-unit combiner configured for efficient RF signal distribution, incorporating low VSWR, high isolation, low insertion loss, and low PIM to support stable multi-band signal operation within macro base stations and wireless network infrastructure. A compact, installation-optimized design enables efficient deployment, while custom band availability ensures adaptability to diverse system requirements.
|
Frequency |
CH1: 703-803MHz |
| CH2: 814-894MHz | |
| CH3: 2300-2700MHz&3300-3800MHz | |
| Return Loss | ≤-19dB |
| Insertion Loss | ≤0.5dB |
| Isolation | ≥50dB@CH1&CH2; ≥80dB@CH1&CH3; CH2&CH3 |
| Power Handling | 200W |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP65 |

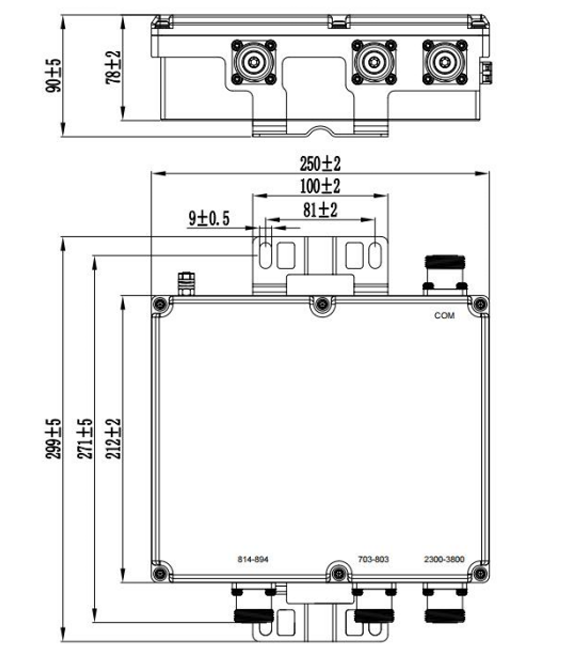

| Dimension | 250 x 212 x 78(mm, excluding brackets and connectors) |
| Weight | ≤5.2kg |
| Connectors Type | Din female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
