Lower investment by 25%
Fast installation only 2H
FC AC energy saving 30%
PUE less than 1.26
System emergency response protection
Biometrics authentication
Cascading available for rack
Saving room space 50%
Quiet operation less-than 55dB
DCIM 24H cloud O&M

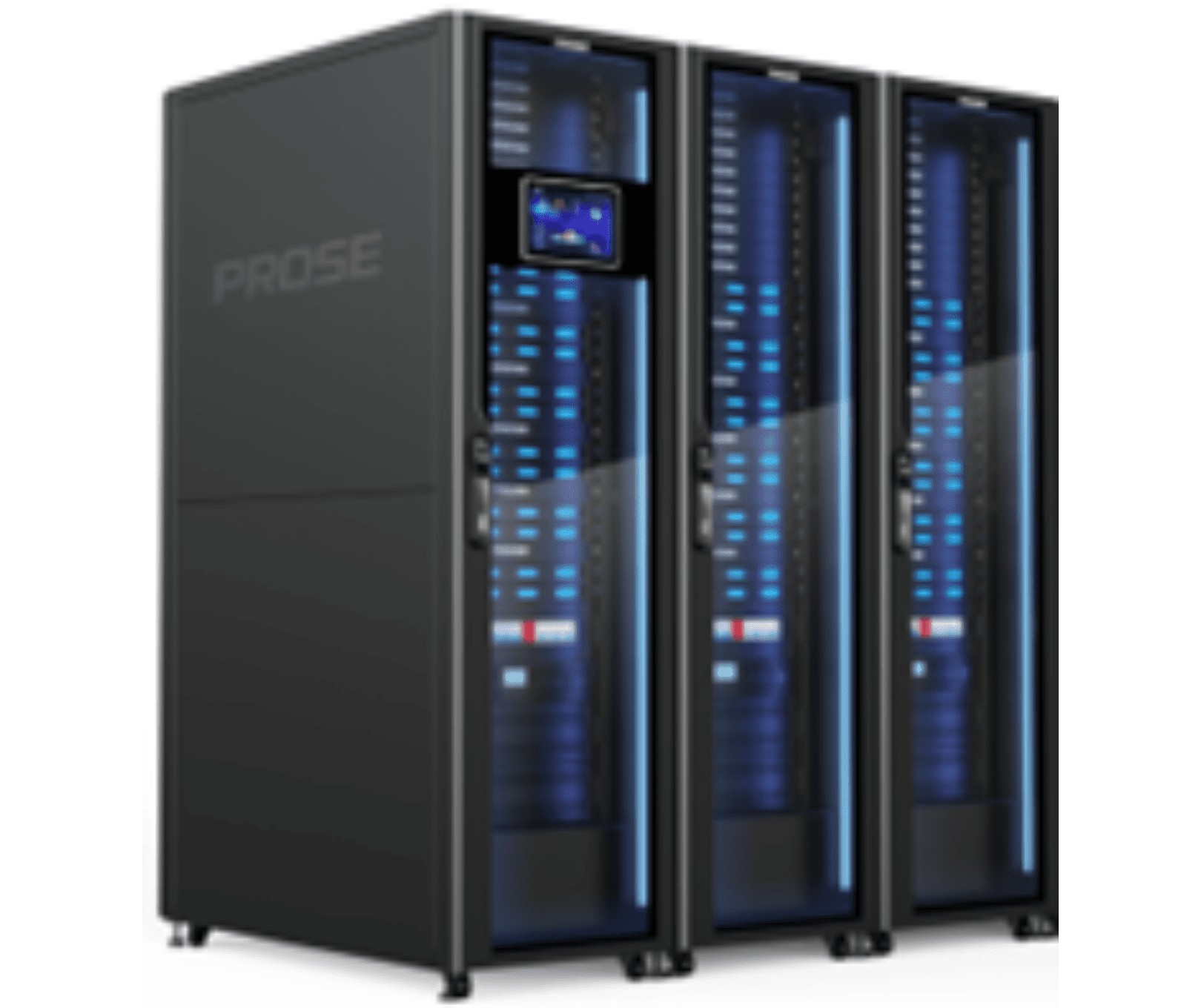

Traditional small-scale data centers often face critical challenges, including high maintenance costs, prolonged construction cycles, and a lack of real-time operational visibility. To address these industry pain points, PROSE has innovated and developed the Smart Micro Data Center (MDC).
Engineered to support the deployment requirements of next-generation edge computing applications, the Smart Micro Data Center adopts a modular design philosophy. It delivers significant cost advantages, enabling customers to achieve rapid installation and immediate commissioning.
This all-in-one MDC seamlessly integrates cabinets, power distribution, cooling, and structured cabling into a cohesive platform. To ensure an uninterrupted power supply and prevent data loss, the system supports secure remote access via TCP/IP and cloud applications, allowing real-time operational monitoring. Furthermore, integrated temperature and humidity sensors coupled with an efficient air-cooling system maintain an optimal working environment, while biometric authentication—such as facial and fingerprint recognition—provides robust physical security for your data.
| Item | Specification |
| Rack Height (Customizable) | 42U |
| Cabinet Dimensions, W × D × H (mm) | 600 (W) x 1200 (D) x 2050 (H) |
| Number of Cabinets | 3 |
| UPS Capacity (kVA) | 10 |
| Rated IT Load (kW) | 9 |
| UPS Input Voltage | 220/230/240 VAC, single-phase |
| UPS Rack Space | 2U |
| Battery Voltage | 192 VDC |
| Battery Backup | 15 minutes; two 5U battery packs, each containing 8 × 38 Ah VRLA batteries |
| PDB Rated Input Voltage | 220/230 VAC |
| PDB Rated Input Current | 80 A |
| Air Conditioner Cooling Capacity (kW) | Two 6.5 kW nominal units; 6.7 kW specified cooling capacity per unit |
| Power and Environmental Monitoring System | One master environmental monitoring system with a touch-panel LCD dashboard, three smoke sensors, and three temperature and humidity sensors |
| PDU | Three PDUs, each with 24 IEC 320 C13 outlets, rated at 16 A and 220 VAC, with a maximum power of 5 kW; intelligent monitoring is optional |
| Fire Suppression System | The fire suppression system is optional; this model’s listed configuration includes three automatic fire-suppression units, one per cabinet |
| Refrigerant | R410A |
| Color | Black or gray |
| Cabinet Construction | Welded frame with an integrated sealed-cabinet design |
| Compliance Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491, DIN 41494, and GB/T 3047.2-92 |
| IP Rating | IP5X |
| Display Panel | 10.1” Touch Panel LCD |
| Display Languages | English / Chinese |
| LED Lighting | Bi-color (red and blue) |
| Front Door | Toughened-glass door with a mechanical or fingerprint lock; supports face detection |
| Unlocking Methods | Remote control, authorized card, password, fingerprint, or mechanical key |
| Rear Door | Sheet-metal door |
| Static Load Capacity | Up to 2,200 kg |
| Safety Standard | RoHS |
_495x300.jpg)
42U, Four-Cabinet Solution, UPS 1x25 kVA, AC 2x12.5 kW
_495x300(1).jpg)
42U, Two-Cabinet Solution, UPS 1x6 kVA, AC 1x6.5 kW

42U, Seven-Cabinet Solution, 1xUPS 30 kVA, 4xAC 6.5 kW

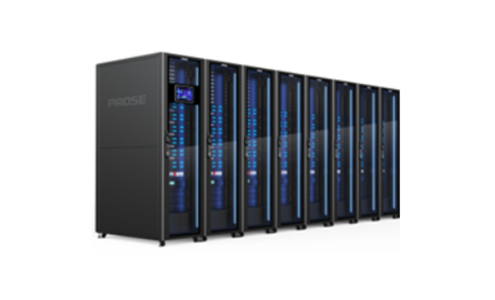

42U,Eight-Cabinet Solution, 1xUPS 30 kVA, 4xAC 6.5 kW
