Lower investment by 25%
Fast installation only 2H
FC AC energy saving 30%
PUE less than 1.26
System emergency response protection
Biometrics authentication
Cascading available for rack
Saving room space 50%
Quiet operation less-than 55dB
DCIM 24H cloud O&M

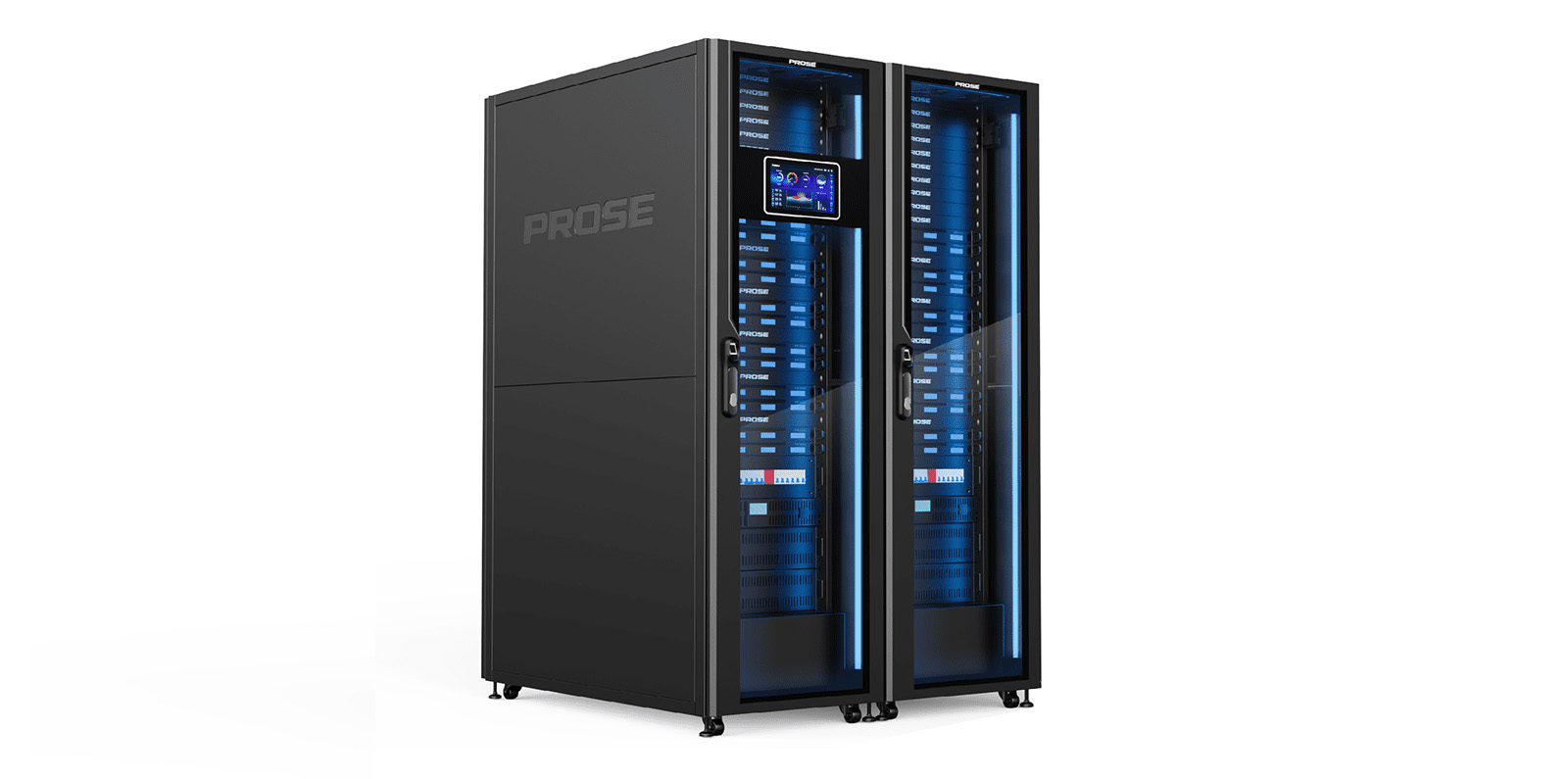

Traditional small-scale data centers often face critical challenges, including high maintenance costs, prolonged construction cycles, and a lack of real-time operational visibility. To address these industry pain points, PROSE has innovated and developed the Smart Micro Data Center (MDC).
Engineered to support the deployment requirements of next-generation edge computing applications, the Smart Micro Data Center adopts a modular design philosophy. It delivers significant cost advantages, enabling customers to achieve rapid installation and immediate commissioning.
• Highly Integrated System: Perfectly integrates cabinets, power distribution, cooling, and structured cabling into an all-in-one platform.
• Intelligent Monitoring: Ensures continuous power to prevent data loss, with real-time status tracking via TCP/IP and cloud applications.
• Environmental Control: Built-in temperature/humidity monitoring and smart air-cooling systems ensure an optimal operating environment for your equipment.
• Advanced Security: Features biometric authentication, including facial and fingerprint recognition, to provide comprehensive data protection.
| Item | Specification |
| Rack Height (Customizable) | 42U |
| Cabinet Dimensions, W × D × H (mm) | 600 (W) x 1200 (D) x 2050 (H) |
| Number of Cabinets | 2 |
| UPS Capacity (kVA) | 6 |
| Rated IT Load (kW) | 5.4 |
| UPS Input Voltage | 220–230 VAC, single-phase |
| UPS Rack Space | 2U (410 × 438 × 88 mm) |
| Battery Voltage | 192 VDC |
| Battery Backup | 15 minutes; one 5U battery pack containing 16 × 17 Ah VRLA batteries |
| PDB Rated Input Voltage | 220/230 VAC |
| PDB Rated Input Current | 50 A |
| Air Conditioner Cooling Capacity (kW) | One 6.5 kW nominal unit; 6.7 kW specified cooling capacity |
| Power and Environmental Monitoring System | One master environmental monitoring system with a touch-panel LCD dashboard, two smoke sensors, and two temperature and humidity sensors |
| PDU | Two PDUs, each with 24 IEC 320 C13 outlets, rated at 16 A and 220 VAC, with a maximum power of 5 kW; intelligent monitoring is optional |
| Fire Suppression System | The fire suppression system is optional; this model’s listed configuration includes two automatic fire-suppression units, one per cabinet |
| Refrigerant | R410A |
| Color | Black or gray |
| Cabinet Construction | Welded frame with an integrated sealed-cabinet design |
| Compliance Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491, DIN 41494, and GB/T 3047.2-92 |
| IP Rating | IP5X |
| Display Panel | 10.1” Touch Panel LCD |
| Display Languages | English / Chinese |
| LED Lighting | Bi-color (red and blue) |
| Front Door | Toughened-glass door with a mechanical or fingerprint lock; supports face detection |
| Unlocking Methods | Remote control, authorized card, password, fingerprint, or mechanical key |
| Rear Door | Sheet-metal door |
| Static Load Capacity | Up to 2,200 kg |
| Safety Standard | RoHS |

42U, Seven-Cabinet Solution, 1xUPS 30 kVA, 4xAC 6.5 kW

42U,Three-Cabinet Solution, UPS 1x10 kVA, AC 2x6.5 kW

42U, Six-Cabinet Solution, 1xUPS 25 kVA, 3xAC 6.5 kW
_495x300.jpg)
42U, Four-Cabinet Solution, UPS 1x25 kVA, AC 2x12.5 kW
