Low VSWR, high isolation
Low insertion loss
Compact design for easy installation

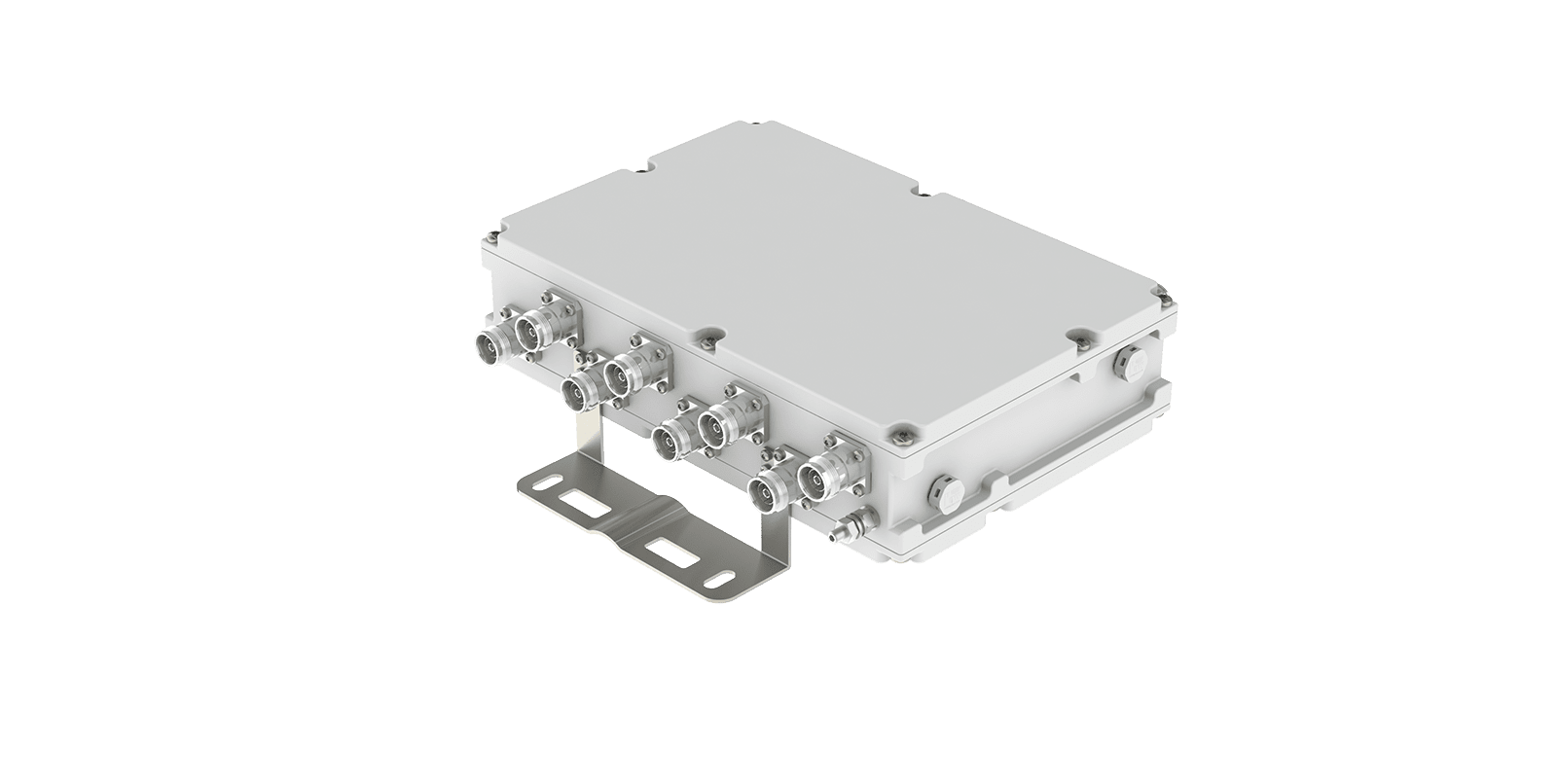

OFT-35-40-64F-01, an 8-in / 8-out cavity filter optimized for multi-channel operation, delivering low VSWR, high isolation, and low insertion loss to maintain clean signal distribution across ports. A compact, robust structure supports efficient installation, making it suitable for macro base stations and wireless network infrastructure.
|
Frequency |
3410-3450MHz |
| Return Loss | ≤-19dB |
| Insertion Loss | ≤1.6dB@3410-3420MHz |
| ≤1.0dB@3420-3440MHz | |
| ≤0.9dB@3440-3450MHz | |
| Rejection | ≥50dB@3000-3400MHz |
| Power Handling | 50W average / 500W peak |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 0%- 95% |
| Applications | IP67 |

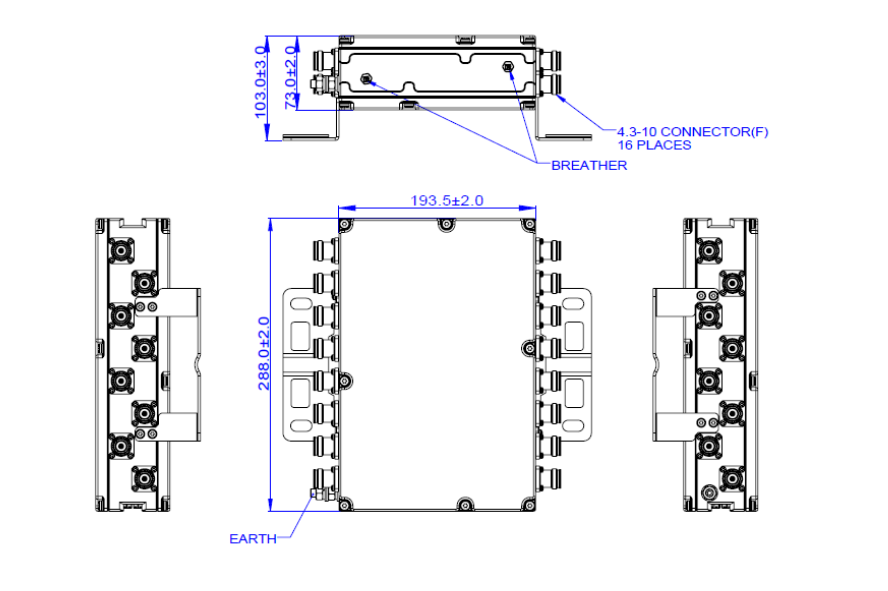

| Dimension | 288x193.5 x73(mm, excluding brackets and connectors) |
| Weight | ≤6kg |
| Connectors Type | 4.3-10 Female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
