Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
AISG/DC bypass

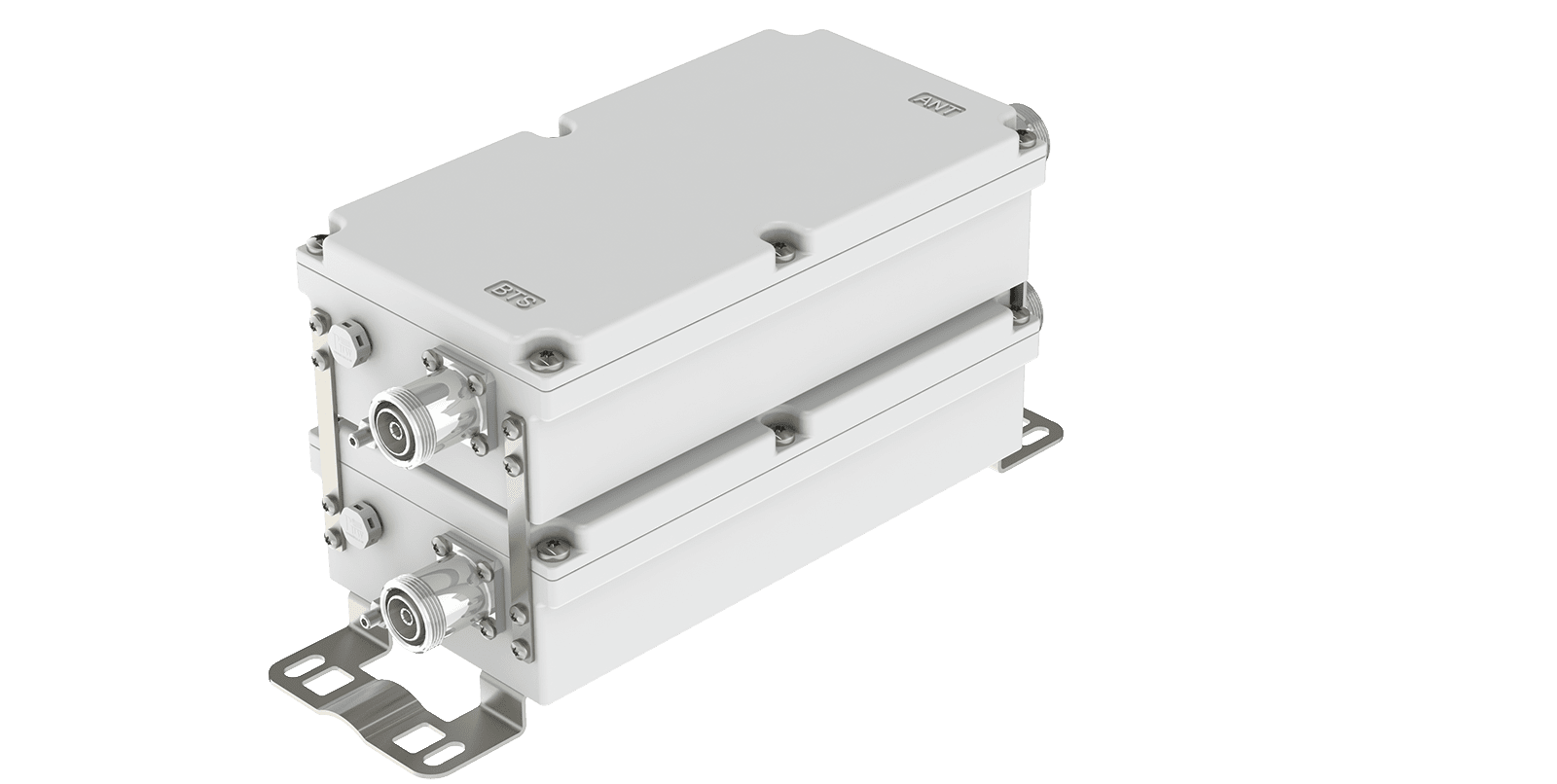

DFT-09-75-DF-06, a double-unit cavity filter optimized for consistent RF signal performance, incorporating low VSWR, high isolation, low insertion loss, and low PIM to support stable multi-channel transmission in macro base stations and cellular communication systems. A compact structure enables quick installation, while customized band flexibility and AISG / DC bypass capability enhance adaptability across various deployment scenarios.
|
Frequency |
885-960 MHz |
| Return Loss / VSWR | ≤-19dB /1.25 |
| Insertion Loss | ≤1.0dB @885-915 MHz |
| ≤0.5dB @925-960 MHz | |
| Rejection | ≥65dB @870-880 MHz |
| Power handling | Average:200W @925-960MHz |
| DC Bypass | DC bypass for all ports |
| Intermodulation | ≤-153dBc @ 2 x 20W |
| Impedance | 50Ω |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -45°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

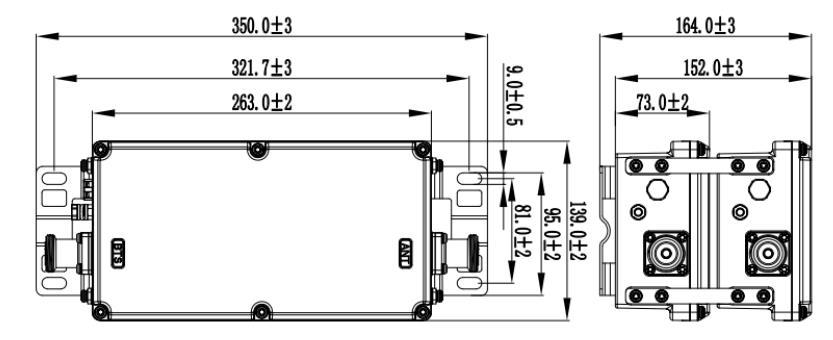

| Dimension | 263 x 139 x 152(mm, excluding brackets and connectors) |
| Weight | ≤6.5kg |
| Connectors Type | 7/16 female |
| Mounting | Wall or pole |
