Compact, low weight
Low PIM
High reliability
Simple installation

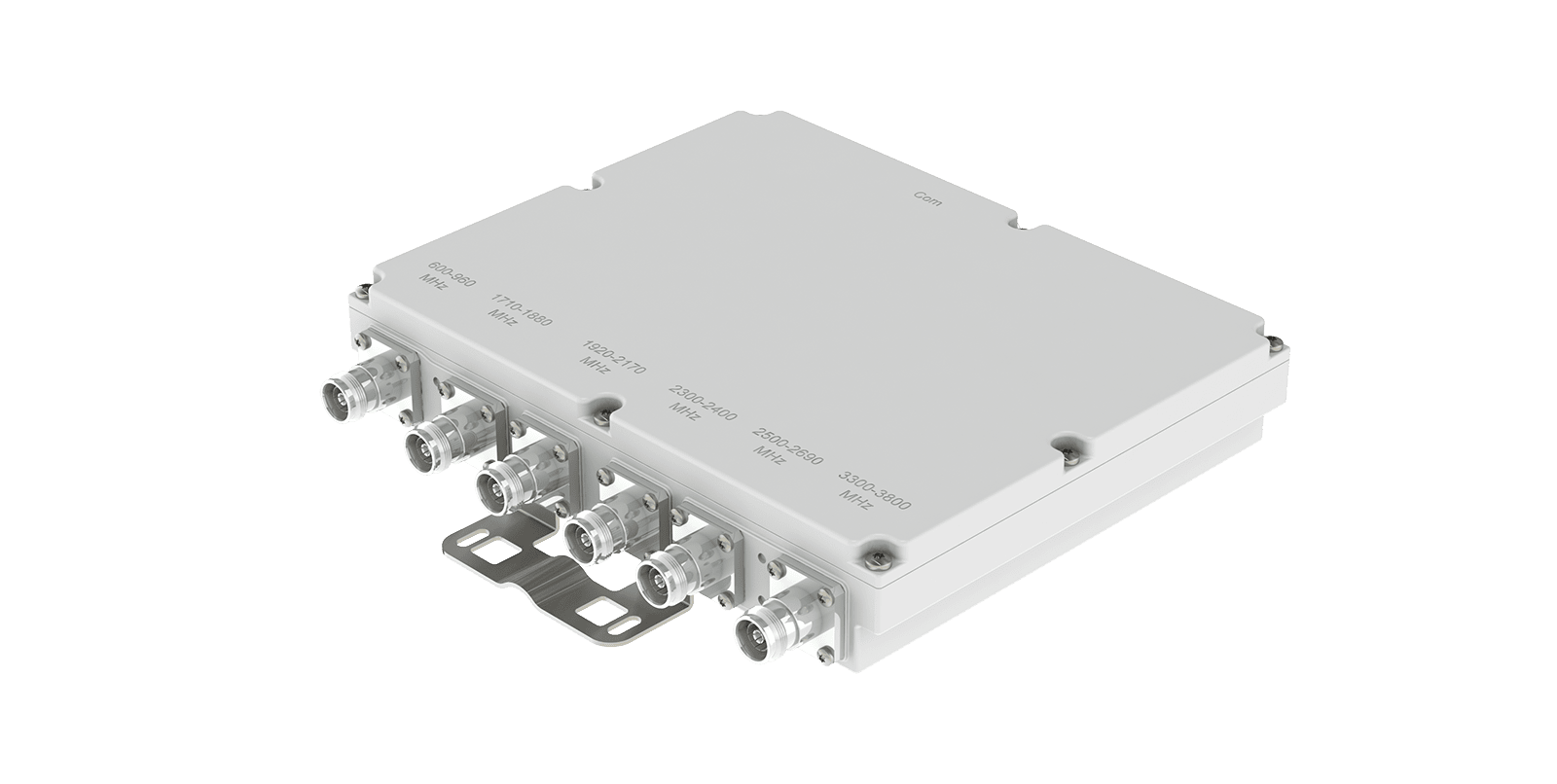

CB-6-GDULE03-64F-A01, a single-unit hexaband combiner enabling efficient multi-band signal aggregation, featuring compact dimensions, lightweight profile, low PIM, and high reliability to support stable performance in macro base stations and wireless network infrastructure. An installation-oriented design allows fast deployment, simplifying integration in complex RF environments.
|
Frequency |
CH1: 600-960MHz |
| CH2: 1710-1880MHz | |
| CH3: 1920-2170MHz | |
| CH4: 2300-2400MHz | |
| CH5: 2500-2690MHz | |
| CH6: 3300-3800MHz | |
| Return Loss | ≤-18dB |
| Insertion Loss | ≤0.5dB |
| Isolation | ≥50dB |
| Power Handling | 300W |
| DC Bypass | DC stop |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

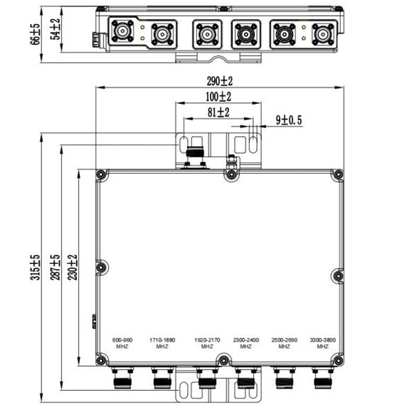

| Dimension | 290×230×54(mm, excluding brackets and connectors) |
| Weight | ≤4.8kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
