Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
AISG/DC bypass

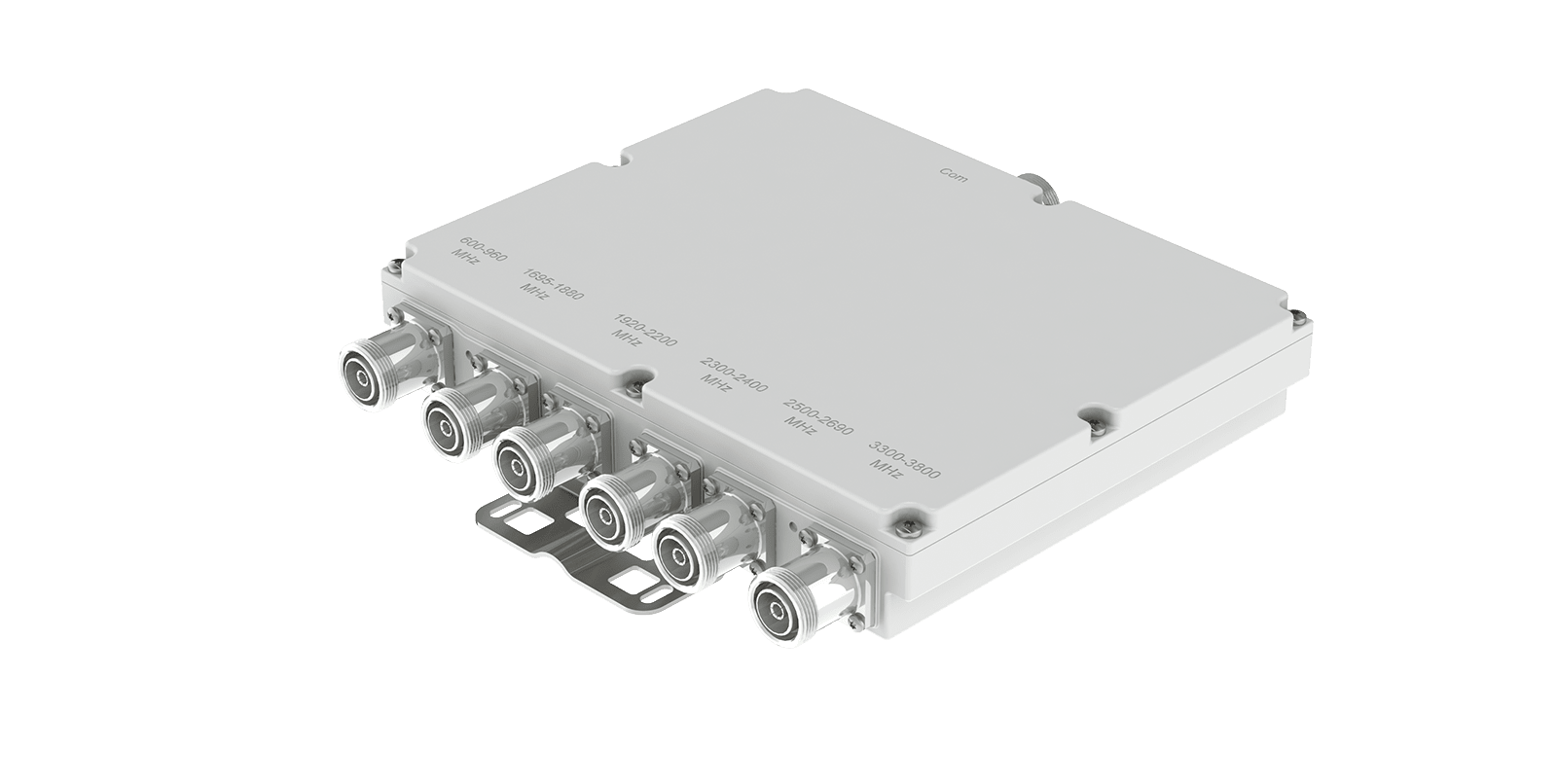

CB-6-LDUNES-DF-A01, a multi-band combiner designed for efficient RF signal consolidation, integrating low VSWR, high isolation, low insertion loss, and low PIM to maintain signal quality across combined paths in macro base stations and wireless network infrastructure. A compact mechanical design enables simplified installation, while custom frequency band support and AISG / DC bypass functionality provide flexibility for diverse deployment requirements.
|
Frequency |
CH1: 600-960MHz |
| CH2: 1695-1880MHz | |
| CH3: 1920-2200MHz | |
| CH4: 2300-2400MHz | |
| CH5: 2500-2690MHz | |
| CH6: 3300-3800MHz | |
| Return Loss | ≤-18dB |
| Insertion Loss | ≤0.5dB |
| Isolation | ≥50dB |
| Power Handling | 200W average per port |
| DC Bypass | DC stop |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 8kA,8/20us |
| Applications | IP67 |

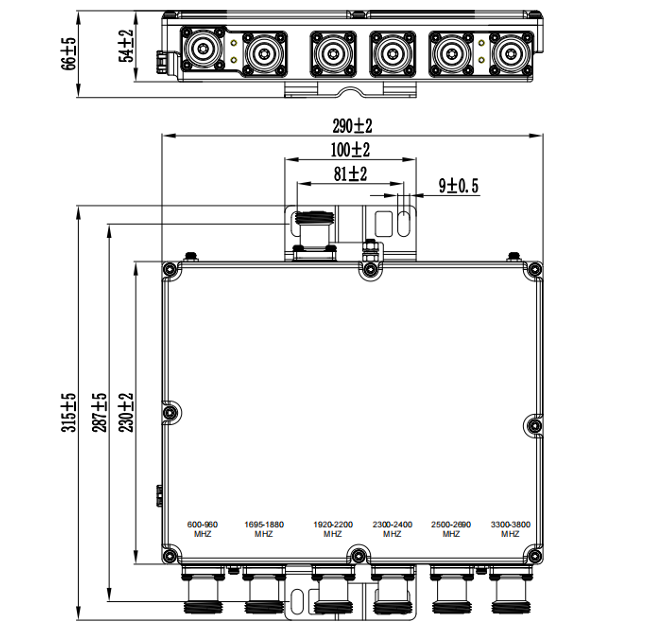

| Dimension | 290x230x54(mm, excluding brackets and connectors) |
| Weight | ≤5.2kg |
| Connectors Type | 7/16 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
