Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available

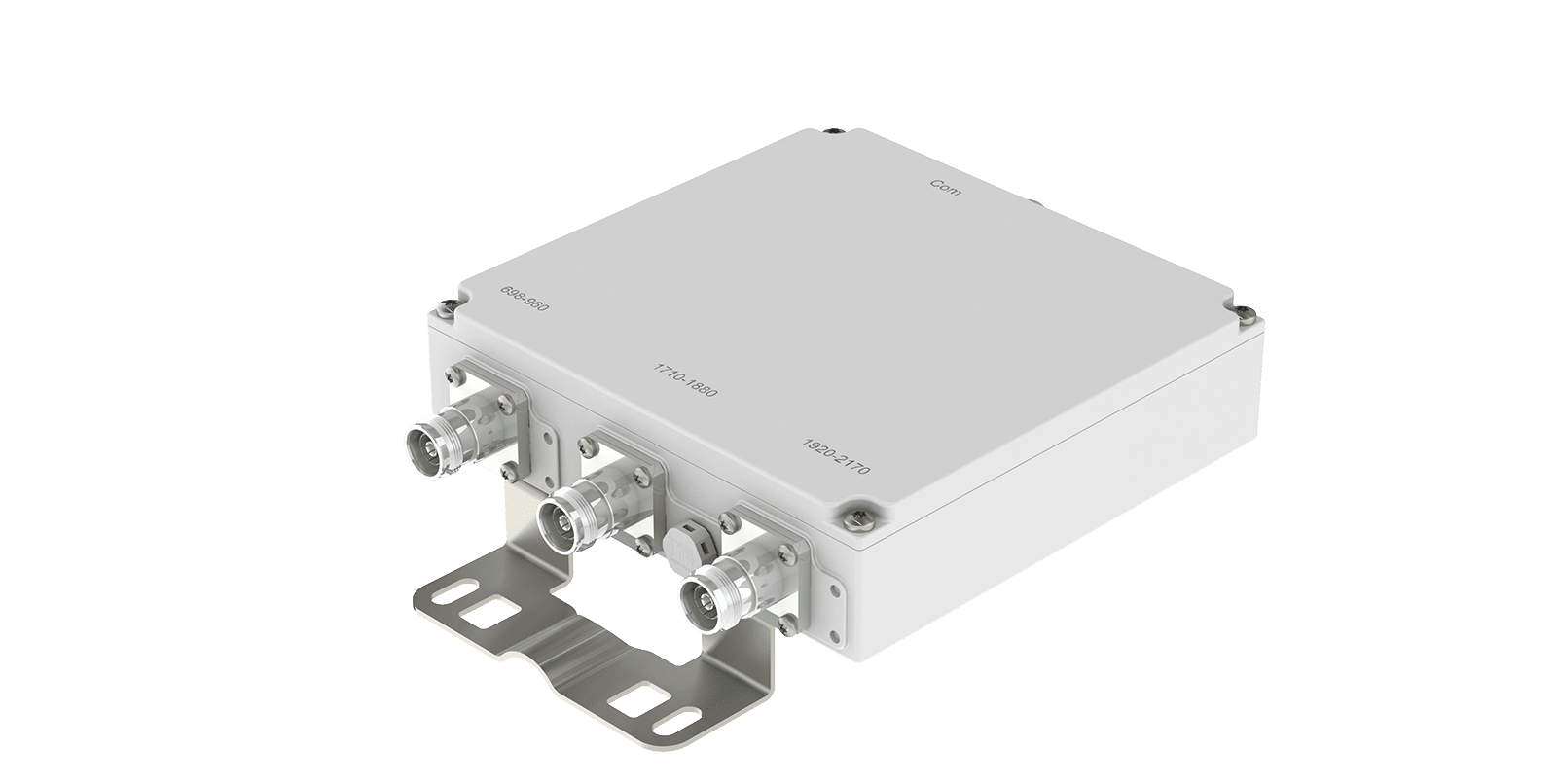

CB-3-GDWE-64F-08-T3, a single-unit triplexer developed for coordinated multi-band RF routing, incorporating low VSWR, high isolation, low insertion loss, and low PIM to support efficient signal separation and combination across three bands in macro base stations and wireless network infrastructure. A compact, integration-friendly structure enables simplified installation, while custom band flexibility supports adaptation to diverse system requirements.
|
Frequency |
CH1: 690-960MHz |
| CH2: 1710-1880MHz | |
| CH3: 1920-2700MHz | |
| Return Loss | ≤-20dB |
| Insertion Loss | ≤CH1:0.1dB Typical,0.3dB Maximum |
| ≤CH2:0.2dB Typical,0.5dB Maximum | |
| ≤CH3:0.2dB Typical,0.5dB Maximum | |
| Isolation | ≥50dB |
| Power Handling | 200W Average |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -160dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

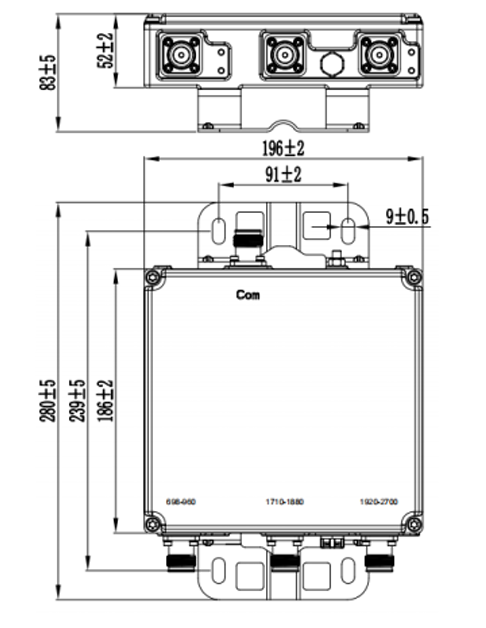

| Dimension | 186×196×52(mm, excluding brackets and connectors) |
| Weight | ≤2.6kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
