Low VSWR, high rejection
Low insertion loss
Compact design for easy installation
Customized band is available
AISG/DC bypass optional

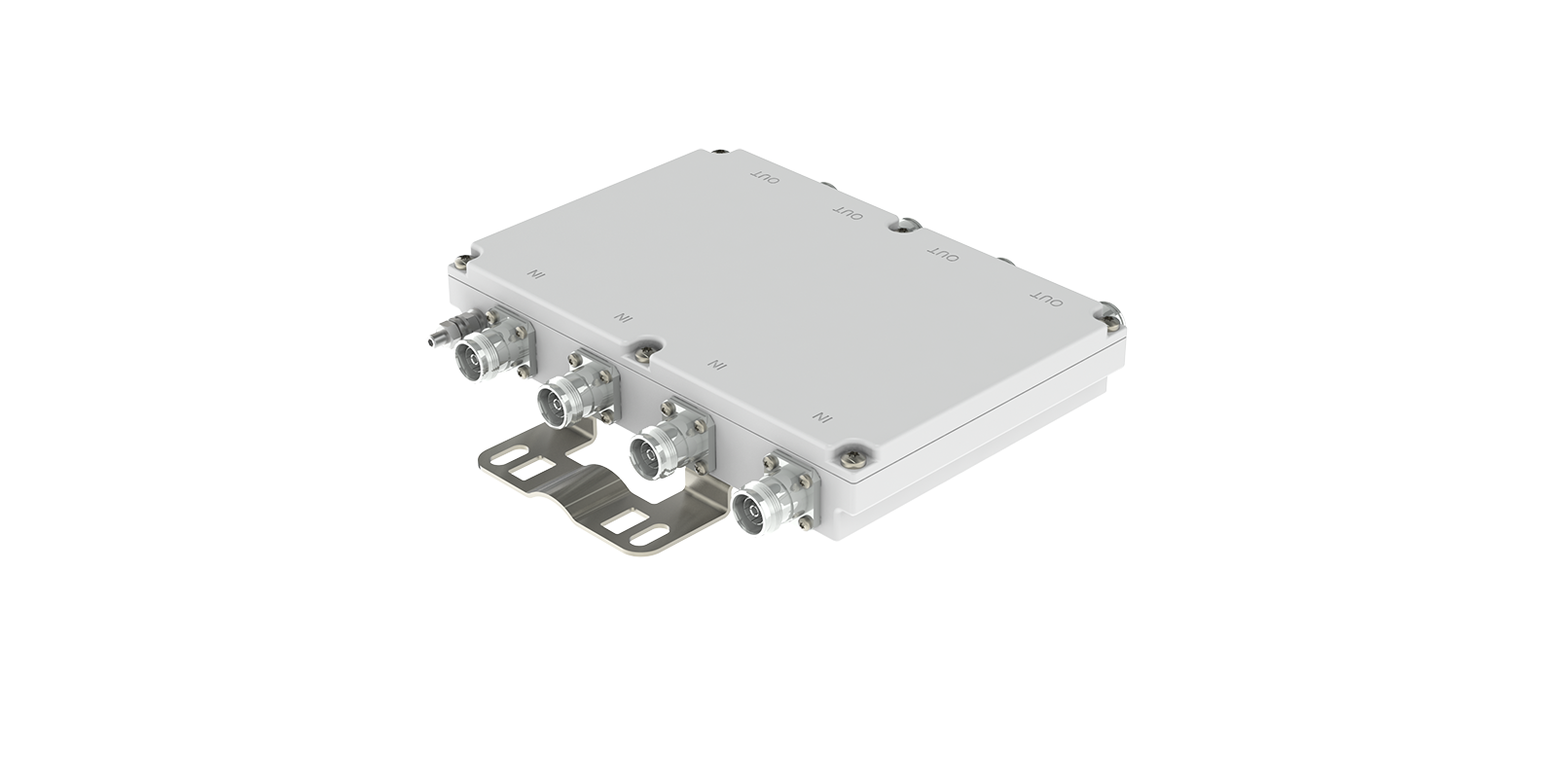

QFT-36-300-64F-B02, a quad unit cavity filter engineered for enhanced RF performance, delivering low VSWR, high rejection, and low insertion loss for stable transmission and effective interference control. Featuring a compact layout for simplified deployment, with custom band options and AISG/DC bypass capability, supporting flexible integration across diverse network scenarios. Well adapted to base stations and wireless systems.
|
Frequency |
3600-3900MHz |
| Return Loss | ≤-19dB |
| Insertion Loss | ≤0.5dB |
| Rejection | ≥46@3400-3560MHz |
| ≥46@4000-4200MHz | |
| Group Delay | ≤25ns |
| Power Handling | 100W per port |
| Intermodulation | ≤ -159dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 0%- 95% |
| Lightning Protection | 10kA,8/20us |
| Applications | IP67 |

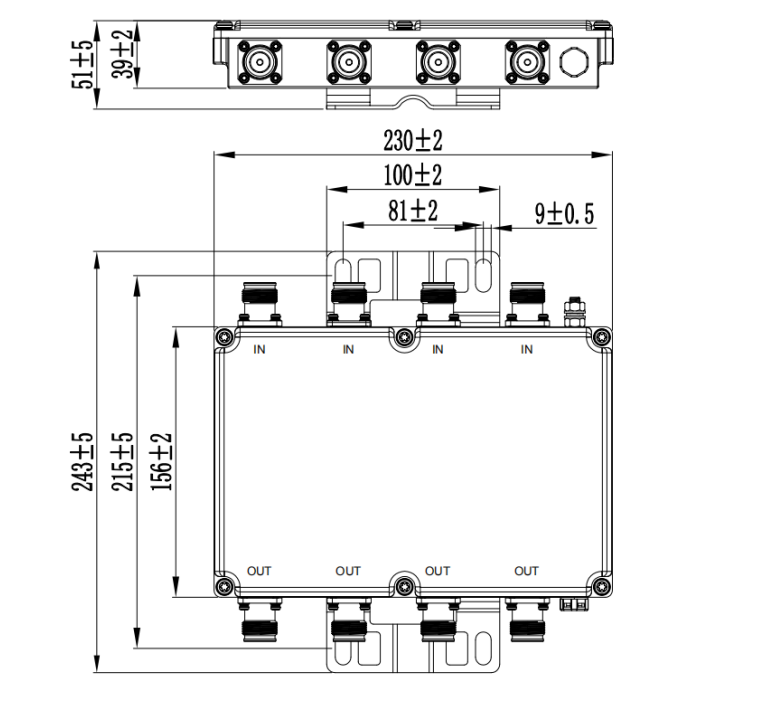

| Dimension | 230x156x39(mm, excluding brackets and connectors) |
| Weight | ≤2.5kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
