Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available

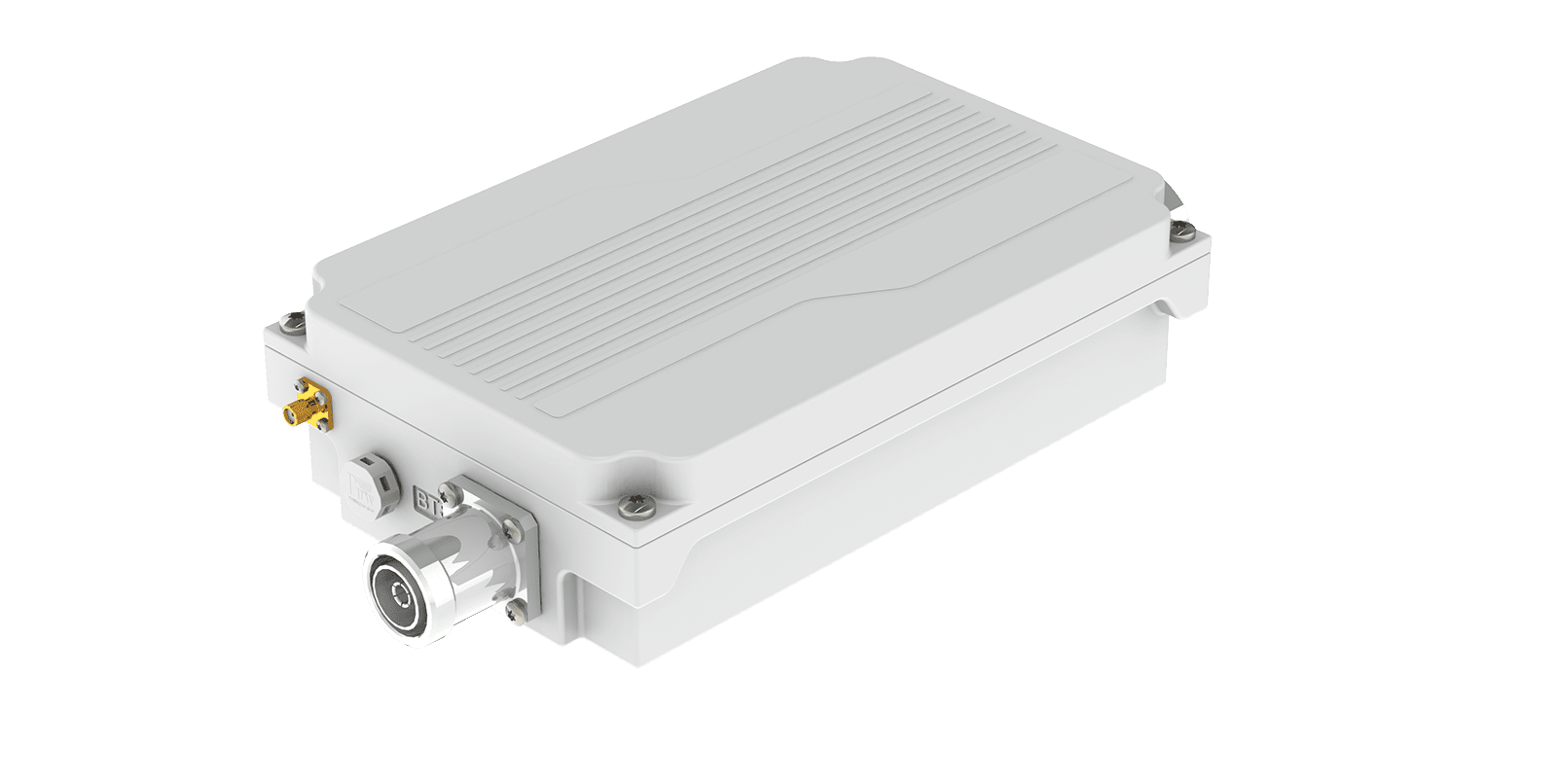

FT-08-55-D-05, an interference mitigation filter developed to enhance signal environments, incorporating low VSWR, high isolation, low insertion loss, and low PIM to suppress unwanted signals and improve overall link clarity within macro base stations and cellular communication systems. A compact form supports straightforward installation, while custom frequency adaptability ensures alignment with diverse deployment requirements.
|
Frequency |
RX:825-835 MHz |
| TX:870-880 MHz | |
| Return Loss | ≤-20 dB (VSWR:1.22) |
| Insertion Loss | ≤1.0dB @TX |
| ≤0.5dB @RX | |
| Pass Band Ripple | ≤0.8dB @TX |
| ≤0.4dB @RX | |
| Rejection | ≥60 dB@885-1880 MHz |
| Power Handling | Average:300W |
| Peak:1000W | |
| Intermodulation | ≤ -150dBc@2x20W |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Relative Humidity | 5%- 95% |
| Applications | IP65 |
| Air Pressure | 55Kpa-106KPa |
| Connectors Type | DIN female input / DIN male output |
| Packing | 1Pcs in box |
