Compact, low weight
High reliability
Low PIM
Simple installation
AISG/DC bypass

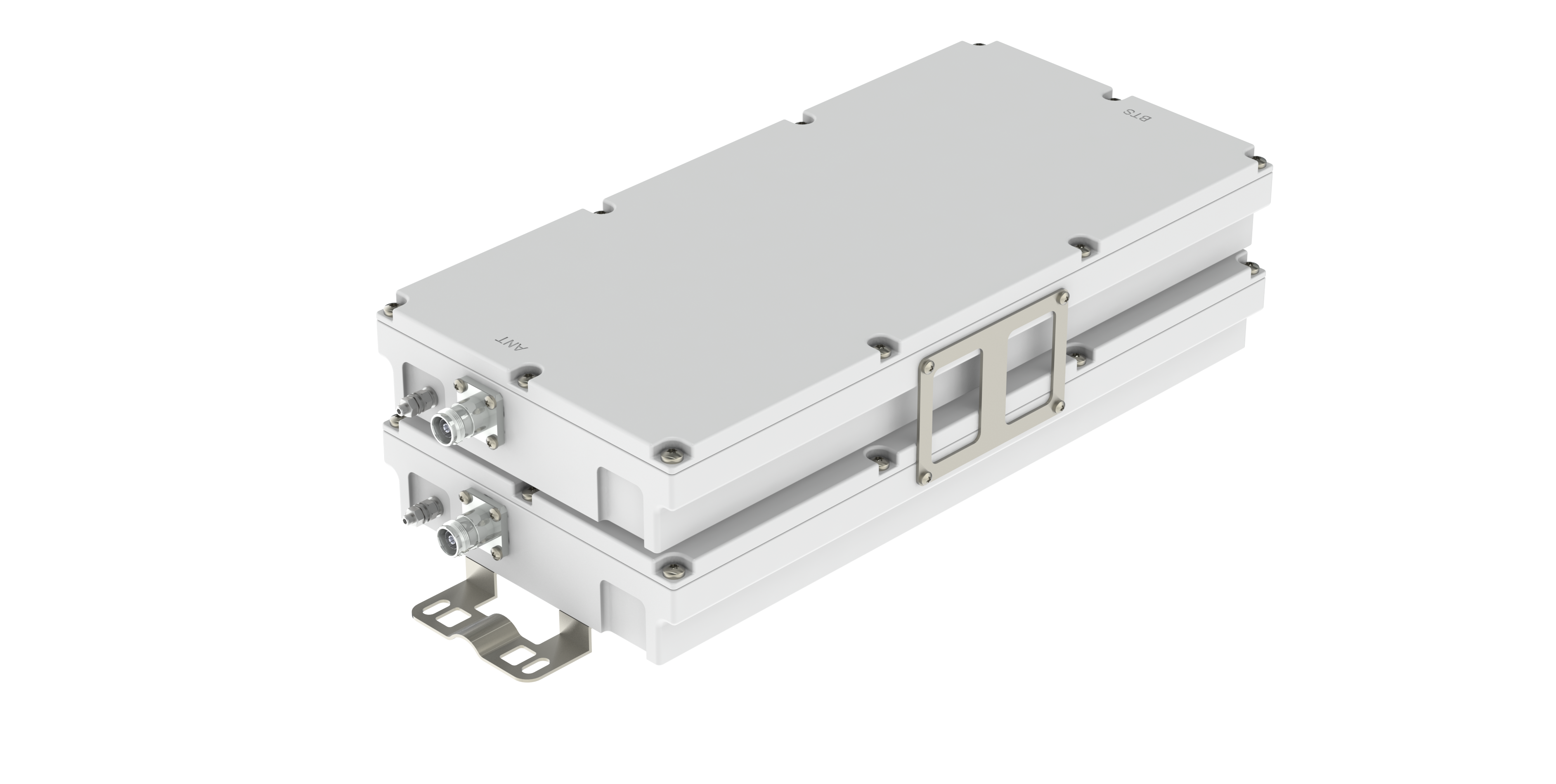

DFT-08-61.5-64F-01A, a 800 MHz double-unit cavity filter featuring compact footprint, lightweight construction, and high reliability, supporting stable signal transmission in macro base stations and cellular communication systems. Engineered with low PIM characteristics to reduce passive intermodulation, while AISG / DC bypass capability facilitates seamless system integration. A streamlined mechanical design enables efficient and user-friendly installation.
|
Frequency |
824-849MHz&869-885.5 MHz |
| Return Loss/VSWR | ≤-19.1dB/1.25 |
| Insertion Loss | ≤1.5dB@824-849MHz |
| ≤0.9@869-881.5MHz | |
| ≤1.3@881.5-883.5MHz | |
| ≤1.6@883.5-884.5MHz | |
| ≤2.3@884.5-885.5MHz | |
| Rejection | ≥76@887.5-892.5MHz,≥86@892.5-915MHz |
| Power Handling | 100 W AVG for TX band, 1000W PEAK for TX band |
| DC PASS | DC Bypass |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 0%- 95% |
| Lightning Protection | 5kA,8/20us |
| Applications | IP67 |

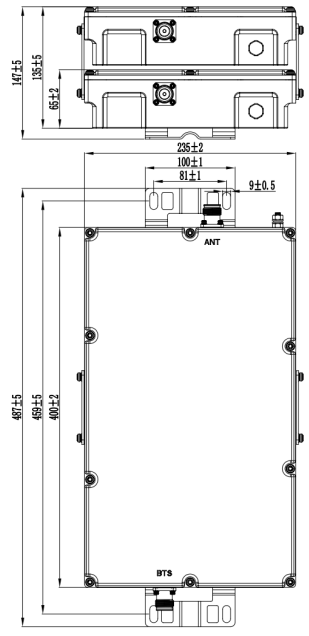

| Dimension | 400 x 235 x 135 (mm, excluding brackets and connectors) |
| Weight | ≤12kg |
| Connectors Type | 4.3-10 Female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
