Low VSWR, high isolation
Low insertion loss
Compact design for easy installation

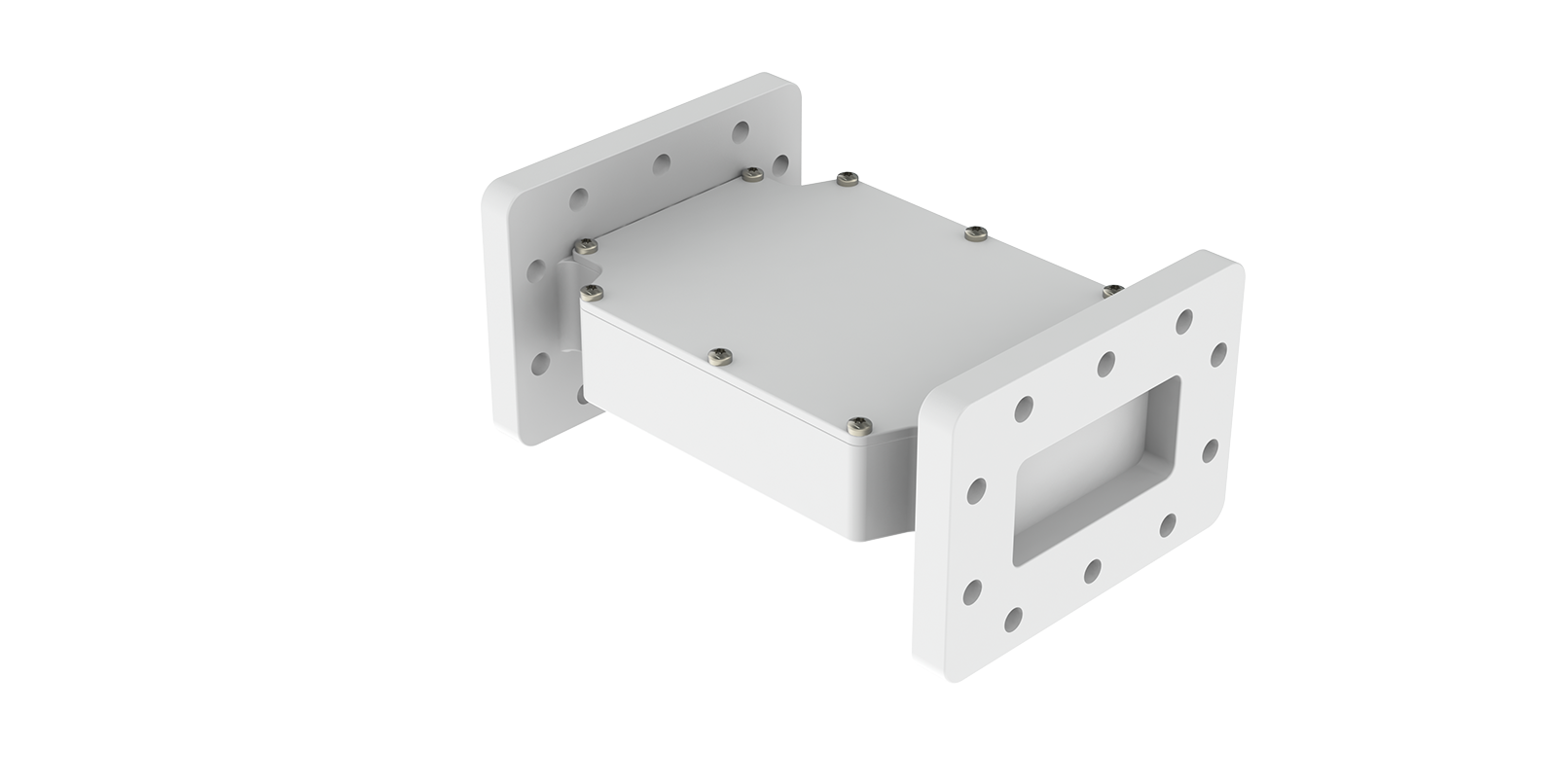

FT-42-400-229-A01, a compact waveguide filter featuring low VSWR, high isolation, and low insertion loss, ensuring efficient signal transmission and strong interference suppression. A robust and space-saving structure supports easy installation and long-term reliability in demanding environments. Well-suited for base stations and wireless communication infrastructure.
|
Frequency |
3800-4200 MHz |
| Return Loss/VSWR | ≤-18dB/1.3 |
| Insertion Loss | 0.35dB typ. |
| Insertion Loss Worst Case Full Band | 1.5dB max. |
| Rejection | ≥70 dB@3300-3700 MHz |
| ≥60 dB@3700-3780 MHz | |
| ≥30 dB@3780-3785 MHz | |
| Power Handling | 50W(average) |
| Group Delay Variation | ≤3 ns within ±0.5 MHz of any frequency within the passband |
| Impedance | 50Ω |
| Operating Temperature Range | -30°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP66 |

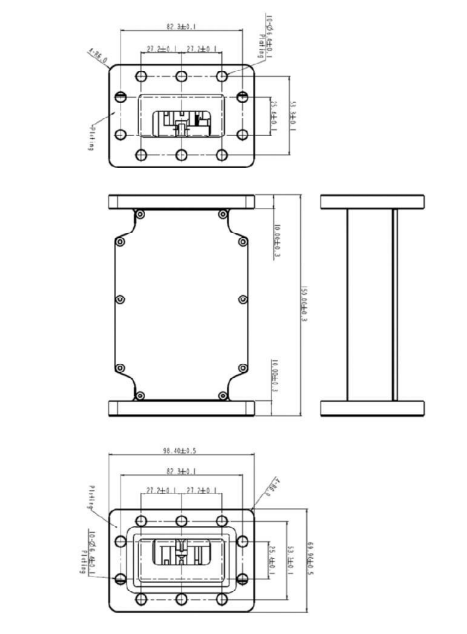

| Dimension | 150x98.4x69.9 (mm) |
| Weight | ≤1kg |
| Connectors Type | CPR229-G(Input) / CPR229-F(Output) |
| Mounting | Wall or pole |
| Packing | 4 Pcs in box |
