Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation

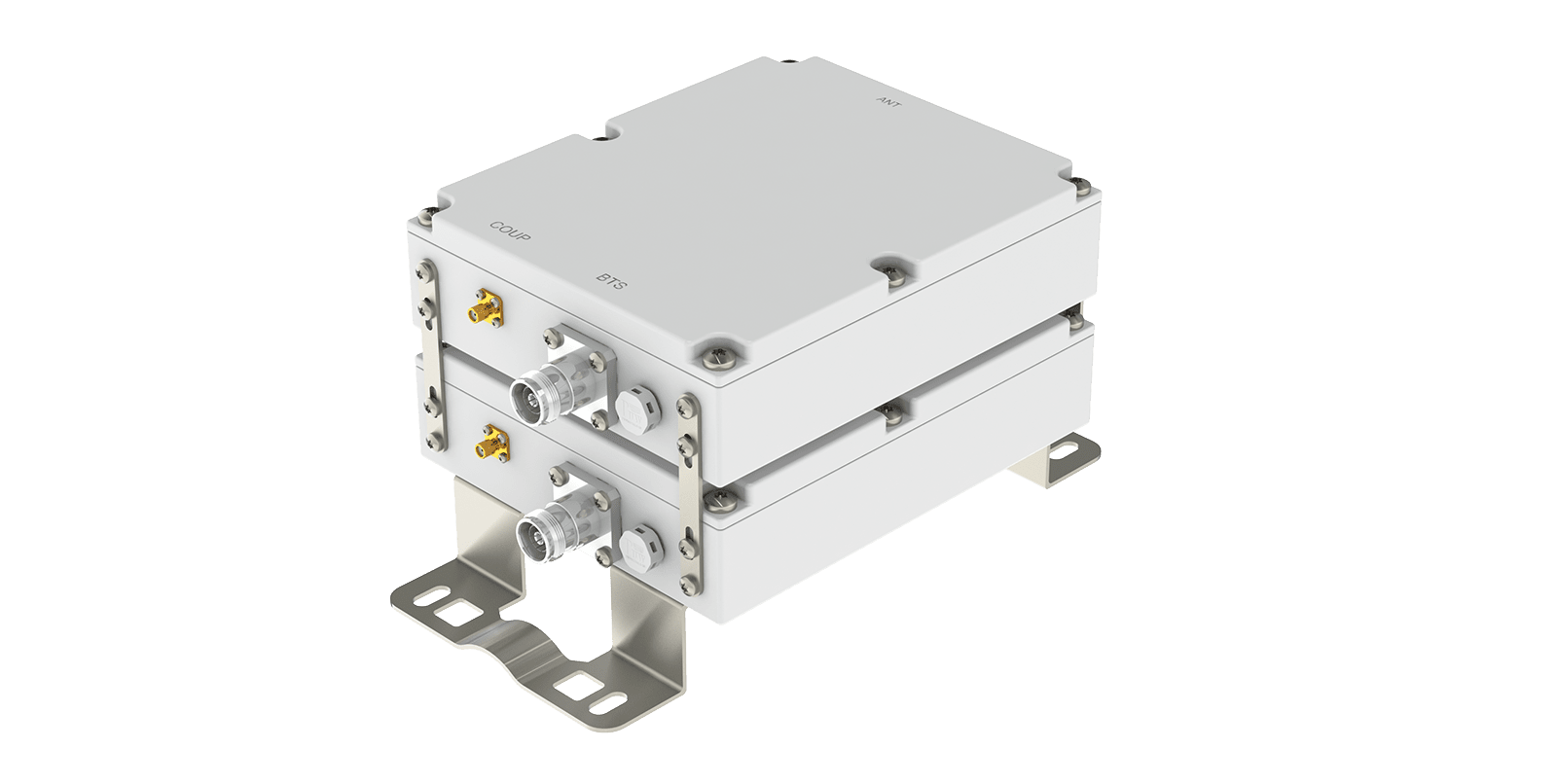

DFT-07-90-64F-A01, a double-unit cavity filter focused on efficient RF signal conditioning, delivering low VSWR, high isolation, low insertion loss, and low PIM to maintain stable and low-interference transmission in macro base stations and cellular communication systems. A compact, space-saving configuration supports convenient installation and streamlined site deployment.
|
Frequency |
713-748 & 768-803 MHz | |
| Return Loss | ≤-19dB | |
| Insertion Loss | 0.3 dB typical /0.7 dB Maximum @713-748 MHz | |
| 0.6 dB typical /1.5 dB Maximum @768-803 MHz | ||
| Rejection | ≥38 dB@755-765 MHz | |
| Power Handling | 100W (TX band) | |
| Monitoring Port | Type | TX monitoring port |
| Connector | SMA Female | |
| Coupling Factor | 40dB±3 | |
| Impedance | 50Ω | |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

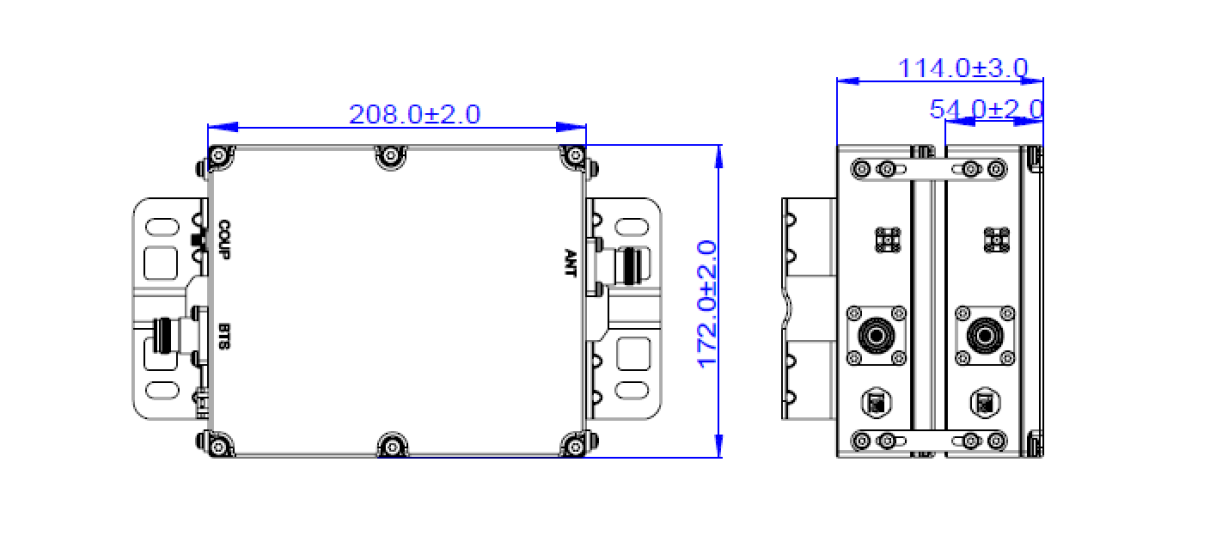

| Dimension | 208x172 x114 (mm, excluding brackets and connectors) |
| Weight | ≤4.8kg |
| Connectors Type | 4.3-10 Female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
