Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available

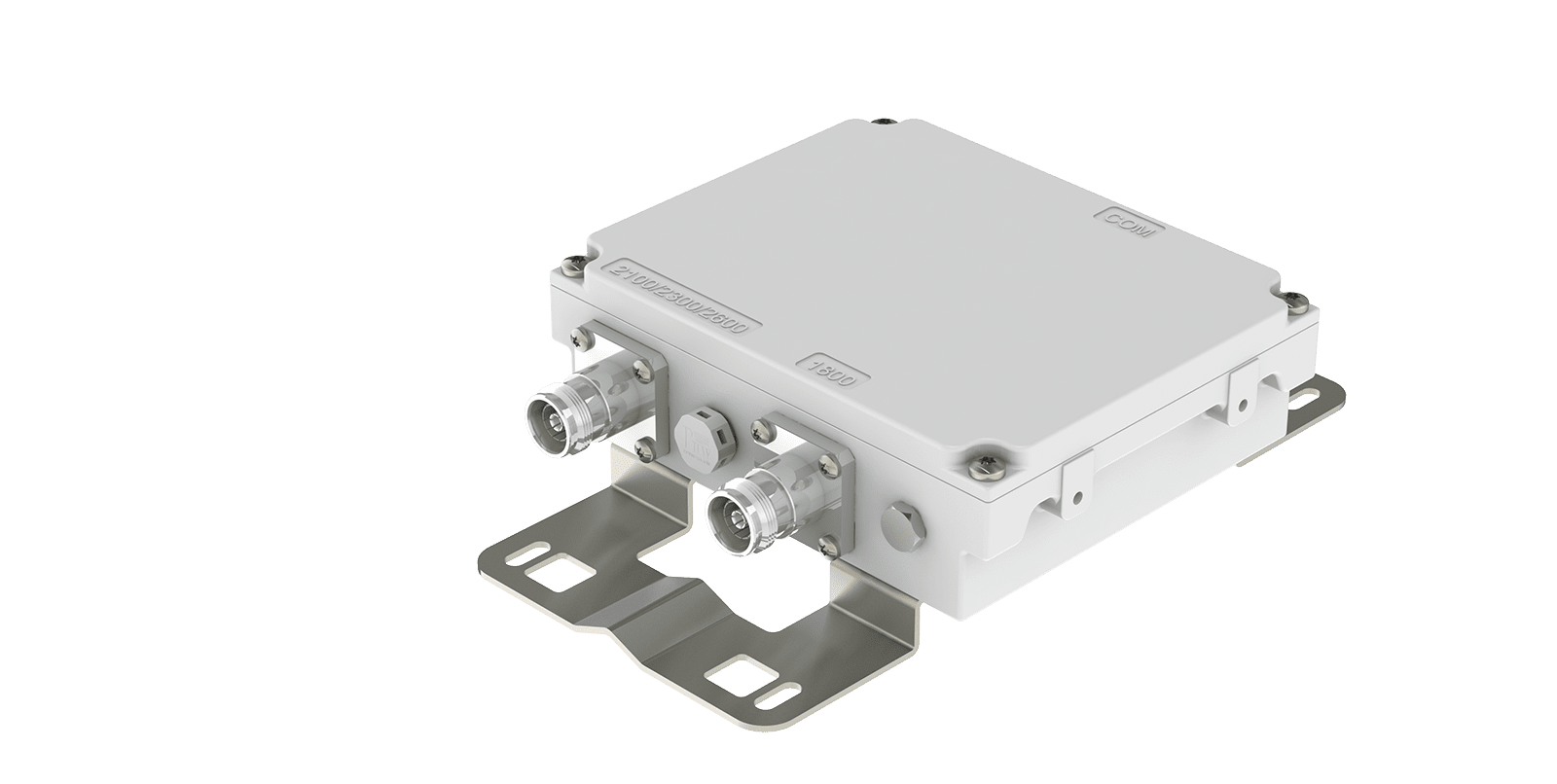

CB-2-DJ-64F-A12, a dual-band combiner covering 1710–1880 MHz and 1920–2700 MHz, engineered for efficient RF signal coordination, incorporating low VSWR, high isolation, low insertion loss, and low PIM to support stable dual-band operation in macro base stations and wireless network infrastructure. A compact, deployment-efficient design enables easy installation, while custom band capability allows flexible adaptation to varied network requirements.
|
Frequency |
CH1: 1710-1880MHz |
| CH2: 1920-2700MHz | |
| Return loss / VSWR | ≤-18dB / 1.3 |
| Insertion Loss | ≤0.35dB |
| Isolation | ≥50dB |
| Power Handling | 250W average per port |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 10kA,8/20us |
| Applications | IP67 |

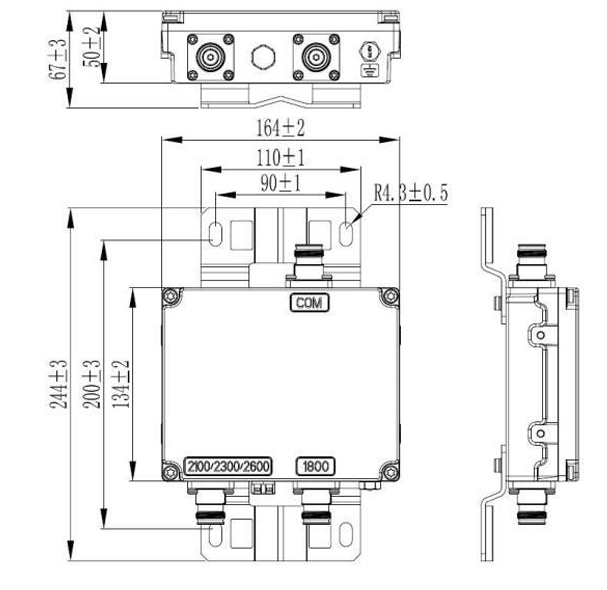

| Dimension | 164x134x50(mm, excluding brackets and connectors) |
| Weight | ≤2kg |
|
Connectors Type Number of input ports Number of output ports |
4.3-10 female(Long neck) 2 1 |
| Mounting | Wall or pole |
| Mounting Pipe Hardware | Band clamps |
| Packing | 1Pcs in box |
