Low PIM, low weight
Compact design for easy installation
Contain WCDMA, DCS, LTE2600 band
Single unit

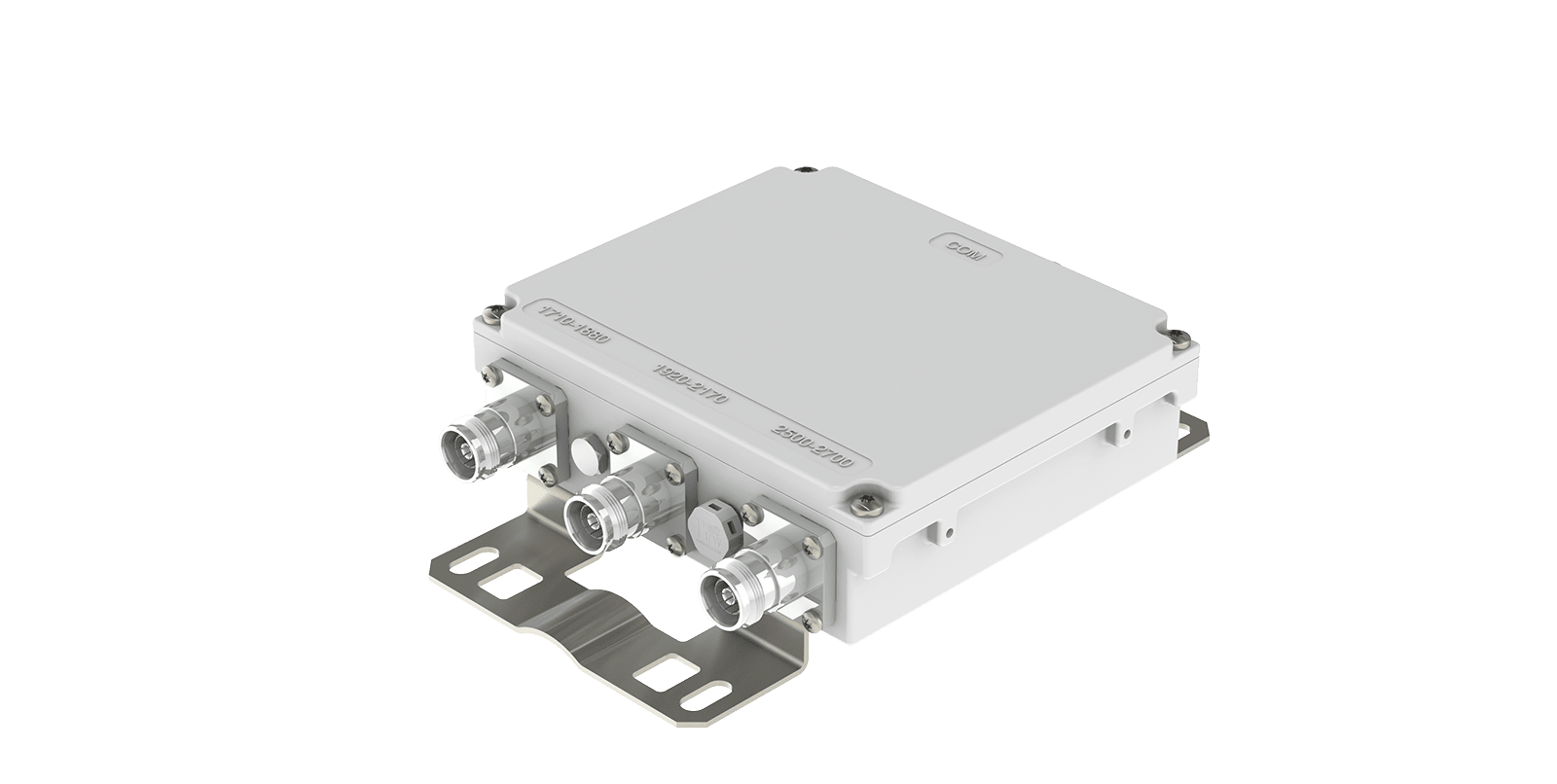

CB-3-DWE-64F-A15, a single-unit tri-band combiner designed for DCS, WCDMA, and LTE2600 band integration, featuring low PIM and lightweight construction to support efficient multi-band signal handling in macro base stations and wireless network infrastructure. A compact, installation-friendly structure simplifies deployment, while the integrated multi-band configuration enables streamlined RF system design.
|
Frequency |
CH1: 1710-1880MHz |
| CH2: 1920-2170MHz | |
| CH3: 2500-2700MHz | |
| Return Loss | ≤-19dB / 1.25 |
| Insertion Loss | ≤0.3dB |
| Isolation | ≥50dB |
| Power Handling | 200W Average |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | Indoor or outdoor (IP67) |

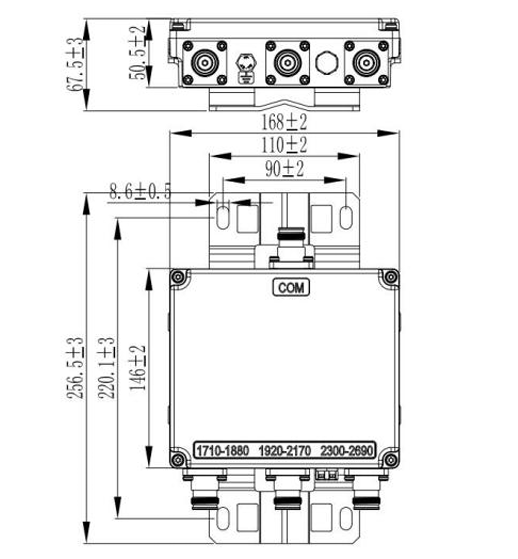

| Dimension | 168 x 146 x 50.5(mm, excluding brackets and connectors) |
| Weight | ≤2.5kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
