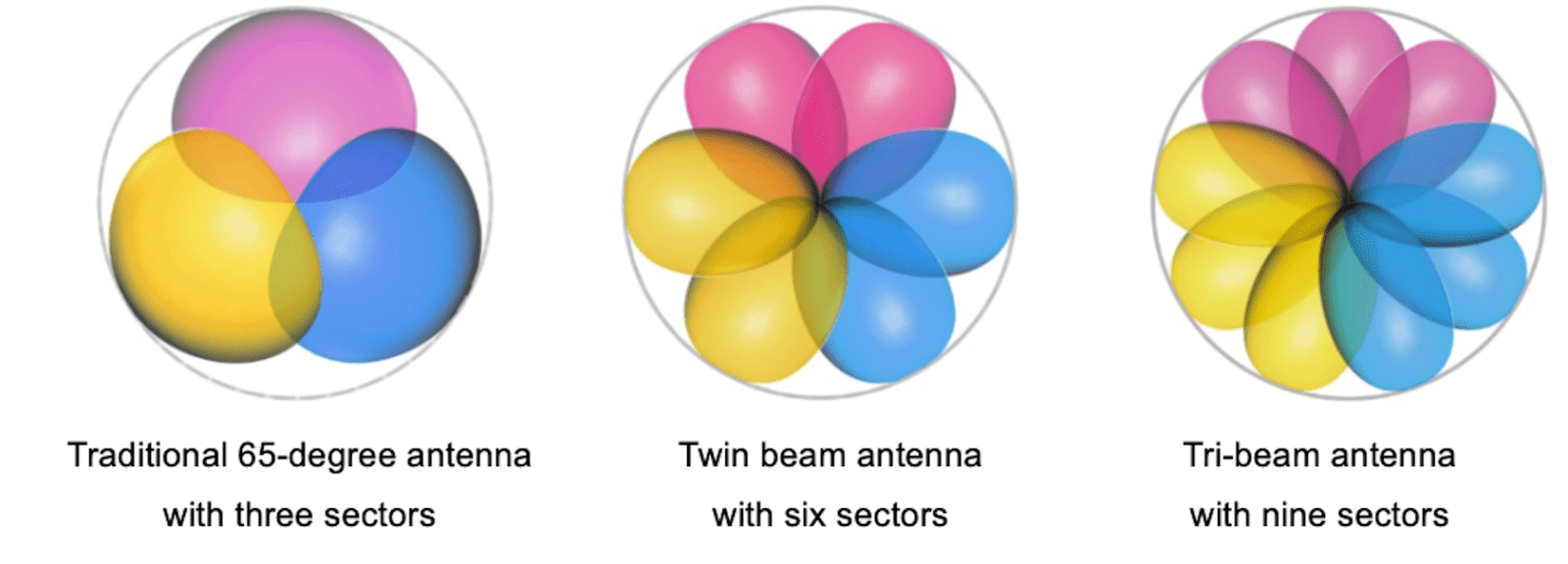

Multi-beam antennas adopt sector-splitting technology and can be split into six sectors, nine sectors, or even more. By dividing the sectors more flexibly while maintaining the same number of antennas, multi-beam antennas can achieve fine allocation management of sectors, improve the efficiency of spectrum utilization effectively, and prompt the network optimization coverage of urban hot spots and large-capacity areas.

According to a large number of actual network usage statistics, in the typical case of six sectors, the network capacity can be increased by 40~90% by 2T2R twin-beam antennas, and the capacity can be increased by 130~200% by 4T4R in the case of six sectors.

As one of the world's leading designers and manufacturers of multi-beam antennas, PROSE (previously known as Rosenberger) provides a full range of multi-beam and hybrid beam antennas which perfectly satisfy the customer network optimization task.

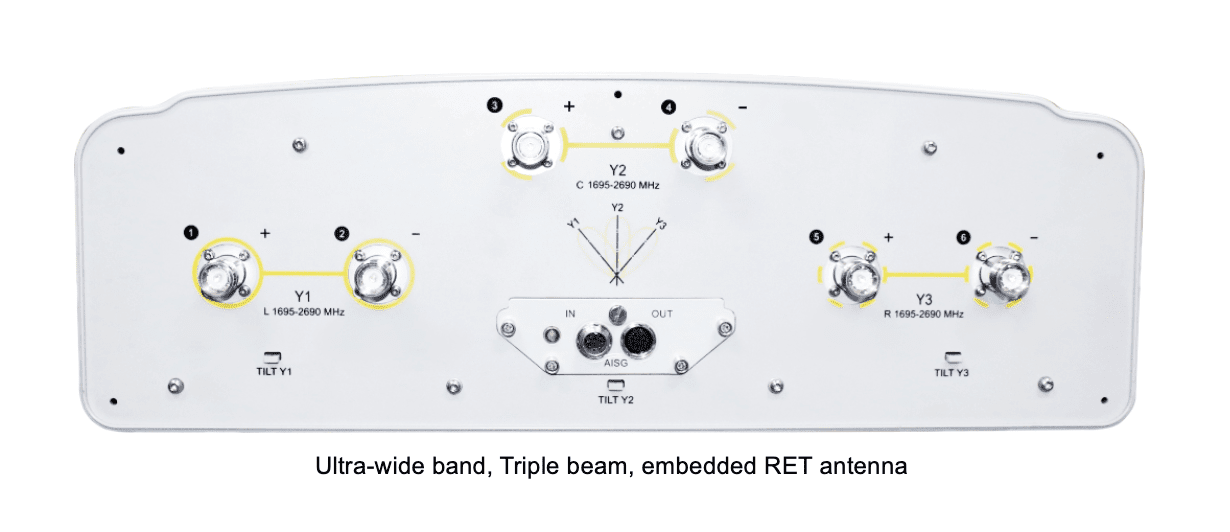

• Completed product series: covers 2x2 twin beams, 4x4 twin beams, 6x6 twin beams, 2x2 triple beam, 4x4 triple beam, penta beam, hexa beam, nona beam, and various forms of hybrid antennas: 1LxH+xTB, 2LxH+xTB, and more than 100 products of various types including twin beam with integrated diplexer.
• Ultra-wide band: The twin-beam products support all common mobile communication frequency bands in the world, such as 698-960 MHz, 1695-2690 MHz, and 3300-3800 MHz. Triple-beam and Penta-beam products support 698-960 MHz and 1695-2690 MHz; Penta-beam, Hexa-beam, and Nona-beam support 1695-2690 MHz.
• Flexible technical solution: Has a variety of patented technology proposals to solve requests from customers for different specific scenarios: small size, high isolation, ideal wide-band coverage, high gain, high intermodulation, low cost, etc.
• Customized products with speedy delivery: Based on a complete product platform and flexible technical solutions, customized requirements for customers can achieve faster design and sample/mass production.
