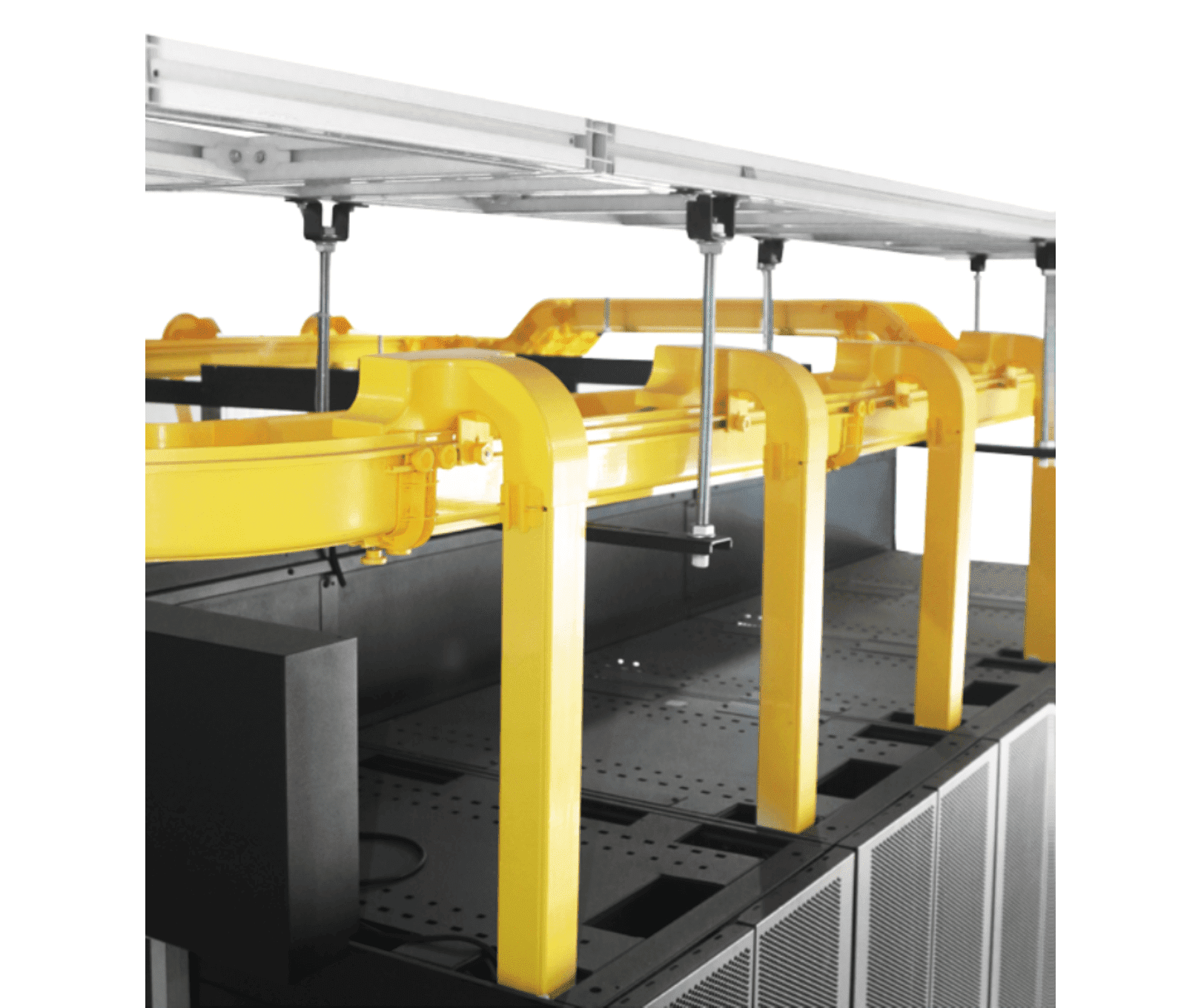

PROSE optical fiber raceway is a set of products that can provide full protection for optical fibers and facilitate operation.
The basic components include: channel body, connectors, horizontal elbows, vertical elbows, horizontal tees, horizontal crosses, vertical tees, adapters, terminal end caps, fiber outlets, bell mouths, and various support components.
Featuring a standardized modular design with high engineering precision, it offers rapid, flexible, and comprehensive protection for optical fibers.
Innovative design, full arc dead angle protection fiber optic cable.
Tool-free installation, barrier-free connection.
Multiple fiber outlet specifications to meet fiber requirements in various locations.
Powerful compatibility, worry-free expansion.
UL94-V0 highest level flame retardant material.
![]() |

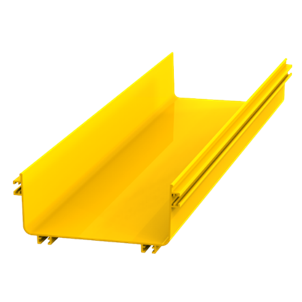

Product Number | CR36-SD-111-11(Body), CR36-SD-110-11(Cover) |
| Size | 360mm(W) x100mm(H)x2000mm(L) | |
| External dimensions | Body: 396×118×2000(mm), Cover: 389×12×2000(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS |
![]() |

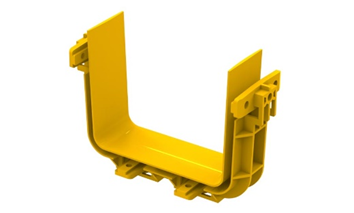

Product Number | CR36-CO-210-11 |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| Scope of application | Connection of components of 120-width Lightways Duct | |
| External dimensions | 420×100×129(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS | |
| Installation accessories | Round Plastic Screw with Nut ×10set |
![]() |
Product Number | CR36-CB-311-11(Body), CR36-CB-310-11 (Cover) |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| External dimensions | Body: 493×493×118(mm), Cover: 425.5×425.5×18.4(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS | |
| Installation requirements | 360x100mm Duct Connector:2set |
![]() |
Product Number | CR36-CO-210-11 |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| Scope of application | Connection of components of 120-width Lightways Duct | |
| External dimensions | 420×100×129(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS | |
| Installation accessories | Round Plastic Screw with Nut ×10set |
![]() |
Product Number | CR36-CB-311-11(Body), CR36-CB-310-11 (Cover) |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| External dimensions | Body: 493×493×118(mm), Cover: 425.5×425.5×18.4(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS | |
| Installation requirements | 360x100mm Duct Connector:2set |
![]() |
Product Number | CR36-TE-411-11(Body), CR36-TE-410-11 (Cover) |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| External dimensions | Body: 590×493×118(mm), Cover: 606×504×37(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS | |
| Installation requirements | 360x100mm Duct Connector:3set |
![]() |
Product Number | CR36-CR-511-11(Body), CR36-CR-510-11 (Cover) |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| External dimensions | Body: 590×590×118(mm), Cover: 606×606×37 (mm) | |
| Color | Yellow | |
| Materials | PVC / ABS | |
| Installation requirements | 360x100mm Duct Connector:4set |
![]() |
Product Number | CR36-EC-611-11 |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| External dimensions | 390×26.5×115(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS | |
| Installation requirements | T-shaped Plastic Screw with Nut ×2set |
![]() |
Product Number | CR36-AE-711-11(Body), CR36-AE-710-11 (Cover) |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| External dimensions | Body: 396×205×168(mm), Cover: 406.5×134×91(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS(Body); Metal(Cover) | |
| Installation requirements | 360x100mm Duct Connector:2set |
![]() |
Product Number | CR36-AE-721-11(Body), CR36-AE-720-11 (Cover) |
| Specification dimensions | 360mm(W) x100mm(H) | |
| Flame retardant level | UL94-V0 | |
| External dimensions | Body: 396×186.5×161(mm), Cover: 398.5×198.5×95(mm) | |
| Color | Yellow | |
| Materials | PVC / ABS(Body); Metal(Cover) | |
| Installation requirements | 360x100mm Duct Connector:2set |
![]() |

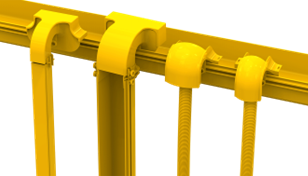

Series | 60*60mm Series | 90*170mm Series | 120*170mm Series | 130*170mm Series |
| Product Number(Body) | CRAC-WO-841-11 | CRAC-WO-851-11 | CRAC-WO-861-11 | CRAC-WO-871-11 | |
| Product Number(Cover) | CRAC-WO-840-11 | CRAC-WO-850-11 | CRAC-WO-860-11 | CRAC-WO-870-11 | |
| External dimensions(Body) | 255×208×141mm | 186×170×130mm | 250×211×146mm | 226×170×130mm | |
| External dimensions(Cover) | 260×222×143mm | 108×103×153mm | 258×260×149mm | 148×103×153mm | |
| Flame retardant level | UL94-V0 | ||||
| Color | Yellow | ||||
| Materials | PVC / ABS | ||||
| Installation requirements | Round Plastic Screw with Nut ×1set | Round Plastic Screw with Nut ×2set | |||
![]() |

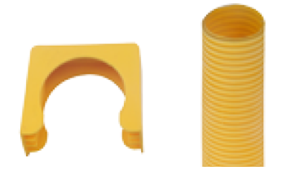

Product Number | CRAC-CT-911-11(Φ50mm), CRAC-CT-921-11(Φ90mm) |
| Color | Yellow | |
| Materials | PVC / ABS | |
| Installation requirements | Position fixer×1set |
![]() |

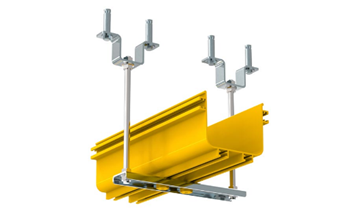

Product Number | CR36-SA-111-31 |
| Accessories | ①T-shaped Plastic Screw ×2 ② Plastic knob Nut × 2 ③“U” types of overhead cranes × 2 ④Plastic double-hole crossarm × 1 ⑤Expansion screws × 4 ⑥Threaded rod × 2 ⑦Flange nuts × 8 |
![]() ![]() |
Product Number | CRAC-SN-211-11 |
| Specification dimensions(mm) | M5×15(Screw); M5(Nut) | |
| External dimensions(mm) | Φ27×28.5mm (Screw); 18×18×8mm (Nut) |
![]() ![]() |
Product Number | CRAC-SN-221-11 |
| Specification dimensions(mm) | M6×15(Screw); M6(Nut) | |
| External dimensions(mm) | 26×20.5×11mm (Screw); Φ24.5×14mm (Nut) |
