Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
5G application is compatible

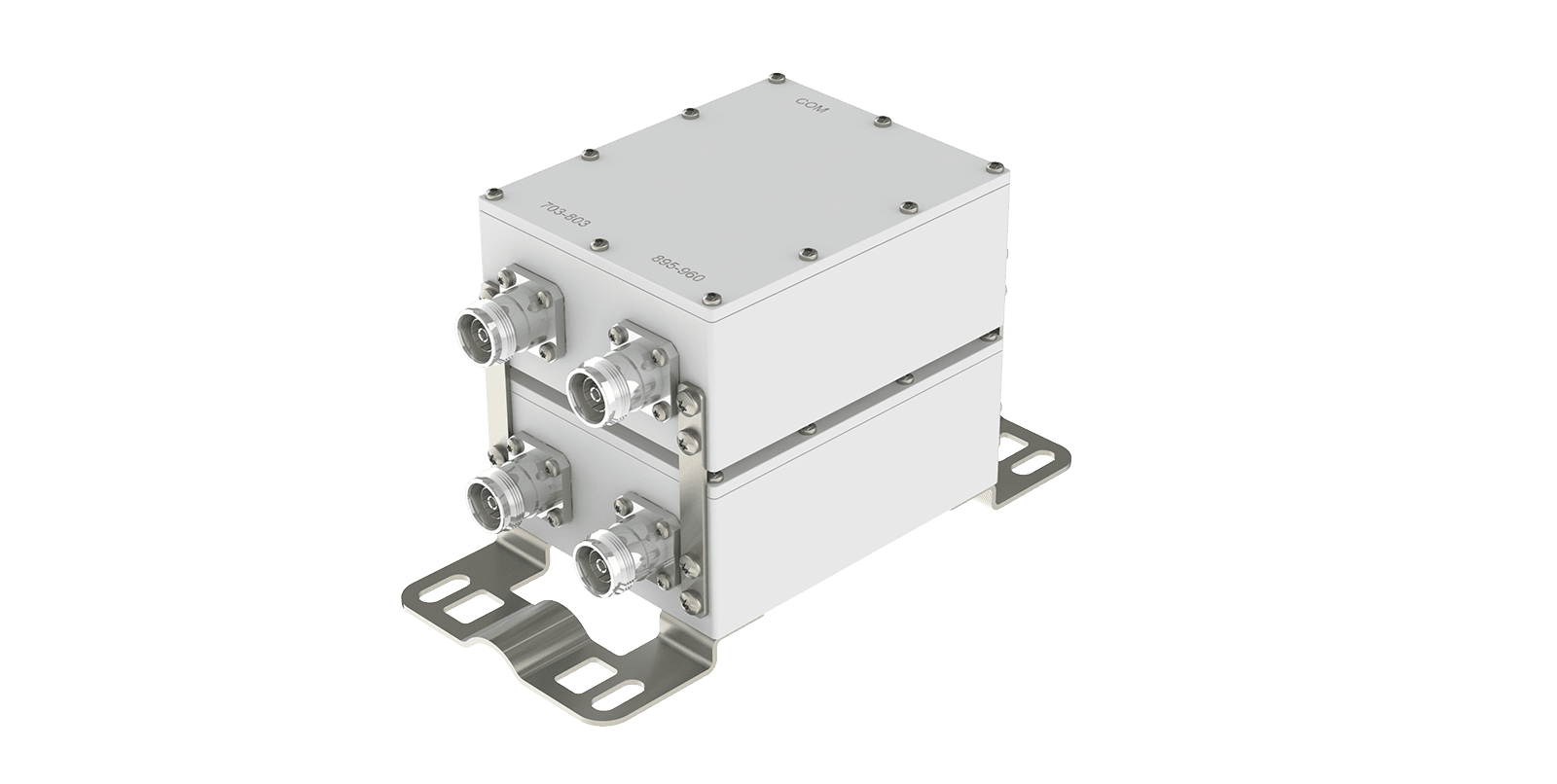

DCB-2-QZ-64F-A12, a double-unit dual-band combiner covering 703–803 MHz and 895–960 MHz, engineered for reliable RF signal integration, incorporating low VSWR, high isolation, low insertion loss, and low PIM to ensure stable dual-band performance in macro base stations and wireless network infrastructure. A compact, deployment-optimized structure enables efficient installation, while custom band capability and 5G-ready compatibility support flexible adaptation to evolving network requirements.
|
Frequency |
CH1: 703-803MHz |
| CH2: 895-960MHz | |
| Return Loss | ≤-19dB |
| Insertion Loss | ≤0.3dB |
| Isolation | ≥50dB |
| Power Handling | 200W average per port ;2000W(Peak) |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 10kA,8/20us |
| Applications | IP67 |

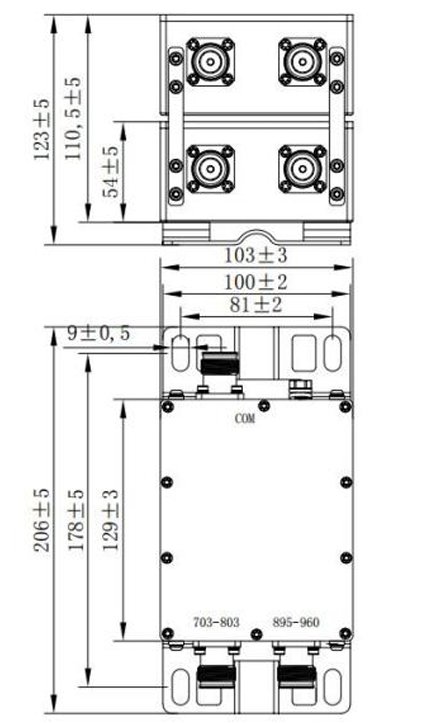

| Dimension | 206 x 103 x123(mm, excluding brackets and connectors) |
| Weight | ≤2.5kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
