Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
5G application is compatible

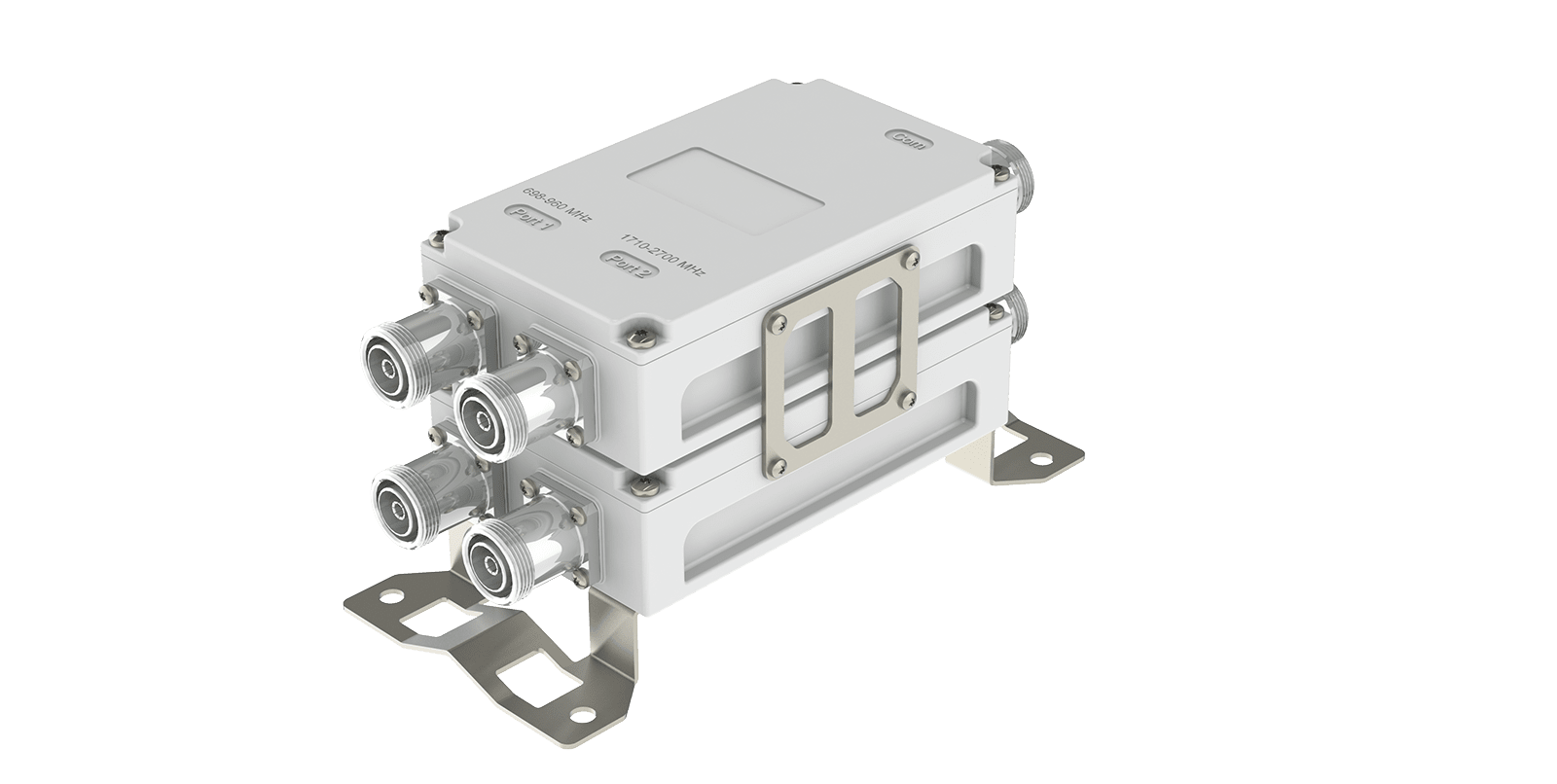

DCB-2-LH-DF-A10, a double-unit dual-band combiner covering 698–960 MHz and 1710–2700 MHz, developed for wide-range RF signal integration, incorporating low VSWR, high isolation, low insertion loss, and low PIM to ensure stable performance across low and high frequency bands in macro base stations and wireless network infrastructure. A compact, system-oriented design enables efficient installation, while custom band capability and 5G-ready compatibility support evolving network requirements.
|
Frequency |
CH1: 698-960MHz |
| CH2: 1710-2700MHz | |
| Return Loss | ≤-20dB |
| Insertion Loss | ≤0.25dB |
| Isolation | ≥50dB |
| Power Handling | 300W average per port |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -150dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP67 |

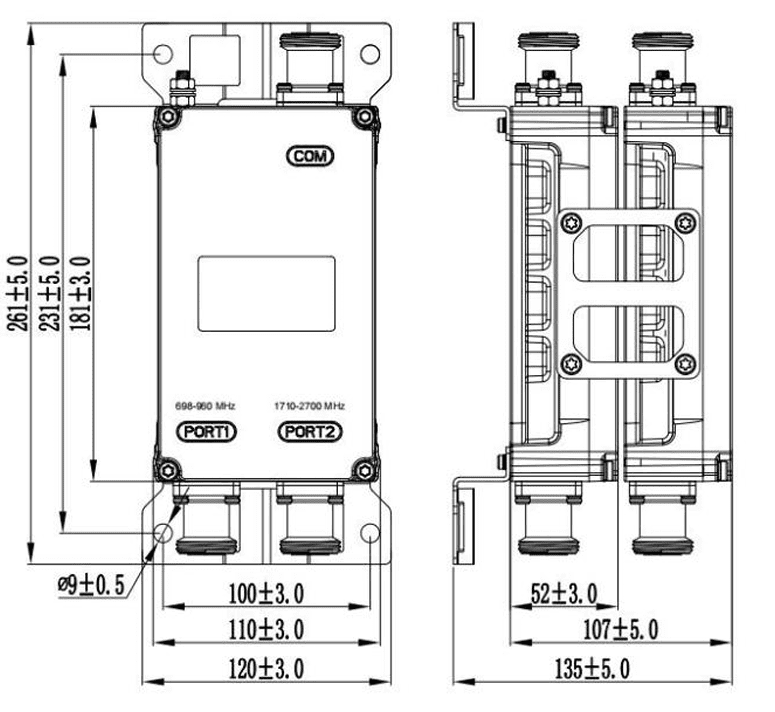

| Dimension | 181x110x107(mm, excluding brackets and connectors) |
| Weight | ≤3.6kg |
| Connectors Type |
Din female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
