Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
5G application is compatible

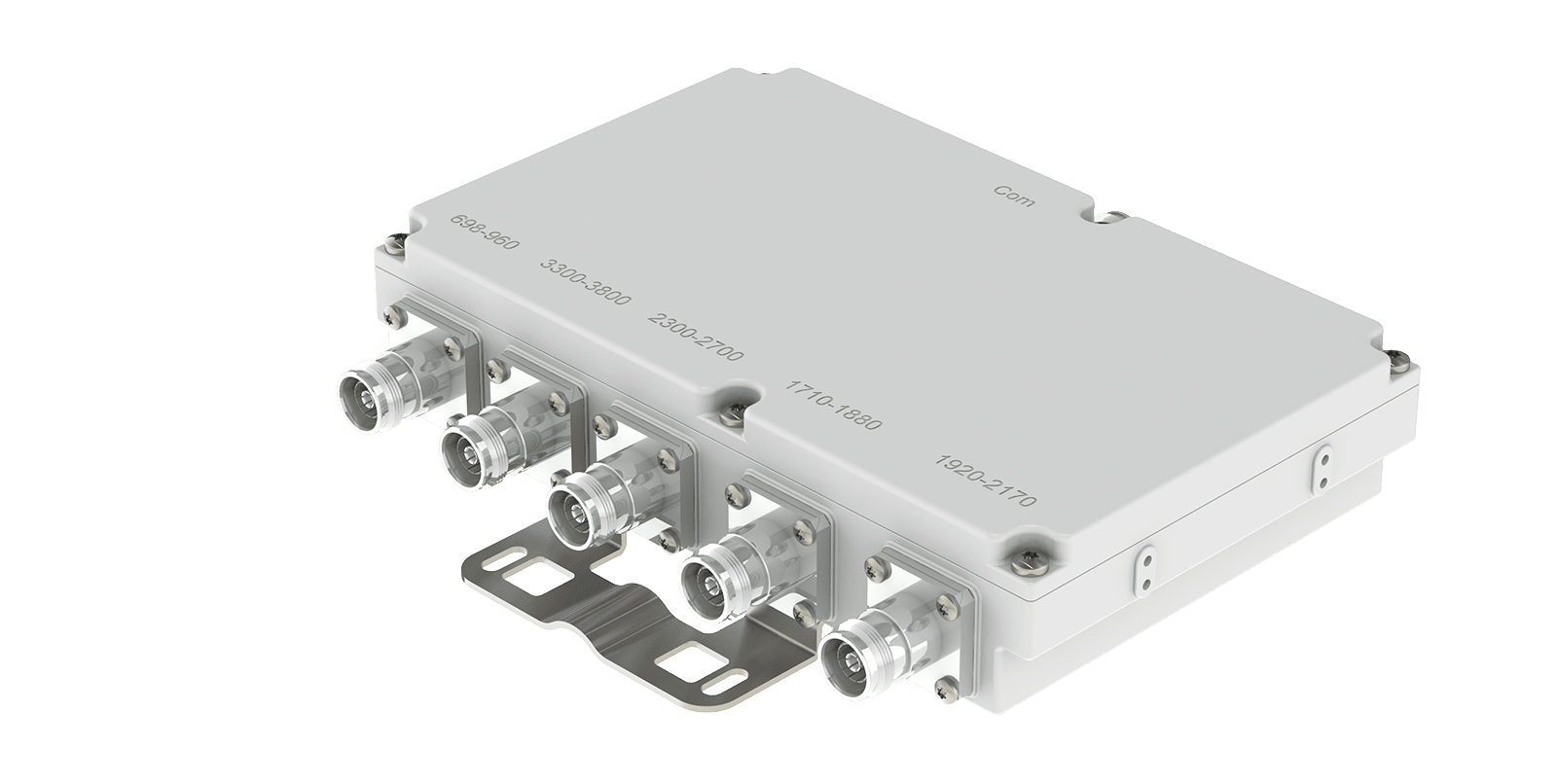

CB-5-LDUES-64F-B02, a single-unit pentalplexer designed for integrated multi-band RF routing, incorporating low VSWR, high isolation, low insertion loss, and low PIM to enable efficient signal separation and combination across multiple bands in macro base stations and wireless network infrastructure. A compact architecture supports simplified installation, while custom band configuration ensures alignment with diverse network requirements, including 5G-oriented deployments.
|
Frequency |
CH1: 698~960MHz |

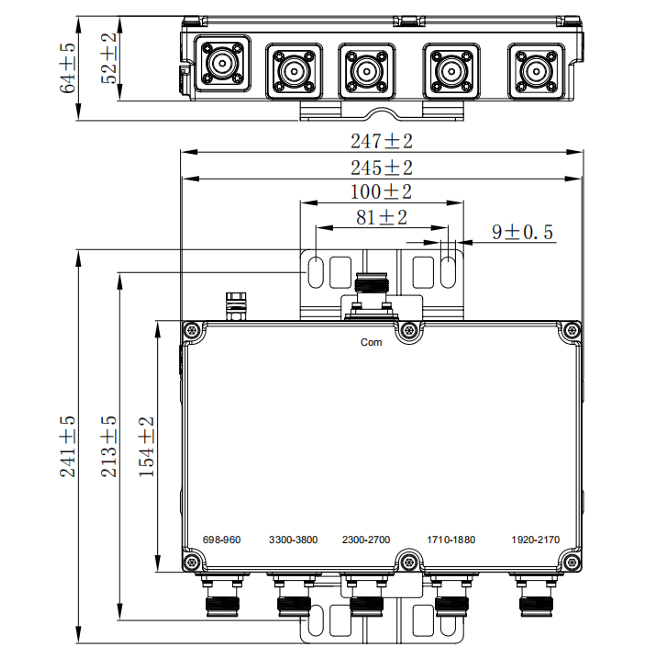

| CH2: 1710~1880MHz | |
| CH3: 1920~2170MHz | |
| CH4: 2300~2700MHz | |
| CH5: 3300~3800MHz | |
| Return Loss | ≤-20dB |
| Insertion Loss | ≤0.5dB |
| Isolation | ≥50dB |
| Power Handling | 500W per port for peak power |
| DC Characteristic | No DC bypass |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 8kA,8/20us |
| Applications | IP65(Indoor and Outdoor) |
| Dimension | 247x154x52(mm, excluding brackets and connectors) |
| Weight | ≤3kg |
| Connectors Type | 4.3-10 female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
