Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
5G application is compatible
CB-2-YZ-64F-A01, a single-unit dual-band combiner covering 694–862 MHz and 880–960 MHz, engineered for low-band RF signal integration, incorporating low VSWR, high isolation, low insertion loss, and low PIM to ensure reliable performance across adjacent low-frequency bands in macro base stations and wireless network infrastructure. A compact, installation-optimized design enables efficient deployment, while custom band capability and 5G-ready compatibility support evolving network requirements.
|
Frequency |
CH1: 694-862MHz |
| CH2: 880-960MHz | |
| Return Loss | ≤-20dB |
| Insertion Loss | 0.25dB Typical / 0.5dB Maximum |
| Rejection | ≥50dB |
| Power Handling | 200W average per port |
| DC Characteristic | DC Bypass all ports |
| Intermodulation(3rd order) | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 10kA,8/20us |
| Applications | IP67 |

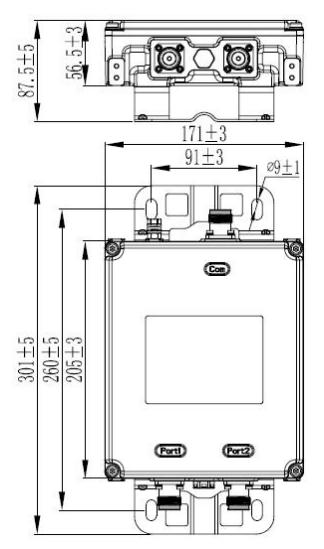

| Dimension | 205 x171 x56.5(mm, excluding brackets and connectors) |
| Weight | ≤3.0kg |
| Connectors Type | 4.3-10 female (Long neck) |
| Mounting Pipe Diameter | 35-135mm |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
