Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
AISG/DC bypass

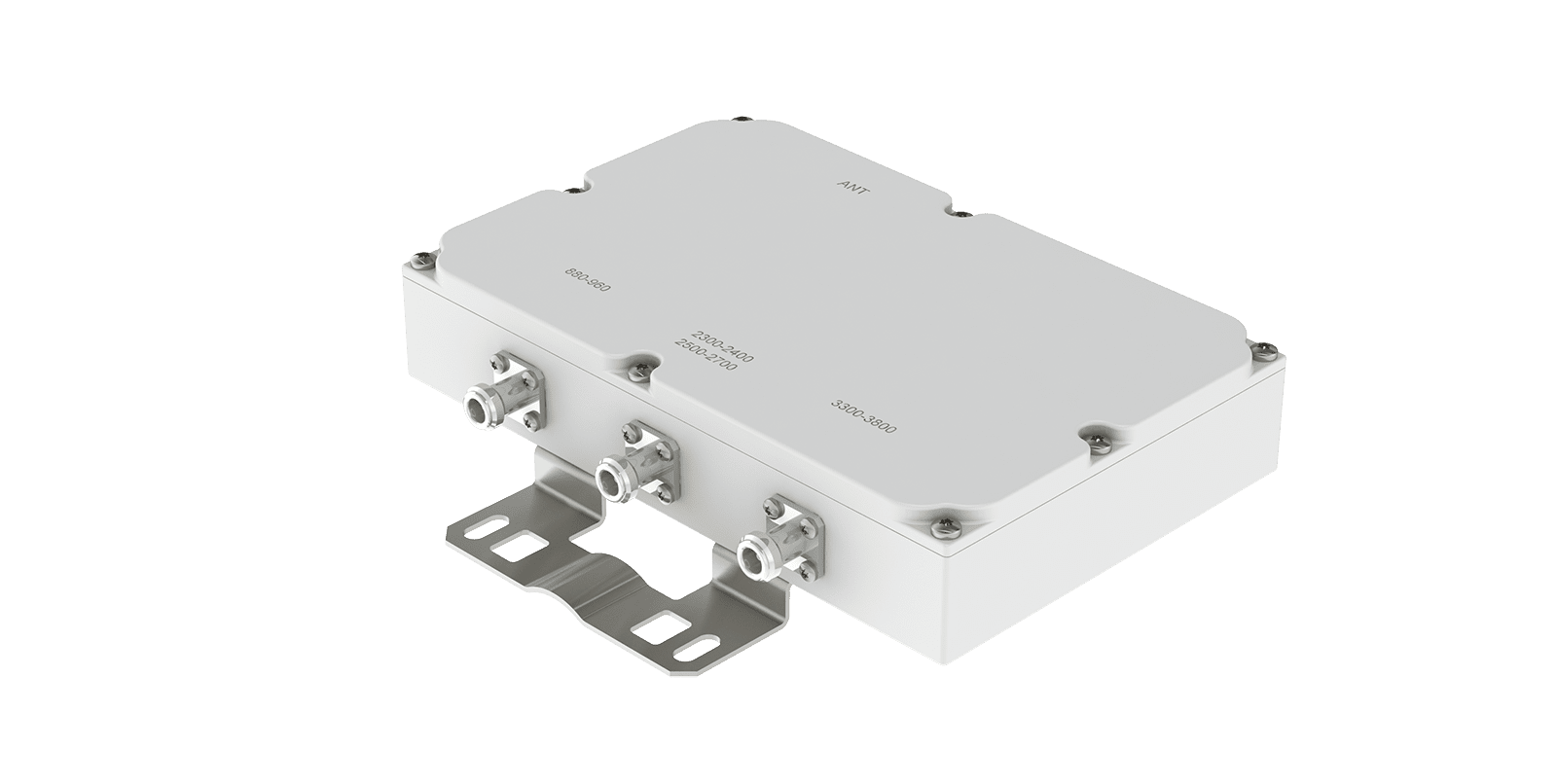

CB-3-GNES-NF-A01, a tri-band combiner tailored for efficient RF signal convergence, incorporating low VSWR, high isolation, low insertion loss, and low PIM to ensure consistent multi-band signal performance in macro base stations and wireless network infrastructure. A compact, integration-ready design supports simplified installation, while custom band capability and AISG / DC bypass functionality provide flexibility for a range of network configurations.
|
Frequency |
CH1: 880-960MHz |
| CH2: 2300-2400 & 2500-2700MHz | |
| CH3: 3300-3800MHz | |
| Return Loss | ≤-18dB |
| Insertion Loss | ≤0.5dB |
| Isolation | ≥50dB |
| Power Handling | 200W average per port |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -153dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 5kA,8/20us |
| Applications | IP65 |
| Dimension | 255x165x50(mm, excluding brackets and connectors) |
| Weight | ≤3.5kg |
| Connectors Type | N-female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
