Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available
5G application is compatible

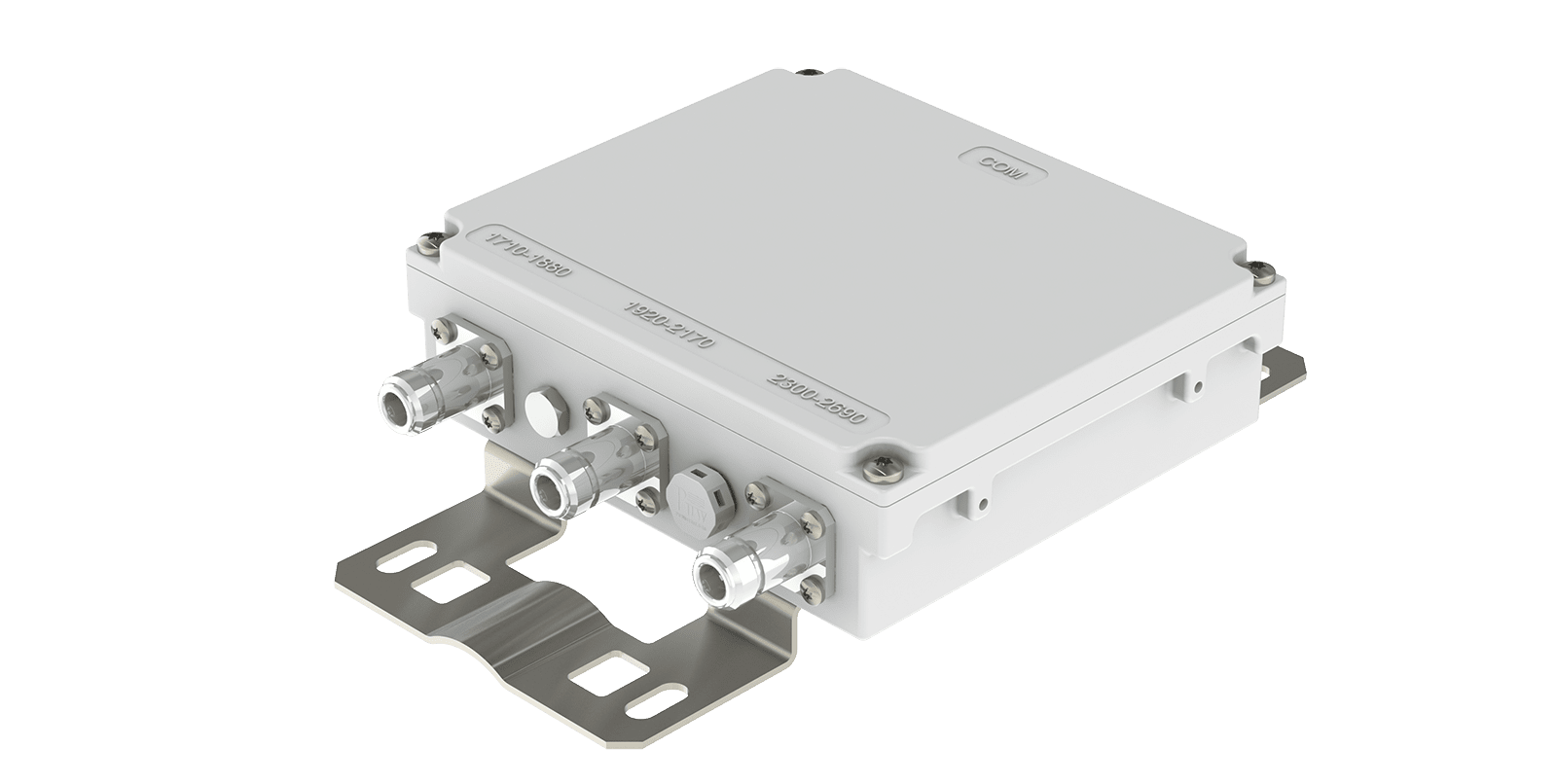

CB-3-DWE-64F-A17, a single-unit triplexer designed for integrated multi-band RF routing, incorporating low VSWR, high isolation, low insertion loss, and low PIM to enable efficient signal separation and combination across three bands in macro base stations and wireless network infrastructure. A compact, well-structured design supports simplified installation, while custom band flexibility enhances adaptability to evolving network requirements, including 5G-focused deployments.
|
Frequency |
CH1: 1710-1880MHz |
| CH2: 1920-2170MHz | |
| CH3: 2300-2690MHz | |
| Return Loss | ≤-18dB |
| Insertion Loss | ≤0.4dB |
| Isolation | ≥50dB |
| Power Handling | 250W Average |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -150dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 8kA,8/20us |
| Applications | IP67 |

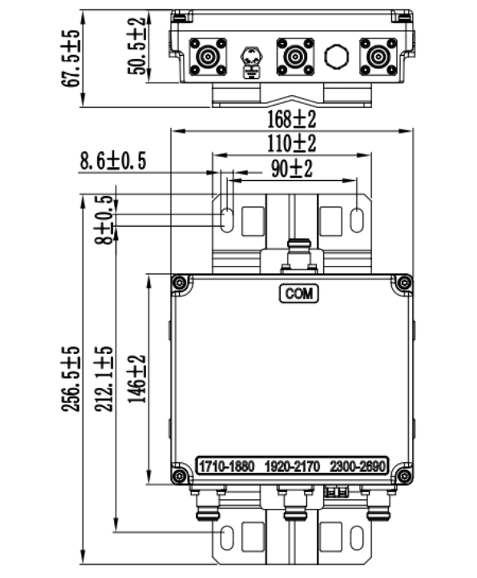

| Dimension | 168 x 146 x 50.5(mm, excluding brackets and connectors) |
| Weight | ≤2.4kg |
| Connectors Type | N female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
