Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available

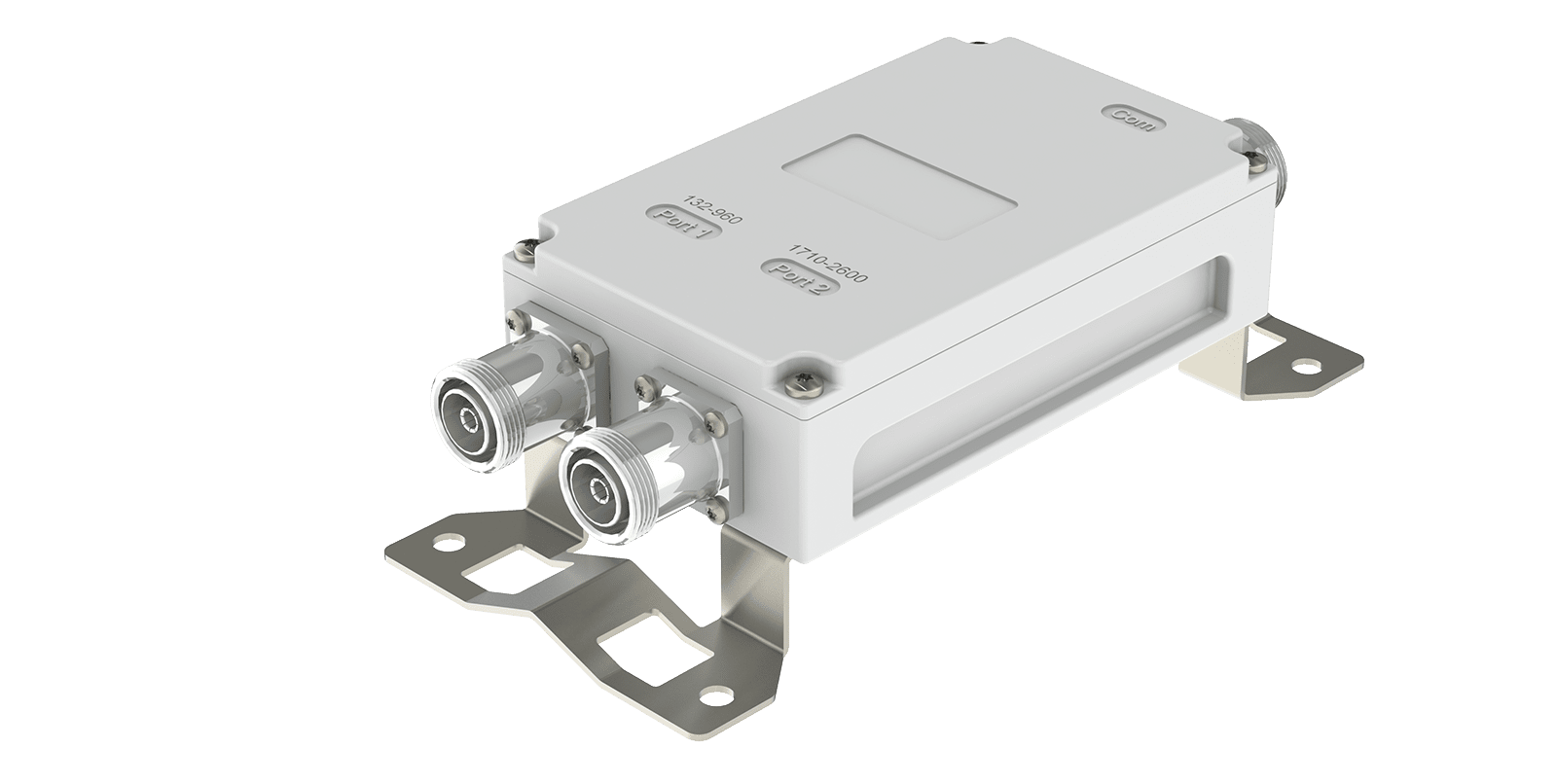

CB-2-KH-DF-A02, a single-unit dual-band combiner covering 132–960 MHz and 1710–2600 MHz, engineered for ultra-wideband RF signal integration, incorporating low VSWR, high isolation, low insertion loss, and low PIM to ensure stable performance across extended low-to-high frequency ranges in macro base stations and wireless network infrastructure. A compact, system-integration-focused design supports efficient installation, while custom band capability enables flexible adaptation to diverse deployment requirements.
|
Frequency |
CH1:132-960MHz |
| CH2:1710-2600MHz | |
| Return Loss / VSWR | ≤-18dB / 1.3 |
| Insertion Loss | ≤0.5dB@132-960 MHz |
| ≤0.5dB@1710-2600 MHz | |
| Rejection | ≥50dB |
| Power Handling | 50W(average) |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP65 |

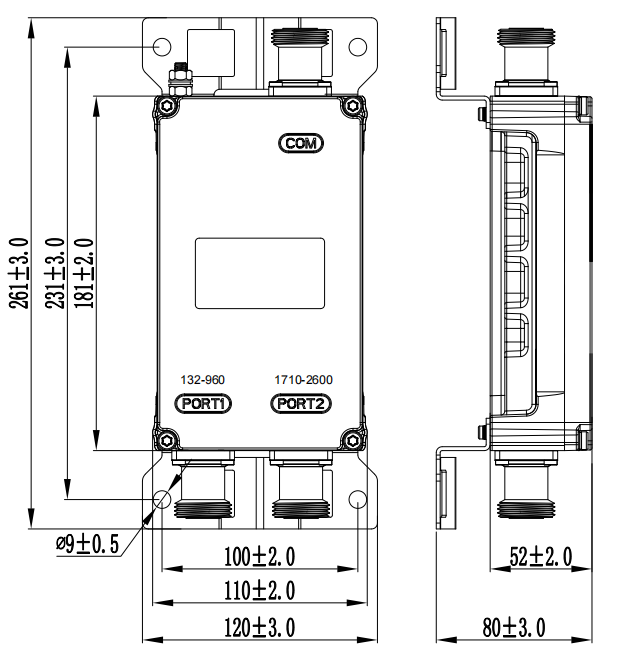

| Dimension | 181x110x52(mm, excluding brackets and connectors) |
| Weight | ≤1.8kg |
| Connectors Type | 7/16 female (2 IN-1OUT) |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
