Low PIM
Low weight
Compact design for easy installation
Contain WCDMA, DCS, LTE2600 band

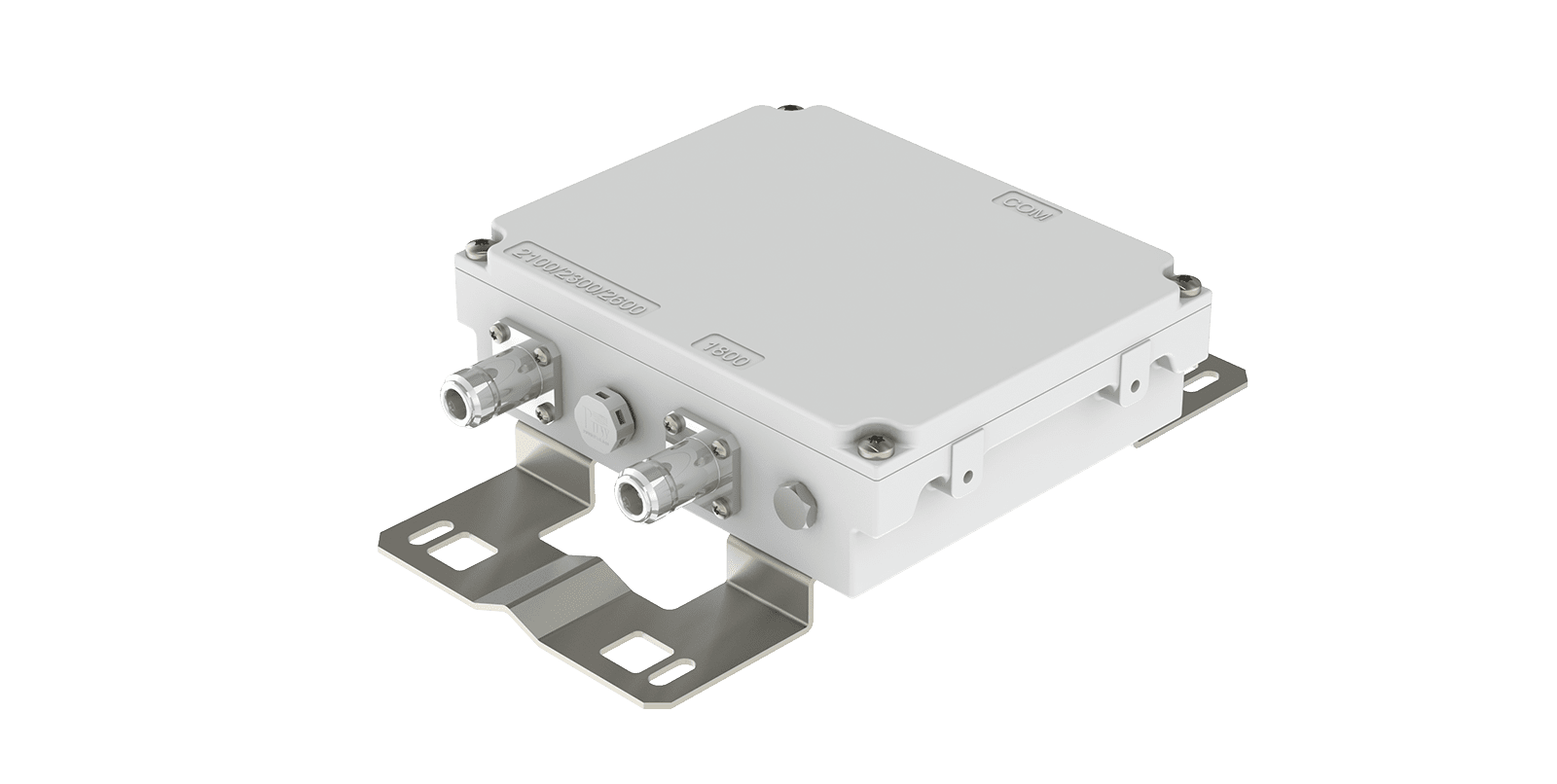

CB-2-DJ-NF-A03, a dual-band combiner covering 1710–1880 MHz and 1920–2690 MHz, designed for RF signal integration across WCDMA, DCS, and LTE2600 bands, featuring low PIM and lightweight construction to support stable dual-band operation in macro base stations and wireless network infrastructure. A compact, installation-optimized design enables efficient deployment while improving space utilization.
|
Frequency |
CH1: 1710-1880 MHz |
| CH2: 1920-2690MHz | |
| VSWR | 1.3 |
| Insertion Loss | CH1: 0.2dB Typ. 0.5dB Max |
| CH2: 0.2dB Typ. 0.5dB Max | |
| Isolation | ≥50dB |
| Pass band Ripple | ≤0.2dB |
| Power Handling | 200W average per port |
| DC Characteristic | DC bypass for all ports |
| Intermodulation | ≤ -155dBc@2x43dBm |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP65 |

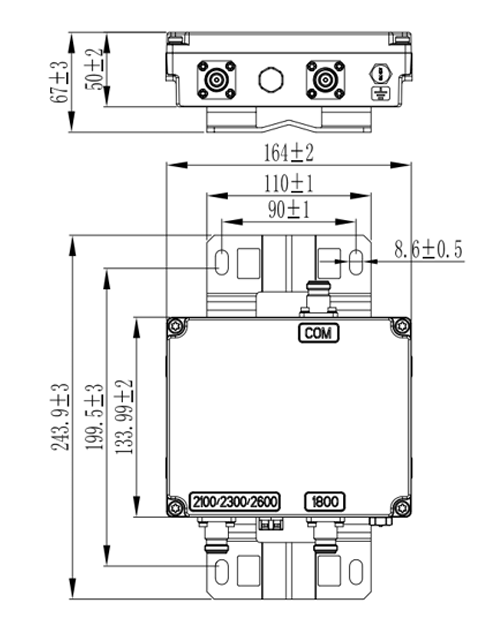

| Dimension | 163x132x50(mm, excluding brackets and connectors) |
| Weight | ≤1.9kg |
|
Connectors Type Number of input ports Number of output ports |
7/16 Din female (Long neck) 2 1 |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
