Antenna frequency: (617-862) + (880-960) + (617-960) + 4 x (1695-2690) MHz
3dB azimuth beamwidth: 65 °
Gain: 15/19.2 dBi
Electrical downtilt: 2-16/2-12 °
Connector: 14 x 4.3-10 female
Dimension: 1500 x 498 x 220 mm
Status of product: general available
Panel Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | (617-862) + (880-960) + (617-960) + 4 x (1695-2690) MHz |
| Gain | 15/19.2 dBi |
| 3dB Azimuth Beamwidth | 65 ° |
| Electrical Downtilt | 2-16 ° |
| 1st Upper Sidelobe Suppression | > 14/> 17 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 |
| Inter - Cluster Isolation | > 25 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |

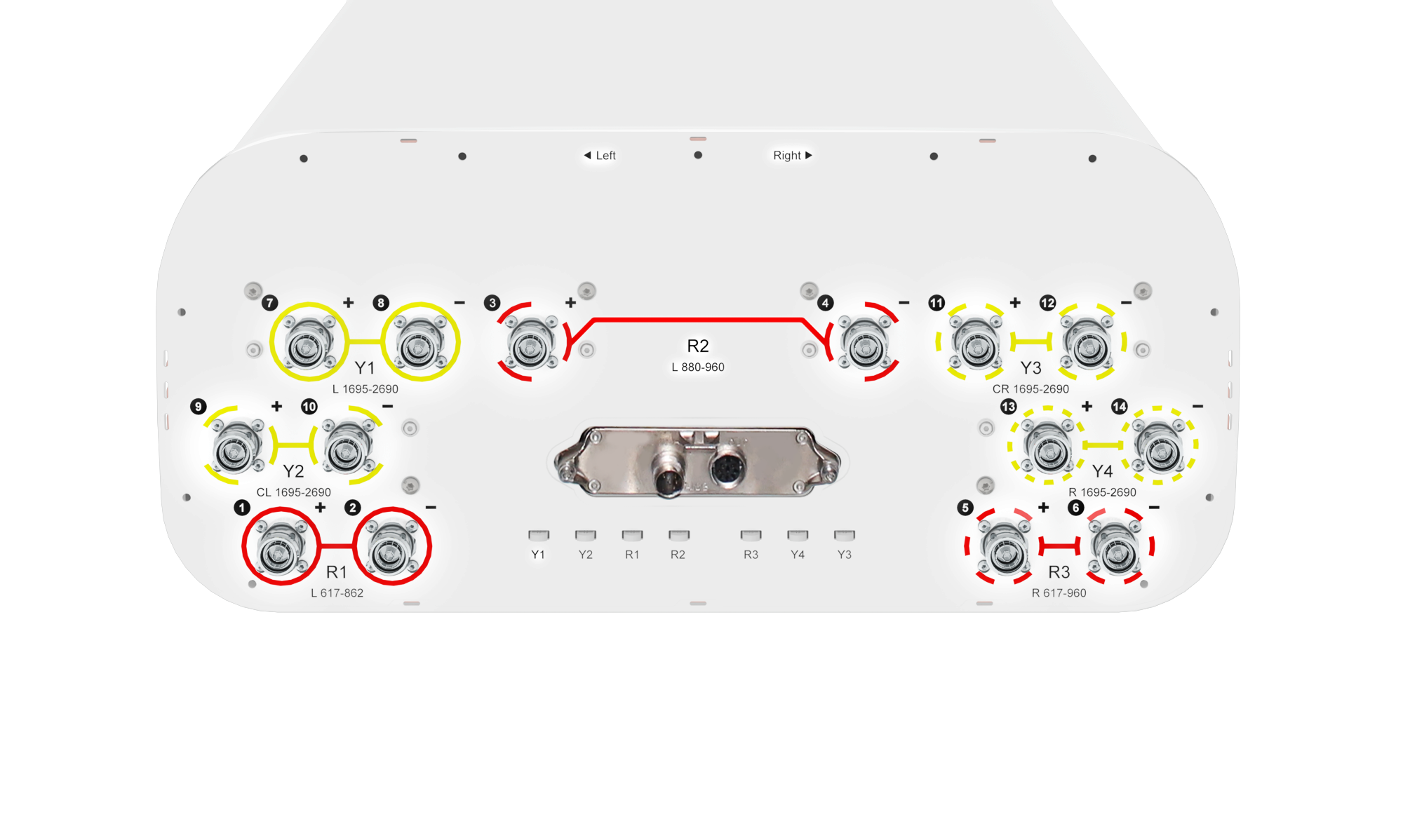

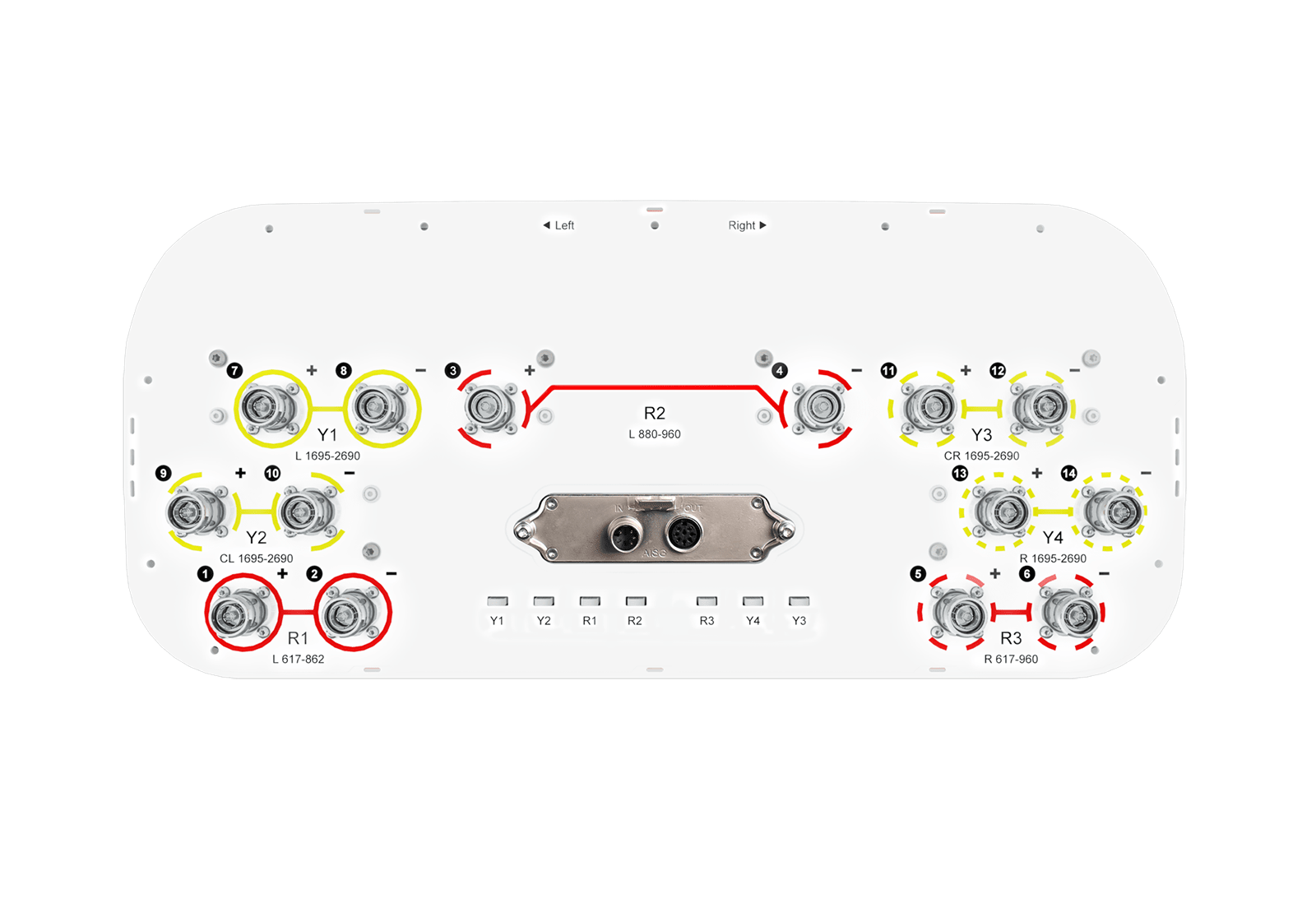

| Connector Type | 14 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 1500 x 498 x 220 mm | 59.1 x 19.6 x 8.7 in |
| Packing Size (H x W x D) | 1615 x 575 x 370 mm | 63.6 x 22.6 x 14.6 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 637 N | 143 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| OperatingTemperature Range | -40 to +70 °C | -40 to +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 617-960 | 1695-2690 |
![]() |
![]() |

| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | RAPMK-01 | 3.8 kg / 8.4 lb | 0-10 |
