Antenna frequency: 2 x (1710-2690) MHz
3dB azimuth beamwidth: 65 (°)
Gain: 19.5 (dBi)
Electrical downtilt: 0-8 (°)
Connector: 4 x 4.3-10 female
Dimension: 2020 x 295 x 115 (mm)
Status of product: general available
Panel Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 2 x (1710-2690) MHz |
| Gain | 19.5 dBi |
| 3dB Azimuth Beamwidth | 65 ° |
| Electrical Downtilt | 0-8° |
| 1st Upper Sidelobe Suppression | > 17 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 28 |
| Inter - Cluster Isolation | > 28 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |
| Connector Type | 4 x 4.3-10 female |

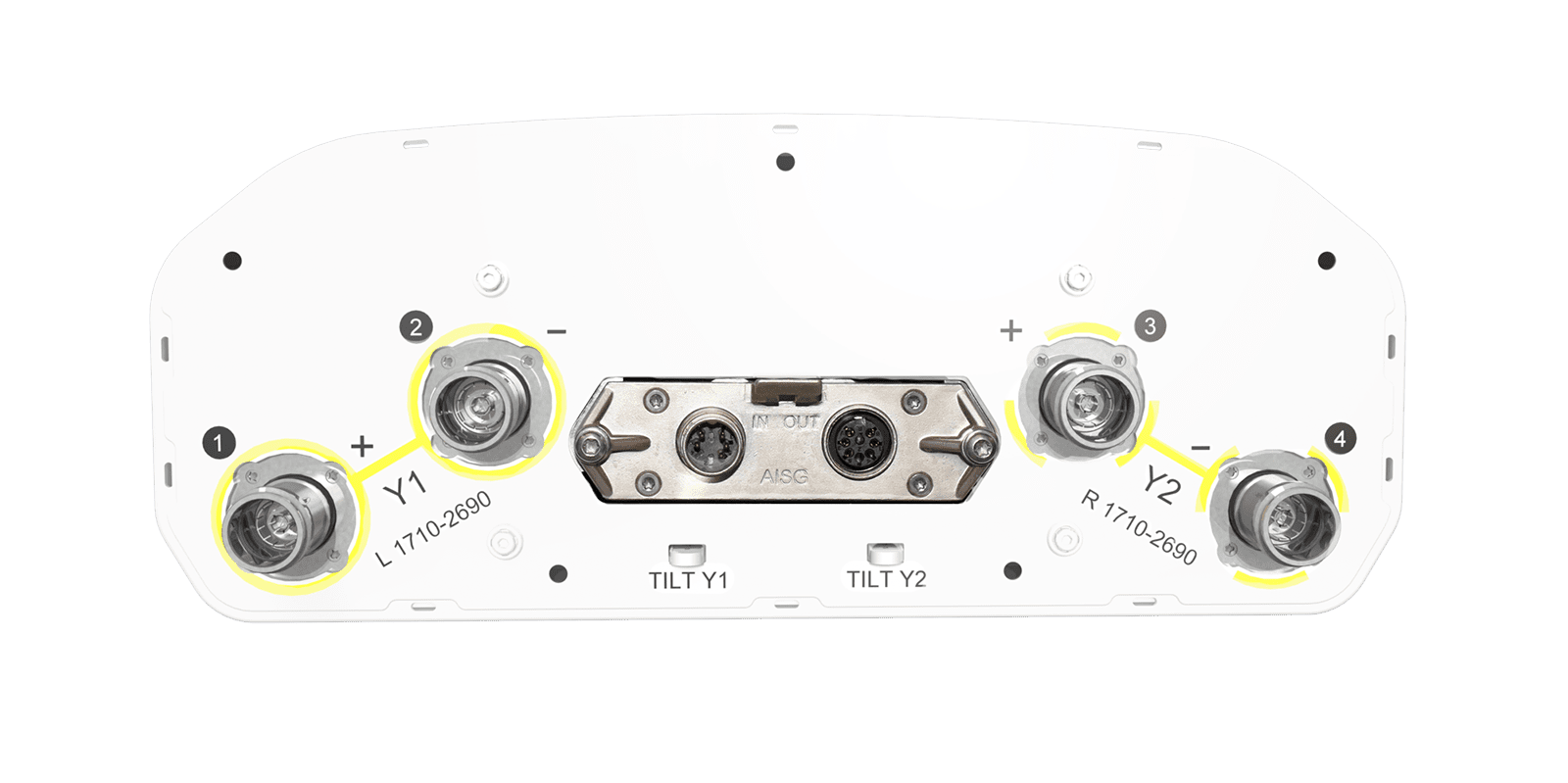

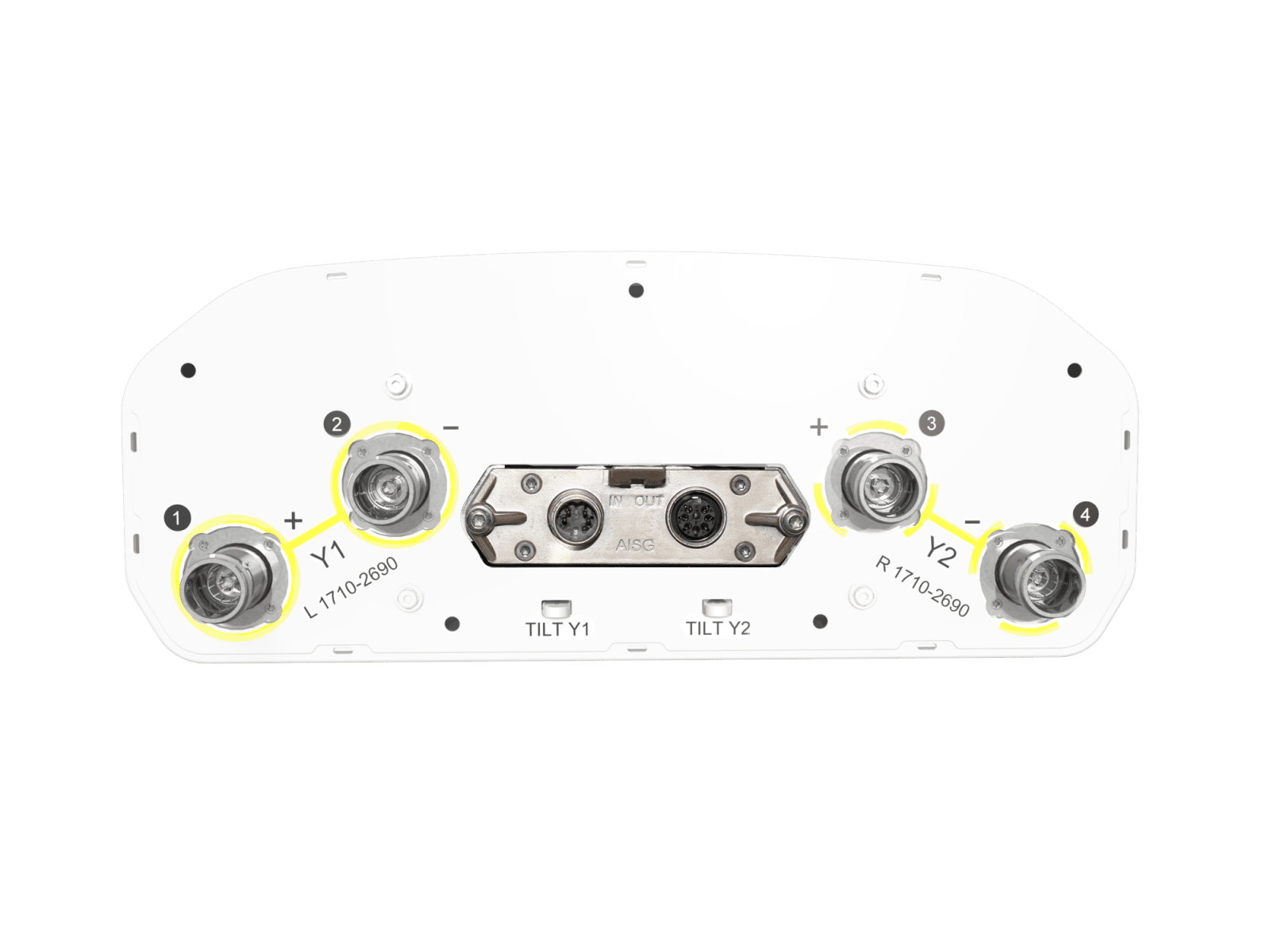

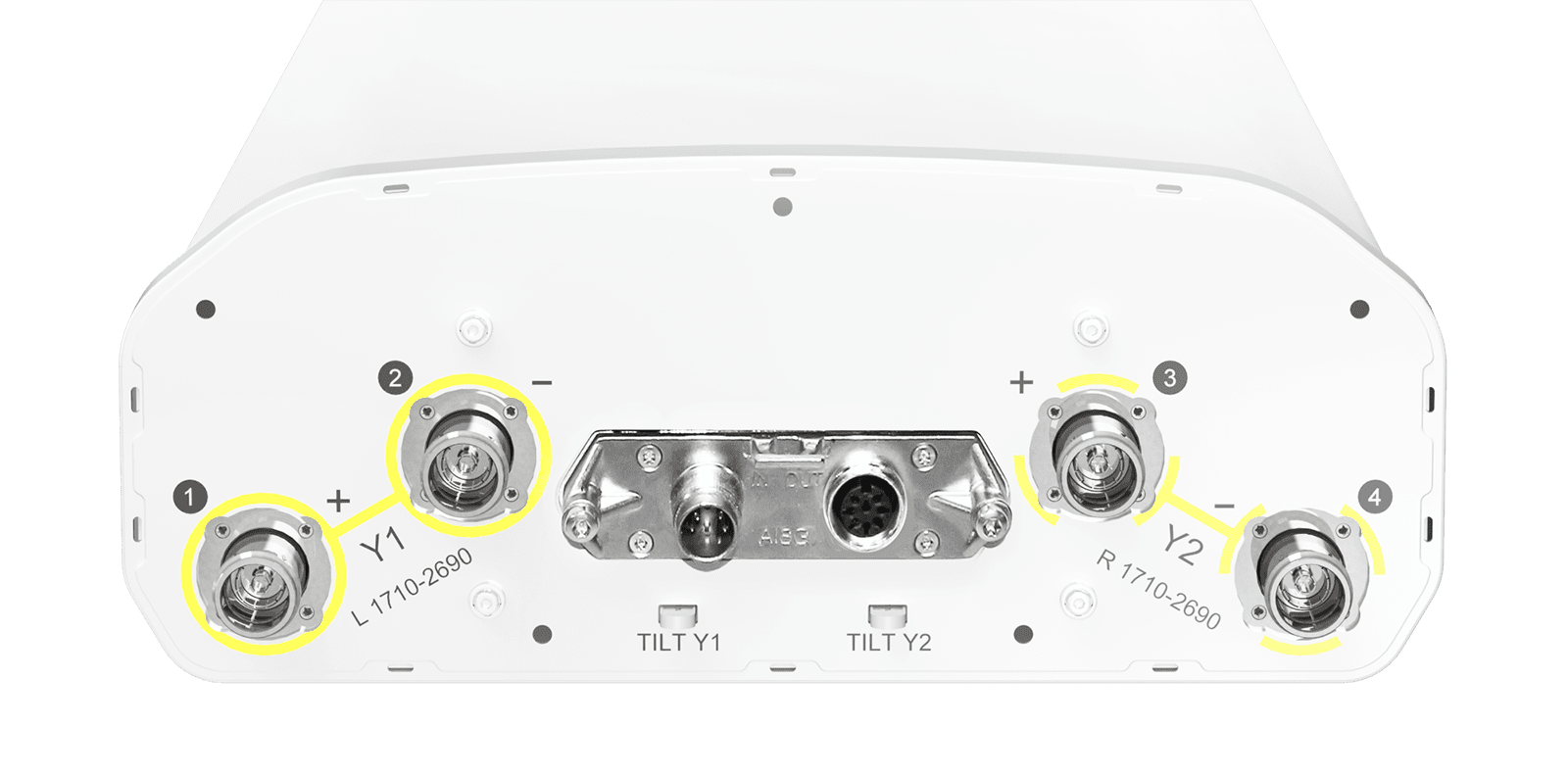

| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2020 x 295 x 115 mm | 79.5 x 11.5 x 4.5 in |
| Packing Size (H x W x D) | 2160 x 370 x 280 mm | 85.0 x 14.6 x 11.0 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 573 N | 129 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 to +70 °C | -40 to +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 1710-2690 |
![]() |
