High grade copper wire
Flexible stranded conductor
Rated operating voltage: 0.6/1kV
Rated operating temperature: -15°C to +90°C
PROSE power cable features safe and stable performance, effectively ensuring reliable power supply.
Widely used in communication systems and other related fields, it can provide safe and stable power support for various equipment.
| PW2XHK6-XCXXmm2-X |
Power cable
|
|
|
1 2 3
|
|
|
| *1 indicate the core quantity, 1-1core, 2-2cores, 3-3cores, 4-4cores, 5-5cores. | ||
| *2 indicate the single core section area. | ||
| *3 indicate the insulation colour, the meaning of the numbers or letters is in the "colour code" table. | ||
|
For example:
|
||
|
Part No.
|
Description
|
|
| PW2XHK6-1C16mm2-BK | Power cable, 0.6/1kV, 1x16mm^2, Class 5, Black XLPE insulation, Black LSZH sheath | |
| PW2XHK6-2C10mm2-1 | Power cable, 0.6/1kV, 2x10mm^2, Class 5, Blue and Brown XLPE insulation, Black LSZH sheath | |
| PW2XHK6-3C25mm2-2 | Power cable, 0.6/1kV, 3x25mm^2, Class 5, Blue, Brown and Yellow/Green XLPE insulation, Black LSZH sheath | |
| PW2XHK6-4C10mm2-1 | Power cable, 0.6/1kV, 4x10mm^2, Class 5, Blue, Brown, Black and Grey XLPE insulation, Black LSZH sheath | |
| PW2XHK6-5C25mm2-1 | Power cable, 0.6/1kV, 5x25mm^2, Class 5, Yellow/Green, Blue, Brown, Black and Grey XLPE insulation, Black LSZH sheath | |
| Insulation colour: The meaning of the number or letter is as below. | ||||||||||||
| 1 core: | ||||||||||||
| C.C. | Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Violet | Yellow /Green | |
| Abb.(XX) | BL | OR | GN | BN | GY | WH | RD | BK | YW | VT | YG | |
| 2 cores: | ||||||||||||
|
Number
|
0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||
|
Colour
|
Red, Blue | Blue, Brown | Blue, Black | Blue, Grey | Black, Grey | Red, Black | Black, White | Blue, White | Red, White | |||
| 3 cores: | ||||||||||||
|
Number
|
0 | 1 | 2 | 3 | 4 | 5 | ||||||
|
Colour
|
Yellow, Green, Red | Blue, Black, Brown | Blue, Brown, Yellow/Green | Red, Yellow, Blue | Brown, Black, Grey | Red, Blue, Yellow/Green | ||||||
|
Number
|
6 | 7 | 8 | 9 | 10 | 11 | ||||||
|
Colour
|
Black, White, Red | Black, Blue, Green | Black, Blue, Yellow/Green | Brown, Black, Yellow/Green | Blue, Brown, Green | Black, White, Green | ||||||
|
Number
|
12 | |||||||||||
|
Colour
|
White, Red, Yellow/Green | |||||||||||
| 4 cores: | ||||||||||||
|
Number
|
0 | 1 | 2 | |||||||||
|
Colour
|
Blue, Yellow, Green, Red | Blue, Brown, Black, Grey | Red, Blue, Yellow, Black | |||||||||
|
Number
|
3 | 4 | 5 | |||||||||
|
Colour
|
Grey, White, Red, Blue | Blue, Brown, Black, Yellow/Green | Black, Brown, Grey, Yellow/Green | |||||||||
|
Number
|
6 | 7 | 8 | |||||||||
|
Colour
|
Blue, Brown, Red, Black | Red, Yellow, Green, Black | Red, Blue, White, Black | |||||||||
|
5 cores:
|
||||||||||||
|
Number
|
0
|
1
|
2
|
|||||||||
|
Colour
|
Blue, Yellow, Green, Red, Black
|
Yellow/Green, Blue, Brown, Black, Grey
|
Red, Yellow, Blue, Brown, Green
|
|||||||||
|
Number
|
3
|
4
|
5
|
|||||||||
|
Colour
|
Black insulation with white number (1-5)
|
Yellow/Green, Red, Yellow, Blue, Black
|
Blue, Yellow, Green, Red, Yellow/Green
|
|||||||||
|
Number
|
6
|
7
|
|
|||||||||
|
Colour
|
Black, Red, Blue, White, Yellow/Green
|
Red, Yellow, Blue, White, Yellow/Green
|
|
|||||||||
|
Sheath colour: Black
|
||||||||||||
|

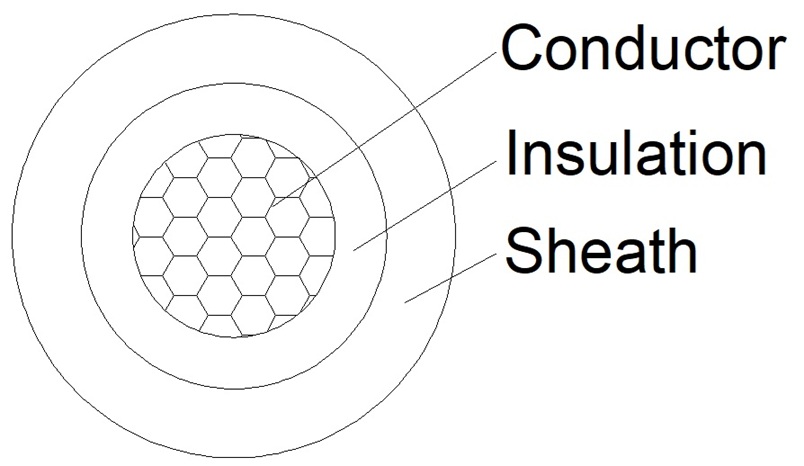

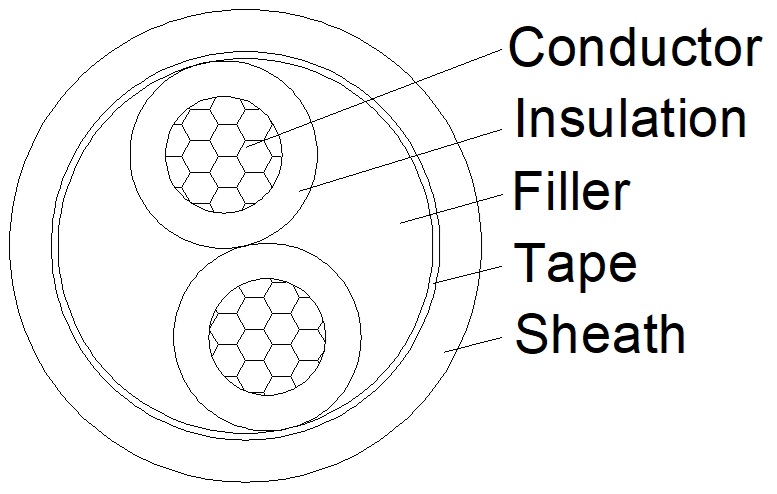

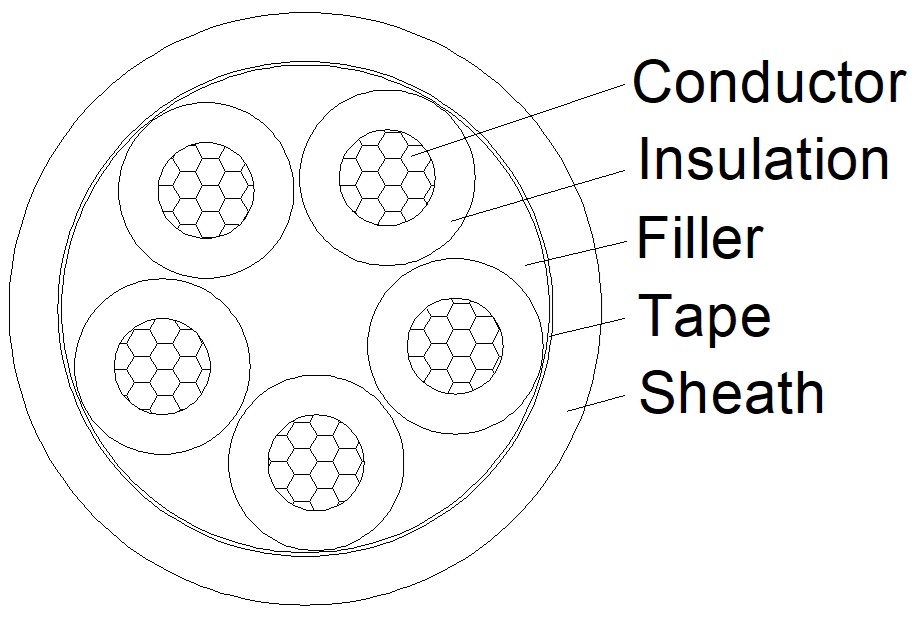

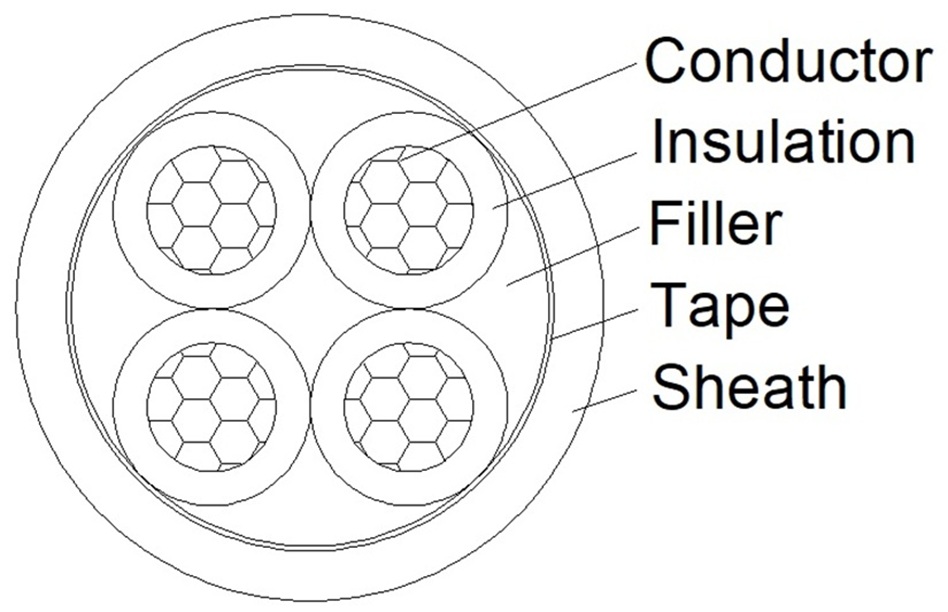

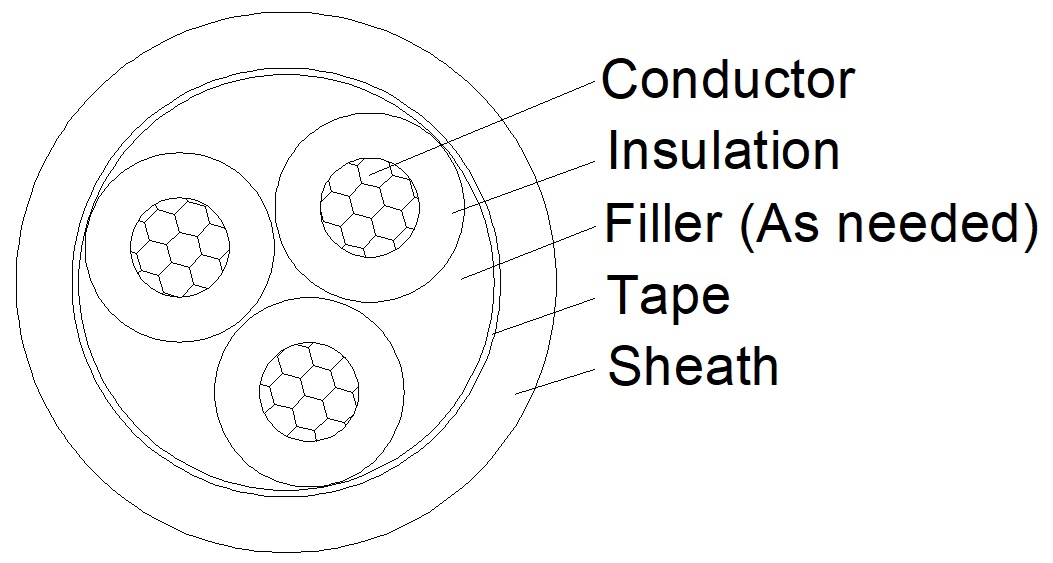

No.
|
Item
|
PW2XHK6-XCXXmm2-X | |
|
1
|
Conductor
|
Material
|
Annealed bare copper, Class 5 |
|
2
|
Insulation
|
Material
|
XLPE |
| 3 | Filler | Material | Optional |
| 4 | Tape |
Material
|
Optional |
| 5 |
Sheath
|
Material
|
LSZH, ST8 |
|
PN
|
Max. Conductor Resistance, 20°C (Ω/km) | Nom. Insulation Thickness (mm) | Min. Sheath Thickness (mm) | Approx. Overall Diameter (mm) |
|
PW2XHK6-1C1.5mm2-X
|
13.3
|
0.7
|
0.92
|
5.4
|
|
PW2XHK6-1C2.5mm2-X
|
7.98
|
0.7
|
0.92
|
5.9
|
|
PW2XHK6-1C4mm2-X
|
4.95
|
0.7
|
0.92
|
6.4
|
|
PW2XHK6-1C6mm2-X
|
3.30
|
0.7
|
0.92
|
7.0
|
|
PW2XHK6-1C10mm2-X
|
1.91
|
0.7
|
0.92
|
8.3
|
|
PW2XHK6-1C16mm2-X
|
1.21
|
0.7
|
0.92
|
9.5
|
|
PW2XHK6-1C25mm2-X
|
0.780
|
0.9
|
0.92
|
11.3
|
|
PW2XHK6-1C35mm2-X
|
0.554
|
0.9
|
0.92
|
12.5
|
|
PW2XHK6-1C50mm2-X
|
0.386
|
1.0
|
0.92
|
14.3
|
|
PW2XHK6-1C70mm2-X
|
0.272
|
1.1
|
0.92
|
16.2
|
|
PW2XHK6-1C95mm2-X
|
0.206
|
1.1
|
1.00
|
18.1
|
|
PW2XHK6-1C120mm2-X
|
0.161
|
1.2
|
1.00
|
19.9
|
|
PW2XHK6-2C1.5mm2-X
|
13.3
|
0.7
|
1.24
|
9.7
|
|
PW2XHK6-2C2.5mm2-X
|
7.98
|
0.7
|
1.24
|
10.7
|
|
PW2XHK6-2C4mm2-X
|
4.95
|
0.7
|
1.24
|
11.7
|
|
PW2XHK6-2C6mm2-X
|
3.30
|
0.7
|
1.24
|
12.9
|
|
PW2XHK6-2C10mm2-X
|
1.91
|
0.7
|
1.24
|
15.5
|
|
PW2XHK6-2C16mm2-X
|
1.21
|
0.7
|
1.24
|
17.8
|
|
PW2XHK6-2C25mm2-X
|
0.780
|
0.9
|
1.24
|
21.4
|
|
PW2XHK6-2C35mm2-X
|
0.554
|
0.9
|
1.24
|
23.8
|
|
PW2XHK6-2C50mm2-X
|
0.386
|
1.0
|
1.24
|
27.4
|
|
PW2XHK6-2C70mm2-X
|
0.272
|
1.1
|
1.24
|
31.2
|
|
PW2XHK6-2C95mm2-X
|
0.206
|
1.1
|
1.40
|
34.9
|
|
PW2XHK6-2C120mm2-X
|
0.161
|
1.2
|
1.48
|
38.7
|
|
PW2XHK6-3C1.5mm2-X
|
13.3
|
0.7
|
1.24
|
10.2
|
|
PW2XHK6-3C2.5mm2-X
|
7.98
|
0.7
|
1.24
|
11.2
|
|
PW2XHK6-3C4mm2-X
|
4.95
|
0.7
|
1.24
|
12.3
|
|
PW2XHK6-3C6mm2-X
|
3.30
|
0.7
|
1.24
|
13.6
|
|
PW2XHK6-3C10mm2-X
|
1.91
|
0.7
|
1.24
|
16.4
|
|
PW2XHK6-3C16mm2-X
|
1.21
|
0.7
|
1.24
|
18.9
|
|
PW2XHK6-3C25mm2-X
|
0.780
|
0.9
|
1.24
|
22.8
|
|
PW2XHK6-3C35mm2-X
|
0.554
|
0.9
|
1.24
|
25.4
|
|
PW2XHK6-3C50mm2-X
|
0.386
|
1.0
|
1.24
|
29.2
|
|
PW2XHK6-3C70mm2-X
|
0.272
|
1.1
|
1.32
|
33.5
|
|
PW2XHK6-3C95mm2-X
|
0.206
|
1.1
|
1.40
|
37.3
|
|
PW2XHK6-4C1.5mm2-X
|
13.3
|
0.7
|
1.24
|
11.0
|
|
PW2XHK6-4C2.5mm2-X
|
7.98
|
0.7
|
1.24
|
12.2
|
|
PW2XHK6-4C4mm2-X
|
4.95
|
0.7
|
1.24
|
13.4
|
|
PW2XHK6-4C6mm2-X
|
3.30
|
0.7
|
1.24
|
14.8
|
|
PW2XHK6-4C10mm2-X
|
1.91
|
0.7
|
1.24
|
18.0
|
|
PW2XHK6-4C16mm2-X
|
1.21
|
0.7
|
1.24
|
20.7
|
|
PW2XHK6-4C25mm2-X
|
0.780
|
0.9
|
1.24
|
25.1
|
|
PW2XHK6-4C35mm2-X
|
0.554
|
0.9
|
1.24
|
28.0
|
|
PW2XHK6-4C50mm2-X
|
0.386
|
1.0
|
1.32
|
32.5
|
|
PW2XHK6-4C70mm2-X
|
0.272
|
1.1
|
1.40
|
37.2
|
|
PW2XHK6-4C95mm2-X
|
0.206
|
1.1
|
1.48
|
41.5
|
|
PW2XHK6-5C1.5mm2-X
|
13.3
|
0.7
|
1.24
|
11.8
|
|
PW2XHK6-5C2.5mm2-X
|
7.98
|
0.7
|
1.24
|
13.2
|
|
PW2XHK6-5C4mm2-X
|
4.95
|
0.7
|
1.24
|
14.5
|
|
PW2XHK6-5C6mm2-X
|
3.30
|
0.7
|
1.24
|
16.1
|
|
PW2XHK6-5C10mm2-X
|
1.91
|
0.7
|
1.24
|
19.6
|
|
PW2XHK6-5C16mm2-X
|
1.21
|
0.7
|
1.24
|
22.7
|
|
PW2XHK6-5C25mm2-X
|
0.780
|
0.9
|
1.24
|
27.6
|
|
PW2XHK6-5C35mm2-X
|
0.554
|
0.9
|
1.24
|
30.8
|
|
PW2XHK6-5C50mm2-X
|
0.386
|
1.0
|
1.40
|
36.0
|
|
PW2XHK6-5C70mm2-X
|
0.272
|
1.1
|
1.48
|
41.4
|
|
PW2XHK6-5C95mm2-X
|
0.206
|
1.1
|
1.64
|
46.3
|
|
Rated Voltage
|
0.6/1 kV |
|
Dielectric Strength
|
AC 3500V, 5min, no breakdown |
|
Rated Temperature
|
-15°C to +90°C |
|
RoHS
|
Compliant
|
|
Min. Bending Radius
|
12D (D= overall diameter)
|
|
Flame Retardant
|
IEC 60332-1-2
|
| Halogen Free | IEC 60754-1, IEC 60754-2 |
| Low Smoke | IEC 61034-2 |
.jpg)
Power Cable, 300/500V Or 450/750V, 1 Core, Class 5 Flexible Copper Conductor, PVC Insulation, Unshielded, No Sheath

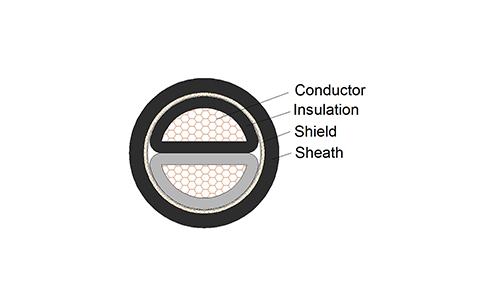

DC/AC Power Cable, 600V, Type D Conductor, 2 Cores, Halogen Free Thermoplastic Insulation, Halogen Free Thermoplastic Sheath, Copper/Aluminum Alloy Wire Braiding Shield.
