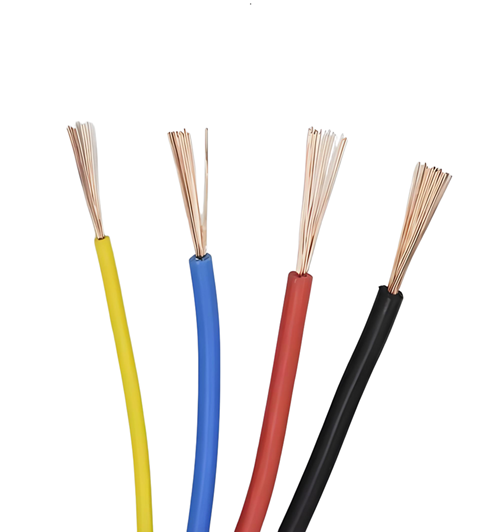

High grade copper wire
Class 5 flexible conductor
Rated operating voltage: 300/500V or 450/750V
Rated operating temperature: 70°C
PROSE power cable features safe and stable performance, effectively ensuring reliable power supply.
Widely used in communication systems and other related fields, it can provide safe and stable power support for various equipment.
| PWYK-1CXXmm2-XX | Power cable, 1 core | |
|
1 2
|
|
|
|
*1 indicate the single core section area
|
||
|
*2 indicate the insulation color, the meaning of the letters is in the "color code" table.
|
||
|
For example:
|
||
|
Part No.
|
Description
|
|
| PWYK-1C1mm2-BK | Power cable, 300/500V, 1x1.0mm^2, Class 5 copper conductor, Black PVC insulation | |
| PWYK-1C1.5mm2-YG | Power cable, 450/750V, 1x1.5mm^2, Class 5 copper conductor, Yellow/Green PVC insulation | |
| PWYK-1C16mm2-RD | Power cable, 450/750V, 1x16mm^2, Class 5 copper conductor, Red PVC insulation | |
| PWYK-1C16mm2-BK | Power cable, 450/750V, 1x16mm^2, Class 5 copper conductor, Black PVC insulation | |
| Insulation colour: The meaning of the letter is as below. | ||||||||||||
| C.C. | Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Violet | Yellow /Green* | |
| Abb.(XX) | BL | OR | GN | BN | GY | WH | RD | BK | YW | VT | YG | |
| *(For Yellow/Green) Green is the color stripe. | ||||||||||||
|
No.
|
Item
|
PWYK-1CXXmm2-XX | ||
|
1
|
Conductor
|
Material
|
Annealed bare copper, IEC 60228 Class 5
|
|
|
Quantity
|
1 core
|
|||
|
2
|
Insulation
|
Material
|
PVC
|
|
| Note: For larger cross section conductor, tape may also be used around conductor. | ||||
|
PN
|
Max. Conductor Resistance, 20°C (Ω/km)
|
Nom. Insulation Thickness (mm)
|
Approx. Overall
Diameter (mm)
|
|
PWYK-1C0.5mm2-XX
|
39.0
|
0.6
|
2.2
|
|
PWYK-1C0.75mm2-XX
|
26.0
|
0.6
|
2.4
|
|
PWYK-1C1mm2-XX
|
19.5
|
0.6
|
2.5
|
|
PWYK-1C1.5mm2-XX
|
13.3
|
0.7
|
3.0
|
|
PWYK-1C2.5mm2-XX
|
7.98
|
0.8
|
3.7
|
|
PWYK-1C4mm2-XX
|
4.95
|
0.8
|
4.2
|
|
PWYK-1C6mm2-XX
|
3.30
|
0.8
|
4.8
|
|
PWYK-1C10mm2-XX
|
1.91
|
1.0
|
6.3
|
|
PWYK-1C16mm2-XX
|
1.21
|
1.0
|
7.3
|
|
PWYK-1C25mm2-XX
|
0.780
|
1.2
|
9.0
|
|
PWYK-1C35mm2-XX
|
0.554
|
1.2
|
10.7
|
|
PWYK-1C50mm2-XX
|
0.386
|
1.4
|
12.7
|
|
PWYK-1C70mm2-XX
|
0.272
|
1.4
|
14.4
|
|
PWYK-1C95mm2-XX
|
0.206
|
1.6
|
16.5
|
|
PWYK-1C120mm2-XX
|
0.161
|
1.6
|
18.2
|
| PWYK-1C150mm2-XX | 0.129 | 1.8 |
20.4
|
| PWYK-1C185mm2-XX | 0.106 | 2.0 |
22.8
|
| PWYK-1C240mm2-XX | 0.0801 | 2.2 |
25.4
|
|
Rated Voltage
|
0.5~1.0mm^2 : 300/500 V
1.5~240mm^2 : 450/750 V
|
|
Dielectric Strength
|
AC 2500V, 5min, no breakdown
|
|
Rated Temperature
|
-15°C to +70°C
|
|
RoHS
|
Compliant
|
|
Min. Bending Radius
|
6D (D= overall diameter)
|
|
Flame Retardant
|
IEC 60332-1-2
|
