Antenna frequency: 5 x (1695-2200) MHz
3dB azimuth beamwidth: 13 °
Gain: 23.4 dBi
Electrical downtilt: 2-10 °
Connector: 10 x 4.3-10 female
Dimension: 1097 x 1031 x 156 mm
Status of product: general available
Penta Beam Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable

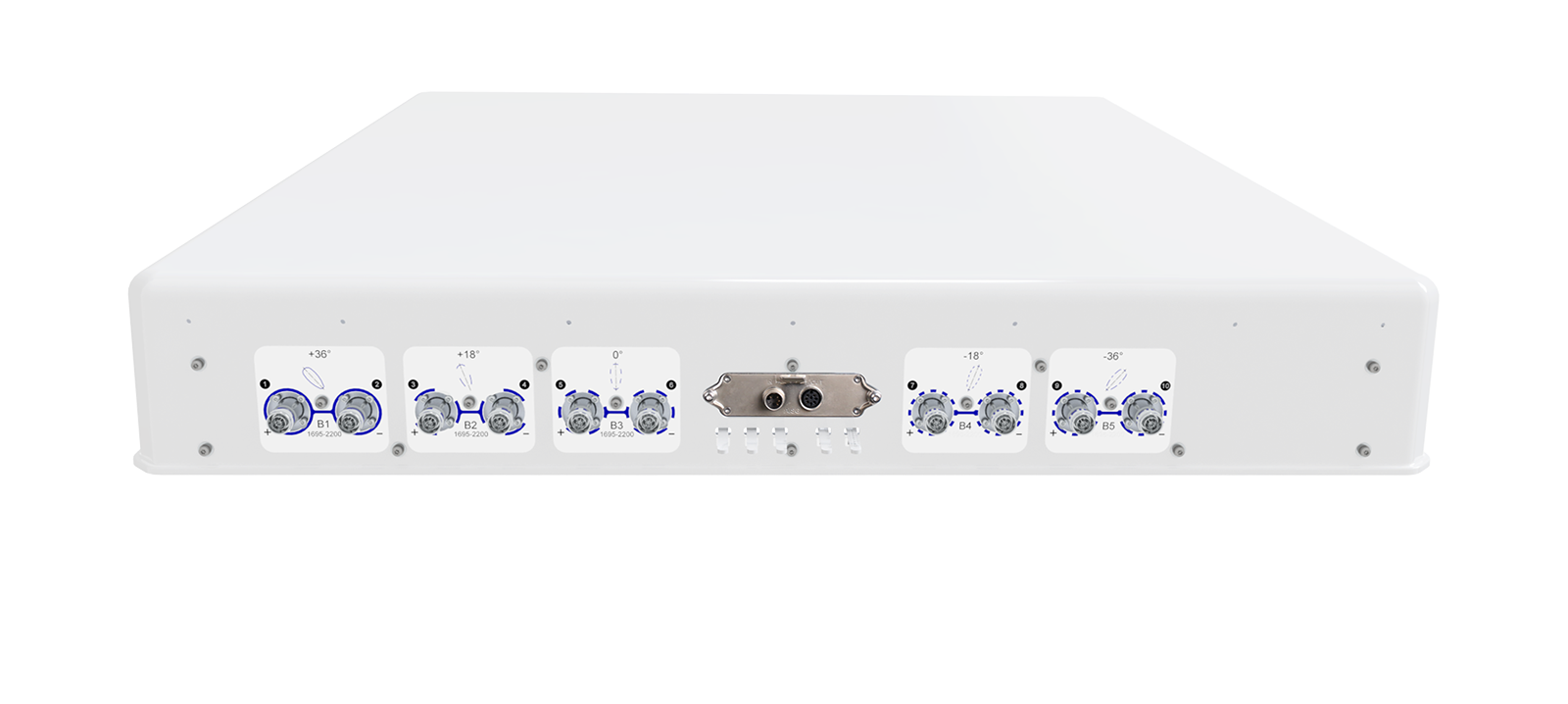

| Frequency | 5 x (1695-2200) MHz |
| Gain | 23.4 dBi |
| 3dB Azimuth Beamwidth | 13 ° |
| Electrical Downtilt | 2-10 ° |
| 1st Upper Sidelobe Suppression | > 17 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 |
| Beam Isolation | > 17 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |
| Connector Type | 10 x 4.3-10 female |

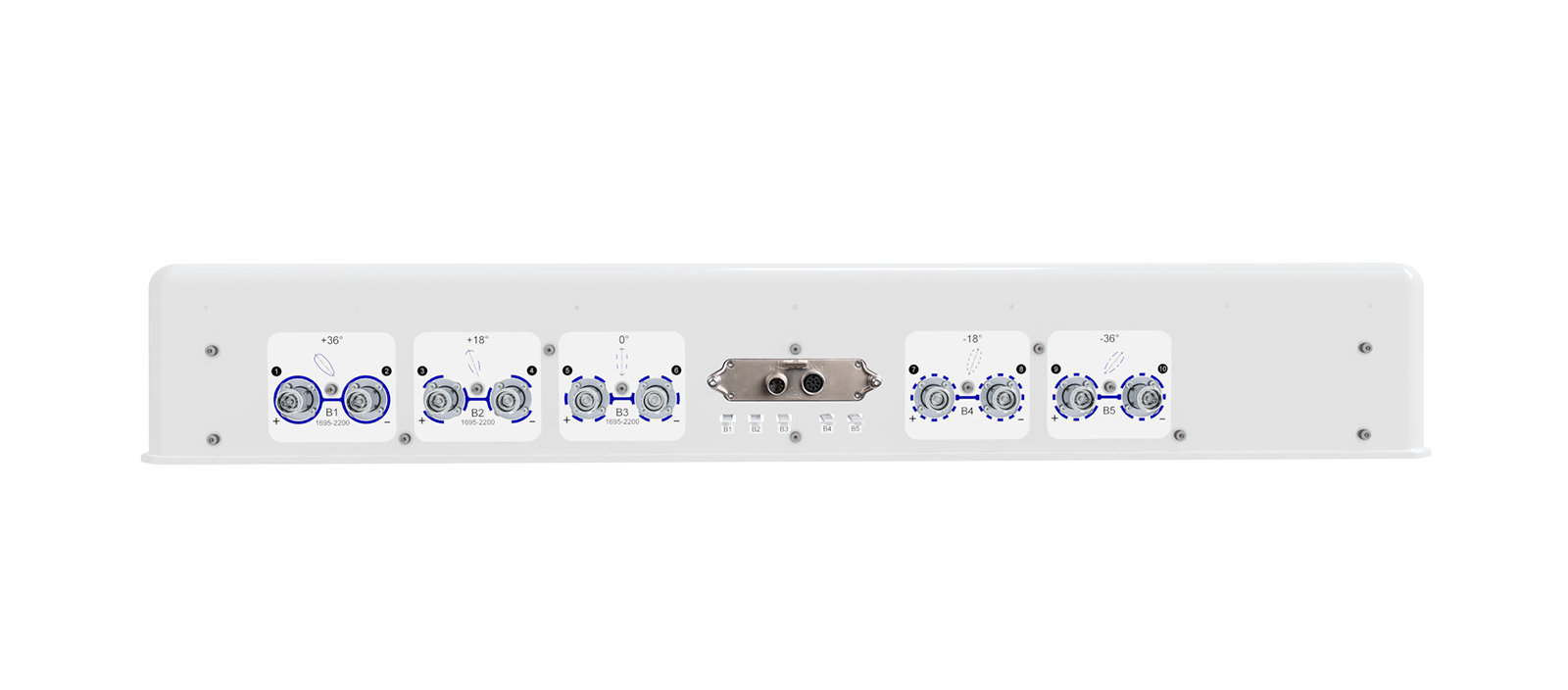

| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | ASA |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 1097 x 1031 x 156 mm |43.2 x 40.6 x 6.1 in |
| Packing Size (H x W x D) | 1270 x 1195 x 303 mm | 50.0 x 47.1 x 11.9 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1428 N | 321 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 1695-2200 |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | 185-2 | 6.25 kg / 13.9 lb | 0-14 |
