Antenna frequency: 6 x (1695-2690) MHz
Gain: 23.1 (dBi)
Electrical downtilt: fixed 6 (°)
Connector: 12 x 4.3-10 female
Dimension: 896 x 1096 x 116 (mm)
Status of product: general available

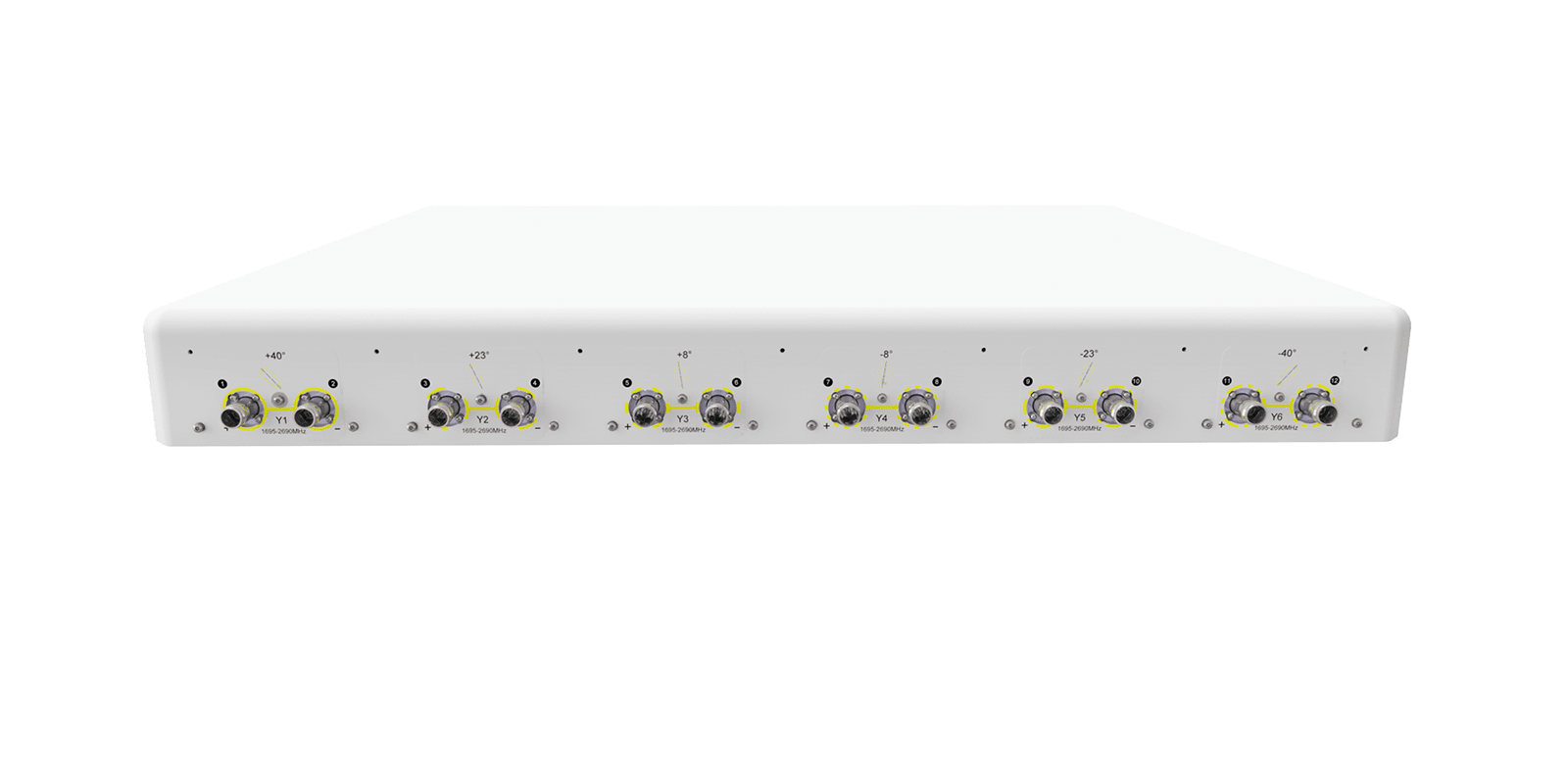

Hexa Beam Antenna
Fixed Electrical Tilt
| Frequency | 6 x (1695-2690) MHz |
| Gain | 23.1 dBi |
| 3dB Azimuth Beamwidth | 33 ° |
| Electrical Downtilt | Fixed 6 |
| 1st Upper Sidelobe Suppression | > 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 28 |
| Inter - Cluster Isolation | > 15 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |
| Connector Type | 12 x 4.3-10 female |

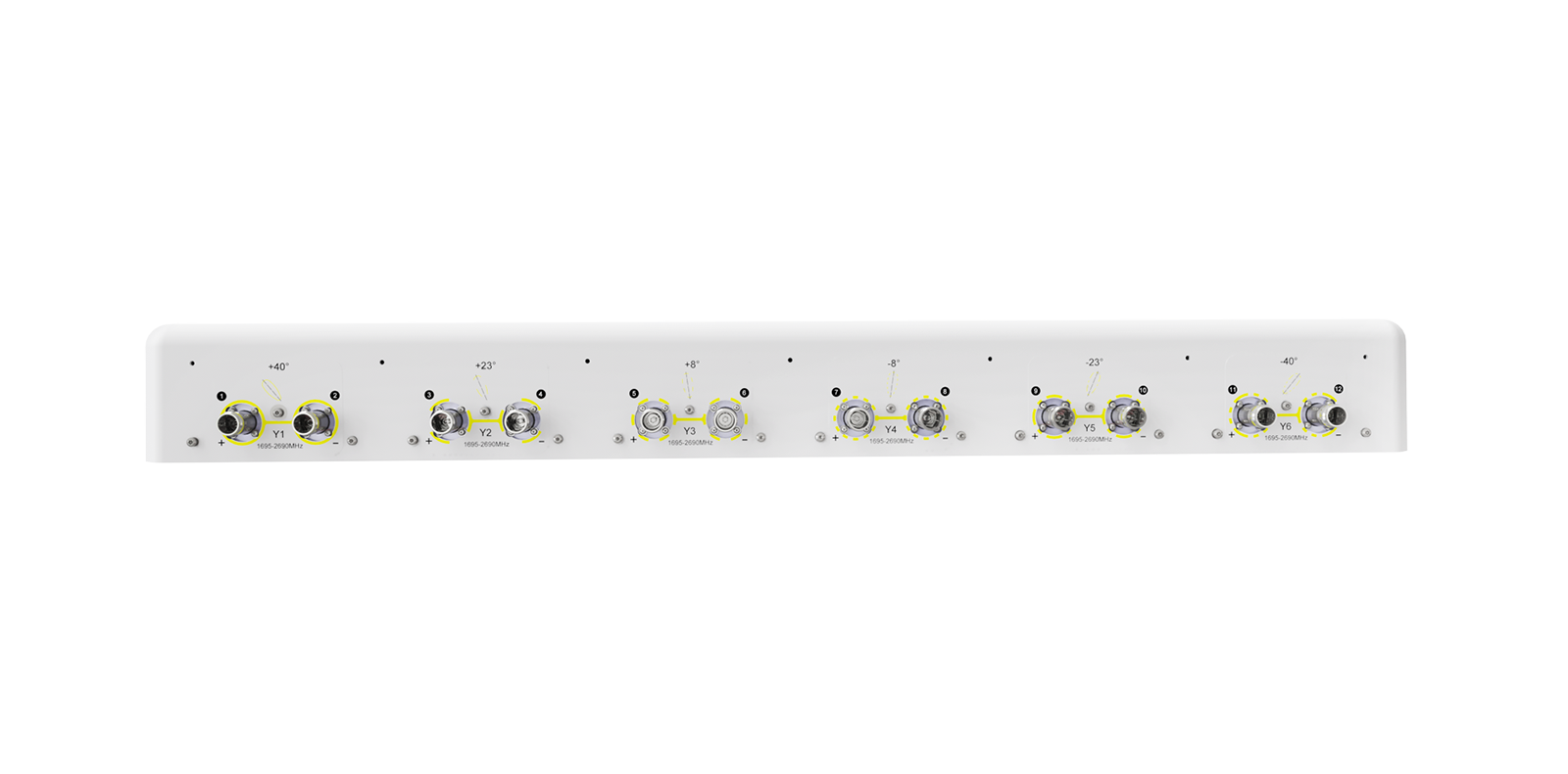

| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 896 x 1096 x 116 mm | 35.3 x 43.1 x 4.6 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 1296 N | 291 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 to +70 °C | -40 to +158 °F |
| 1695-2690 |
![]() |

| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | 85-1 | 4.5 kg / 9.9 lb | 0-15 |
