Antenna frequency: 4×(698-960) + 4×(1695-2690) MHz

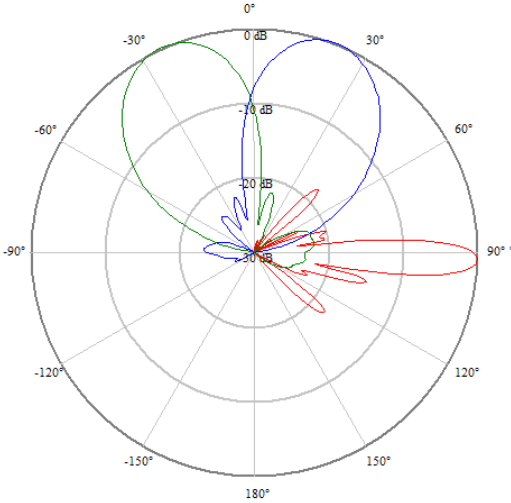

3dB azimuth beamwidth: 33/33 °
Gain: 13.3/14.6 dBi
Electrical downtilt: Fixed 3 °
Connector: 16 x 4.3-10 female
Dimension: 850 x 498 x 197 mm
Status of product: general available
Dual Twin Beam Antenna
Fixed Electrical Tilt
| Frequency | 4×(698-960) + 4×(1695-2690) MHz |
| Gain | 13.3/14.6 dBi |
| 3dB Azimuth Beamwidth | 33/33 ° |
| Electrical Downtilt | Fixed 3 ° |
| 1st Upper Sidelobe Suppression | > 16/> 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 / > 25 |
| Inter - Cluster Isolation | > 25 /> 25 |
| Beam Isolation | > 16 /> 16 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |

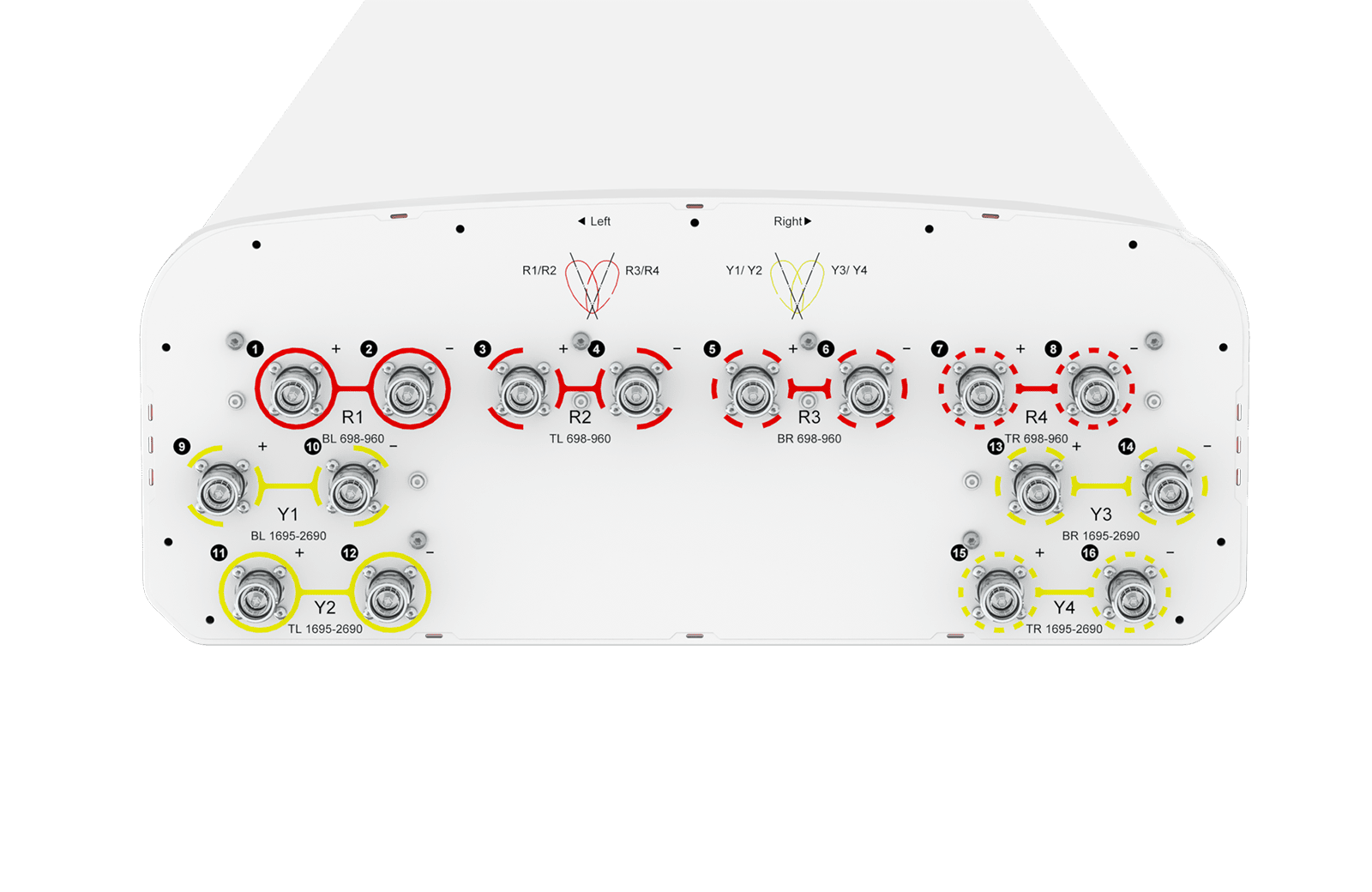

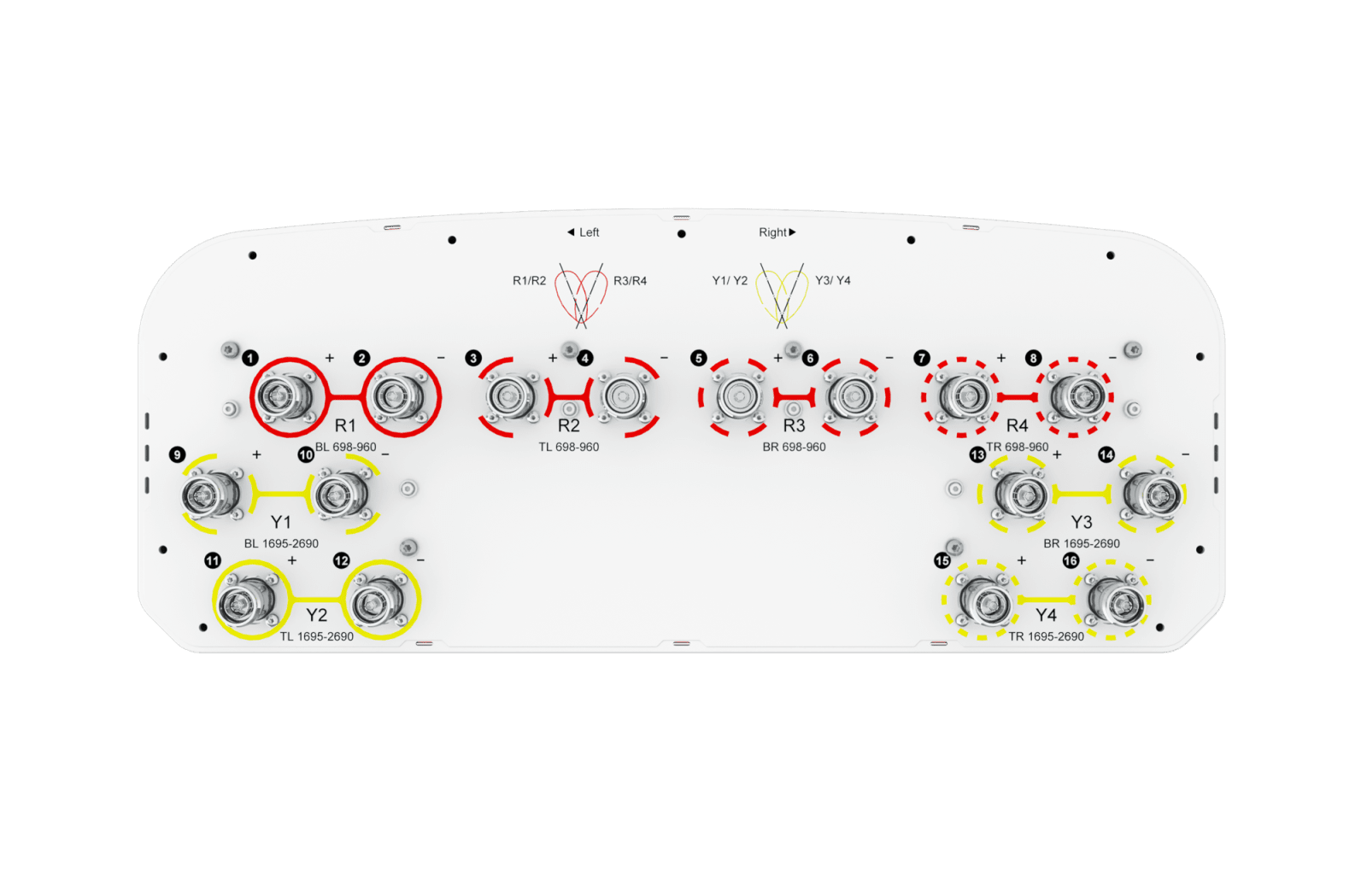

| Connector Type | 16 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 850 x 498 x 197 mm | 33.5 x 19.6 x 7.8 in |
| Packing Size (H x W x D) | 990 x 575 x 370 mm | 39 x 22.6 x 14.5 in |
| Survival Wind Speed | 241 km/h | 124 mph |
| Wind Load @150 km/h (Max) | 387 N |
| Mast Diameter Supported | 70 - 114 mm | 2.8 – 4.5 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| 698-960 | 1695-2690 |
![]() |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | 85L-1 | 4.1 kg / 9.0 lb | 0-10 |
