Smart control monitoring, external dry contact and peak shaving function
Compact elegant design, easy plug-and-play installation
DC side equipped with Type II SPD for high safety
Each string max 15A DC input, up to 150% DC oversizing
This inverter series suits household and small commercial scenarios, serving as core high-voltage energy storage equipment to enhance power self-sufficiency and lower electricity costs. It supports peak shaving and dry contact control for flexible load management, and is compatible with various batteries.
| Part Number | PR-JL-INO/FGH15K-2M3P | PR-JL-INO/FGH20K-2M3P | PR-JL-INO/FGH25K-3M3P | PR-JL-INO/FGH29.9K-3M3P | PR-JL-INO/FGH30K-3M3P |
| Battery Input Data | |||||
| Battery Type | Li-Ion | ||||
| Nominal Battery Voltage | 500 V | ||||
| Battery Voltage Range | 200 - 800 V | ||||
| Start-up Voltage | 200 V | ||||
| Number Of Battery Input | 1 | 1 | 2 | 2 | 2 |
| Max. Continuous Charging Current | 50 A | 50 A | 50 * 2 A | 50 * 2 A | 50 * 2 A |
| Max. Continuous Discharging Current | 50 A | 50 A | 50 * 2 A | 50 * 2 A | 50 * 2 A |
| Max. Charging Power | 15000 W | 20000 W | 25000 W | 30000 W | 30000 W |
| Max. Discharging Powe | 15000 W | 20000 W | 25000 W | 30000 W | 30000 W |
| PV String Input Data | |||||
| Max. Input Power | 22500 W | 30000 W | 37500 W | 45000 W | 45000 W |
| Max. Input Coltage | 1000 V | ||||
| MPPT Operating Voltage Range | 200 - 850 V | ||||
| Start-up Voltage | 200 V | ||||
| Nominal Input Voltage | 620 V | ||||
| Max. Input Current Per MPPT | 30 A | ||||
| Max. Short Circuit Current Per MPPT | 38 A | ||||
| Number Of MPP Trackers | 2 | 2 | 3 | 3 | 3 |
| Number Of Strings Per MPPT | 2 / 2 | 2 / 2 | 2 / 2 / 2 | 2 / 2 / 2 | 2 / 2 / 2 |
| Part Number | PR-JL-INO/FGH15K-2M3P | PR-JL-INO/FGH20K-2M3P | PR-JL-INO/FGH25K-3M3P | PR-JL-INO/FGH29.9K-3M3P | PR-JL-INO/FGH30K-3M3P |
| AC Output Data (On-grid) | |||||
| Nominal Output Power | 15000 W | 20000 W | 25000 W | 29900 W | 30000 W |
| Nominal Apparent Power Output To Utility Grid | 15000 VA | 20000 VA | 25000 VA | 29900 VA | 30000 VA |
| Max. Apparent Power Output To Utility Grid | 16500 VA | 22000 VA | 27500 VA | 29900 VA | 33000 VA |
| Max. Apparent Power From Utility Grid | 15000 VA | 20000 VA | 25000 VA | 30000 VA | 30000 VA |
| Nominal Output Voltage | 380 / 400 V, 3L / N / PE | ||||
| Output Voltage Range | 0 -300 V | ||||
| Nominal AC Grid Frequency | 50 / 60 Hz | ||||
| AC Grid Frequency Rang | 45 - 65 Hz | ||||
| Max. AC Current Output To Utility Grid | 23.9 A | 31.9 A | 39.9 A | 43.3 A | 47.8 A |
| Max. AC Current From Utility Grid | 22.7 A | 30.3 A | 37.9 A | 45.3 A | 45.5 A |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | ||||
| Max. Total Harmonic Distortion | ≤ 3.05% | ||||
| AC Output Data (Back-up) | |||||
| Back-up Nominal Apparent Power | 15000 VA | 20000 VA | 25000 VA | 29900 VA | 30000 VA |
| Max. Output Apparent Power Without Grid | 15000 VA (18000@60s, 24000@3s) | 20000 VA (24000@60s, 32000@3s) | 25000 VA (30000@60s) | 30000 VA (36000@60s) | 30000 VA (36000@60s) |
| Max. Output Apparent Power With Grid | 15000 VA | 20000 VA | 25000 VA | 29900 VA | 30000 VA |
| Max. Output Current | 22.7 A (27.3@60s, 36.4@3s) | 30.3 A (36.4@60s, 48.5@3s) | 37.9 A (45.5@60s) | 45.5 A (54.5@60s) | 45.5 A (54.5@60s) |
| Nominal Output Voltage | 380 / 400 V | ||||
| Nominal Output Freqency | 50 / 60 Hz | ||||
| Output THDv (@Linear load) | < 3 % | ||||
| Max. Efficiency | 98.0 % | ||
| European Efficiency | 97.5 % | ||
| Max. Battery To AC Efficiency | 97.5 % | ||
| MPPT Efficiency | 99.9 % | ||
| Part Number | PR-DY-INO/FGH3K-1M1P | PR-DY-INO/FGH3.6K- 2M1P | PR-DY-INO/FGH5K-2M1P | PR-DY-INO/FGH6K-2M1P | PR-DY-INO/FGH8K-2M1P | ||
| Operating Temperature Range | -35 to 60 ºC | ||||||
| Relative Humidity | 0 - 95 % | ||||||
| Max. Operating Altitude | 4000 m | ||||||
| Cooling Method | Smart fan cooling | ||||||
| Weight | 48 kg | 48 kg | 54 kg | 54 kg | 54 kg | ||
| Dimension (W × H × D) | 520 * 660 * 220 mm | ||||||
| Noise Emission | < 45 dB | < 45 dB | < 45 dB | < 60 dB | < 60 dB | ||
| Self-Consumption At Night | < 15 W | ||||||
| Ingress Protection Rating | IP66 | ||||||
| Mounting Method | Wall mounted | ||||||
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Battery Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Switch | Integrated |
| DC Surge Protection | Type II |
| DC Surge Protection | Type III |
| Remote Shutdown | Integrated |
| User Interface | LED, WLAN + APP |
| Communication With BMS | RS485 / CAN |
| Communication With Meter | RS485 |
| Communication With Portal | WiFi + LAN + Bluetooth |
| Topology | Non-isolated |

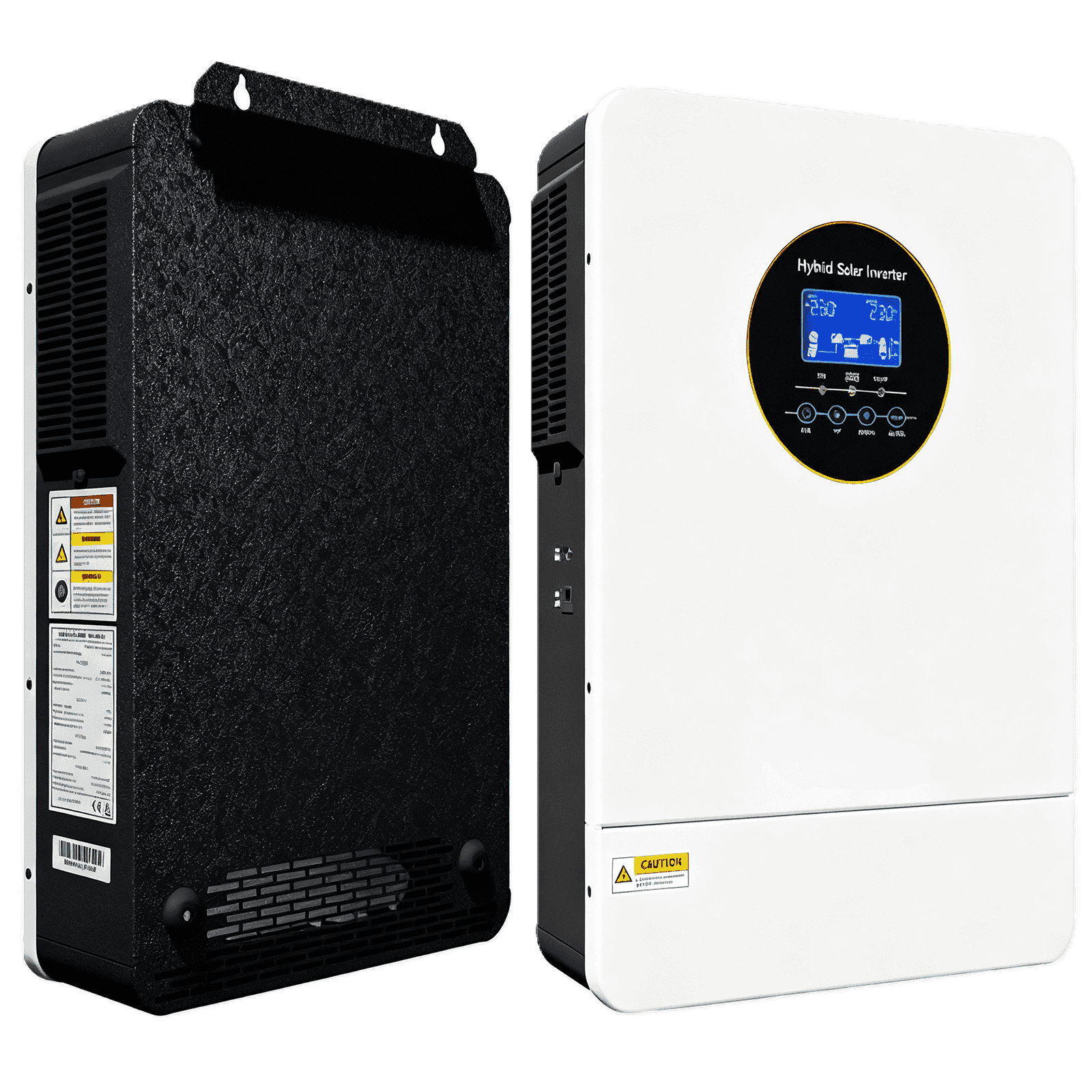

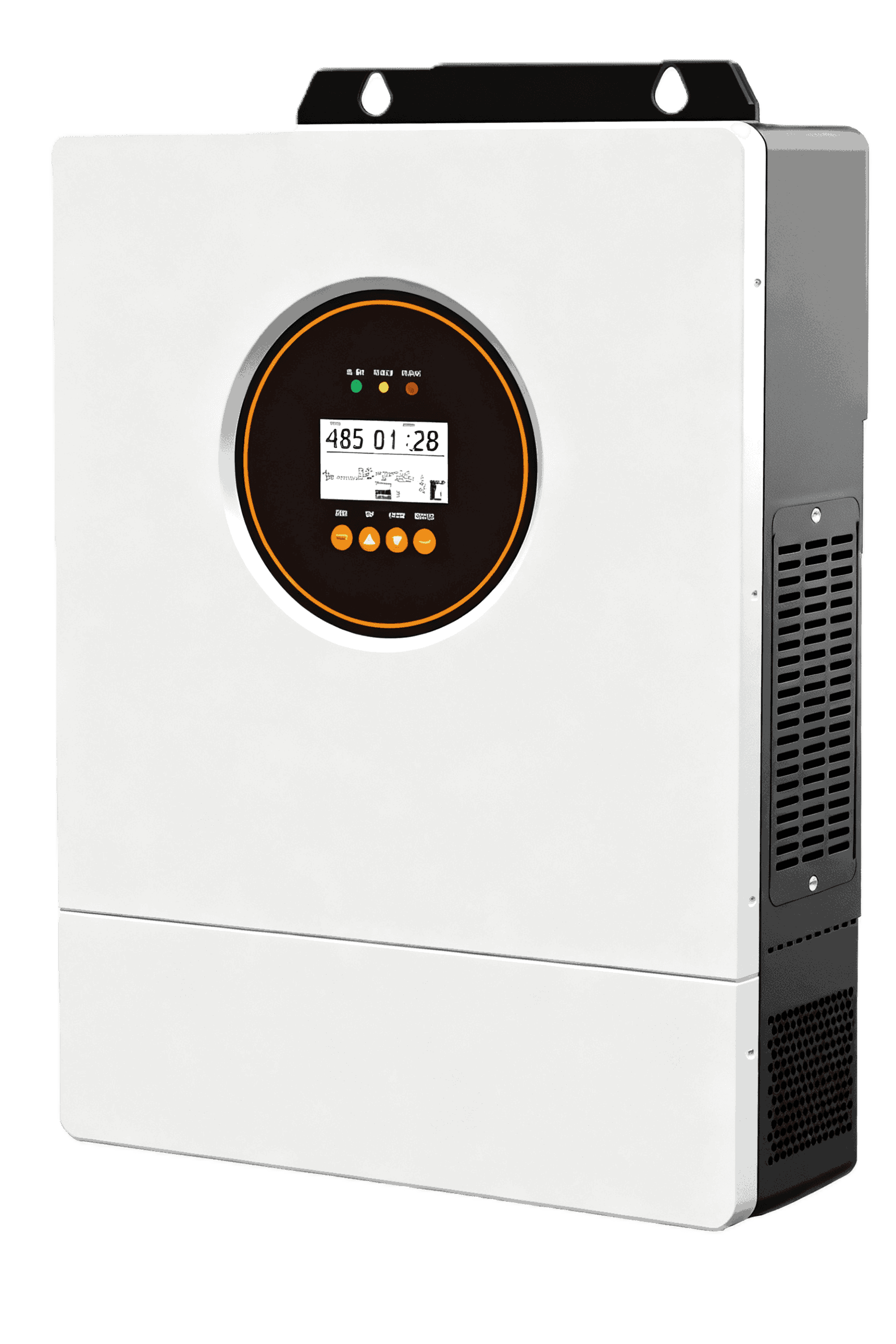

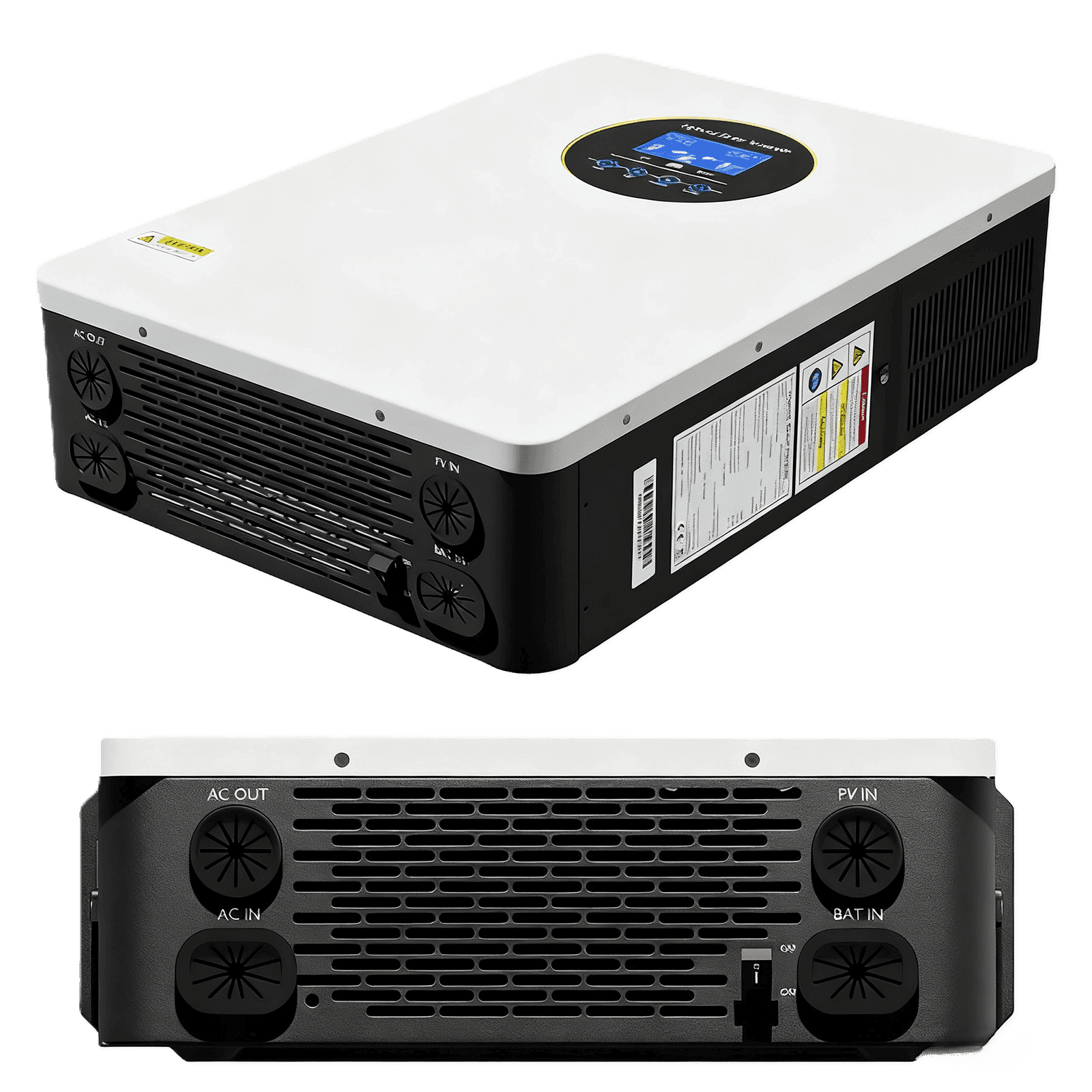

Single Phase On/Off grid Solar Hybrid Inverter, with Max. Continuous Output Power from 3000W to 12000W, supporting 1/2 channels of Maximum Power Point Tracking (MPPT)
