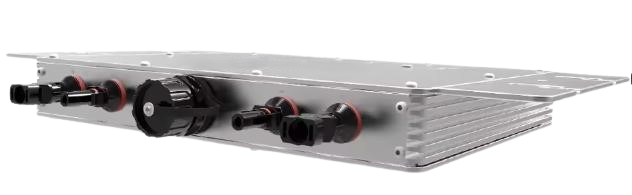

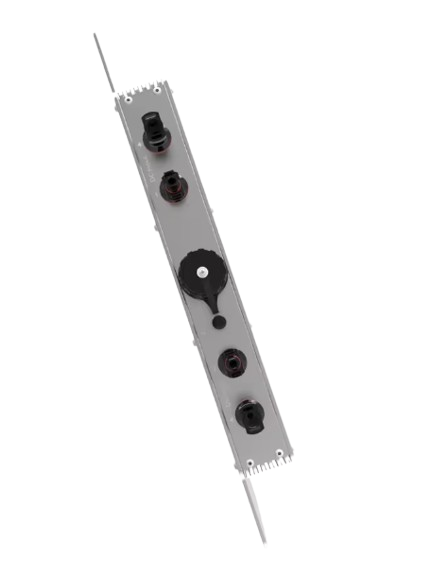

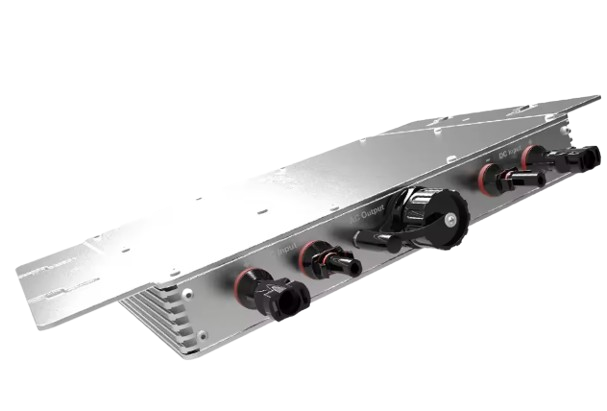

4-in-1 design, plug-and-play installation
Module-level monitoring with Wi-Fi mesh
Built-in AC relay, 60V max DC, IP67
4 MPP trackers, module-level MPPT
22V startup voltage, fit high-power modules
Micro-inverters convert single solar panel DC to grid AC with individual MPPT, preventing system efficiency drop caused by shading and aging. With DC voltage under 60V for high safety, they feature compact structure for easy installation, perfectly suited for household and shaded photovoltaic projects.
|
Part Number |
PR-GW-MIN1.6K-4M1P | PR-GW-MIN1.8K-4M1P | PR-GW-MIN2K-4M1P |
| Commonly Used Module Power | 320 - 535+ W | 360 - 600+ W | 400 - 670+ W |
| Max. Input Voltage | 65 V | ||
| MPPT Operating Voltage Range | 16 - 60 V | ||
| Start-up Voltage | 22 V | ||
| Max. Input Current | 4 * 16 A | ||
| Max. Input Short Circuit Current | 4 * 25 A | ||
| Number of MPP Trackers | 4 | ||
| Number of Inputs per MPPT | 1 | ||
|
Part Number |
PR-GW-MIN1.6K-4M1P | PR-GW-MIN1.8K-4M1P | PR-GW-MIN2K-4M1P |
| Max. Continuous Output Power | 1600 VA | 1800 VA | 2000 VA |
| Nominal Output Voltage | 1 / N / PE, 220 / 230 / 240 V | ||
| Output Voltage Range | 180 to 275 V | ||
| Nominal Output Frequency | 50 / 60 Hz | ||
| Nominal Output Frequency | 50 / 60 Hz | ||
| AC Grid Frequency Range | 50 / 60 ±5 Hz | ||
| Max. Continuous Output Current |
7.27 A @ 220 V 6.96 A @ 230 V 6.67 A @ 240 V |
8.18 A @ 220 V 7.83 A @ 230 V 7.50 A @ 240 V |
9.09 A @ 220 V 8.70 A @ 230 V 8.33 A @ 240 V |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | ||
| Max. Total Harmonic Distortion | < 3 % | ||
| Max. Units per 4mm2 Branch | 2 | ||
| Max. Units per 6mm2 Branch | 4 | ||
| Max. Efficiency | 96.4 % | ||
| Nominal MPPT Efficiency | 99.8 % | ||
| Night Power Consumption | 0.05 W | ||
| Operating Temperature Range | -40 to 65 °C | ||
| Derating Temperature | 45 °C | ||
| Storage Temperature | -40 to 85 °C | ||
| Cooling Method | Natural convection | ||
| Weight | 6 kg | ||
| Dimensions (W × H × D) | 330.5 * 266.7 * 42.5 mm | ||
| Ingress Protection Rating | IP67 | ||
| DC Connector | MC4 | ||
| PV Insulation Resistance Detection | YES |
| PV Reverse Polarity Protection | YES |
| Anti-islanding Protection | YES |
| AC Overcurrent Protection | YES |
| AC Short Circuit Protection | YES |
| AC Overvoltage Protection | YES |
| Type III AC Surge Arrester | YES |
| Communication | Built-in Wi-Fi and Bluetooth |
| Topology | Galvanically Isolated HF Transformer |
| Monitoring | SEMS |
| Warranty | 12 Years standard; 25 Years optional |
| Compliance | EN 62109-1:2010, EN 62109-2:2011, IEC 62109-1:2010, IEC 62109-2:2011, UTE C15-712-1:2013, DIN VDE 0126-1-1:2013 , ENIEC 61000-6-3:2021, EN 61000-6-3:2007+A1:2011+AC:2012, ENIEC 61000-6-4:2019, EN 61000-6-4:2007+A1:2011, AS / NZS 61000.6.3:2012, AS / NZS 61000.6.4:2020, BS EN IEC 61000-6-3:2021, BS EN 61000-6-3:2007+A1:2011, BS ENIEC 61000-6-4:2019, BS EN 61000-6-4:2007+A1:2011, EN 61000-2-2:2002+A2:2019, IEC 61000-2-2:2018(ed.2.2), EN IEC 61000-6-1:2019, EN 61000-6-1:2007, EN IEC 61000-6-2:2019, EN 61000-6-2:2005+AC:2005, BS ENIEC 61000-6-1:2019, BS EN IEC 61000-6-2:2019 |
