2 MPP trackers, max efficiency up to 97.7%
Support zero export and VSG functions
Optional string intelligent monitoring and anti-PID
Wide output voltage range, start-up voltage as low as 80V

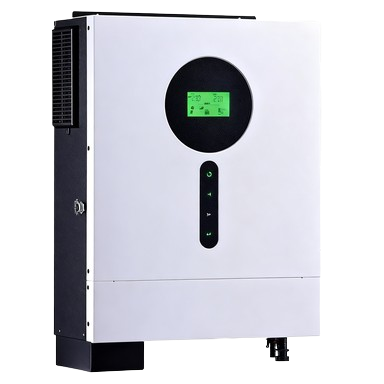

This single-phase string inverter converts solar DC into grid-ready single-phase AC power, widely applied for residential and small commercial photovoltaic systems.
| Part Number | PR-DY-INS9K-2M1P | PR-DY-INS10K-2M1P | PR-DY-INS10.5K-2M1P |
| PV String Input Data | |||
| Max. PV Input Power | 13.5 kW | 15.0 kW | 15.8 kW |
| Max. PV Input Voltage | 550 V | ||
| Start-up Voltage | 80 V | ||
| MPPT Voltage Range | 70 - 500 V | ||
| Rated PV Input Voltage | 360 V | ||
| Max. Operating PV Input Current | 26 + 26 A | ||
| Max. Input Short Circuit Current | 39 + 39 A | ||
| No. Of MPP Trackers/ No. Of Strings MPP Tracker | 2 / 2 + 2 | ||
| Part Number | PR-DY-INS9K-2M1P | PR-DY-INS10K-2M1P | PR-DY-INS10.5K-2M1P |
| AC Output Side | |||
| Rated AC Output Active Power | 9 kW | 10 kW | 10.5 kW |
| Max. AC Output Apparent Power | 9.9 kVA | 11.0 kVA | 11.55 kVA |
| Rated AC Output Current | 41 / 39.2 A | 45.5 / 43.5 A | 47.8 / 45.7 A |
| Max. AC Output Current | 45 / 43.1 A | 50 / 47.9 A | 52.5 / 50.3 A |
| Rated Output Voltage/Range | 220 / 230 V 0.85 Un-1.1 Un | ||
| Grid Connection Form | L / N / PE | ||
| Rated Output Grid Frequency/Range | 50 / 45-55 Hz, 60 / 55-65 Hz | ||
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||
| Total Current Harmonic Distortion THDi | < 3 % | ||
| DC Injection Current | < 0.5 %ln | ||
| Max. Efficiency | 97.7 % | ||
| European Efficiency | 97.2 % | ||
| MPPT Efficiency | > 99 % | ||
| Operating Temperature Range | -25 to 60 ℃, > 45 ℃ Derating | ||
| Permissible Ambient Humidity | 0 - 100 % | ||
| Permissible Altitude | 3000 m | ||
| Noise | ≤ 35 dB | ||
| Ingress Protection(IP) Rating | IP 65 | ||
| Inverter Topology | Non-isolated | ||
| Over VoltageCategory | OVC II (DC), OVC III (AC) | ||
| Cabinet Size (WxHxD) | 330 * 410 * 213.5 mm (Excluding connectors and brackets) | ||
| Weight | 14.8 kg | ||
| Type Of Cooling | Natural cooling | ||
| DC Reverse Polarity Protection | YES |
| AC Output Overcurrent Protection | YES |
| AC Output Overvoltage Protection | YES |
| AC Output Short Circuit Protection | YES |
| Thermal Protection | YES |
| Insulation Impedance Detection | YES |
| DC Component Monitoring | YES |
| Anti-islanding Protection | YES |
| Residual Current Detection | YES |
| Surge Protection Level | TYPE II (DC), TYPE II (AC) |
| DC Switch | YES |
| Communication Interface | RS485 / RS232 |
| Monitor Mode | GPRS / WIFI / Bluetooth / 4G / LAN (optional) |
| Grid Regulation | IEC 61727, IEC 62116, EN 50549, NRS 097, RD 140, UNE 217002, G99 |
| Safety EMC/Standard | IEC / EN 61000 - 6 - 1 / 2 / 3 / 4, IEC / EN 62109 - 1, IEC / EN 62109 - 2 |
