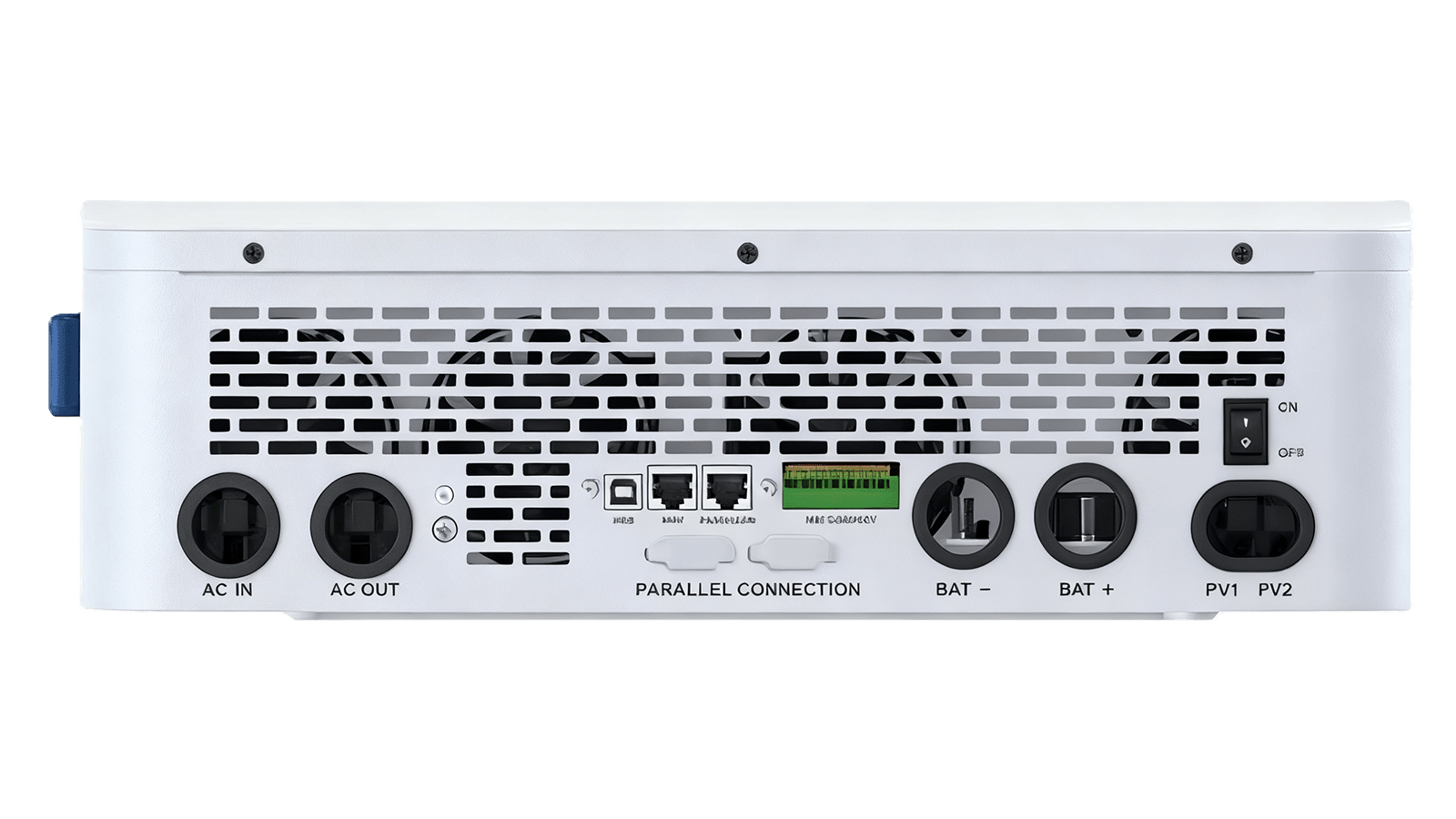

Three-in-one port supports multiple equipment connection, 6 units on/off-grid parallel operation
Each string max 20A DC input, 200% PV input oversizing
Equipped with AI AFCI and IP66 high protection level
Realizes smart load control, backup switching within 4ms

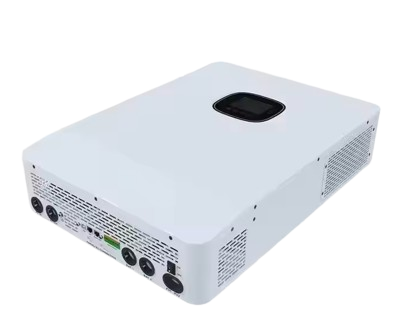

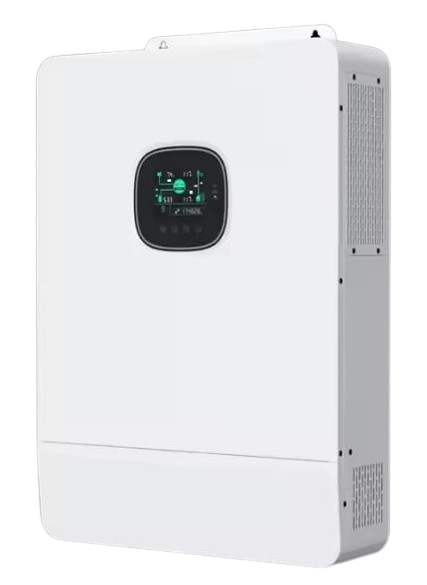

This 3kW-12kW household inverter supports on / off-grid use and up to 6-unit parallel connection, features intuitive touch screen monitoring and wide compatibility with various batteries.
| Part Number | PR-DY-INO/FGH3K-1M1P |
PR-DY-INO/FGH3.6K- 2M1P |
PR-DY-INO/FGH5K-2M1P | PR-DY-INO/FGH6K-2M1P | PR-DY-INO/FGH8K-2M1P | PR-DY-INO/FGH10K-2M1P | PR-DY-INO/FGH12K-2M1P |
| Battery Input Data | |||||||
| Battery Type | Li-Ion / Lead-acid | ||||||
| Nominal Battery Voltage | 48 V | ||||||
| Battery Voltage Range | 40-60 V | ||||||
| Start-up Voltage | 44.2 V | ||||||
| Number Of Battery Input | 1 | ||||||
| Max. Continuous Charging Current | 70 A | 90 A | 120 A | 140 A | 160 A | 200 A | 240 A |
| Max. Continuous Discharging Current | 70 A | 90 A | 120 A | 140 A | 160 A | 200 A | 240 A |
| Max. Charging Power | 3.0 kW*1 | 3.6 kW*1 | 5.0 kW*1 | 6.0 kW*1 | 8.0 kW*1 | 10.0 kW*1 | 12.0 kW*2 |
| Max. Discharging Power | 3.3 kW*1 | 3.96 kW*1 | 5.5 kW*1 | 6.6 kW*1 | 8.8 kW*1 | 11.0 kW*1 | 13.2 kW*2 |
| PV String Input Data | |||||||
| Max. Input Power | 6.0 kW | 7.2 kW | 10.0 kW | 12.0 kW | 16.0 kW | 20.0 kW | 24.0 kW |
| Max. Input Voltage*3 | 600 V | ||||||
| MPPT Operating Voltage Range*4 | 60 - 550 V | ||||||
| Start-up Voltage | 58 V | ||||||
| Nominal Input Voltage | 360 V | ||||||
| Max. Input Current Per MPPT | 20 A | 20 A | 20 A | 20 A | 32/16 A*5 | 32/32 A*5 | 32/32 A*5 |
| Max. Short Circuit Current Per MPPT | 26 A | 26 A | 26 A | 26 A | 48/24 A | 48/48 A | 48/48 A |
| Number Of MPPT Trackers | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number Of Strings Per MPPT | 1 | 1 | 1 | 1 | 2 / 1 | 2 / 2 | 2 / 2 |
| AC Data (Generator) | |||||||
| Nominal Apparent Power From AC Generator | 3.0 kVA | 3.6 kVA | 5.0 kVA | 6.0 kVA | 8.0 kVA | 10.0 kVA | 12.0 kVA |
| Max. Apparent Power From AC Generator | 3.3 kVA | 3.96 kVA | 5.5 kVA | 6.6 kVA | 8.8 kVA | 11.0 kVA | 13.2 kVA |
| Nominal Intput Voltage | 220 / 230 / 240 V | ||||||
| Input Voltage Range | 170 - 280 V | ||||||
| Nominal AC Generator Frequency | 50 / 60 Hz | ||||||
| AC Generator Frequency Range | 45 - 55 Hz / 55- 65 Hz | ||||||
| Max. AC Current From AC Generator | 32.0 A | 32.0 A | 40.0 A | 40.0 A | 50.0 A | 54.5 A | 54.5 A |
| Nominal AC Current From AC Generator | 13.7 A at 220 V 13.1 A at 230 V 12.5 A at 240 V | 16.4 A at 220 V 15.7 A at 230 V 15.0 A at 240 V | 22.8 A at 220 V 21.8 A at 230 V 20.9 A at 240 V | 27.3 A at 220 V 26.1 A at 230 V 25.0 A at 240 V | 36.4 A at 220 V 34.8 A at 230 V 33.3 A at 240 V | 45.5 A at 220 V 43.5 A at 230 V 41.7 A at 240 V | 54.5 A at 220 V 52.2 A at 230 V 50.0 A at 240 V |
| Nominal Input Current | 13.7 A at 220 V 13.1 A at 230 V 12.5 A at 240 V | 16.4 A at 220 V 15.7 A at 230 V 15.0 A at 240 V | 22.8 A at 220 V 21.8 A at 230 V 20.9 A at 240 V | 27.3 A at 220 V 26.1 A at 230 V 25.0 A at 240 V | 36.4 A at 220 V 34.8 A at 230 V 33.3 A at 240 V | 45.5 A at 220 V 43.5 A at 230 V 41.7 A at 240 V | 54.5 A at 220 V 52.2 A at 230 V 50.0 A at 240 V |
*1: When the PV input voltage is higher than 500 V, the battery charging and discharging power will be gradually limited, and the power limitation will be lifted after the input voltage is lowered.
*2: When the PV input voltage is higher than 490 V, the battery charging and discharging power will be gradually limited, and the power limitation will be lifted after the input voltage is lowered.
*3: : When the input voltage is 560 V - 600 V, the inverter will enter standby mode. The inverter will return to normal operation state when the voltage returns to the MPPT working voltage range.
*4: The specific MPPT Operating Voltage Range for each model needs to be confirmed with Prose.
*5: The maximum input current per string is 16 A. Or For the MPPT with two strings, the current of each string is 16 A.
| Part Number | PR-DY-INO/FGH3K-1M1P | PR-DY-INO/FGH3.6K- 2M1P | PR-DY-INO/FGH5K-2M1P | PR-DY-INO/FGH6K-2M1P | PR-DY-INO/FGH8K-2M1P | PR-DY-INO/FGH10K-2M1P | PR-DY-INO/FGH12K-2M1P |
| AC Output Data (On-grid) | |||||||
| Nominal Output Power | 3.0 kW | 3.6 kW | 5.0 kW | 6.0 kW | 8.0 kW | 10.0 kW | 12.0 kW |
| Nominal Apparent Power Output To Utility Grid | 3.0 kVA | 3.6 kVA | 5.0 kVA | 6.0 kVA | 8.0 kVA | 10.0 kVA | 12.0 kVA |
| Max. AC Active Power*1*2 | 3.3 kW | 3.96 kW*3 | 5.5 kW | 6.6 kW | 8.8 kW | 11.0 kW | 13.2 kW |
| Max. Apparent Power Output To Utility Grid *1*2 | 3.3 kVA | 3.96 kVA*3 | 5.5 kVA | 6.6 kVA | 8.8 kVA | 11.0 kVA | 13.2 kVA |
| Max. Apparent Power From Utility Grid | 7.04 kVA | 7.04 kVA | 8.8 kVA | 8.8 kVA | 16.5 kVA | 16.5 kVA | 16.5 kVA |
| Nominal Output Voltage | 220 / 230 / 240 V | ||||||
| Output Voltage Range | 170 - 280 V | ||||||
| Nominal AC Grid Frequency | 50 / 60 Hz | ||||||
| AC Grid Frequency Range | 45 - 55 Hz / 55 - 65 Hz | ||||||
| Max. AC Current Output To Utility Grid | 15 A | 18 A*4 | 25 A | 30 A | 40 A | 50 A | 60 A |
| Max. AC Current From Utility Grid | 32 A | 32 A | 40 A | 40 A | 75 A | 75 A | 75 A |
| Power Factor | ~1 (Adjustable from 0.8 leading to 0.8 lagging) | ||||||
| Max. Total Harmonic Distortion | < 3 % | ||||||
| AC Output Data (Back-up) | |||||||
| Back-up Nominal Apparent Power | 3.0 kVA | 3.6 kVA | 5.0 kVA | 6.0 kVA | 8.0 kVA | 10.0 kVA | 12.0 kVA |
| Max. Output Apparent Power Without Grid | 3.3 kVA (6.0, 10s) | 3.96 kVA (7.2, 10s) | 5.5 kVA (10.0, 10s) | 6.6 kVA (12.0, 10s) | 8.8 kVA (16.0, 10s) | 11.0 kVA (20.0, 10s) | 13.2 kVA (24.0, 10s) |
| Max. Output Apparent Power With Grid | 7.04 kVA | 7.04 kVA | 8.8 kVA | 8.8 kVA | 16.5 kVA | 16.5 kVA | 16.5 kVA |
| Max. Output Current Without Grid | 15 A | 18 A | 25 A | 30 A | 40 A | 50 A | 60 A |
| Max. Output Current With Grid | 32 A | 32 A | 40 A | 40 A | 75 A | 75 A | 75 A |
| Nominal Output Voltage | 220 / 230 / 240 V | ||||||
| Nominal Output Frequency | 50 / 60 Hz | ||||||
| Output THDv (@Linear load) | < 3 % | ||||||
*1: For Sri Lanka, Max. Output Power (kW) is 3.0 kW for PR-DY-INO/FGH3K-1M1P, 3.6 kW for PR-DY-INO/FGH3.6K-2M1P, 5.0 kW for PR-DY-INO/FGH5K-2M1P, 6.0 kW for PR-DY-INO/FGH6K-2M1P, 8.0 kW for PR-DY-INO/FGH8K-2M1P, 10.0 kW for PR-DY-INO/FGH10K-2M1P, and 12.0 kW for PR-DY-INO/FGH12K-2M1P.
*2: For Brazil and Chile, the max. AC output power is Pn, such as the max. AC output power of PR-DY-INO/FGH8K-2M1P is 8000 W (VA).
*3: For Jordan, Max. AC Active Power and Max. Apparent Power Output to Utility Grid are 3.6 kW/kVA for PR-DY-INO/FGH3.6K-2M1P is 8000 W (VA).
*4: : For Jordan, Max. AC Current Output to Utility Grid is 15.7 A for PR-DY-INO/FGH3.6K-2M1P.
| Max. Efficiency | 97.6 % | ||
| European Efficiency | 96.2 % | ||
| Max. Battery To AC Efficiency | 95.5 % | ||
| MPPT Efficiency | 99.9 % | ||
| Part Number | PR-DY-INO/FGH3K-1M1P | PR-DY-INO/FGH3.6K- 2M1P | PR-DY-INO/FGH5K-2M1P | PR-DY-INO/FGH6K-2M1P | PR-DY-INO/FGH8K-2M1P | PR-DY-INO/FGH10K-2M1P | PR-DY-INO/FGH12K-2M1P | ||
| Operating Temperature Range | -35 to 60 ºC | ||||||||
| Relative Humidity | 0 - 95 % | ||||||||
| Max. Operating Altitude | 3000 m | ||||||||
| Cooling Method | Natural convection | Smart fan cooling | |||||||
| Weigh | 14.5 kg | 15.5 kg | 15.5 kg | 15.5 kg | 27.0 kg | 29.0 kg | 29.0 kg | ||
| Dimension (W × H × D) | 560 * 415 * 204 mm | 560 * 444.5 * 226 mm | |||||||
| Ingress Protection Rating | IP66 | ||||||||
| Mounting Method | Wall mounted | ||||||||
| PV String Current Monitoring | Integrated |
| PV Insulation Resistance Detection | Integrated |
| Residual Current Monitoring | Integrated |
| PV Reverse Polarity Protection | Integrated |
| Anti-islanding Protection | Integrated |
| AC Overcurrent Protection | Integrated |
| AC Short Circuit Protection | Integrated |
| AC Overvoltage Protection | Integrated |
| DC Switch | Integrated |
| DC Surge Protection | Type III |
| AC Surge Protection | Type III |
| Remote Shutdown | Integrated |
| User Interface | LCD, WLAN + APP |
| Communication With BMS | CAN |
| Communication | RS485, WiFI + LAN + Bluetooth |
| Communication Protocols | Modbus - RTU, Modbus - TCP |
| Topology | Non - isolated |
