Low VSWR, high isolation
Low insertion loss
Compact design for easy installation
DC Bypass

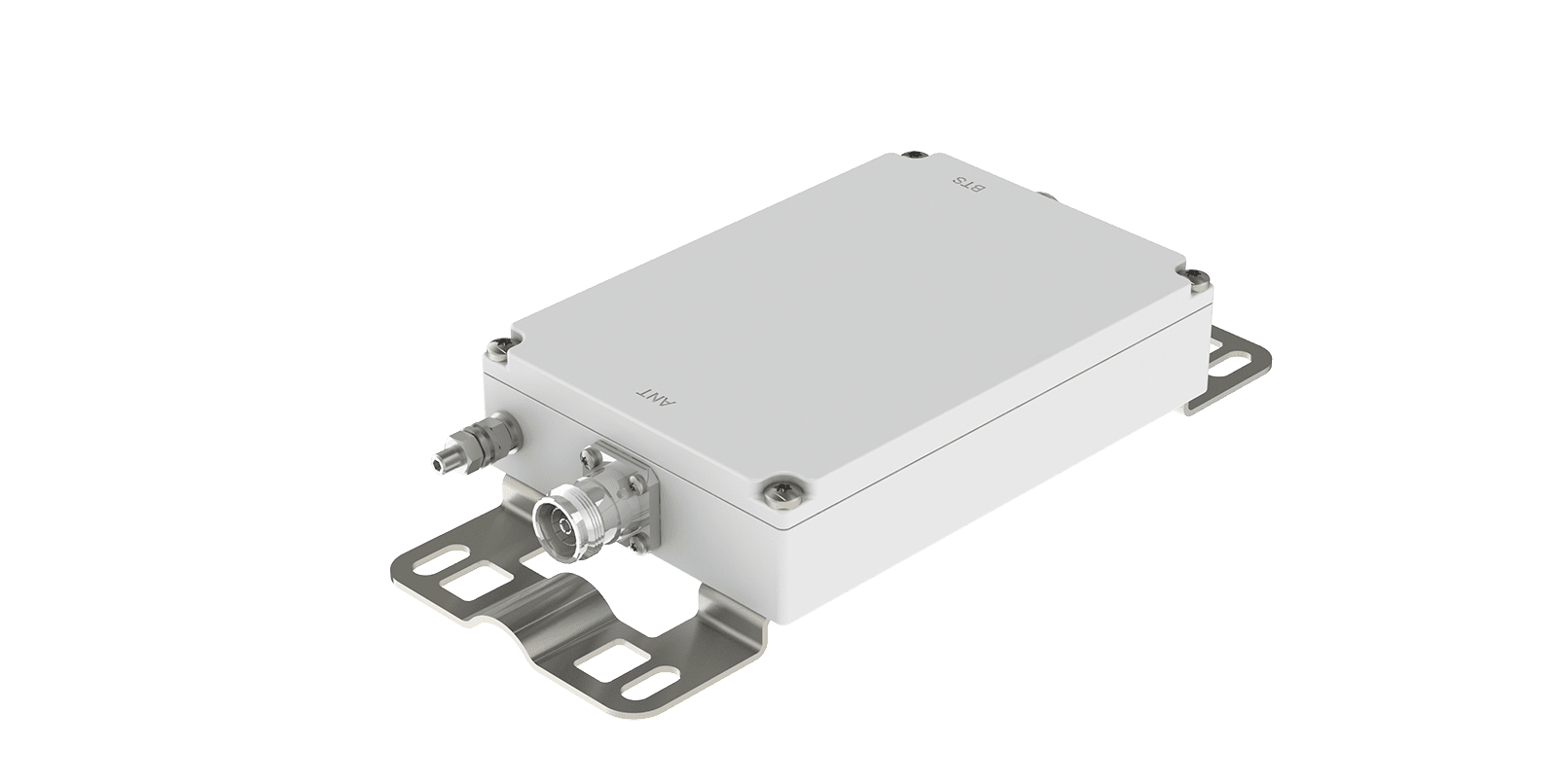

FT-42-400-64F-01, a compact cavity filter featuring low VSWR, high isolation, low insertion loss, and DC bypass, ensuring efficient signal transmission with strong interference suppression. A robust, space-efficient structure enables easy installation and reliable operation in demanding environments. Well-suited for base stations, DAS, and wireless communication infrastructure.
|
Frequency |
3800-4200 MHz |
| Return Loss/VSWR | ≤-18dB/1.3 |
| Insertion Loss | ≤0.9 dB |
| Rejection | ≥70 dB@3300-3700 MHz |
| ≥60 dB@3700-3780 MHz | |
| ≥30 dB@3780-3785 MHz | |
| ≥30 dB@4230-6425 MHz | |
| Power Handling | 100W(average) |
| Group Delay Variation | ≤6 ns within ±0.5 MHz of any frequency within the passband |
| Impedance | 50Ω |
| Operating Temperature Range | -25°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Lightning Protection | 8kA,8/20us |
| Applications | IP67 |

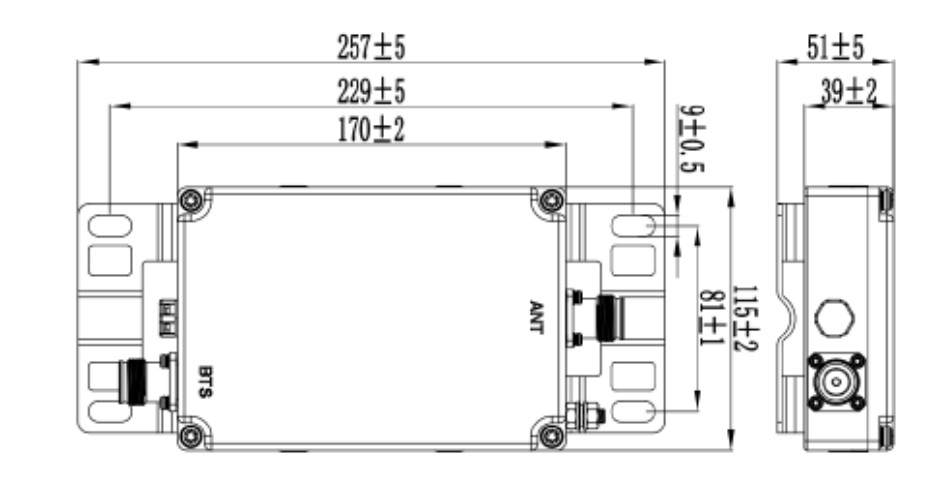

| Dimension | 170x115x39 (mm, excluding brackets and connectors) |
| Weight | ≤1.5kg |
| Connectors Type | 4.3-10 Female |
| Mounting | Wall or pole |
| Packing | 1Pcs in box |
