Low VSWR, high isolation
Low insertion loss
Compact design for easy installation

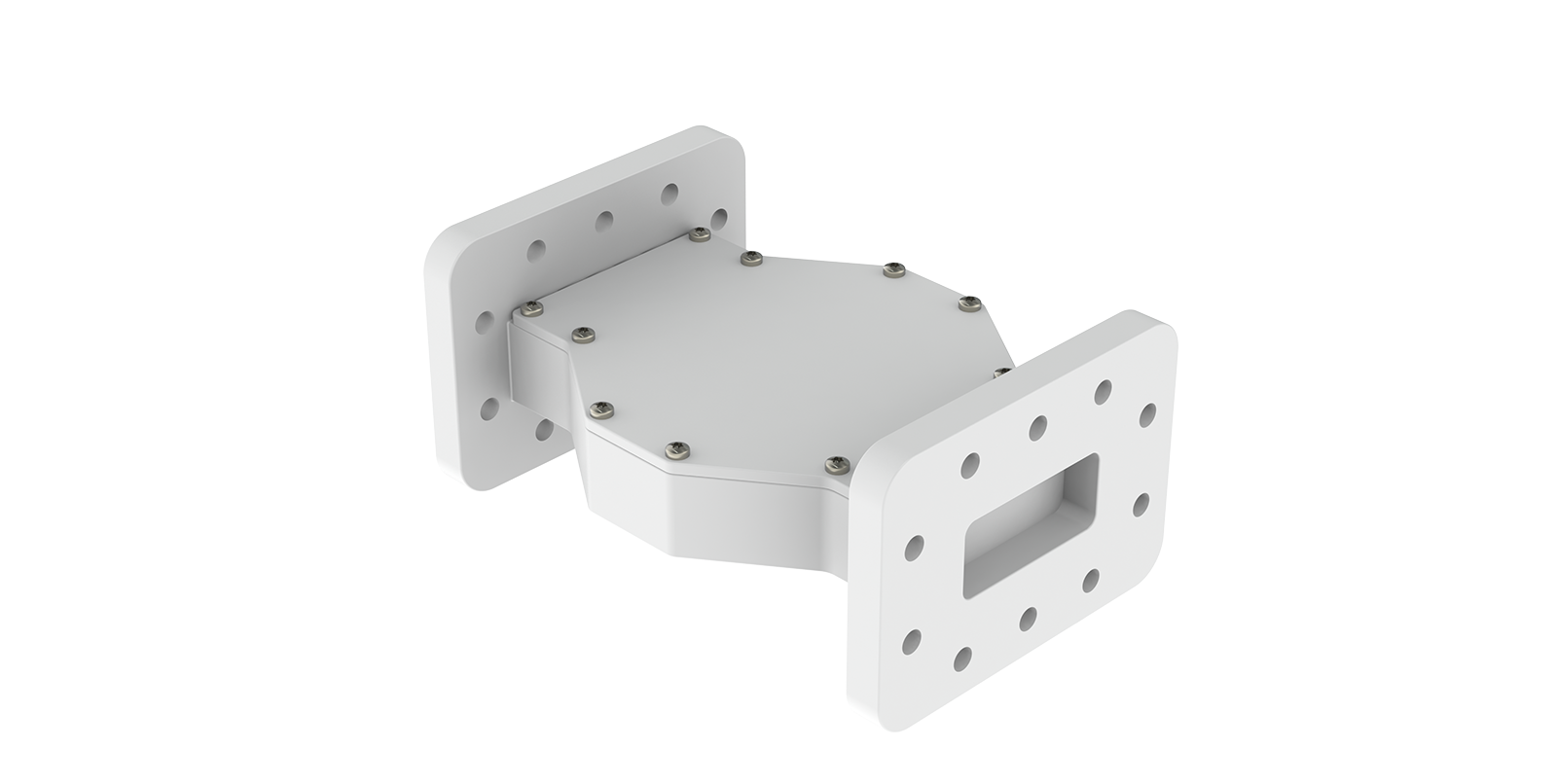

FT-38-60-229-A01, a compact waveguide filter combining low VSWR, high isolation, and low insertion loss for efficient signal transmission and strong interference suppression. Designed with a robust, space-efficient structure enabling easy installation and reliable operation in demanding environments. Ideal for base stations and wireless communication infrastructure.
|
Frequency |
3740-3800 MHz |
| Return Loss/VSWR | ≤-18dB/1.3 |
| Insertion Loss | 0.35dB typ. |
| Insertion Loss Worst Case Full Band | 1.5dB max. |
| Rejection | ≥70 dB@3300-3640 MHz |
| ≥60 dB@3640-3720 MHz | |
| ≥30 dB@3720-3725 MHz | |
| Power Handling | 50W(average) |
| Group Delay Variation | ≤3 ns within ±0.5 MHz of any frequency within the passband |
| Impedance | 50Ω |
| Operating Temperature Range | -30°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%- 95% |
| Applications | IP66 |

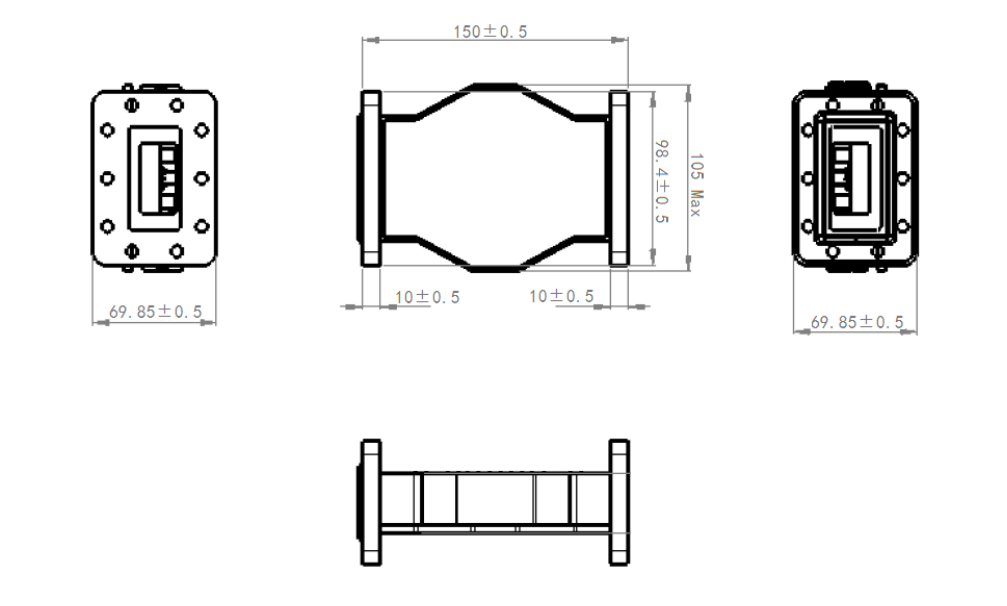

| Dimension | 150x105x69.85 (mm) |
| Weight | ≤1kg |
| Connectors Type | CPR229-G(Input) / CPR229-F(Output) |
| Packing | 1Pcs in box |
